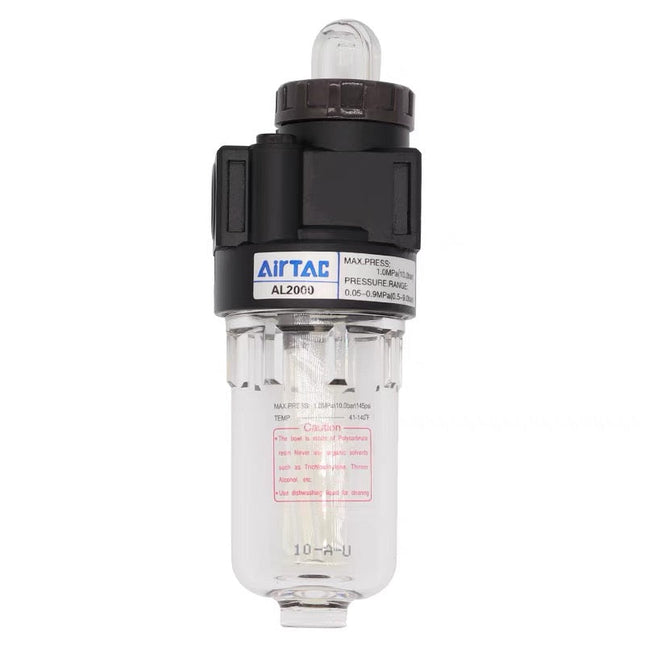

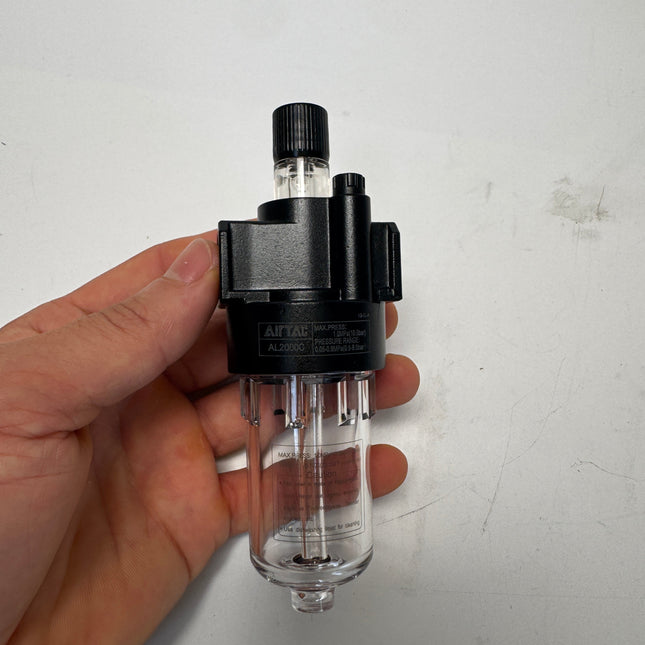

AL / BL Series Lubricator
Product Features
- Compact Structure: Designed with a lightweight and compact profile, making it highly suitable for installations with limited space.
- Visual Inspection: Features a transparent inspection dome that allows for clear, direct observation of the oil drip rate.
- Safety Guard: The BL series comes standard with a high-strength plastic bowl guard, significantly enhancing safety and reliability during operation.
- High Efficiency: Engineered to provide low pressure loss while maintaining a low minimum fogging flow rate, ensuring precise lubrication.
Specifications
| Model | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
|---|---|---|---|---|---|
| Fluid | Air | ||||
| Port Size | PT 1/8" | PT 1/4" | PT 1/4" | PT 3/8" | PT 1/2" |
| Pressure Range | 0.05 ~ 1.0 MPa (7 ~ 145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature Range | -5 ~ 70°C (No freezing) | ||||
| Bowl Capacity | 25 CC | 90 CC | |||
| Recommended Oil | ISO VG 32 or equivalent | ||||
Product Ordering Code
Example: AL 2000 G
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code |
AL: A Series Lubricator BL: B Series Lubricator |
| 2 | Port Size |
1500: 1/8" 2000: 1/4" 3000: 3/8" 4000: 1/2" |
| 3 | Thread Type |
Blank: PT Thread G: G Thread T: NPT Thread |
