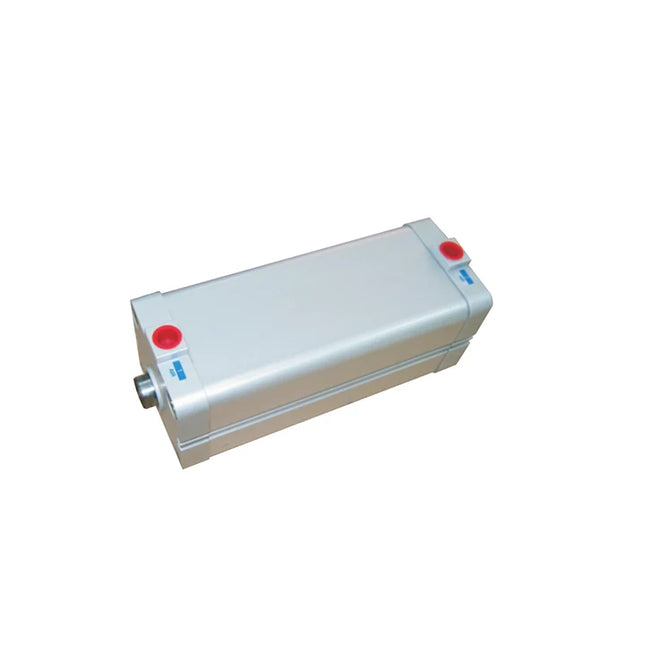

AHK Series Multi-Force Output Cylinder
General Specifications
| Item | Data |
|---|---|
| Cylinder Bore (mm) | 80, 100, 125, 160 |
| Operating Pressure | 0.1 ~ 0.99 MPa (Filtered Dry Air) |
| Lubrication | Not Required |
| Temperature | -5 ~ 60 °C |
| Cylinder Proof Pressure | 1.5 MPa |
| Stroke Tolerance | +1.0 / 0 |
| Acting Type | Double Acting |
Output Force Multiplier
| Multiplier Code | Output Force |
|---|---|
| 2T | 2 Times (Double Force) |
| 3T | 3 Times (Triple Force) |
| 4T | 4 Times (Quadruple Force) |
| 5T | 5 Times (Quintuple Force) |
Ordering Code
AHK - 100 - 20 - F - 5T
| No. | Item | Options / Description |
|---|---|---|
| ① | Model | AHK: Multi-Force Output Cylinder |
| ② | Cylinder Bore |
80: Φ80mm 100: Φ100mm 125: Φ125mm 160: Φ160mm |
| ③ | Total Stroke |
5, 10, 15, 20, 25, 30, 35, 40, 45, 50 (mm) (e.g., 5mm, 10mm... up to 50mm) |
| ④ | Thread Type |
F: Internal Thread (Female) E: External Thread (Male) |
| ⑤ | Output Multiplier |
2T: 2 Times 3T: 3 Times 4T: 4 Times 5T: 5 Times |
Note: AHK series does not come with a magnet standard. If a magnet is required, please order as a non-standard item.
