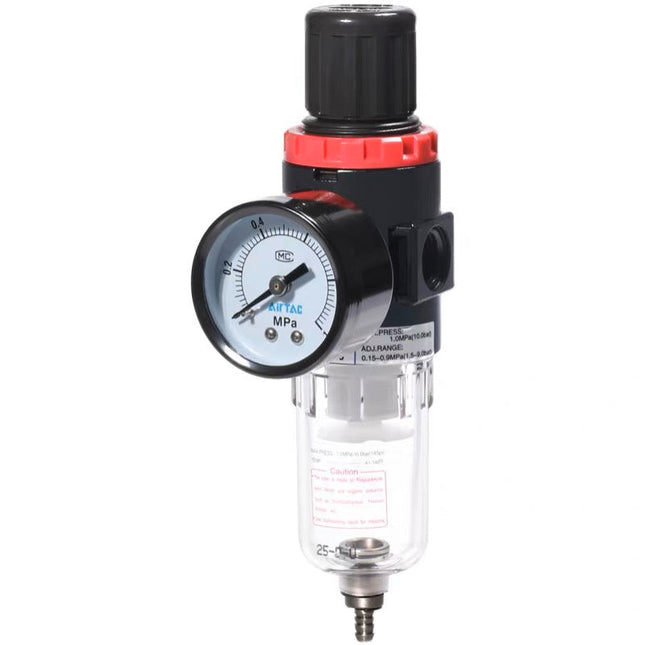

AFR / BFR Series Filter Regulator
Product Features
- Compact & Easy Installation: Lightweight and compact structure makes it convenient for installation and usage.
- Self-locking Mechanism: The pressure adjustment knob features a press-in self-locking mechanism to prevent accidental pressure changes from external interference.
- High Efficiency: Low pressure loss and high water separation efficiency.
- Standard Options: In addition to the standard type, a low-pressure type is available (Max. adjustable pressure 0.4MPa).
Specifications
| Model | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
|---|---|---|---|---|---|
| Fluid | Air | ||||
| Port Size | PT 1/8" | PT 1/4" | PT 1/4" | PT 3/8" | PT 1/2" |
| Filtering Grade | 40μm or 5μm | ||||
| Pressure Range |
Semi-auto/Differential Drain: 0.15 ~ 0.9 MPa (20 ~ 130 psi) Manual Drain: 0.05 ~ 0.9 MPa (7 ~ 130 psi) |
||||
| Max Operating Pressure | 1.0 MPa (145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature Range | -5 ~ 70°C (No freezing) | ||||
| Bowl Capacity | 15 CC | 60 CC | |||
Product Ordering Code
Example: AFR 2000 M - 1 W
Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code |
AFR: A Series Filter Regulator BFR: B Series Filter Regulator |
| 2 | Port Size |
1500: 1/8" 2000: 1/4" 3000: 3/8" 4000: 1/2" |
| 3 | Drain Type |
Blank: Semi-auto / Differential Drain M: Manual Drain A: Automatic Drain |
| 4 | Type Code |
Blank: Standard Type (0.9 MPa) L: Low Pressure Type (0.4 MPa) |
| 5 | Bracket Code |
Blank: With Bracket J: No Bracket |
| 6 | Pressure Gauge |
Blank: With Pressure Gauge N: No Pressure Gauge |
| 7 | Scale Unit |
1: MPa 2: psi 3: bar 4: kgf/cm² & psi |
| 8 | Filtering Grade |
Blank: 40μm W: 5μm |
| 9 | Thread Type |
Blank: PT G: G Thread T: NPT |
