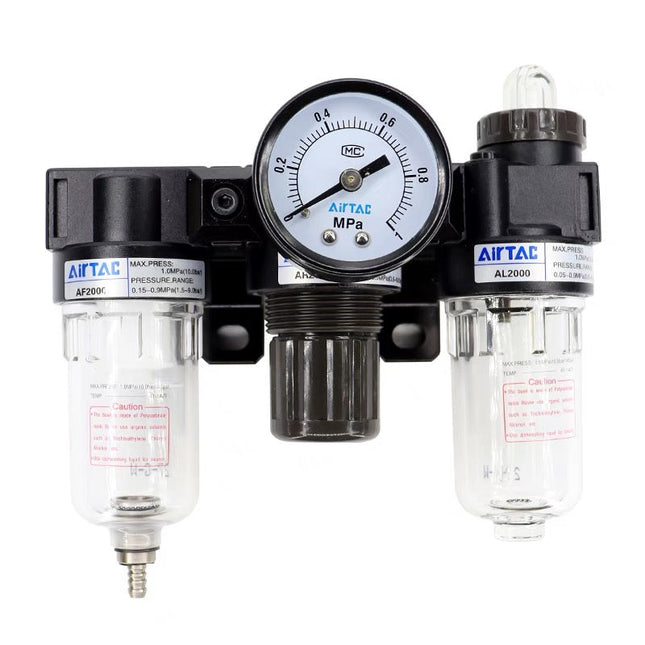

Specifications: BC3000C4 is an AirTAC filter, regulator and lubricator combination with PT 3/8 inlet and outlet connections. It provides 0.15–0.9 MPa adjustable pressure with the pressure gauge specified below. The selected filter grade is 40 µm with semi-automatic drain.
Product Catalog
Download Airtac Product Catalog (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Model Code Explained
Code
Meaning for This Product
BC
filter, regulator and lubricator combination
3000C
3/8-inch ports, C-version body
Blank drain code
Semi-automatic drain
Blank type code
Standard type, maximum adjustable pressure 0.9 MPa
Blank gauge-supply code
Pressure gauge included
4
kgf/cm² and psi pressure-gauge scale
Blank filtering code
40 µm filter element
Blank thread code
PT 3/8 main connections
Product Features
Compact construction for convenient pneumatic air preparation.
The push-in self-locking pressure-adjustment mechanism helps prevent unintended changes to the setting.
The filter separates water and solid particles with low pressure loss and efficient water separation.
The transparent viewing dome allows the oil-drip quantity to be observed directly.
Technical Specifications
Parameter
Details
Current model
BC3000C4
Product function
filter, regulator and lubricator combination
Working medium
Air
Main inlet and outlet
PT 3/8
Adjustable pressure range
0.15–0.9 MPa
Proof pressure
1.5 MPa
Maximum inlet pressure
1.0 MPa
Temperature range
−5 to 70 °C, non-freezing
Selected filtration
40 µm
Drain mode
Semi-automatic drain
Drain-bowl capacity
40 cc
Oil-bowl capacity
60 cc
Recommended lubricant
ISO VG32 or equivalent
Pressure gauge
GS40 circular gauge; kgf/cm² and psi
Gauge connection
PT1/8 in the drawing; this is separate from the selected main-port thread
Weight Reference
Estimated reference weight: 952 g. This C-version estimate uses the catalog weight of the related BC4000 as a reference. It is not an official weight or a measured net weight of this model, and is not a packed shipping weight.
Included Configuration and Compatible Connections
Parameter
Details
Supplied functional assembly
Filter, regulator and lubricator combination. Its component-family references are identified below; the filter/regulator and lubricator are parts of this assembly, not additional items to order to obtain the stated function.
Pressure gauge
Supplied in the shape and scale specified above.
Replacement bowl, filter and service parts
Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities.
Application connection
Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family.
Assembly Components
The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities.
Drawing Reference
Component / Material
1. Filter
BF3000C; constituent-family reference, not a complete separately selected option code
2. Gasket
A/B Series connection gasket
3. Bracket
A/B Series bracket
4. Regulator
BR3000C; constituent-family reference, not a complete separately selected option code
5. Fixing kit
A/B Series fixing kit
6. Screw
Assembly screw
7. Lubricator
BL3000C; constituent-family reference, not a complete separately selected option code
Dimensions and Mounting
Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code.
Parameter
Details
Main connection
PT 3/8 at inlet and outlet
Overall width
207 mm
Overall height shown
170.5 mm
Body-center to top
38 mm
Front local horizontal callouts
73; 12; 9 (mm unless a thread is stated)
Front local vertical callouts
31; 6.5 (mm unless a thread is stated)
Side local horizontal callouts
40; (55.5); 8 (mm unless a thread is stated)
Side circular-body callout
Ø54 (mm unless a thread is stated)
Illustrated gauge diameter
Ø42 (mm unless a thread is stated)
Gauge connection in drawing
PT1/8
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Pressure and Flow Characteristics
Parameter
Details
Flow graph
Flow capacity in L/min versus outlet pressure in MPa.
Printed flow-axis range
0–3000 L/min
Printed outlet-pressure scale
0–0.6 MPa
Flow-graph condition
Inlet pressure 0.7 MPa
Pressure-characteristic graph
Inlet-pressure labels through 0.9 MPa; outlet-pressure labels 0.18–0.22 MPa, around the illustrated 0.20 MPa setting.
Reading the curves
The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF.
Other Series Ordering Choices
These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts.
Parameter
Details
Body/port versions
A Series: 1500C = 1/8 inch, 2000C = 1/4 inch; B Series: 2000C = 1/4 inch, 3000C = 3/8 inch.
Thread options
Blank PT; G; T for NPT. Where a gauge is supplied, PT uses MPa or kgf/cm² and psi, G uses bar, and NPT uses psi.
Drain choices
Blank: semi-automatic. Automatic A is listed for the B Series only. The specification table mentions manual-drain performance but the ordering chart does not give a manual-drain code in this edition.
Pressure type
Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement.
Filter element
Blank: 40 µm; W: 5 µm.
Installation and Catalog Notes
Use the inlet and outlet directions shown on the body and in the dimension drawing. The selected drain mode and drain connection must be accounted for in the installation.
The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit.
Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product.
Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition.
Source: the linked A/B C-version catalog, PDF pages 1–2, printed pages 240–241.
