Description
Series: B series conditioning combination Nozzle caliber: 3/8" Drainage mode: automatic drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: kgf/cm² & psi Filtration accuracy: 5μm level Tooth type: PT tooth
Specifications
1. Model: BC3000CA4W
2. Working medium: air, nozzle diameter: PT3/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)
3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)
4. Water filter cup capacity: 40CC, oil cup capacity: 60CC, recommended lubricating oil: ISO VG32 or equivalent oil
5. Components: filter: BF3000C, pressure regulating valve: BR3000C, oil feeder: BL3000C. The nozzle type includes PT teeth, G teeth and NPT teeth

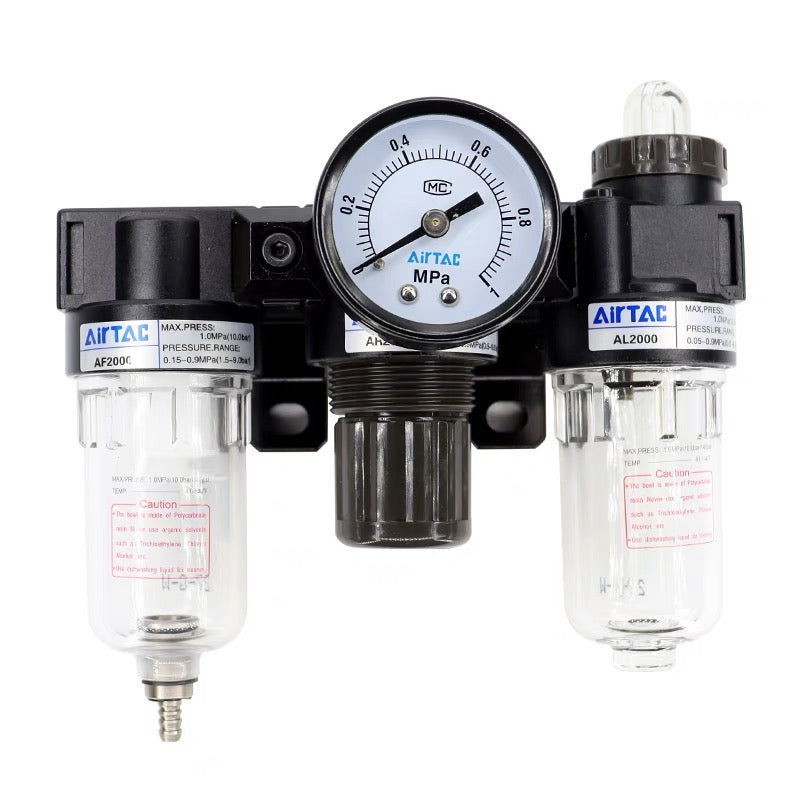

Internal structure: 1.AF, BF series filter/2.A, B series connecting piece/3.A, B series fixing bracket/4.AR, BR series pressure regulating valve/5.A, B series bracket fixing piece/6. Hexagon socket bolt/7.AL, BL series oil feeder
Drainer :AD300B06 Automatic drainer BC Differential pressure drain ， Filter water cup oil cup :BC Plastic protective cover
Click to download Airtac product catalog
Product Features
1. Lightweight and compact structure, easy to install and use.
2. Press-in self-locking mechanism, which can prevent the setting pressure from being disturbed by the outside world;
3. Small pressure loss, high water efficiency.
4. Transparent inspection cover, you can directly observe the size of the oil drop.
5. In addition to the standard form, there are low pressure type to choose from (the highest adjustable pressure 0.4MPa).
