3V100-300

AIRTAC 3V100 Series Solenoid Valve

Product Features
Specifications
Electrical Specifications
Product Ordering Code

Product Features

Pilot operated type; Internal pilot or external pilot type is optional.
Sensitive commutation, good reliability, and fast response.
Double solenoid valves have a memory function.
The internal hole adopts special processing technology, featuring small friction resistance, low starting pressure, and long service life.
No need for lubrication.
Equipped with a manual override, convenient for installation and debugging.
Multiple standard voltage levels are available for selection.
Can be integrated and assembled with the base, saving installation space.

Specifications

Item	3V110-M5	3V120-M5	3V110-06	3V120-06
Working Medium	Air (filtered through 40µm filter or finer)
Operation Type	Internal Pilot or External Pilot Optional
Port Size [Note 1]	M5	M5	PT1/8	PT1/8
Effective Orifice (Cv value) [Note 3]	3V110-06, 3V120-06: 10.2mm² (Cv≈0.6)
Positions	Three-way Two-position
Lubrication [Note 2]	No need
Operating Pressure Range	0.15~0.8MPa (21~114psi)
Proof Pressure	1.2MPa (175psi)
Working Temperature	-20~70°C
Body Material	Aluminum Alloy

[Note 1] G thread and NPT thread are optional for port thread type.
[Note 2] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 3] Effective orifice and Cv value are calculated based on tested flow data.

Electrical Specifications

Item	AC220V	AC110V	AC24V	DC24V	DC12V
Operating Voltage Range	AC: ±15%			DC: ±10%
Power Consumption	3.5VA	3.5VA	4.0VA	2.8W	2.5W
Protection Degree	IP65 (DIN40050)
Insulation Class	B Class
Wiring Form	DIN Socket Type, Lead Wire Type
Excitation Time	Below 0.05 seconds
Maximum Operating Frequency [Note 1]	5 times/second

[Note 1] The maximum operating frequency is for the air condition.

Product Ordering Code

Example Code: 3V 1 10 06 NO A -W

1. Model Code	2. Series Code	3. Electrical Control Type	4. Port Size	5. Initial State	6. Standard Voltage	7. Wiring Form	8. Thread Type Code	9. Pilot Type Code
3V: Three-way Two-position Solenoid Valve	1: 100 Series	10: Single Solenoid, Two Position	M5: M5	NC: Normally Closed Type	A: AC220V	Blank: DIN Socket Type	1/8": 1/8"	Blank: Internal Pilot
		20: Double Solenoid, Two Position	06: 1/8"	NO: Normally Open Type	B: DC24V	I: Lead Wire Type [Note]	Blank: PT Thread	-W: External Pilot
				No Code (for Double Solenoid)	C: AC110V		G: G Thread
					E: AC24V		T: NPT Thread
					F: DC12V		M5: M5

Note: The standard wire length for the lead-wire type is 0.5m.

Show previous products

View options

Airtac 3V310-08-NO : Solenoid valve(3/2 way) - 3V31008NOE

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally open type Standard voltage: AC24V Power connection mode: DIN socket type Tooth type: PT tooth Guide mode: internal guide Specifications 1. Model: 3V31008NOE 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P2 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

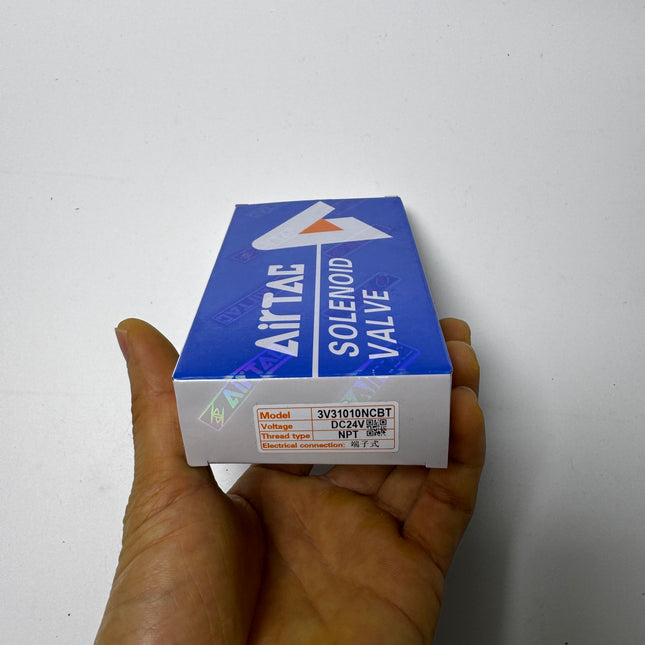

Airtac 3V310-10-NC: Solenoid valve(3/2 way) - 3V31010NCBT-W

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 3/8" Initial state: normally closed Standard voltage: DC24V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: external guide Specifications 1. Model: 3V31010NCBT-W 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guide type or external guide type, nozzle diameter: inlet = outlet = PT3/8 3. Effective cross-sectional area (Cv): 28.0mm²(Cv=1.65), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V310-10-NC: Solenoid valve(3/2 way) - 3V31010NCEG

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 3/8" Initial state: normally closed Standard voltage: AC24V Power connection mode: DIN socket type Tooth type: G tooth Guide mode: internal guide Specifications 1. Model: 3V31010NCEG 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guide type or external guide type, nozzle diameter: inlet = outlet = PT3/8 3. Effective cross-sectional area (Cv): 28.0mm²(Cv=1.65), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V310-08-NC : Solenoid valve(3/2 way) - 3V31008NCFIT

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally closed Standard voltage: DC12V Power connection mode: outlet type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V31008NCFIT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V110-06-NO: Solenoid valve(3/2 way) - 3V11006NOBT

Specifications: three two solenoid valve Series: 100 series Electric control mode: double position single electric control Nozzle caliber: 1/8" Initial state: normally open type Standard voltage: DC24V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V11006NOBT 2. Working medium: air (filtered by filter screen above 40μm), actuation mode: internal guide type or external guide type, nozzle diameter: PT1/8 3. Effective cross-sectional area: 10.2mm²(Cv=0.6), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V110-002-P2 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V100 valve series is a functional replacement for the SMC SYJ300 series.

Read more less

$25.92

View options
View options

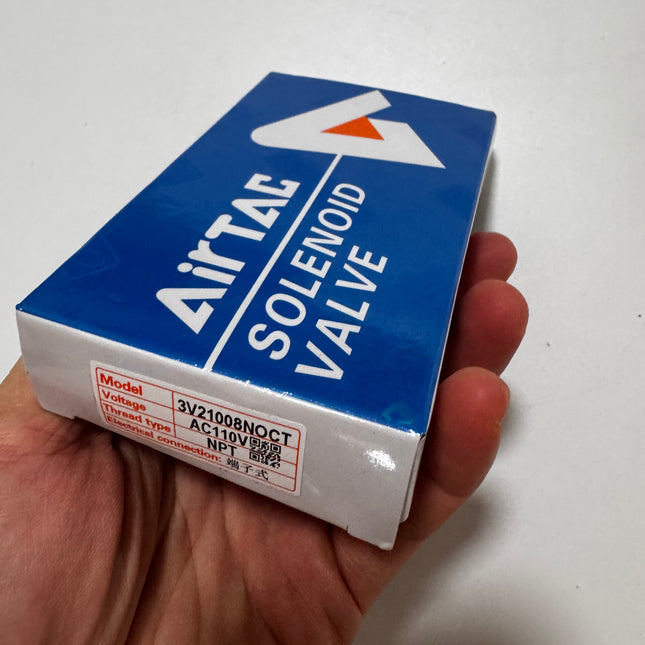

Airtac 3V210-08-NO: Solenoid valve(3/2 way) - 3V21008NOCT

Specifications: three two solenoid valve Series: 200 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally open type Standard voltage: AC110V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V21008NOCT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Effective cross-sectional area (Cv): 17.0mm²(Cv=1.0), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V210-002-P2 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V200 valve series is a functional replacement for the SMC SYJ500 series.

Read more less

$25.92

View options
View options

Airtac 3V310-08-NO : Solenoid valve(3/2 way) - 3V31008NOBT

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally open type Standard voltage: DC24V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V31008NOBT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P2 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V310-08-NO : Solenoid valve(3/2 way) - 3V31008NOFT

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally open type Standard voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V31008NOFT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P2 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V310-10-NC: Solenoid valve(3/2 way) - 3V31010NCAT

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 3/8" Initial state: normally closed Standard voltage: AC220V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V31010NCAT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guide type or external guide type, nozzle diameter: inlet = outlet = PT3/8 3. Effective cross-sectional area (Cv): 28.0mm²(Cv=1.65), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V310-10-NC: Solenoid valve(3/2 way) - 3V31010NCET

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 3/8" Initial state: normally closed Standard voltage: AC24V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V31010NCET 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guide type or external guide type, nozzle diameter: inlet = outlet = PT3/8 3. Effective cross-sectional area (Cv): 28.0mm²(Cv=1.65), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V110-06-NC: Solenoid valve(3/2 way) - 3V11006NCCT

Specifications: three two solenoid valve Series: 100 series Electric control mode: double position single electric control Nozzle caliber: 1/8" Initial state: normally closed Standard voltage: AC110V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V11006NCCT 2. Working medium: air (filtered by filter screen above 40μm), actuation mode: internal guide type or external guide type, nozzle diameter: PT1/8 3. Effective cross-sectional area: 10.2mm²(Cv=0.6), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V110-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V100 valve series is a functional replacement for the SMC SYJ300 series.

Read more less

$25.92

View options
View options

Airtac 3V210-08-NC: Solenoid valve(3/2 way) - 3V21008NCET

Specifications: three two solenoid valve Series: 200 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally closed Standard voltage: AC24V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V21008NCET 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Effective cross-sectional area (Cv): 17.0mm²(Cv=1.0), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V210-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V200 valve series is a functional replacement for the SMC SYJ500 series.

Read more less

$25.92

View options
View options

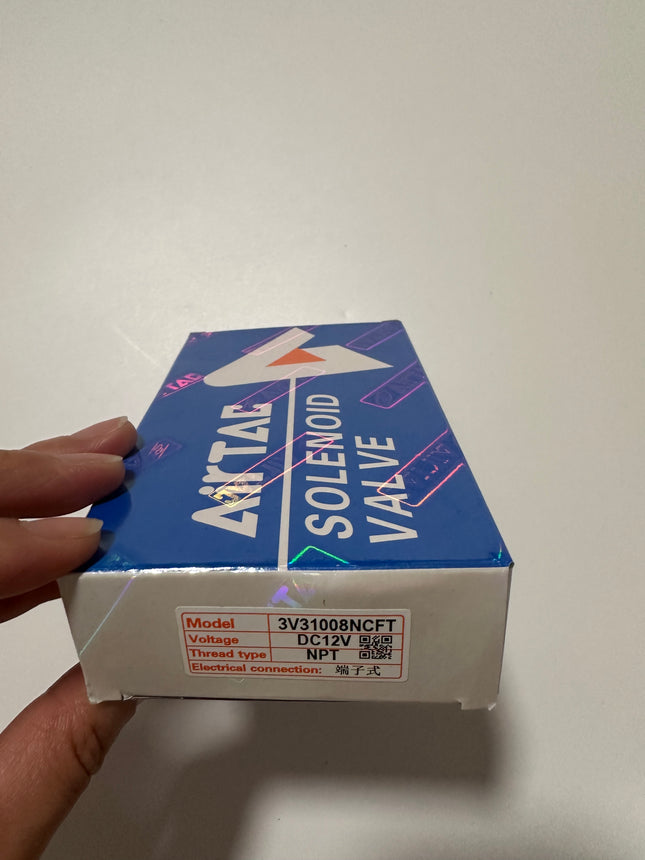

Airtac 3V310-08-NC : Solenoid valve(3/2 way) - 3V31008NCFT

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally closed Standard voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V31008NCFT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V110-06-NC: Solenoid valve(3/2 way) - 3V11006NCFIT

Specifications: three two solenoid valve Series: 100 series Electric control mode: double position single electric control Nozzle caliber: 1/8" Initial state: normally closed Standard voltage: DC12V Power connection mode: outlet type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V11006NCFIT 2. Working medium: air (filtered by filter screen above 40μm), actuation mode: internal guide type or external guide type, nozzle diameter: PT1/8 3. Effective cross-sectional area: 10.2mm²(Cv=0.6), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V110-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V100 valve series is a functional replacement for the SMC SYJ300 series.

Read more less

$25.92

View options
View options

Airtac 3V210-08-NC: Solenoid valve(3/2 way) - 3V21008NCAT

Specifications: three two solenoid valve Series: 200 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally closed Standard voltage: AC220V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V21008NCAT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Effective cross-sectional area (Cv): 17.0mm²(Cv=1.0), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V210-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V200 valve series is a functional replacement for the SMC SYJ500 series.

Read more less

$25.92

View options
View options

Airtac 3V210-08-NC: Solenoid valve(3/2 way) - 3V21008NCF

Specifications: three two solenoid valve Series: 200 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally closed Standard voltage: DC12V Power connection mode: DIN socket type Tooth type: PT tooth Guide mode: internal guide Specifications 1. Model: 3V21008NCF 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Effective cross-sectional area (Cv): 17.0mm²(Cv=1.0), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V210-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V200 valve series is a functional replacement for the SMC SYJ500 series.

Read more less

$25.92

View options
View options

Airtac 3V310-08-NC : Solenoid valve(3/2 way) - 3V31008NCBT

Specifications: three two solenoid valve Series: 300 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally closed Standard voltage: DC24V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V31008NCBT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V310-002-P1 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V300 valve series is a functional replacement for the SMC SYJ700 series.

Read more less

$40.50

View options
View options

Airtac 3V210-08-NO: Solenoid valve(3/2 way) - 3V21008NOFT

Specifications: three two solenoid valve Series: 200 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally open type Standard voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Guide mode: internal guide Specifications 1. Model: 3V21008NOFT 2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4 3. Effective cross-sectional area (Cv): 17.0mm²(Cv=1.0), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi) 4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from. 5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil. 6. The effective cross-sectional area and Cv value are calculated according to the test flow data. Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals Solenoid Valve Spool Accessories :3V210-002-P2 Spool Click to download Airtac product catalog Product Features 1. Pilot guide mode: optional internal or external 2. Sliding column structure: good sealing, sensitive response 3. Three-position solenoid valve has three central functions to choose from 4. Double control solenoid valve with memory function; 5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life 6. No need to lubricate 7. It can form an integrated valve group with the base, saving installation space The Airtac 3V200 valve series is a functional replacement for the SMC SYJ500 series.

Read more less

$25.92

View options
View options

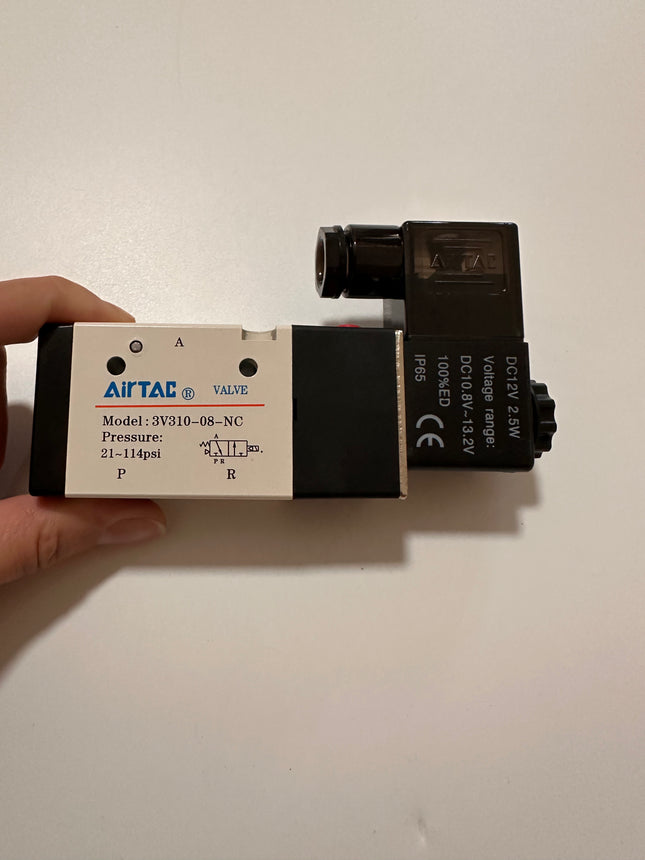

Airtac 3V310-08-NC : Solenoid valve(3/2 way) - 3V31008NCFT-W
