X-KZU Series Vacuum Ejector

Specifications: X-KZU07L. A compact in-line vacuum generator with a 0.7 mm nozzle, -48 kPa maximum vacuum and 6 mm inlet/vacuum tube connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZU Basic in-line vacuum generator 07 Nozzle Ø0.7 mm L High-flow −48 kPa type Technical Specifications Parameter Details Type High flow Nozzle diameter 0.7 mm Maximum vacuum -48 kPa Maximum vacuum flow 21 L/min Air consumption 19 L/min Working medium Air Maximum supply pressure 0.7 MPa Standard supply pressure 0.45 MPa Fluid and ambient temperature 5–60°C Inlet tube outside diameter 6 mm Vacuum tube outside diameter 6 mm Features In-line design requires no dedicated mounting arrangement. Standard quick connections simplify tubing installation. Lightweight resin construction. The standard version is copper-free. Performance Curves The catalog plots separate flow and evacuation-time curves for each 05S, 07S, 05L and 07L model at 0.45 MPa supply. Horizontal axes are vacuum magnitude in kPa; the flow ordinate is L/min and the evacuation ordinate is s/L. High-vacuum flow plots span 0–80 kPa and high-flow plots 0–50 kPa. The evacuation-time graph shows 10–50 kPa for 05S, 10–60 kPa for 07S, and 10–50 kPa for 05L/07L. These are reference curves for the stated supply condition. Dimensions and Mounting Parameter Details Overall length 66 mm Body diameter Ø12.8 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 7 g — catalog reference. Actual supplied weight may vary.

Read more less

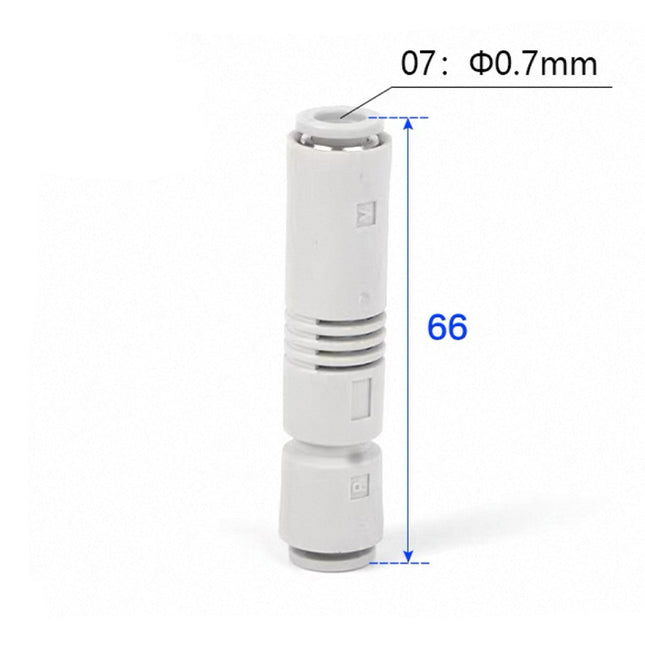

Specifications: X-KZU07S. A compact in-line vacuum generator with a 0.7 mm nozzle, -85 kPa maximum vacuum and 6 mm inlet/vacuum tube connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZU Basic in-line vacuum generator 07 Nozzle Ø0.7 mm S High-vacuum −85 kPa type Technical Specifications Parameter Details Type High vacuum Nozzle diameter 0.7 mm Maximum vacuum -85 kPa Maximum vacuum flow 12 L/min Air consumption 19 L/min Working medium Air Maximum supply pressure 0.7 MPa Standard supply pressure 0.45 MPa Fluid and ambient temperature 5–60°C Inlet tube outside diameter 6 mm Vacuum tube outside diameter 6 mm Features In-line design requires no dedicated mounting arrangement. Standard quick connections simplify tubing installation. Lightweight resin construction. The standard version is copper-free. Performance Curves The catalog plots separate flow and evacuation-time curves for each 05S, 07S, 05L and 07L model at 0.45 MPa supply. Horizontal axes are vacuum magnitude in kPa; the flow ordinate is L/min and the evacuation ordinate is s/L. High-vacuum flow plots span 0–80 kPa and high-flow plots 0–50 kPa. The evacuation-time graph shows 10–50 kPa for 05S, 10–60 kPa for 07S, and 10–50 kPa for 05L/07L. These are reference curves for the stated supply condition. Dimensions and Mounting Parameter Details Overall length 66 mm Body diameter Ø12.8 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 7 g — catalog reference. Actual supplied weight may vary.

Read more less

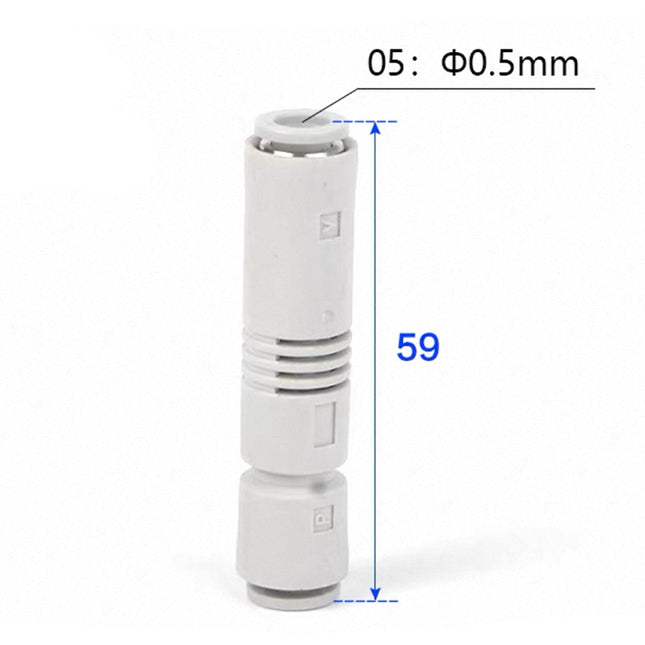

Specifications: X-KZU05S. A compact in-line vacuum generator with a 0.5 mm nozzle, -85 kPa maximum vacuum and 6 mm inlet/vacuum tube connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZU Basic in-line vacuum generator 05 Nozzle Ø0.5 mm S High-vacuum −85 kPa type Technical Specifications Parameter Details Type High vacuum Nozzle diameter 0.5 mm Maximum vacuum -85 kPa Maximum vacuum flow 7 L/min Air consumption 10 L/min Working medium Air Maximum supply pressure 0.7 MPa Standard supply pressure 0.45 MPa Fluid and ambient temperature 5–60°C Inlet tube outside diameter 6 mm Vacuum tube outside diameter 6 mm Features In-line design requires no dedicated mounting arrangement. Standard quick connections simplify tubing installation. Lightweight resin construction. The standard version is copper-free. Performance Curves The catalog plots separate flow and evacuation-time curves for each 05S, 07S, 05L and 07L model at 0.45 MPa supply. Horizontal axes are vacuum magnitude in kPa; the flow ordinate is L/min and the evacuation ordinate is s/L. High-vacuum flow plots span 0–80 kPa and high-flow plots 0–50 kPa. The evacuation-time graph shows 10–50 kPa for 05S, 10–60 kPa for 07S, and 10–50 kPa for 05L/07L. These are reference curves for the stated supply condition. Dimensions and Mounting Parameter Details Overall length 59 mm Body diameter Ø12.8 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 6.5 g — catalog reference. Actual supplied weight may vary.

Read more less

Specifications: X-KZU05L. A compact in-line vacuum generator with a 0.5 mm nozzle, -48 kPa maximum vacuum and 6 mm inlet/vacuum tube connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZU Basic in-line vacuum generator 05 Nozzle Ø0.5 mm L High-flow −48 kPa type Technical Specifications Parameter Details Type High flow Nozzle diameter 0.5 mm Maximum vacuum -48 kPa Maximum vacuum flow 12 L/min Air consumption 10 L/min Working medium Air Maximum supply pressure 0.7 MPa Standard supply pressure 0.45 MPa Fluid and ambient temperature 5–60°C Inlet tube outside diameter 6 mm Vacuum tube outside diameter 6 mm Features In-line design requires no dedicated mounting arrangement. Standard quick connections simplify tubing installation. Lightweight resin construction. The standard version is copper-free. Performance Curves The catalog plots separate flow and evacuation-time curves for each 05S, 07S, 05L and 07L model at 0.45 MPa supply. Horizontal axes are vacuum magnitude in kPa; the flow ordinate is L/min and the evacuation ordinate is s/L. High-vacuum flow plots span 0–80 kPa and high-flow plots 0–50 kPa. The evacuation-time graph shows 10–50 kPa for 05S, 10–60 kPa for 07S, and 10–50 kPa for 05L/07L. These are reference curves for the stated supply condition. Dimensions and Mounting Parameter Details Overall length 59 mm Body diameter Ø12.8 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 6.5 g — catalog reference. Actual supplied weight may vary.

Read more less
