X-KZL1 Series Multi-stage Vacuum Ejector

X-KZL1 Series Multi-stage Vacuum Ejector

  • Product Features
  • Performance Specifications
  • Valve Specifications
  • Ordering Code

Features

  • High Efficiency: Uses a 3-stage diffuser design. Suction flow increases by 250% while air consumption is reduced by 20%.
  • Optional Controls: Available with vacuum supply and vacuum release valves or pressure switches.
  • Maintenance Friendly: Filter element can be easily replaced.
  • Built-in Silencer: Includes a built-in vacuum filter and silencer.
  • Flexible Mounting: Can be mounted from three directions: top, side, and bottom.

Vacuum Specifications

Item Data
Nozzle Diameter Φ1.2 mm
Max Suction Flow 100 l/min
Air Consumption 63 l/min
Max Vacuum -84 kPa
Max Operating Pressure 0.7 MPa
Supply Pressure Range 0.2 ~ 0.5 MPa
Standard Supply Pressure 0.4 MPa
Operating Temperature 5 ~ 50 °C

Supply Valve & Release Valve Specifications

Item Specification
Valve Type Internal Pilot Type N.C. (Normally Closed)
Operating Pressure Range 0.2 ~ 0.5 MPa
Ambient/Fluid Temp 5 ~ 50 °C
Response Time (0.5MPa) 25ms or less
Max Operating Frequency 5 Hz
Manual Operation Non-locking Push Type; Push-Turn Locking Slotted Type
Pilot Exhaust Type Individual Exhaust; Centralized Exhaust
Lubrication Not Required
Mounting Orientation Free
Shock/Vibration Resistance 150 / 30 m/s²
Protection Structure Dust-proof

Ordering Code

X-KZL1 12 □ K1 B L Z □ GN RL5C
No. Item Options / Description
① Model X-KZL1: Multi-stage Vacuum Ejector
② Nozzle Dia. 12: Φ1.2mm
③ Exhaust Spec Blank: Internal Silencer (Built-in)
P: Port Exhaust
④ Exhaust Thread Blank: PT1/2
G: G1/2
T: NPT1/2
⑤ Valve Combination K1: Supply Valve + Release Valve
K2: Supply Valve Only
⑥ Rated Voltage A: AC220V
B: DC24V
C: AC110V/F: DC12V/V: DC6V/S: DC5V/R: DC3V
⑦ Electrical Entry G: Grommet (Lead wire 0.3m)
L: L-Type Plug Connector (Lead wire 0.3m)
⑧ LED & Surge Suppressor Blank: No LED, with Surge Suppressor (DC)
S: With Surge Suppressor (AC)
Z: With LED & Surge Suppressor
⑨ Manual Operation Blank: Non-locking Push Type
D: Push-Turn Locking Slotted Type
⑩ Vacuum Pressure Port Blank: No Port
GN: PT1/8 Vacuum Pressure Detection Port
⑪ Pressure Switch RL5C: -100~100kPa (Vacuum Switch)
RL5C-02: NPN Output (2m Cable)
RL5C-04: PNP Output (2m Cable)
RL5V: -100~0kPa (Vacuum Switch)
RL5V-02: NPN Output (2m Cable)
RL5V-04: PNP Output (2m Cable)
  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PTK2RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PTK2RLZDGNRL5V-04

    Specifications: X-KZL112PTK2RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust T NPT1/2; relevant to port-exhaust configuration K2 Inlet valve only R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection NPT1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $842.28

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112TK2RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112TK2RLZDGNRL5V-04

    Specifications: X-KZL112TK2RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer T NPT1/2; relevant to port-exhaust configuration K2 Inlet valve only R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $807.07

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PGK2RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PGK2RLZDGNRL5V-04

    Specifications: X-KZL112PGK2RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust G G1/2; relevant to port-exhaust configuration K2 Inlet valve only R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection G1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $842.28

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112GK2RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112GK2RLZDGNRL5V-04

    Specifications: X-KZL112GK2RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer G G1/2; relevant to port-exhaust configuration K2 Inlet valve only R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $807.07

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PK2RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PK2RLZDGNRL5V-04

    Specifications: X-KZL112PK2RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust (blank) — exhaust thread PT1/2; relevant to port-exhaust configuration K2 Inlet valve only R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection PT1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $842.28

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112K2RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112K2RLZDGNRL5V-04

    Specifications: X-KZL112K2RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer (blank) — exhaust thread PT1/2; relevant to port-exhaust configuration K2 Inlet valve only R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $807.07

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PTK1RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PTK1RLZDGNRL5V-04

    Specifications: X-KZL112PTK1RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust T NPT1/2; relevant to port-exhaust configuration K1 Inlet and release valves R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection NPT1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,076.00

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112TK1RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112TK1RLZDGNRL5V-04

    Specifications: X-KZL112TK1RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer T NPT1/2; relevant to port-exhaust configuration K1 Inlet and release valves R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,040.79

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PGK1RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PGK1RLZDGNRL5V-04

    Specifications: X-KZL112PGK1RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust G G1/2; relevant to port-exhaust configuration K1 Inlet and release valves R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection G1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,076.00

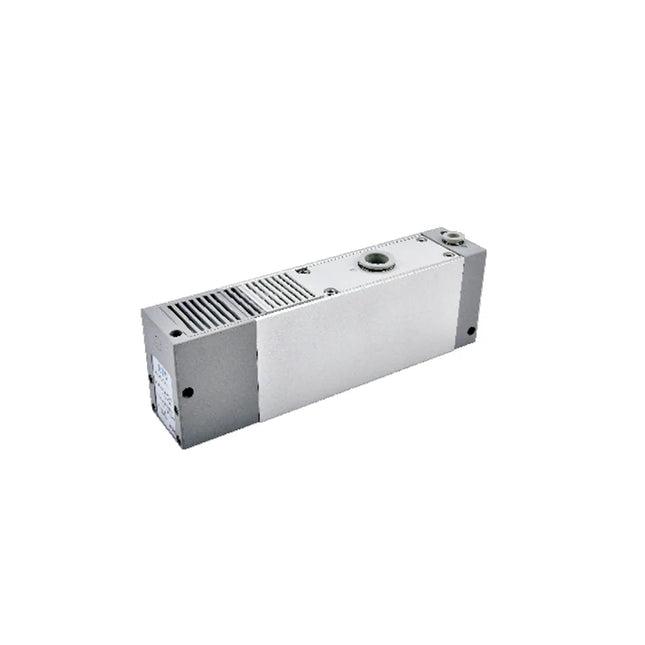

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112GK1RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112GK1RLZDGNRL5V-04

    Specifications: X-KZL112GK1RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer G G1/2; relevant to port-exhaust configuration K1 Inlet and release valves R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,040.79

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PK1RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PK1RLZDGNRL5V-04

    Specifications: X-KZL112PK1RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust (blank) — exhaust thread PT1/2; relevant to port-exhaust configuration K1 Inlet and release valves R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection PT1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,076.00

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112K1RLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112K1RLZDGNRL5V-04

    Specifications: X-KZL112K1RLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer (blank) — exhaust thread PT1/2; relevant to port-exhaust configuration K1 Inlet and release valves R 3 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 3 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,040.79

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PTK2SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PTK2SLZDGNRL5V-04

    Specifications: X-KZL112PTK2SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust T NPT1/2; relevant to port-exhaust configuration K2 Inlet valve only S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection NPT1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $842.28

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112TK2SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112TK2SLZDGNRL5V-04

    Specifications: X-KZL112TK2SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer T NPT1/2; relevant to port-exhaust configuration K2 Inlet valve only S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $807.07

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PGK2SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PGK2SLZDGNRL5V-04

    Specifications: X-KZL112PGK2SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust G G1/2; relevant to port-exhaust configuration K2 Inlet valve only S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection G1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $842.28

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112GK2SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112GK2SLZDGNRL5V-04

    Specifications: X-KZL112GK2SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer G G1/2; relevant to port-exhaust configuration K2 Inlet valve only S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $807.07

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PK2SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PK2SLZDGNRL5V-04

    Specifications: X-KZL112PK2SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust (blank) — exhaust thread PT1/2; relevant to port-exhaust configuration K2 Inlet valve only S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection PT1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $842.28

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112K2SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112K2SLZDGNRL5V-04

    Specifications: X-KZL112K2SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet valve, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer (blank) — exhaust thread PT1/2; relevant to port-exhaust configuration K2 Inlet valve only S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet valve only Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 303.1 g — estimated reference; not an AirTAC published or measured weight.

    $807.07

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PTK1SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PTK1SLZDGNRL5V-04

    Specifications: X-KZL112PTK1SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust T NPT1/2; relevant to port-exhaust configuration K1 Inlet and release valves S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection NPT1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,076.00

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112TK1SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112TK1SLZDGNRL5V-04

    Specifications: X-KZL112TK1SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer T NPT1/2; relevant to port-exhaust configuration K1 Inlet and release valves S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,040.79

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PGK1SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PGK1SLZDGNRL5V-04

    Specifications: X-KZL112PGK1SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust G G1/2; relevant to port-exhaust configuration K1 Inlet and release valves S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection G1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,076.00

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112GK1SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112GK1SLZDGNRL5V-04

    Specifications: X-KZL112GK1SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer G G1/2; relevant to port-exhaust configuration K1 Inlet and release valves S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,040.79

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112PK1SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112PK1SLZDGNRL5V-04

    Specifications: X-KZL112PK1SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm P Port exhaust (blank) — exhaust thread PT1/2; relevant to port-exhaust configuration K1 Inlet and release valves S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element and internal vacuum filter; port-exhaust configuration (P). Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm Exhaust connection PT1/2 Port-exhaust drawing offsets 14 mm and 35 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,076.00

  • Airtac X-KZL112 series: multi-stage vacuum generator - X-KZL112K1SLZDGNRL5V-04

    Airtac X-KZL series: multi-stage vacuum generator - X-KZL112K1SLZDGNRL5V-04

    Specifications: X-KZL112K1SLZDGNRL5V-04. A single-nozzle multi-stage vacuum generator with an inlet and release valve package, 100 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL1 Multi-stage vacuum generator 12 Nozzle diameter 1.2 mm (blank) — exhaust Built-in silencer (blank) — exhaust thread PT1/2; relevant to port-exhaust configuration K1 Inlet and release valves S 5 VDC L L-shaped plug, 0.3 m Z Indicator and surge-protection circuit D Push-turn locking screwdriver operation GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm Maximum vacuum flow 100 L/min Air consumption 63 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package Inlet and release valves Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Three-stage nozzle construction; the catalog describes increased vacuum flow and reduced consumption compared with its reference configuration, without identifying a universal comparison test. Replaceable filter element, internal vacuum filter and silencer. Top, side and bottom mounting are available. The generator can be configured with valves, a vacuum gauge or a pressure switch; only the current order selections above are assigned to this item. Selected Inlet / Release Valve Specifications Parameter Details Function Internally piloted, normally closed Operating pressure 0.2–0.5 MPa Ambient and fluid temperature 5–50°C Response time 25 ms or less at 0.5 MPa Maximum operating frequency 5 Hz Pilot exhaust Individual-exhaust and centralized-exhaust arrangements are shown Lubrication Not required Mounting orientation Unrestricted Shock / vibration resistance 150 / 30 m/s² Protection Dustproof Coil voltage 5 VDC Electrical lead 0.3 m; L-shaped plug Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 100 L/min; the evacuation chart spans 10–80 kPa with time labels through 4 s/L. Curves are reference data for the stated test condition. The K1 assembly drawing identifies a vacuum-release flow-adjustment needle valve. K2 selects only the inlet valve and does not include that release-valve function. Dimensions and Mounting Parameter Details Standard body length 175 mm Body width 56 mm Body depth 36 mm Mounting pitch 166 mm Through mounting holes 2 × Ø5.5 mm Edge offset 4.5 mm Vacuum-port location callout 117 mm Right-hand length callout 50 mm GN vacuum detection connection PT1/8 GN projection callout 7 mm GN/RL5 assembled width 87 mm Valve assembly mounting 4 × M4, 10 mm deep Longitudinal mounting callouts 54 mm and 85 mm Vacuum quick connection Tube outside diameter 12 mm Supply quick connection Tube outside diameter 6 mm Side mounting span 166 mm Side height callout 30 mm Upper offset 8.5 mm Small end-face callout 16 mm Valve-end vertical offset 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 333.1 g — estimated reference; not an AirTAC published or measured weight.

    $1,040.79
