X-KZFC Series Vacuum Filter

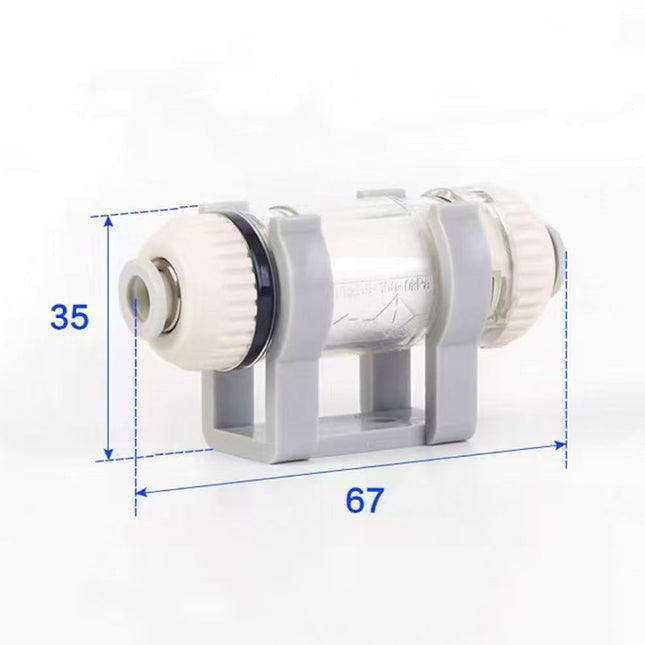

Specifications: X-KZFC20008B. An in-line vacuum filter for 8 mm outside-diameter tube, supplied with a bracket and a replaceable 10 μm element. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZFC Vacuum filter 200 Flow class: maximum 50 L/min 08 Tube outside diameter 8 mm B With mounting bracket Technical Specifications Parameter Details Working media Air and nitrogen Vacuum pressure range −100 to 0 kPa Flow for this tube connection 50 L/min Filter rating 10 μm Ambient and fluid temperature 0–60°C; no freezing Element differential-pressure resistance 0.15 MPa Tube outside diameter 8 mm Compatible tube materials Nylon, soft nylon, polyurethane and extra-soft polyurethane Mounting Bracket included Features and Service Compact in-line construction with inlet and outlet on the same axis. Direct push-in tubing connections simplify installation. The replaceable element can be changed using the quick disassembly structure without tools. The 100 ordering class means up to 20 L/min and the 200 class up to 50 L/min; the exact tube-size performance is the value stated above. Dimensions and Mounting Parameter Details A 67 mm B 15.5 mm C 34 mm D 17.5 mm E 14 mm F 22 mm G 15.6 mm H 23.1 mm I 27 mm J 24 mm K 35 mm L 8 mm Mounting holes 2 × Ø4.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 15.2 g — estimated reference; not an AirTAC published or measured weight.

Read more less

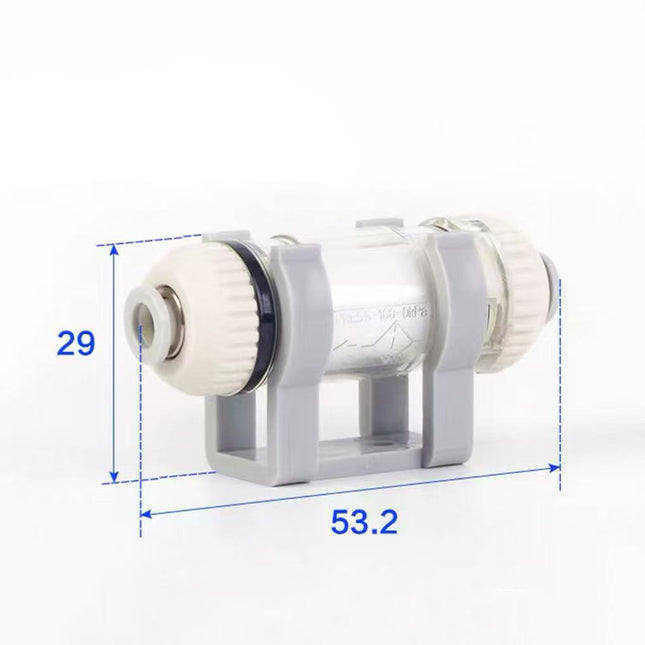

Specifications: X-KZFC10004B. An in-line vacuum filter for 4 mm outside-diameter tube, supplied with a bracket and a replaceable 10 μm element. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZFC Vacuum filter 100 Flow class: maximum 20 L/min 04 Tube outside diameter 4 mm B With mounting bracket Technical Specifications Parameter Details Working media Air and nitrogen Vacuum pressure range −100 to 0 kPa Flow for this tube connection 10 L/min Filter rating 10 μm Ambient and fluid temperature 0–60°C; no freezing Element differential-pressure resistance 0.15 MPa Tube outside diameter 4 mm Compatible tube materials Nylon, soft nylon, polyurethane and extra-soft polyurethane Mounting Bracket included Features and Service Compact in-line construction with inlet and outlet on the same axis. Direct push-in tubing connections simplify installation. The replaceable element can be changed using the quick disassembly structure without tools. The 100 ordering class means up to 20 L/min and the 200 class up to 50 L/min; the exact tube-size performance is the value stated above. Dimensions and Mounting Parameter Details A 53.2 mm B 9.1 mm C 30 mm D 14.1 mm E 10 mm F 18 mm G 11.6 mm H 19.5 mm I 23 mm J 20 mm K 29 mm L 4 mm Mounting holes 2 × Ø4.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 8.5 g — estimated reference; not an AirTAC published or measured weight.

Read more less

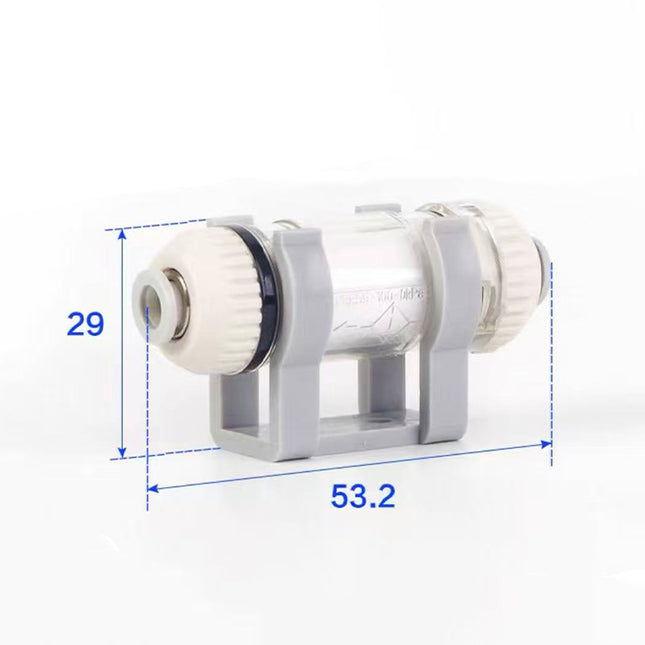

Specifications: X-KZFC10006B. An in-line vacuum filter for 6 mm outside-diameter tube, supplied with a bracket and a replaceable 10 μm element. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZFC Vacuum filter 100 Flow class: maximum 20 L/min 06 Tube outside diameter 6 mm B With mounting bracket Technical Specifications Parameter Details Working media Air and nitrogen Vacuum pressure range −100 to 0 kPa Flow for this tube connection 20 L/min Filter rating 10 μm Ambient and fluid temperature 0–60°C; no freezing Element differential-pressure resistance 0.15 MPa Tube outside diameter 6 mm Compatible tube materials Nylon, soft nylon, polyurethane and extra-soft polyurethane Mounting Bracket included Features and Service Compact in-line construction with inlet and outlet on the same axis. Direct push-in tubing connections simplify installation. The replaceable element can be changed using the quick disassembly structure without tools. The 100 ordering class means up to 20 L/min and the 200 class up to 50 L/min; the exact tube-size performance is the value stated above. Dimensions and Mounting Parameter Details A 53.2 mm B 9.1 mm C 30 mm D 14.1 mm E 10 mm F 18 mm G 11.6 mm H 19.5 mm I 23 mm J 20 mm K 29 mm L 6 mm Mounting holes 2 × Ø4.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 8.5 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZFC20006B. An in-line vacuum filter for 6 mm outside-diameter tube, supplied with a bracket and a replaceable 10 μm element. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZFC Vacuum filter 200 Flow class: maximum 50 L/min 06 Tube outside diameter 6 mm B With mounting bracket Technical Specifications Parameter Details Working media Air and nitrogen Vacuum pressure range −100 to 0 kPa Flow for this tube connection 30 L/min Filter rating 10 μm Ambient and fluid temperature 0–60°C; no freezing Element differential-pressure resistance 0.15 MPa Tube outside diameter 6 mm Compatible tube materials Nylon, soft nylon, polyurethane and extra-soft polyurethane Mounting Bracket included Features and Service Compact in-line construction with inlet and outlet on the same axis. Direct push-in tubing connections simplify installation. The replaceable element can be changed using the quick disassembly structure without tools. The 100 ordering class means up to 20 L/min and the 200 class up to 50 L/min; the exact tube-size performance is the value stated above. Dimensions and Mounting Parameter Details A 67 mm B 15.5 mm C 34 mm D 17.5 mm E 14 mm F 22 mm G 15.6 mm H 23.1 mm I 27 mm J 24 mm K 35 mm L 6 mm Mounting holes 2 × Ø4.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 15.2 g — estimated reference; not an AirTAC published or measured weight.
