US98A, UE95A Series Tubing
Product Features
- Made with 100% high-purity thermoplastic elastomer, adhering to RoHS environmental standards.
- Excellent flexibility: The small bending radius allows the PU coil hose to pass through tight spaces.
- Durable, with a long service life and resistant to yellowing.
- Resistant to hydrolysis: Can be used in humid environments and has excellent water resistance.
- Anti-wear: More wear-resistant than PA and PE tubes, suitable for environments with frequent friction.
- Low permeability, reduces hardening and air pollution issues.
- Good low-temperature performance, maintains good flexibility even in cold climates.
- Excellent chemical resistance, maintains original physical properties.
- Suitable for water, air, and oil.
Note: Avoid using in environments with strong acid-base chemicals, organic solvents, seawater, cleaning agents, flammable gas media, or other media. PU hoses may exhibit yellowing, cracking, or other phenomena, especially in harsh industrial environments.
Specifications
Standard Pressure Type
| Model [Note 1] | OD (mm) | ID (mm) | Wall (mm) | Length (m) | Working Pressure 23°C (MPa) [Note 2] | Burst Pressure 23°C (MPa) | Bending Radius (mm) | Weight /100m (kg) | Working Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| US98A032020[] | 3.2 | 2.0 | 0.60 | 100/200 | 1.0 | 3.0 | 8 | 0.60 | -20~70 |

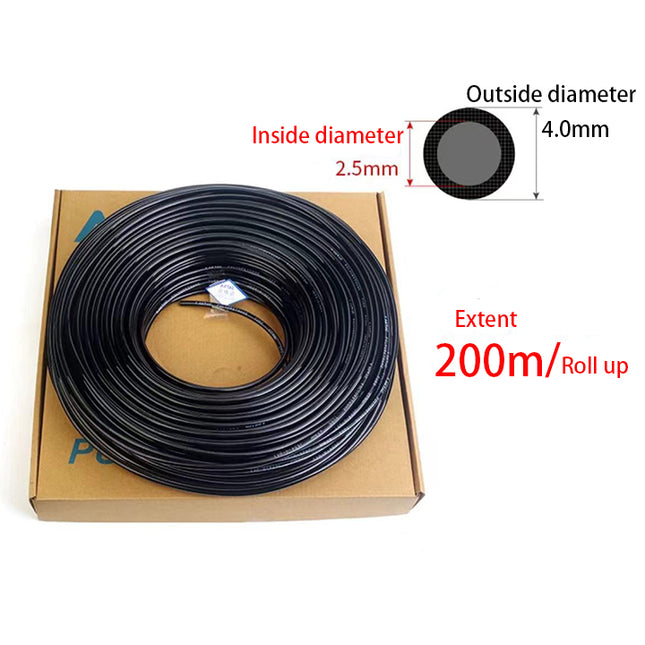

| US98A040025[] | 4.0 | 2.5 | 0.75 | 100/200 | 1.0 | 3.0 | 10 | 0.94 | |
| US98A060040[] | 6.0 | 4.0 | 1.00 | 100/200 | 1.0 | 3.0 | 15 | 1.93 | |
| US98A080050[] | 8.0 | 5.0 | 1.50 | 100 | 1.0 | 3.0 | 20 | 3.66 | |
| US98A100065[] | 10.0 | 6.5 | 1.75 | 100 | 1.0 | 3.0 | 25 | 5.44 | |

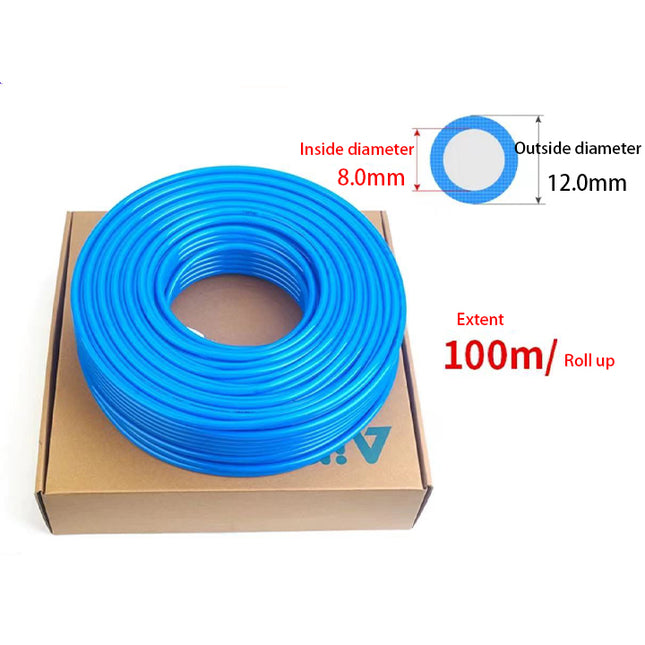

| US98A120080[] | 12.0 | 8.0 | 2.00 | 100 | 1.0 | 3.0 | 35 | 7.56 | |
| US98A160110[] | 16.0 | 11.0 | 2.50 | 100 | 1.0 | 3.0 | 80 | 10.03 | |
| UE95A032020[][] | 3.2 | 2.0 | 0.60 | 20/100/200 | 1.0 | 2.5 | 8 | 0.60 | -40~70 |
| UE95A040025[][] | 4.0 | 2.5 | 0.75 | 20/100/200 | 1.0 | 2.5 | 8 | 0.94 | |
| UE95A060040[][] | 6.0 | 4.0 | 1.00 | 20/100/200 | 1.0 | 2.5 | 12 | 1.91 | |
| UE95A080050[][] | 8.0 | 5.0 | 1.50 | 20/100 | 1.0 | 2.5 | 17 | 3.58 | |

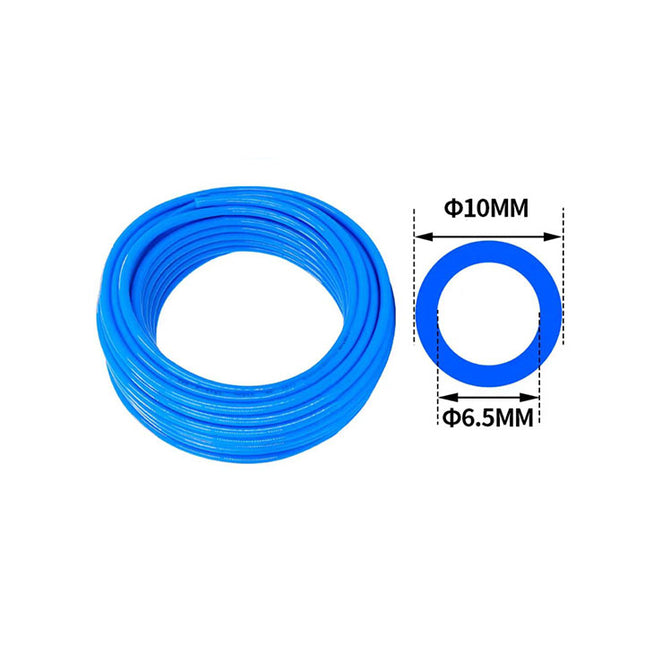

| UE95A100065[][] | 10.0 | 6.5 | 1.75 | 20/100 | 1.0 | 2.5 | 20 | 5.32 | |

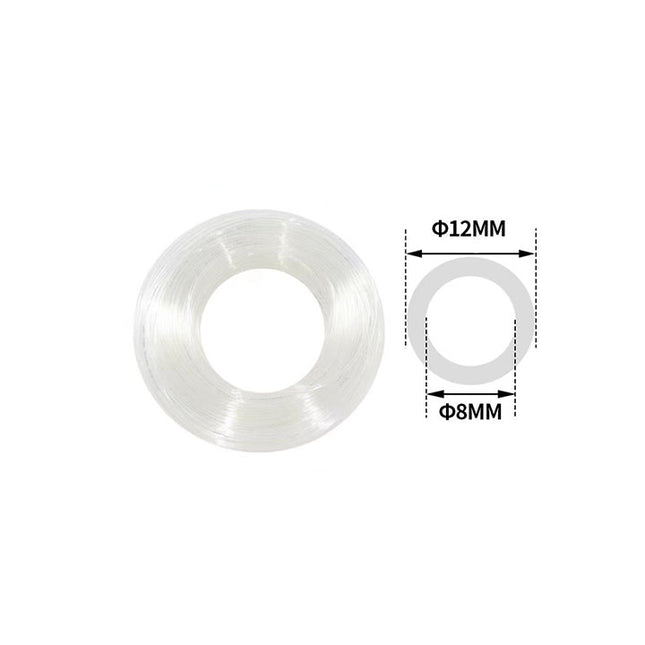

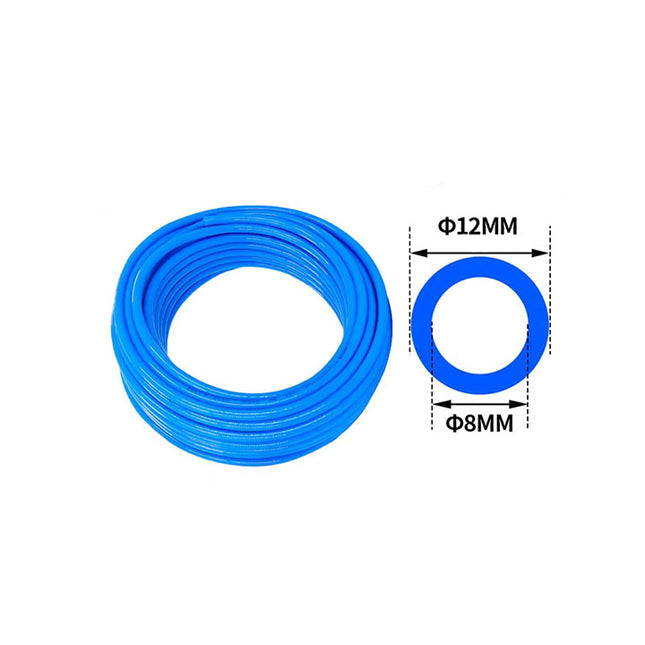

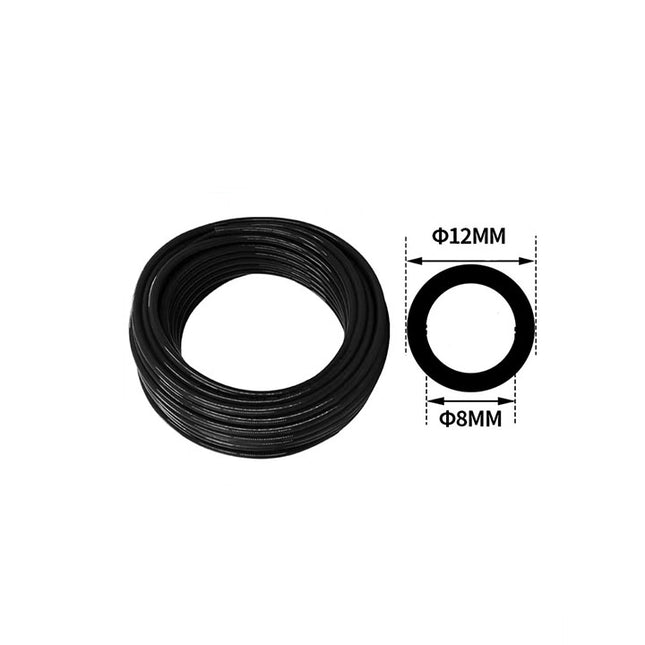

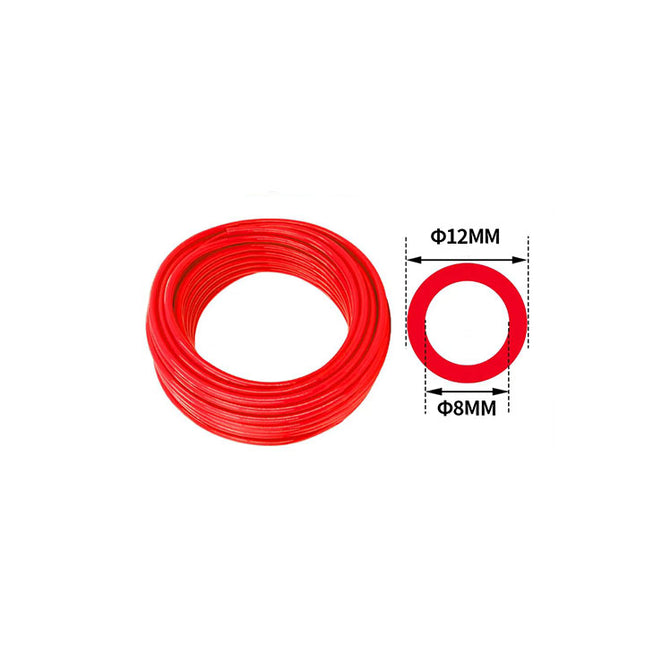

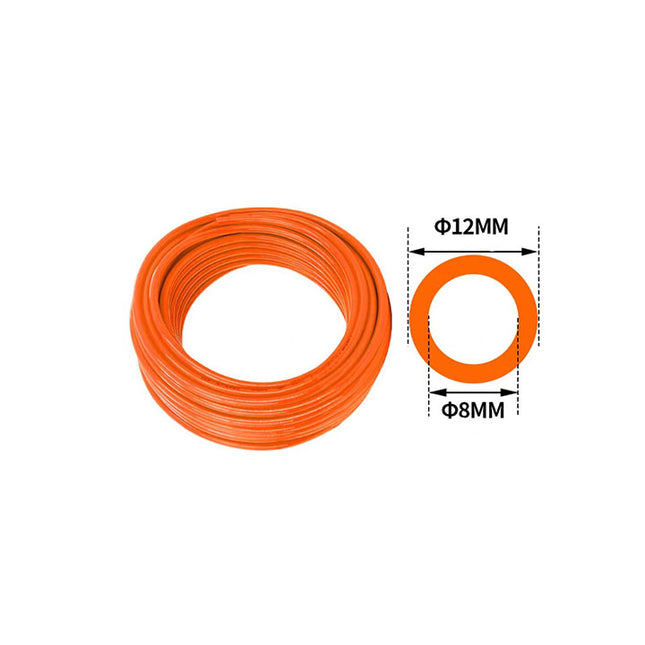

| UE95A120080[][] | 12.0 | 8.0 | 2.00 | 20/100 | 1.0 | 2.5 | 30 | 7.27 |
Low Pressure Type
| Model [Note 1] | OD (mm) | ID (mm) | Wall (mm) | Length (m) | Working Pressure 23°C (MPa) [Note 2] | Burst Pressure 23°C (MPa) | Bending Radius (mm) | Weight /100m (kg) | Working Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| US98A080055[] | 8.0 | 5.5 | 1.25 | 100 | 0.8 | 2.0 | 20 | 3.25 | -20~70 |
| US98A080060[] | 8.0 | 6.0 | 1.00 | 100 | 0.4 | 1.5 | 25 | 2.70 | |
| US98A100080[] | 10.0 | 8.0 | 1.00 | 100 | 0.4 | 1.5 | 40 | 3.47 | |
| US98A120100[] | 12.0 | 10.0 | 1.00 | 100 | 0.4 | 1.5 | 60 | 4.24 | |
| US98A160120[] | 16.0 | 12.0 | 2.00 | 100 | 0.4 | 2.0 | 80 | 8.32 | |
| UE95A080055[][] | 8.0 | 5.5 | 1.25 | 20/100 | 0.8 | 1.5 | 17 | 3.18 | -40~70 |
Note 1: In the model number, "[]" represents the ordering code, and "[]" represents the color code.
Note 2: The working pressure is 1/3 of the burst pressure as a safety factor.
Note 2: The working pressure is 1/3 of the burst pressure as a safety factor.
Product Ordering Code
| 1. Model Code | 2. OD Code | 3. ID Code | 4. Length Code | 5. Color Code [Note 1] |
|---|---|---|---|---|
| US98A: Polyether, Hardness 98A ± 2 |
032: Ø3.2mm 040: Ø4.0mm 060: Ø6.0mm 080: Ø8.0mm 100: Ø10.0mm 120: Ø12.0mm 160: Ø16.0mm |
020: Ø2.0mm 025: Ø2.5mm 040: Ø4.0mm 050: Ø5.0mm 055: Ø5.5mm 060: Ø6.0mm 065: Ø6.5mm 080: Ø8.0mm 100: Ø10.0mm 110: Ø11.0mm 120: Ø12.0mm |
100M: 100m/roll 200M: 200m/roll |

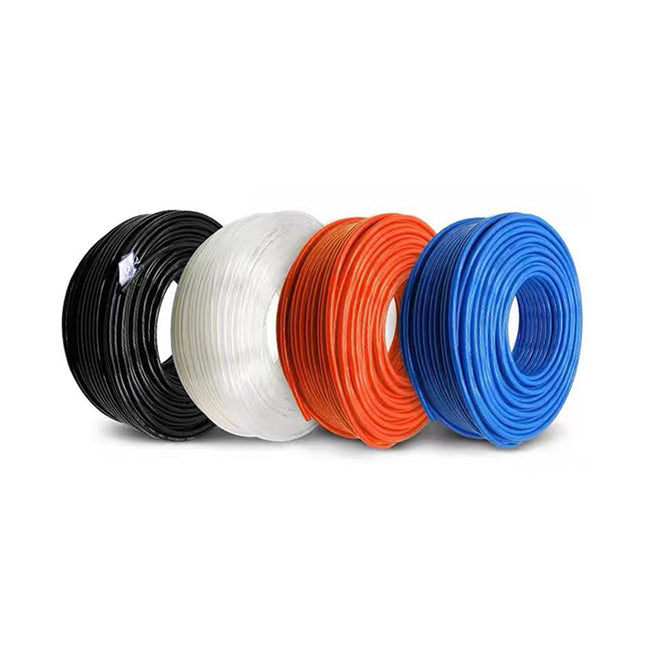

BU: Blue BK: Black GE: Orange C: Transparent WH: White CB: Transparent Blue R: Red Y: Yellow GA: Gray GN: Green BR: Brown CR: Transparent Red CG: Transparent Green CY: Transparent Yellow CE: Transparent Orange |
| UE95A: Polyester, Hardness 95A ± 2 |
032: Ø3.2mm 040: Ø4.0mm 060: Ø6.0mm 080: Ø8.0mm 100: Ø10.0mm 120: Ø12.0mm |
020: Ø2.0mm 025: Ø2.5mm 040: Ø4.0mm 050: Ø5.0mm 055: Ø5.5mm 065: Ø6.5mm 080: Ø8.0mm |
20M: 20m/roll 100M: 100m/roll 200M: 200m/roll |
|
Note 1: Standard colors for low-pressure models are nine types: transparent, transparent blue, orange, black, white, red, yellow, and gray.
