SUS316 All Stainless Steel Fittings

High-Temperature & Corrosion Resistant Pneumatic Fittings

Product Features
Specifications
Ordering Code & Models

Product Features

Premium Material: The main body, collet, and release sleeve are fully constructed from high-quality SUS316 stainless steel, offering superior structural strength and longevity.
Exceptional Corrosion Resistance: Highly resistant to aggressive chemicals, making them perfectly suited for food processing, medical equipment, chemical plants, and marine environments.
High Temp & Pressure Tolerant: Engineered to securely withstand significantly higher temperatures and operating pressures compared to standard plastic or brass fittings.
Wide Fluid Compatibility: Designed for versatile use with compressed air, water, steam, and various chemical fluids compatible with SUS316 and FKM materials.
Comprehensive Range: Available in a wide variety of configurations, including standard push-in, threaded, and compression styles to meet all complex piping requirements.

Technical Specifications

Specification Item	Description / Parameters
Body & Collet Material	SUS316 Stainless Steel
Seal Material	FKM (Viton) Standard
Operating Fluid	Air, Water, Steam, Chemicals (must be compatible with SUS316 & FKM)
Operating Pressure	-100 kPa ~ 3.0 MPa (Maximum pressure depends on tubing material)
Proof Pressure	Check specific model rating (Generally high tolerance)
Ambient & Fluid Temp.	-20°C ~ 150°C (Unfrozen state)
Applicable Tubing	PU, Nylon, Teflon (FEP/PFA)

Product Ordering & Model Guide

Series Prefix: X-S6 (Designates SUS316 Series)

1. Tube-to-Tube Series (Push-in)

Example: X-S6-PE 10 (Union Tee, 10mm OD)

Model Code	Description	Tube O.D. I (mm)	Tube O.D. II (mm) [If Reducer]
PE	Union Tee	4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm 14: Φ14mm 16: Φ16mm	(For Reducer Types Only) 4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm 14: Φ14mm
PV	Union Elbow

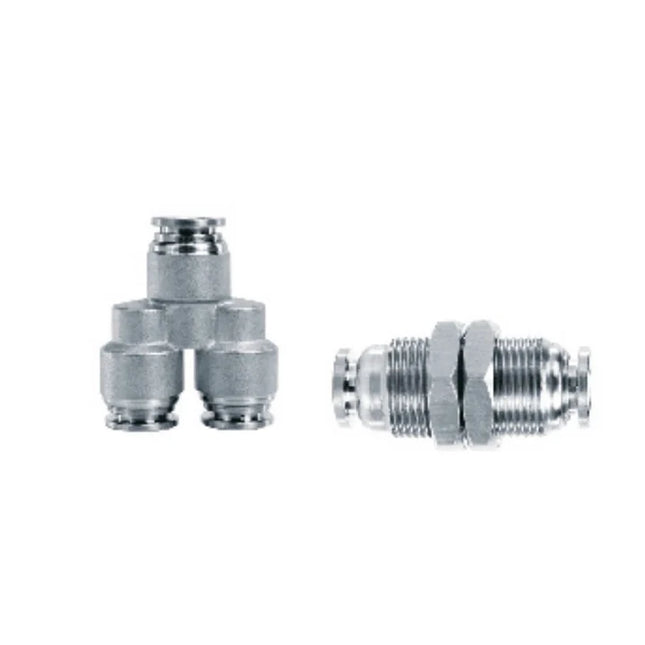

PY	Union Y
PM	Bulkhead Union
PU	Union Straight
PP	Plug
PGJ	Plug-in Reducer
PEG	Reducer Tee
PWY	Reducer Y
PG	Union Reducer

2. L Series (Compression / Nut Type)

Example: X-S6-LPL 10 X 8 02

Model Code	Description	Tube O.D. (mm)	Thread Size
LPN	Cap / Nut	4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm	Metric Thread: M5: M5 x 0.8 PT (R) Thread: 01: 1/8" 02: 1/4" 03: 3/8" 04: 1/2"
LPE	Union Tee
LPU	Union Straight
LPV	Union Elbow
LPL	Male Elbow
LPC	Male Connector
LPB	Male Branch Tee

3. Threaded Push-in Series

Example: X-S6-PC 10 02

Model Code	Description	Tube O.D. (mm)	Thread Size
PC	Male Connector	4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm 14: Φ14mm 16: Φ16mm	Metric Thread: M5: M5 x 0.8 PT (R) Thread: 01: 1/8" 02: 1/4" 03: 3/8" 04: 1/2"
PCF	Female Connector
POC	Hex Socket Male Straight
PH	Male Elbow (Hex Body)
PL	Male Elbow (Swivel)
PEB	Male Branch Tee
PLF	Female Elbow
PSA	Speed Controller

View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB10X804

Specifications: X-S6-LPB10X804 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 10 10 mm tube outside diameter X8 8 mm tube inside diameter 04 1/2 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 10 mm OD × 8 mm ID Process thread 1/2 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 61 mm L2 35 mm L3 12.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 103 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 61 mm and a 16 mm section reference from the matching retaining-nut size. Internal voids use the 8 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$31.65

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB10X803

Specifications: X-S6-LPB10X803 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 10 10 mm tube outside diameter X8 8 mm tube inside diameter 03 3/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 10 mm OD × 8 mm ID Process thread 3/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 61 mm L2 31 mm L3 10.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 103 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 61 mm and a 16 mm section reference from the matching retaining-nut size. Internal voids use the 8 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$31.65

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB12X1004

Specifications: X-S6-LPB12X1004 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 12 12 mm tube outside diameter X10 10 mm tube inside diameter 04 1/2 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 12 mm OD × 10 mm ID Process thread 1/2 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 68 mm L2 34 mm L3 12.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 156 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 68 mm and a 19 mm section reference from the matching retaining-nut size. Internal voids use the 10 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$39.05

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB6X4M5

Specifications: X-S6-LPB6X4M5 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 6 6 mm tube outside diameter X4 4 mm tube inside diameter M5 M5 × 0.8 process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 6 mm OD × 4 mm ID Process thread M5 × 0.8 process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 48 mm L2 20 mm L3 4 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 54 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 48 mm and a 12 mm section reference from the matching retaining-nut size. Internal voids use the 4 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$23.43

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB8X604

Specifications: X-S6-LPB8X604 — compression-style male branch tee listed for 8 mm OD × 6 mm ID tubing with a 1/2 in connection; this size combination needs a matching manufacturer drawing. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 fitting series LPB compression-style male branch tee 8 8 mm tube outside diameter X6 6 mm tube inside diameter 04 1/2 in connection size in the listing Technical Specifications Parameter Details Material designation SUS316 stainless steel Listed tube size 8 mm OD × 6 mm ID Listed process thread size 1/2 in Catalog combination limit The supplied table lists 8 × 6 mm tubing with 1/8, 1/4 or 3/8 in threads, but not 1/2 in. The original model is retained. Installation dimensions, rated operating conditions and the exact 1/2 in connection require confirmation before ordering; dimensions from a different thread variant are not presented as this product’s dimensions. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 76 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-family 8 × 6 mm / 3/8 in fitting X-S6-LPB8X603 used as a mass-size reference only; this does not establish 1/2 in fitting dimensions or availability.

Read more less

$31.65

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB12X1002

Specifications: X-S6-LPB12X1002 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 12 12 mm tube outside diameter X10 10 mm tube inside diameter 02 1/4 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 12 mm OD × 10 mm ID Process thread 1/4 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 68 mm L2 32 mm L3 9.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 156 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 68 mm and a 19 mm section reference from the matching retaining-nut size. Internal voids use the 10 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$38.09

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB12X1003

Specifications: X-S6-LPB12X1003 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 12 12 mm tube outside diameter X10 10 mm tube inside diameter 03 3/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 12 mm OD × 10 mm ID Process thread 3/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 68 mm L2 33 mm L3 10.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 156 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 68 mm and a 19 mm section reference from the matching retaining-nut size. Internal voids use the 10 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$39.05

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB8X603

Specifications: X-S6-LPB8X603 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 8 8 mm tube outside diameter X6 6 mm tube inside diameter 03 3/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 8 mm OD × 6 mm ID Process thread 3/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 54 mm L2 31 mm L3 10.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 76 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 54 mm and a 14 mm section reference from the matching retaining-nut size. Internal voids use the 6 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$31.65

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB10X802

Specifications: X-S6-LPB10X802 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 10 10 mm tube outside diameter X8 8 mm tube inside diameter 02 1/4 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 10 mm OD × 8 mm ID Process thread 1/4 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 61 mm L2 30 mm L3 9.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 103 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 61 mm and a 16 mm section reference from the matching retaining-nut size. Internal voids use the 8 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$31.65

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB12X1001

Specifications: X-S6-LPB12X1001 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 12 12 mm tube outside diameter X10 10 mm tube inside diameter 01 1/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 12 mm OD × 10 mm ID Process thread 1/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 68 mm L2 30 mm L3 7.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 156 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 68 mm and a 19 mm section reference from the matching retaining-nut size. Internal voids use the 10 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$38.09

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB10X801

Specifications: X-S6-LPB10X801 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 10 10 mm tube outside diameter X8 8 mm tube inside diameter 01 1/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 10 mm OD × 8 mm ID Process thread 1/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 61 mm L2 28 mm L3 7.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 103 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 61 mm and a 16 mm section reference from the matching retaining-nut size. Internal voids use the 8 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$31.65

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB8X602

Specifications: X-S6-LPB8X602 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 8 8 mm tube outside diameter X6 6 mm tube inside diameter 02 1/4 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 8 mm OD × 6 mm ID Process thread 1/4 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 54 mm L2 29 mm L3 9.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 76 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 54 mm and a 14 mm section reference from the matching retaining-nut size. Internal voids use the 6 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$28.63

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB6X402

Specifications: X-S6-LPB6X402 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 6 6 mm tube outside diameter X4 4 mm tube inside diameter 02 1/4 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 6 mm OD × 4 mm ID Process thread 1/4 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 48 mm L2 26 mm L3 9.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 54 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 48 mm and a 12 mm section reference from the matching retaining-nut size. Internal voids use the 4 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$25.35

View options
View options

Airtac X-S6 series: compression-style male branch tee - X-S6-LPB6X401

Specifications: X-S6-LPB6X401 — compression-style male branch tee in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPB compression-style male branch tee 6 6 mm tube outside diameter X4 4 mm tube inside diameter 01 1/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male branch tee Tube size 6 mm OD × 4 mm ID Process thread 1/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 48 mm L2 24 mm L3 7.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 54 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male branch tee allowance uses the catalog length 48 mm and a 12 mm section reference from the matching retaining-nut size. Internal voids use the 4 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$23.43

View options
View options

Airtac X-S6 series: compression-style male straight connector - X-S6-LPC10X802

Specifications: X-S6-LPC10X802 — compression-style male straight connector in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPC compression-style male straight connector 10 10 mm tube outside diameter X8 8 mm tube inside diameter 02 1/4 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male straight connector Tube size 10 mm OD × 8 mm ID Process thread 1/4 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 32.5 mm L2 9.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 39 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male straight connector allowance uses the catalog length 32.5 mm and a 16 mm section reference from the matching retaining-nut size. Internal voids use the 8 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$12.47

View options
View options

Airtac X-S6 series: compression-style male elbow - X-S6-LPL6X402

Specifications: X-S6-LPL6X402 — compression-style male elbow in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPL compression-style male elbow 6 6 mm tube outside diameter X4 4 mm tube inside diameter 02 1/4 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male elbow Tube size 6 mm OD × 4 mm ID Process thread 1/4 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 24 mm L2 9.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 21 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male elbow allowance uses the catalog length 24 mm and a 12 mm section reference from the matching retaining-nut size. Internal voids use the 4 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$14.39

View options
View options

Airtac X-S6 series: compression-style male elbow - X-S6-LPL6X401

Specifications: X-S6-LPL6X401 — compression-style male elbow in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPL compression-style male elbow 6 6 mm tube outside diameter X4 4 mm tube inside diameter 01 1/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male elbow Tube size 6 mm OD × 4 mm ID Process thread 1/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 24 mm L2 7.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 21 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male elbow allowance uses the catalog length 24 mm and a 12 mm section reference from the matching retaining-nut size. Internal voids use the 4 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$13.43

View options
View options

Airtac X-S6 series: compression-style male elbow - X-S6-LPL6X4M5

Specifications: X-S6-LPL6X4M5 — compression-style male elbow in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPL compression-style male elbow 6 6 mm tube outside diameter X4 4 mm tube inside diameter M5 M5 × 0.8 process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male elbow Tube size 6 mm OD × 4 mm ID Process thread M5 × 0.8 process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 24 mm L2 4 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 21 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male elbow allowance uses the catalog length 24 mm and a 12 mm section reference from the matching retaining-nut size. Internal voids use the 4 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$13.43

View options
View options

Airtac X-S6 series: compression-style male elbow - X-S6-LPL10X804

Specifications: X-S6-LPL10X804 — compression-style male elbow in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPL compression-style male elbow 10 10 mm tube outside diameter X8 8 mm tube inside diameter 04 1/2 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male elbow Tube size 10 mm OD × 8 mm ID Process thread 1/2 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 30 mm L2 12.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 40 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male elbow allowance uses the catalog length 30 mm and a 16 mm section reference from the matching retaining-nut size. Internal voids use the 8 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$21.51

View options
View options

Airtac X-S6 series: compression-style male straight connector - X-S6-LPC12X1001

Specifications: X-S6-LPC12X1001 — compression-style male straight connector in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPC compression-style male straight connector 12 12 mm tube outside diameter X10 10 mm tube inside diameter 01 1/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male straight connector Tube size 12 mm OD × 10 mm ID Process thread 1/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 35.5 mm L2 7.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 58 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male straight connector allowance uses the catalog length 35.5 mm and a 19 mm section reference from the matching retaining-nut size. Internal voids use the 10 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$14.39

View options
View options

Airtac X-S6 series: compression-style union elbow - X-S6-LPV12X10

Specifications: X-S6-LPV12X10 — compression-style union elbow in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPV compression-style union elbow 12 12 mm tube outside diameter X10 10 mm tube inside diameter Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style union elbow Tube size 12 mm OD × 10 mm ID Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 34 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 61 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style union elbow allowance uses the catalog length 34 mm and a 19 mm section reference from the matching retaining-nut size. Internal voids use the 10 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$20.96

View options
View options

Airtac X-S6 series: compression-style male straight connector - X-S6-LPC10X801

Specifications: X-S6-LPC10X801 — compression-style male straight connector in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPC compression-style male straight connector 10 10 mm tube outside diameter X8 8 mm tube inside diameter 01 1/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male straight connector Tube size 10 mm OD × 8 mm ID Process thread 1/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 30.5 mm L2 7.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 37 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male straight connector allowance uses the catalog length 30.5 mm and a 16 mm section reference from the matching retaining-nut size. Internal voids use the 8 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$12.47

View options
View options

Airtac X-S6 series: compression-style straight union - X-S6-LPU8X6

Specifications: X-S6-LPU8X6 — compression-style straight union in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPU compression-style straight union 8 8 mm tube outside diameter X6 6 mm tube inside diameter Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style straight union Tube size 8 mm OD × 6 mm ID Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 35 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 35 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style straight union allowance uses the catalog length 35 mm and a 14 mm section reference from the matching retaining-nut size. Internal voids use the 6 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$13.15

View options
View options

Airtac X-S6 series: compression-style male elbow - X-S6-LPL12X1001

Specifications: X-S6-LPL12X1001 — compression-style male elbow in SUS316 stainless steel, with the exact connection size and installation dimensions decoded below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning X-S6 SUS316 stainless-steel fitting series LPL compression-style male elbow 12 12 mm tube outside diameter X10 10 mm tube inside diameter 01 1/8 in process thread size Technical Specifications Parameter Details Material designation SUS316 stainless steel Fitting form compression-style male elbow Tube size 12 mm OD × 10 mm ID Process thread 1/8 in process thread size Source dimensions Current supplied SUS316 catalog, printed pages 71–75 Dimensions and Installation Parameter Details L1 34 mm L2 7.5 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Connection and Use Match the tube size and the complete mating thread specification before assembly. The supplied pages give inch thread sizes without independently identifying a PT, NPT or G standard for these stainless fittings; an equal nominal inch size alone does not prove interchangeability. Use the matching drawing for the sealing and engagement arrangement. These pages provide ordering combinations and dimensions, but no working-pressure, temperature, seal-material or fluid-compatibility ratings. Select the fitting and tube against application-specific ratings before pressurising the assembly. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 61 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Estimated SUS316 density 8.0 g/cm³; geometric compression-style male elbow allowance uses the catalog length 34 mm and a 19 mm section reference from the matching retaining-nut size. Internal voids use the 10 mm tube-bore reference. Geometry factor is an estimation assumption, not a published fitting cross-section.

Read more less

$21.78

View options
