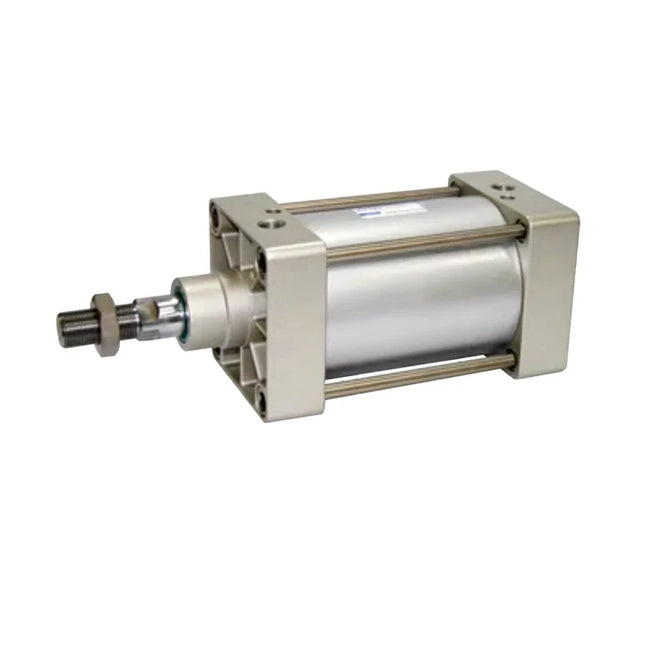

SG, SGC Series ISO15552 Standard Cylinder
Product Features
- ISO15552 (Original ISO6431) standard cylinder.
- The piston seal of the SG series adopts two Y-shape one-way seal structures, which have compensation function, long service life, and low start-up pressure. The SGC series piston seal adopts a special shaped two-way seal structure, with compact size and grease storage function.
- The SG series is a steel tube cylinder with strong impact resistance.
- The SGC series is an aluminum tube cylinder, and a magnetic ring can be selected. The SG series cannot be equipped with a magnetic ring.
- The cylinder buffer adjustment is smooth.
- Various specifications of cylinders and cylinder mounting accessories are available for customers to choose from.
- High-temperature resistant seal material is available to ensure the cylinder works normally at 150°C.
Specifications
| Bore Size (mm) | 125 | 160 | 200 | 250 |
|---|---|---|---|---|
| Action | Double Acting | |||
| Fluid | Air (Filtered 40μm or better) | |||
| Mounting Type |
SG/SGC: Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2 SGD/SGCD/SGJ/SGCJ: Basic, FA, LB, TC, FTC, TCM1, TCM2 |
|||
| Operating Pressure | 0.15~1.0MPa (22~145psi) (1.5~10.0bar) | |||
| Proof Pressure | 1.5MPa (215psi) (15bar) | |||
| Temperature | -20~70°C | |||
| Speed Range | 30~500 mm/s | |||
| Stroke Tolerance |
0-250: +1.0/0 251-1000: +1.5/0 1001-1500: +2.0/0 |
|||
| Cushion Type | Adjustable Cushion | |||
| Cushion Stroke | 40mm | 50mm | 60mm | |
| Port Size [Note 1] | PT1/2 | PT3/4 | PT1 | |
Note: [1] PT thread and G thread are available. For sensor selection, please refer to the catalog page P403.
Standard Stroke
| Bore Size (mm) | Standard Stroke (mm) | Max Stroke | Allowable Stroke |
|---|---|---|---|
| 125 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1500 | 2000 |
| 160 | 1500 | 2000 | |
| 200 | 1500 | 2000 | |
| 250 | 1500 | 2000 |
Note: Please contact the company for other special strokes.
Product Ordering Code
| No. | Item | Code | Description |
|---|---|---|---|
| 1 | Model | SG / SGD / SGJ | SG: Standard (Steel Tube) SGD: Double Shaft (Steel Tube) SGJ: Double Shaft Adjustable (Steel Tube) |
| SGC / SGCD / SGCJ | SGC: Standard (Alum. Tube) SGCD: Double Shaft (Alum. Tube) SGCJ: Double Shaft Adjustable (Alum. Tube) |
||
| 2 | Bore Size | 125 / 160 / 200 / 250 | Cylinder Diameter (mm) |
| 3 | Stroke | - | Refer to Stroke Table |
| 4 | Adjustable Stroke | 10, 20... 100 | Applicable for SGJ/SGCJ series only. |
| 5 | Magnet | Blank | No Magnet (Standard for SG/SGC) |
| S | With Magnet (Only for SGC/SGCD/SGCJ series) | ||
| 6 | Mounting | Blank | Standard (No mounting bracket) |
| LB, FA, FB, CA, CB, CR, FTC, TC | Various mounting accessories (See catalog) | ||
| 7 | Seal Material | Blank | TPU (For 250 bore: NBR) |
| H | Viton (High Temperature) | ||
| N | NBR | ||
| 8 | Thread Type | Blank | PT Thread |
| G | G Thread |
Notes:
1. CR mounting is used with CB. FTC, TC mountings are used with TCM1, TCM2.
2. Bore size 250 cylinder does not have TPU seal material option.
1. CR mounting is used with CB. FTC, TC mountings are used with TCM1, TCM2.
2. Bore size 250 cylinder does not have TPU seal material option.
