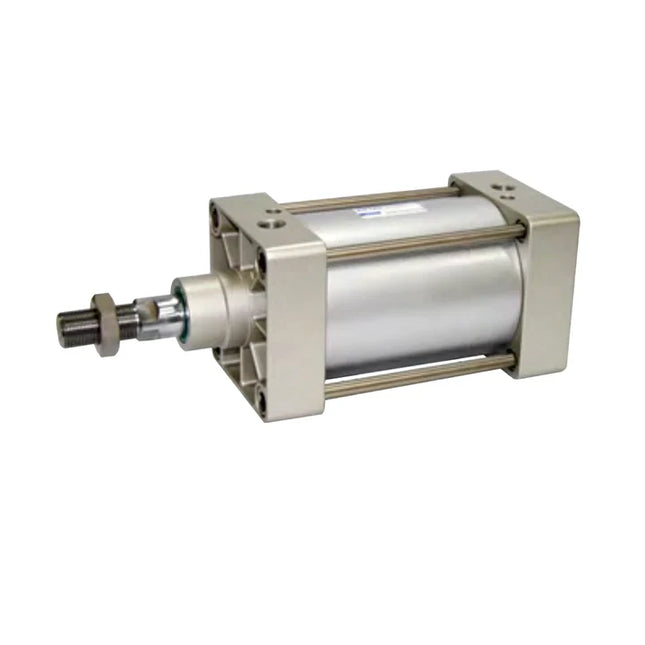

SG, SGC Series ISO15552 Standard Cylinder

  • Product Features
  • Specifications
  • Stroke Specifications
  • Product Ordering Code

Product Features

  • ISO15552 (Original ISO6431) standard cylinder.
  • The piston seal of the SG series adopts two Y-shape one-way seal structures, which have compensation function, long service life, and low start-up pressure. The SGC series piston seal adopts a special shaped two-way seal structure, with compact size and grease storage function.
  • The SG series is a steel tube cylinder with strong impact resistance.
  • The SGC series is an aluminum tube cylinder, and a magnetic ring can be selected. The SG series cannot be equipped with a magnetic ring.
  • The cylinder buffer adjustment is smooth.
  • Various specifications of cylinders and cylinder mounting accessories are available for customers to choose from.
  • High-temperature resistant seal material is available to ensure the cylinder works normally at 150°C.

Specifications

Bore Size (mm) 125 160 200 250
Action Double Acting
Fluid Air (Filtered 40μm or better)
Mounting Type SG/SGC: Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2
SGD/SGCD/SGJ/SGCJ: Basic, FA, LB, TC, FTC, TCM1, TCM2
Operating Pressure 0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure 1.5MPa (215psi) (15bar)
Temperature -20~70°C
Speed Range 30~500 mm/s
Stroke Tolerance 0-250: +1.0/0
251-1000: +1.5/0
1001-1500: +2.0/0
Cushion Type Adjustable Cushion
Cushion Stroke 40mm 50mm 60mm
Port Size [Note 1] PT1/2 PT3/4 PT1
Note: [1] PT thread and G thread are available. For sensor selection, please refer to the catalog page P403.

Standard Stroke

Bore Size (mm) Standard Stroke (mm) Max Stroke Allowable Stroke
125 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1500 2000
160 1500 2000
200 1500 2000
250 1500 2000
Note: Please contact the company for other special strokes.

Product Ordering Code

No. Item Code Description
1 Model SG / SGD / SGJ SG: Standard (Steel Tube)
SGD: Double Shaft (Steel Tube)
SGJ: Double Shaft Adjustable (Steel Tube)
SGC / SGCD / SGCJ SGC: Standard (Alum. Tube)
SGCD: Double Shaft (Alum. Tube)
SGCJ: Double Shaft Adjustable (Alum. Tube)
2 Bore Size 125 / 160 / 200 / 250 Cylinder Diameter (mm)
3 Stroke - Refer to Stroke Table
4 Adjustable Stroke 10, 20... 100 Applicable for SGJ/SGCJ series only.
5 Magnet Blank No Magnet (Standard for SG/SGC)
S With Magnet (Only for SGC/SGCD/SGCJ series)
6 Mounting Blank Standard (No mounting bracket)
LB, FA, FB, CA, CB, CR, FTC, TC Various mounting accessories (See catalog)
7 Seal Material Blank TPU (For 250 bore: NBR)
H Viton (High Temperature)
N NBR
8 Thread Type Blank PT Thread
G G Thread
Notes:
1. CR mounting is used with CB. FTC, TC mountings are used with TCM1, TCM2.

2. Bore size 250 cylinder does not have TPU seal material option.
