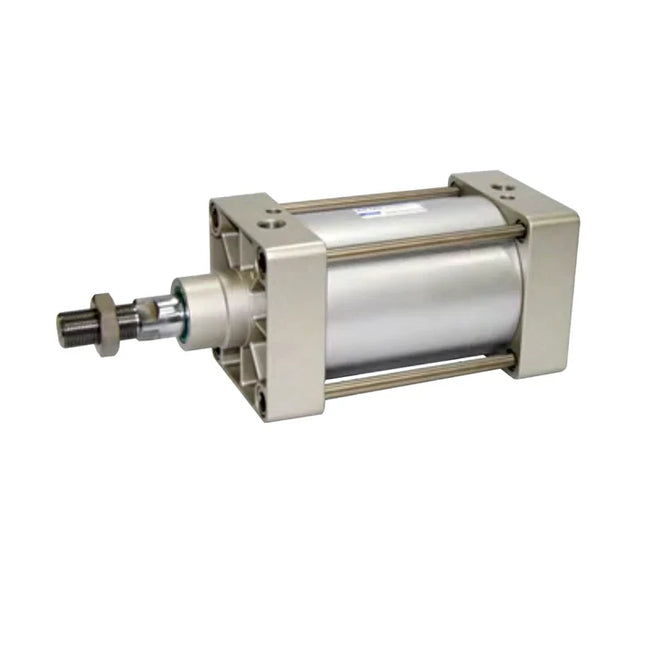

SG, SGC Series ISO15552 Standard Cylinder

  • Product Features
  • Specifications
  • Stroke Specifications
  • Product Ordering Code

Product Features

  • ISO15552 (Original ISO6431) standard cylinder.
  • The piston seal of the SG series adopts two Y-shape one-way seal structures, which have compensation function, long service life, and low start-up pressure. The SGC series piston seal adopts a special shaped two-way seal structure, with compact size and grease storage function.
  • The SG series is a steel tube cylinder with strong impact resistance.
  • The SGC series is an aluminum tube cylinder, and a magnetic ring can be selected. The SG series cannot be equipped with a magnetic ring.
  • The cylinder buffer adjustment is smooth.
  • Various specifications of cylinders and cylinder mounting accessories are available for customers to choose from.
  • High-temperature resistant seal material is available to ensure the cylinder works normally at 150°C.

Specifications

Bore Size (mm) 125 160 200 250
Action Double Acting
Fluid Air (Filtered 40μm or better)
Mounting Type SG/SGC: Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2
SGD/SGCD/SGJ/SGCJ: Basic, FA, LB, TC, FTC, TCM1, TCM2
Operating Pressure 0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure 1.5MPa (215psi) (15bar)
Temperature -20~70°C
Speed Range 30~500 mm/s
Stroke Tolerance 0-250: +1.0/0
251-1000: +1.5/0
1001-1500: +2.0/0
Cushion Type Adjustable Cushion
Cushion Stroke 40mm 50mm 60mm
Port Size [Note 1] PT1/2 PT3/4 PT1
Note: [1] PT thread and G thread are available. For sensor selection, please refer to the catalog page P403.

Standard Stroke

Bore Size (mm) Standard Stroke (mm) Max Stroke Allowable Stroke
125 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1500 2000
160 1500 2000
200 1500 2000
250 1500 2000
Note: Please contact the company for other special strokes.

Product Ordering Code

No. Item Code Description
1 Model SG / SGD / SGJ SG: Standard (Steel Tube)
SGD: Double Shaft (Steel Tube)
SGJ: Double Shaft Adjustable (Steel Tube)
SGC / SGCD / SGCJ SGC: Standard (Alum. Tube)
SGCD: Double Shaft (Alum. Tube)
SGCJ: Double Shaft Adjustable (Alum. Tube)
2 Bore Size 125 / 160 / 200 / 250 Cylinder Diameter (mm)
3 Stroke - Refer to Stroke Table
4 Adjustable Stroke 10, 20... 100 Applicable for SGJ/SGCJ series only.
5 Magnet Blank No Magnet (Standard for SG/SGC)
S With Magnet (Only for SGC/SGCD/SGCJ series)
6 Mounting Blank Standard (No mounting bracket)
LB, FA, FB, CA, CB, CR, FTC, TC Various mounting accessories (See catalog)
7 Seal Material Blank TPU (For 250 bore: NBR)
H Viton (High Temperature)
N NBR
8 Thread Type Blank PT Thread
G G Thread
Notes:
1. CR mounting is used with CB. FTC, TC mountings are used with TCM1, TCM2.

2. Bore size 250 cylinder does not have TPU seal material option.

Show previous products

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X561TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X561TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 561mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X561TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,113.40

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X621TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X621TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 621mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X621TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,165.02

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X608TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X608TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 608mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X608TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,153.90

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X613TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X613TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 613mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X613TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,158.17

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X614TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X614TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 614mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X614TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,158.99

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X641TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X641TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 641mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X641TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,182.34

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X645TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X645TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 645mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X645TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,185.76

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X626TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X626TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 626mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X626TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,169.43

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X524TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X524TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 524mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X524TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,081.53

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X582TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X582TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 582mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X582TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,131.54

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X600TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X600TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 600mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X600TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,147.05

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X627TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X627TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 627mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X627TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,170.25

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X597TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X597TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 597mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X597TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,144.44

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X586TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X586TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 586mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X586TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,134.96

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X623TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X623TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 623mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X623TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,166.80

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X612TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X612TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 612mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X612TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,157.35

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X581TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X581TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 581mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X581TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,130.55

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X620TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X620TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 620mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X620TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,164.20

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X638TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X638TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 638mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X638TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,179.73

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X595TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X595TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 595mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X595TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,142.63

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X611TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X611TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 611mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X611TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,156.53

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X605TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X605TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Stroke: 605mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X605TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,151.29

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X571TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X571TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 571mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X571TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,122.06

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X568TCG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SGC125X568TCG

    Specification: Standard compound type (aluminum tube type) Bore: 125mm Travel: 568mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SGC125X568TCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SGC125-R1 TPU material P-SGC125N-R1 NBR Material P-SGC125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,119.45

    View options
