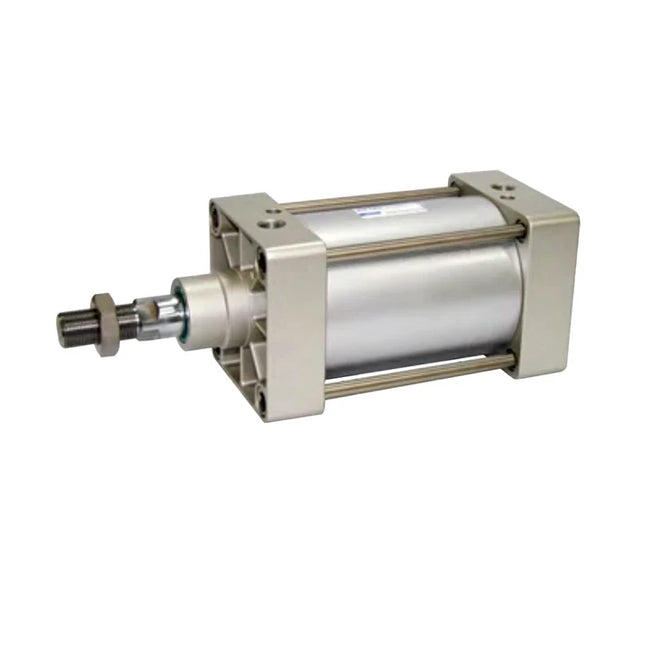

SG, SGC Series ISO15552 Standard Cylinder

  • Product Features
  • Specifications
  • Stroke Specifications
  • Product Ordering Code

Product Features

  • ISO15552 (Original ISO6431) standard cylinder.
  • The piston seal of the SG series adopts two Y-shape one-way seal structures, which have compensation function, long service life, and low start-up pressure. The SGC series piston seal adopts a special shaped two-way seal structure, with compact size and grease storage function.
  • The SG series is a steel tube cylinder with strong impact resistance.
  • The SGC series is an aluminum tube cylinder, and a magnetic ring can be selected. The SG series cannot be equipped with a magnetic ring.
  • The cylinder buffer adjustment is smooth.
  • Various specifications of cylinders and cylinder mounting accessories are available for customers to choose from.
  • High-temperature resistant seal material is available to ensure the cylinder works normally at 150°C.

Specifications

Bore Size (mm) 125 160 200 250
Action Double Acting
Fluid Air (Filtered 40μm or better)
Mounting Type SG/SGC: Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2
SGD/SGCD/SGJ/SGCJ: Basic, FA, LB, TC, FTC, TCM1, TCM2
Operating Pressure 0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure 1.5MPa (215psi) (15bar)
Temperature -20~70°C
Speed Range 30~500 mm/s
Stroke Tolerance 0-250: +1.0/0
251-1000: +1.5/0
1001-1500: +2.0/0
Cushion Type Adjustable Cushion
Cushion Stroke 40mm 50mm 60mm
Port Size [Note 1] PT1/2 PT3/4 PT1
Note: [1] PT thread and G thread are available. For sensor selection, please refer to the catalog page P403.

Standard Stroke

Bore Size (mm) Standard Stroke (mm) Max Stroke Allowable Stroke
125 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1500 2000
160 1500 2000
200 1500 2000
250 1500 2000
Note: Please contact the company for other special strokes.

Product Ordering Code

No. Item Code Description
1 Model SG / SGD / SGJ SG: Standard (Steel Tube)
SGD: Double Shaft (Steel Tube)
SGJ: Double Shaft Adjustable (Steel Tube)
SGC / SGCD / SGCJ SGC: Standard (Alum. Tube)
SGCD: Double Shaft (Alum. Tube)
SGCJ: Double Shaft Adjustable (Alum. Tube)
2 Bore Size 125 / 160 / 200 / 250 Cylinder Diameter (mm)
3 Stroke - Refer to Stroke Table
4 Adjustable Stroke 10, 20... 100 Applicable for SGJ/SGCJ series only.
5 Magnet Blank No Magnet (Standard for SG/SGC)
S With Magnet (Only for SGC/SGCD/SGCJ series)
6 Mounting Blank Standard (No mounting bracket)
LB, FA, FB, CA, CB, CR, FTC, TC Various mounting accessories (See catalog)
7 Seal Material Blank TPU (For 250 bore: NBR)
H Viton (High Temperature)
N NBR
8 Thread Type Blank PT Thread
G G Thread
Notes:
1. CR mounting is used with CB. FTC, TC mountings are used with TCM1, TCM2.

2. Bore size 250 cylinder does not have TPU seal material option.

Show previous products

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1458TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1458TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1458mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1458TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,014.42

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1464TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1464TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1464mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1464TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,019.71

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1484TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1484TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1484mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1484TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,037.02

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1474TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1474TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Travel: 1474mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1474TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,028.35

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1480TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1480TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1480mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1480TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,033.51

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1459TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1459TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1459mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1459TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,015.36

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1488TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1488TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Travel: 1488mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1488TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,040.39

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1487TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1487TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1487mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1487TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,039.58

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1472TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1472TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1472mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1472TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,026.59

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1483TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1483TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1483mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1483TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,036.07

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1471TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1471TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Travel: 1471mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1471TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,025.78

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1434TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1434TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1434mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1434TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $1,993.73

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1476TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1476TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1476mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1476TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,030.13

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1473TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1473TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1473mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1473TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,027.40

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1478TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1478TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1478mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1478TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,031.75

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1461TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1461TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Travel: 1461mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1461TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,017.14

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1481TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1481TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Travel: 1481mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1481TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,034.45

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1449TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1449TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1449mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1449TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,006.72

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1462TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1462TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1462mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1462TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,017.95

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1453TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1453TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1453mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1453TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,010.10

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1456TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1456TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1456mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1456TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,012.80

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1460TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1460TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1460mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1460TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,016.17

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1457TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1457TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1457mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1457TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,013.61

    View options

  • Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1468TCTCM2HG

    View options

    Airtac SG,SGC Series: Standard Compound Cylinder - SG125X1468TCTCM2HG

    Specification: standard compound type (steel pipe type) Bore: 125mm Stroke: 1468mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SG125X1468TCTCM2HG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SG125N-R1 NBR Material P-SG125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure. 3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 4.SG series is a steel tube cylinder with strong anti-collision ability. 5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring. 6. The cylinder buffer adjustment is stable. 7. A variety of specifications of the cylinder and installation accessories to choose from. 8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.

    Read more

    $2,023.08

    View options

You have seen 48 out of 25001 products
