SE Series Standard Cylinder

ISO15552 Standard Cylinder - SE Series

Product Features
Specifications
Stroke
Product Ordering Code

Product Features

ISO15552, VDMA24562 standard certified.
Piston seal adopts two Y-shape one-way seal structure, which features compact dimensions and grease storage function.
Square aluminum tube, no tie rod, good corrosion resistance.
Cylinder buffer adjustment is smooth and steady.
Various specifications of cylinders and mounting accessories are available for customers to choose from.

Specifications

Bore Size (mm)	32	40	63	100	125
Action	Double Acting
Fluid	Air (filtered 40μm or better)
Mounting Type	SE: Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2 SED, SEJ: Basic, FA, LB, TC, FTC, TCM1, TCM2
Operating Pressure	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure	1.5MPa (215psi) (15bar)
Temperature °C	-20~70
Speed range mm/s	30~800				30~500
Stroke Tolerance	0~250 +1.0/0, 251~1000 +1.5/0, 1001~1500 +2.0/0
Cushion Type	Adjustable Cushion
Port Size [Note 1]	PT1/8	PT1/4	PT3/8	PT1/2

Note:
[1] PT thread, G thread are optional. For sensors, please refer to the relevant catalog pages.

Stroke Specifications

Bore (mm)	Standard Stroke (mm)	Max. Stroke	Max. Allowable Stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800

Note: Please contact the company for other special strokes.

Product Ordering Code

Example: SE 80 x 50 S LB

No.	Category	Description / Code
①	Model	SE: Standard Double Acting SED: Double Shaft Double Acting SEJ: Adjustable Stroke Double Acting
②	Bore Size	32, 40, 50, 63, 80, 100, 125
③	Rod Material	Blank: Carbon Steel (Standard) A: SUS420J2 B: SUS304 C: SUS316
④	Stroke	Refer to Stroke table
⑤	Adjustable Stroke	Only for SEJ series (e.g., 10, 20, 30, 40, 50, 75, 100)
⑥	Magnet	Blank: No Magnet S: With Magnet
⑦	Mounting [Note 1]	Blank: Standard LB: Axial Foot FA: Front Flange FB: Rear Flange CA: Single Clevis CB: Double Clevis CR: Clevis with pin TC: Central Trunnion FTC: Front Trunnion
⑧	Seal Material	Blank: TPU (Standard) H: Viton (Heat resistant) N: NBR
⑨	Thread	Blank: PT Thread G: G Thread

Note 1: For details on accessories, please refer to pages P20~22. CR attachment is used with CB.

View options

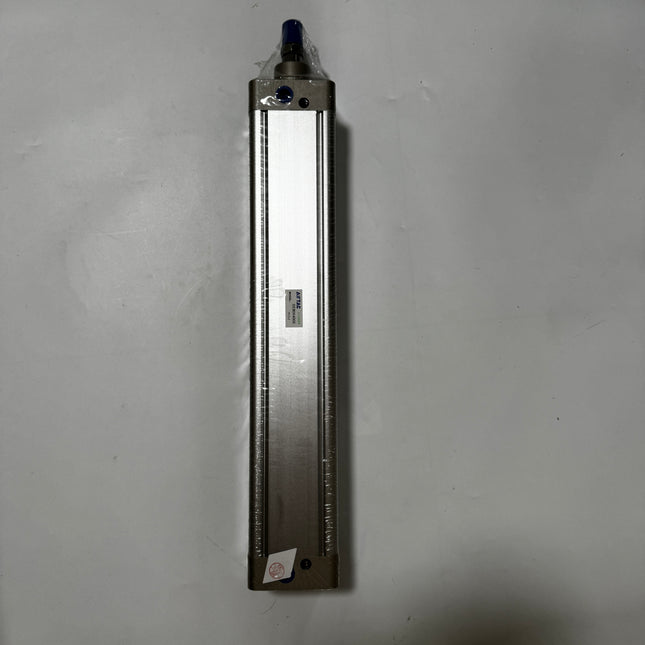

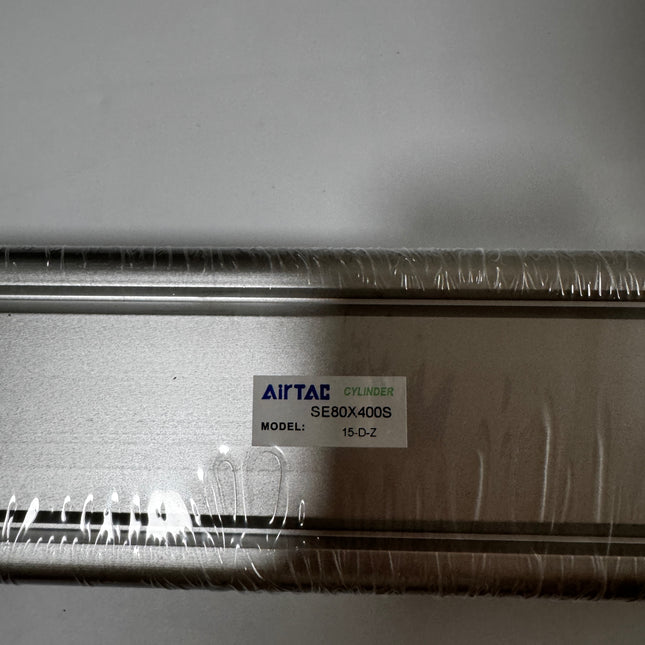

Airtac SE: Double Acting Standard Air Cylinder - SE80X400S

Specification: standard compound type Bore: 80mm Piston rod material: medium carbon steel Stroke: 400mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SE80X400S 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 36, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE80N-R1 TPU material P-SE80-R1 NBR Material P-SE80N-R2 Fluorine rubber material ， Installation accessories :F-SI80LB Axial mounting F-SI80FA Flange connecting plate F-SE80CA Single-ear fixing seat F-SE80CB Binaural mount F-SI80CR Single-ear connection seat F-SE80TC Middle Trunnion Bracket F-SI80FTC Front cover trunnion bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， cylinder magnetic ring :GMED57X76.5X5 cylinder magnetic ring GMED62.5X76.5X5 Cylinder Magnetic Ring (New) SE80 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint ， Cylinder front cover rear cover accessories :SE80 Front cover SE80 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$466.99

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125BX1203SFTCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS304 Stroke: 1203mm Magnet: with magnet Fixed type: FTC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125BX1203SFTCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,313.08

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX716FBN

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 716mm Magnet: no magnet Fixed type: FB Seal material: NBR Tooth type: PT tooth Specifications 1. Model: SE125CX716FBN 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$1,602.49

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1500STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1500mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1500STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,866.66

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1499STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1499mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1499STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,865.17

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1498STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1498mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1498STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,863.84

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1492STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1492mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1492STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,855.24

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1488STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Travel: 1488mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1488STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,849.63

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1481STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Travel: 1481mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1481STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,839.71

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1493STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1493mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1493STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,856.73

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1497STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1497mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1497STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,862.35

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1483STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1483mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1483STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,842.53

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1484STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1484mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1484STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,843.99

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1480STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1480mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1480STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,838.25

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1495STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1495mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1495STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,859.55

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1494STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1494mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1494STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,858.06

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1496STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1496mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1496STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,861.02

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1487STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1487mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1487STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,848.14

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1486STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1486mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1486STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,846.81

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1490STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1490mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1490STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,852.45

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1489STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1489mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1489STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,851.09

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1479STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1479mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1479STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,836.89

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1476STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1476mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1476STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,832.61

View options
View options

Airtac SE: Double Acting Standard Air Cylinder - SE125CX1444STCNG

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1444mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth Specifications 1. Model: SE125CX1444STCNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid Click to download Airtac product catalog Product Features 1.ISO15552 and VDMA24562 standard cylinder. 2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure. 3. The square aluminum tube without tie rod has good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and installation accessories to choose from.

Read more less

$2,787.31

View options
