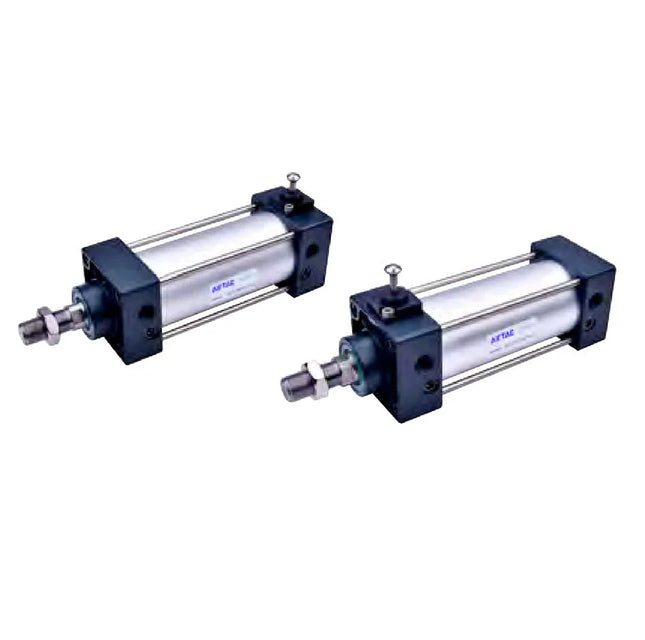

Standard Cylinder — SCL Series (With Lock Type)
Product Features
- Cylinder with Lock Classification: Available in Front Cover Lock Type and Rear Cover Lock Type.
- Unlocking Method: Supports both Automatic and Manual unlocking.
Specifications
| Bore Size (mm) | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|
| Acting Type | Double Acting | ||||
| Fluid | Air (filtered 40μm or better) | ||||
| Mounting Type | Basic, FA, FB, CA, CB, LB, TC, TCM1 | ||||
| Operating Pressure | 0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar) | ||||
| Proof Pressure | 1.5 MPa (215 psi) (15 bar) | ||||
| Temperature °C | -20 ~ 70 | ||||
| Speed Range mm/s | 30 ~ 800 | ||||
| Stroke Tolerance | 0~250 +1.0/0 | 251~1000 +1.5/0 | 1001~1500 +2.0/0 | ||||
| Cushion Type | Adjustable Cushion | ||||
| Cushion Stroke (No Lock Side) | 21 | 28 | 29 | ||
| Cushion Stroke (Lock Side) | 17 | 17 | 18 | 20.5 | 22 |
| Port Size [Note 1] | PT1/4 | PT3/8 | PT1/2 | ||
Note:
[1] PT thread and G thread are available options.
[1] PT thread and G thread are available options.
Stroke Specifications
| Bore (mm) | Standard Stroke (mm) | Max. Stroke | Allowable Stroke |
|---|---|---|---|
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 1800 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 1800 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
Note: Please contact the company for other special strokes.
Product Ordering Code
Example: SCL B 50 x 50 S LB
| No. | Category | Description / Options |
|---|---|---|
| ① | Model Code | SCL: Standard Double Acting Cylinder with Lock |
| ② | Lock Position |
B: Rear cover with lock F: Front cover with lock |
| ③ | Bore Size | 40, 50, 63, 80, 100 mm |
| ④ | Stroke | Refer to Stroke table |
| ⑤ | Magnet Code |
Blank: No Magnet S: With Magnet |
| ⑥ | Mounting [Note 1] |
Blank: Standard (None) LB: Axial Foot FA: Front Flange FB: Rear Flange CA: Single Clevis CB: Double Clevis TC: Center Trunnion |
| ⑦ | Thread Code |
Blank: PT Thread G: G Thread |
Note 1: Accessories are common with SAU series. Please refer to pages P53-56 for details. TC attachment is used with TCM1.
