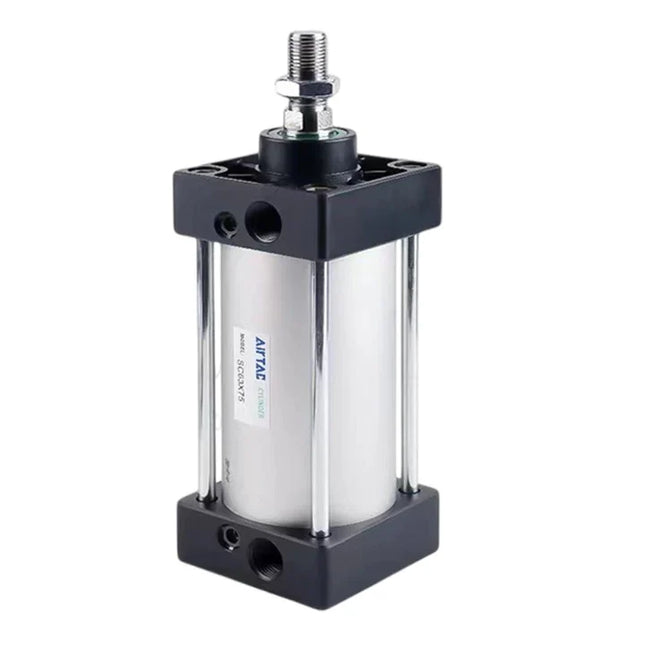

SC Series Standard Cylinder (Tie-Rod Type)

Product Features
Specifications
Stroke Specifications
Product Ordering Code

Product Features

Enterprise standard cylinder.
The piston seal adopts a heterogeneous two-way seal structure. It has compact dimensions and a grease storage function.
It is a tie-rod cylinder. The front and rear covers are connected to the aluminum tube via support pillars (tie-rods), ensuring good reliability.
Compared with ISO15552 standard cylinders, SC series cylinders with the same bore size are shorter in length.
Cylinder cushion adjustment is smooth.
Various specifications of cylinders and cylinder mounting accessories are available for customers to choose from.
High-temperature resistant seal material is available to ensure the cylinder works normally at 150°C.

Specifications

Bore Size (mm)	32	40	63	80	100
Action	Double Acting
Fluid	Air (Filtered 40μm or better)
Mounting (SC)	Basic, FA, FB, CA, CB, LB, TC, TCM1
Mounting (SCD, SCJ)	Basic, FA, LB, TC, TCM1
Operating Pressure	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure	1.5MPa (215psi) (15bar)
Temperature	-20~70°C
Speed Range	30~800 mm/s
Stroke Tolerance	0~250: +1.0/0 251~1000: +1.5/0 1001~1500: +2.0/0
Cushion Type	Adjustable Cushion
Cushion Stroke	21mm			28mm	29mm
Port Size [Note 1]	PT1/8	PT1/4	PT3/8		PT1/2

Note: [1] PT thread and G thread are available.

Standard Stroke

Bore Size (mm)	Standard Stroke (mm)	Max Stroke	Allowable Stroke
32	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500	1000	2000
40	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	1200	2000
50	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	1200	2000
63	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	1500	2000
80	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	1500	2000
100	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	1500	2000

Note: Within allowable stroke range, if stroke ≥ 1600mm, it is treated as non-standard. Please contact the company for other special strokes.

Product Ordering Code

No.	Item	Code	Description
1	Model	SC	Standard Double Acting
		SCD	Double Shaft Double Acting
		SCJ	Double Shaft Adjustable Stroke
2	Bore Size	32 / 40 / 50 / 63 / 80 / 100	Cylinder Diameter (mm)
3	Stroke	-	Refer to Stroke Table
4	Adjustable Stroke	10, 20, 30... 100	Only for SCJ series.
5	Magnet	Blank	No Magnet
5	Magnet	S	With Magnet
6	Mounting	Blank	Standard (No bracket)
6	Mounting	LB, FA, FB, CA, CB, TC	Mounting accessories [Note 1]
7	Seal Material	Blank	TPU
		H	Viton (High Temperature)
		N	NBR
8	Thread Type	Blank	PT Thread
8	Thread Type	G	G Thread

Notes:
[1] Accessories are common with SAU series (refer to P53-56). TC mounting is used with TCM1, cannot be ordered separately, must be ordered with cylinder.

Show previous products

View options

Airtac SC series: Standard double-acting cylinder - SC80X203S

Specification: standard compound type Bore: 80mm Stroke: 203mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC80X203S 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 28, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC80N-R1 TPU material P-SC80-R1 NBR Material P-SC80N-R2 Fluorine rubber material ， Installation accessories :F-SC80LB Axial mounting F-SC80FA Flange connecting plate F-SC80CA Single-ear fixing seat F-SC80CB Binaural mount F-SC80TC Middle Trunnion Bracket F-SC80TCM1 trunnion mount ， cylinder magnetic ring :GMED57X76.5X5 cylinder magnetic ring GMED62.5X76.5X5 Cylinder Magnetic Ring (New) SC80 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint ， Cylinder front cover rear cover accessories : SC80 Front cover SC80 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$264.82

View options
View options

Airtac SC series: Standard double-acting cylinder - SC50X40S

Specification: standard compound type Cylinder diameter: 50mm Stroke: 40mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC50X40S 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC50N-R1 TPU material P-SC50-R1 NBR Material P-SC50N-R2 Fluorine rubber material ， Installation accessories :F-SC50LB Axial mounting F-SC50FA Flange connecting plate F-SC50CA Single-ear fixing seat F-SC50CB Binaural mount F-SC50TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， cylinder magnetic ring :GMED30X46.5X5 cylinder magnetic ring SC50 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SC50 Front cover SC50 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$99.50

View options
View options

Airtac SC series: Standard double-acting cylinder - SC50X60S

Specification: standard compound type Cylinder diameter: 50mm Stroke: 60mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC50X60S 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC50N-R1 TPU material P-SC50-R1 NBR Material P-SC50N-R2 Fluorine rubber material ， Installation accessories :F-SC50LB Axial mounting F-SC50FA Flange connecting plate F-SC50CA Single-ear fixing seat F-SC50CB Binaural mount F-SC50TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， cylinder magnetic ring :GMED30X46.5X5 cylinder magnetic ring SC50 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SC50 Front cover SC50 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$104.81

View options
View options

Airtac SC series: Standard double-acting cylinder - SC100X125TC

Specification: standard compound type Bore: 100mm Stroke: 125mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC100X125TC 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 29, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC100N-R1 TPU material P-SC100-R1 NBR Material P-SC100N-R2 Fluorine rubber material ， Installation accessories :F-SC100LB Axial mounting F-SC100FA Flange connecting plate F-SC100CA Single-ear fixing seat F-SC100CB Binaural mount F-SC100TC Middle Trunnion Bracket F-SC80TCM1 trunnion mount ， cylinder magnetic ring :GMED77X96.5X5 cylinder magnetic ring GMED82.5X96.5X5 Cylinder Magnetic Ring (New) SC100 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint ， Cylinder front cover rear cover accessories :SC100 Front cover SC100 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$323.62

View options
View options

Airtac SC series: Standard double-acting cylinder - SC50X65

Specification: standard compound type Cylinder diameter: 50mm Travel: 65mm Magnet: no magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC50X65 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC50N-R1 TPU material P-SC50-R1 NBR Material P-SC50N-R2 Fluorine rubber material ， Installation accessories :F-SC50LB Axial mounting F-SC50FA Flange connecting plate F-SC50CA Single-ear fixing seat F-SC50CB Binaural mount F-SC50TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， cylinder magnetic ring :GMED30X46.5X5 cylinder magnetic ring SC50 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SC50 Front cover SC50 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$100.44

View options
View options

Airtac SC series: Standard double-acting cylinder - SC100X200S

Specification: standard compound type Bore: 100mm Stroke: 200mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC100X200S 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 29, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC100N-R1 TPU material P-SC100-R1 NBR Material P-SC100N-R2 Fluorine rubber material ， Installation accessories :F-SC100LB Axial mounting F-SC100FA Flange connecting plate F-SC100CA Single-ear fixing seat F-SC100CB Binaural mount F-SC100TC Middle Trunnion Bracket F-SC80TCM1 trunnion mount ， cylinder magnetic ring :GMED77X96.5X5 cylinder magnetic ring GMED82.5X96.5X5 Cylinder Magnetic Ring (New) SC100 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint ， Cylinder front cover rear cover accessories :SC100 Front cover SC100 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$326.57

View options
View options

Airtac SC series: Standard double-acting cylinder - SC50X75S

Specification: standard compound type Cylinder diameter: 50mm Stroke: 75mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC50X75S 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC50N-R1 TPU material P-SC50-R1 NBR Material P-SC50N-R2 Fluorine rubber material ， Installation accessories :F-SC50LB Axial mounting F-SC50FA Flange connecting plate F-SC50CA Single-ear fixing seat F-SC50CB Binaural mount F-SC50TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， cylinder magnetic ring :GMED30X46.5X5 cylinder magnetic ring SC50 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SC50 Front cover SC50 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$108.70

View options
View options

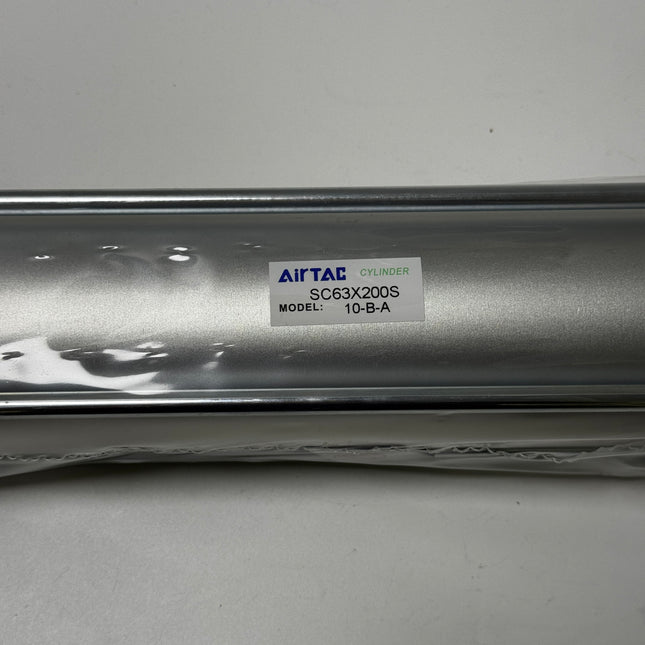

Airtac SC series: Standard double-acting cylinder - SC63X200S

Specification: standard compound type Bore: 63mm Stroke: 200mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC63X200S 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC63N-R1 TPU material P-SC63-R1 NBR Material P-SC63N-R2 Fluorine rubber material ， Installation accessories :F-SC63LB Axial mounting F-SC63FA Flange connecting plate F-SC63CA Single-ear fixing seat F-SC63CB Binaural mount F-SC63TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， cylinder magnetic ring :GMED41X59.5X5 cylinder magnetic ring SC63 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SC63 Front cover SC63 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$176.74

View options
View options

Airtac SC series: Standard double-acting cylinder - SC63X25CB

Specification: standard compound type Bore: 63mm Stroke: 25mm Magnet: no magnet Fixed type: CB Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC63X25CB 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC63N-R1 TPU material P-SC63-R1 NBR Material P-SC63N-R2 Fluorine rubber material ， Installation accessories :F-SC63LB Axial mounting F-SC63FA Flange connecting plate F-SC63CA Single-ear fixing seat F-SC63CB Binaural mount F-SC63TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， cylinder magnetic ring :GMED41X59.5X5 cylinder magnetic ring SC63 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SC63 Front cover SC63 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$131.09

View options
View options

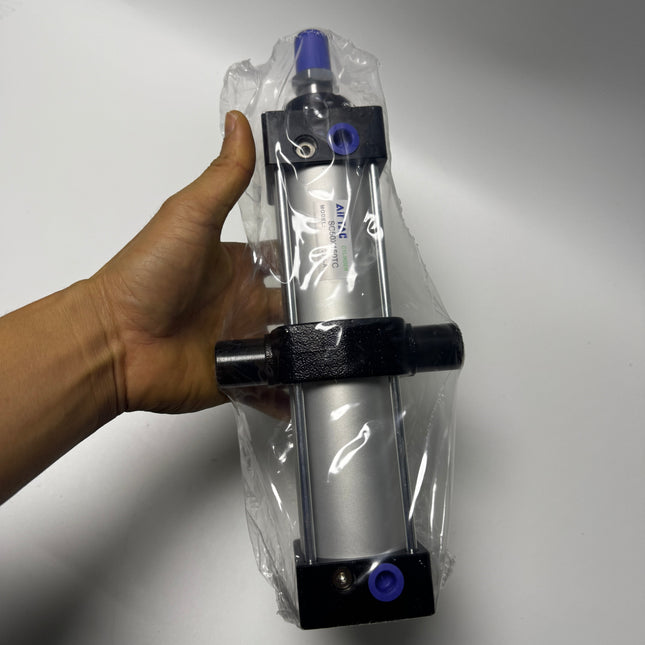

Airtac SC series: Standard double-acting cylinder - SC50X150TC

Specification: standard compound type Cylinder diameter: 50mm Stroke: 150mm Magnet: no magnet Fixed type: TC Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SC50X150TC 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel Type of sealing ring :P-SC50N-R1 TPU material P-SC50-R1 NBR Material P-SC50N-R2 Fluorine rubber material ， Installation accessories :F-SC50LB Axial mounting F-SC50FA Flange connecting plate F-SC50CA Single-ear fixing seat F-SC50CB Binaural mount F-SC50TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， cylinder magnetic ring :GMED30X46.5X5 cylinder magnetic ring SC50 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SC50 Front cover SC50 Rear lid Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability. 4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small. 5. The cylinder buffer adjustment is stable. 6. Various specifications of the cylinder and installation accessories for selection. 7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.

Read more less

$154.09

View options
View options

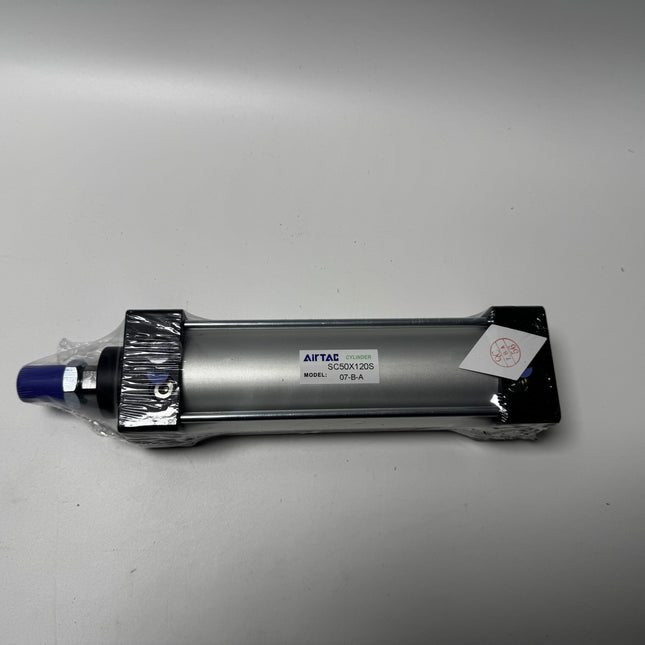

Airtac SC series: Standard double-acting cylinder - SC50X120S
