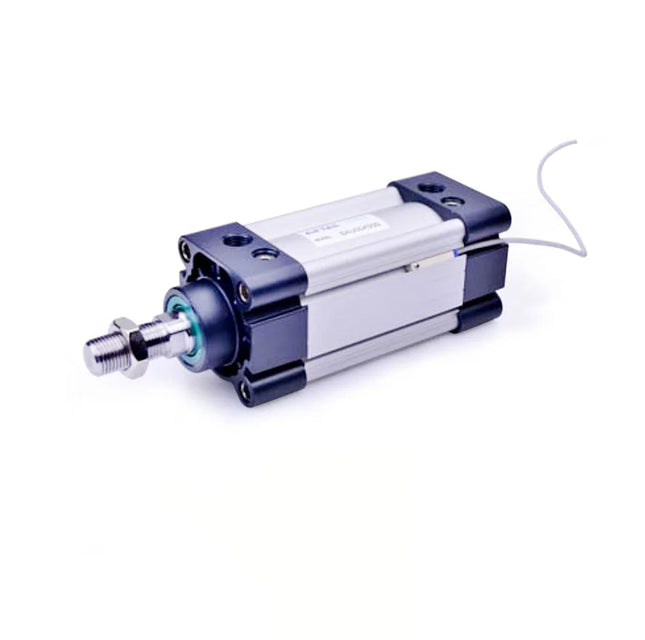

SAU Series Standard Cylinder (No Tie Rod Type)

Product Features
Specifications
Stroke Specifications
Product Ordering Code

Product Features

Enterprise standard cylinder.
The piston seal adopts a heterogeneous two-way seal structure. It has compact dimensions and a grease storage function.
It is an aluminum tube with a "米" (star/cross) shaped profile, no tie rod, and has good corrosion resistance. It features sensor mounting grooves on the periphery, making it convenient to use.
Compared with ISO15552 standard cylinders, SAU series cylinders with the same bore size are shorter in length.
Cylinder cushion adjustment is smooth.
Cylinder mounting accessories are shared with SC series cylinders.
High-temperature resistant seal material is available to ensure the cylinder works normally at 150°C.

Specifications

Bore Size (mm)	32	40	63	80	100
Action	Double Acting
Fluid	Air (Filtered 40μm or better)
Mounting (SAU)	Basic, FA, FB, CA, CB, LB
Mounting (SAUD, SAUJ)	Basic, FA, LB
Operating Pressure	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure	1.5MPa (215psi) (15bar)
Temperature	-20~70°C
Speed Range	30~800 mm/s
Stroke Tolerance	0~250: +1.0/0 251~1000: +1.5/0 1001~1500: +2.0/0
Cushion Type	Adjustable Cushion
Cushion Stroke	21mm			28mm	29mm
Port Size [Note 1]	PT1/8	PT1/4	PT3/8		PT1/2

Note: [1] PT thread and G thread are available.

Standard Stroke

Bore Size (mm)	Standard Stroke (mm)	Max Stroke	Allowable Stroke
32	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500	1000	1800
40		1200	1800
50		1200	1800
63		1500	1800
80		1500	1800
100		1500	1800

Note: For 40~100mm bore sizes, strokes 600, 700, 800, 900, 1000 are also standard. Please contact the company for other special strokes.

Product Ordering Code

No.	Item	Code	Description
1	Model	SAU	Standard Double Acting
		SAUD	Double Shaft Double Acting
		SAUJ	Double Shaft Adjustable Stroke
2	Bore Size	32 / 40 / 50 / 63 / 80 / 100	Cylinder Diameter (mm)
3	Stroke	-	Refer to Stroke Table
4	Adjustable Stroke	10, 20, 30... 100	Only for SAUJ series. No code for SAU/SAUD.
5	Magnet	Blank	No Magnet
5	Magnet	S	With Magnet
6	Mounting	Blank	Standard (No bracket)
6	Mounting	LB, FA, FB, CA, CB	Mounting accessories (Note: FB, CA, CB, LB available depending on model)
7	Seal Material	Blank	TPU
		H	Viton (High Temperature)
		N	NBR
8	Thread Type	Blank	PT Thread
8	Thread Type	G	G Thread
