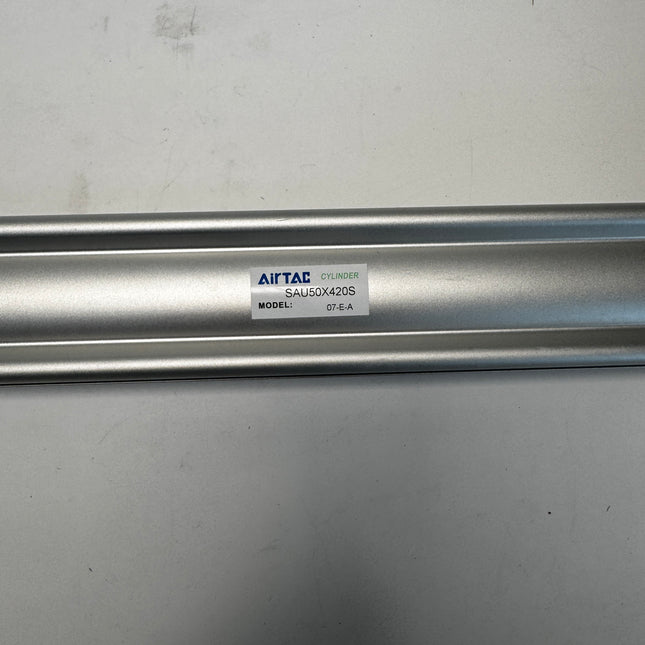

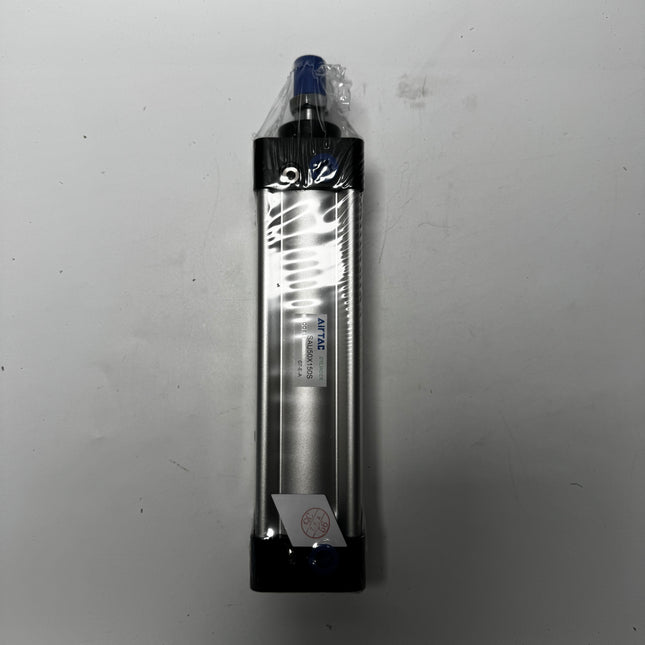

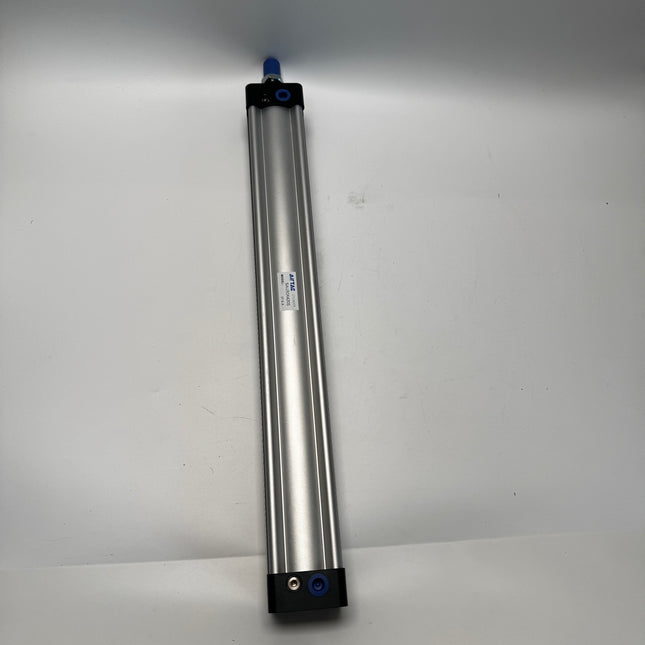

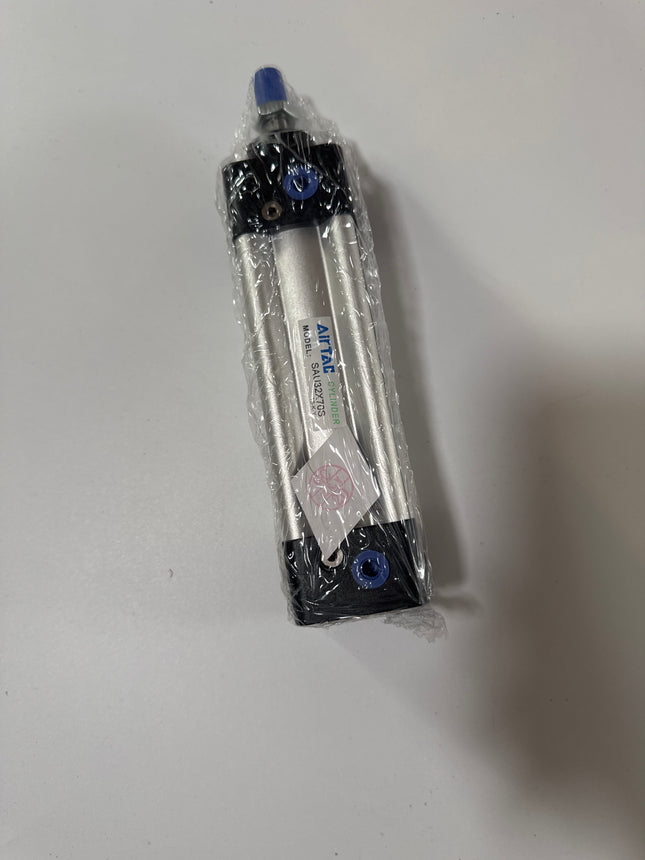

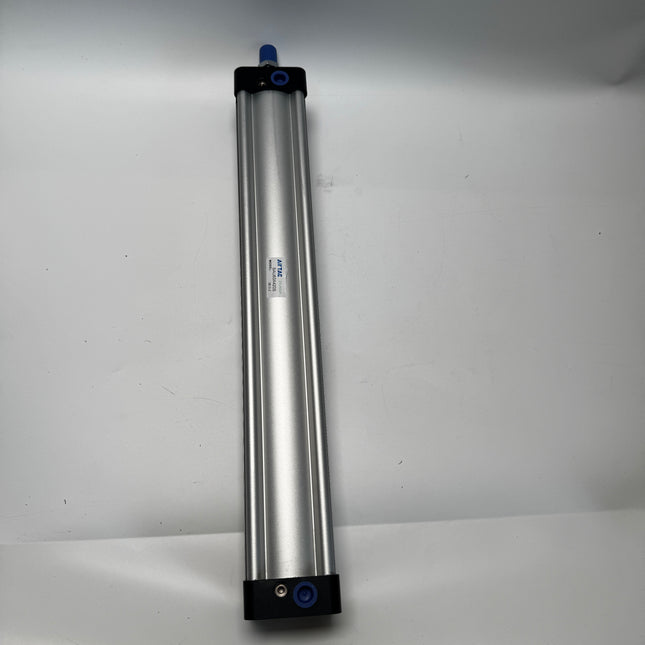

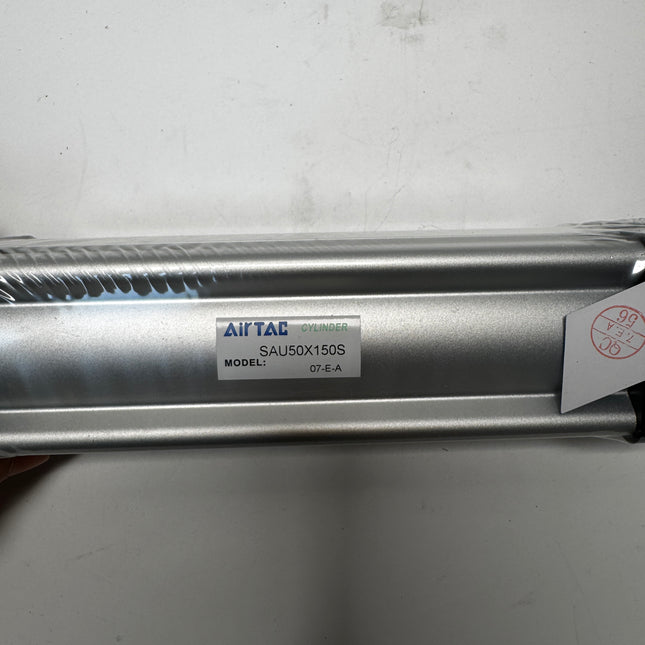

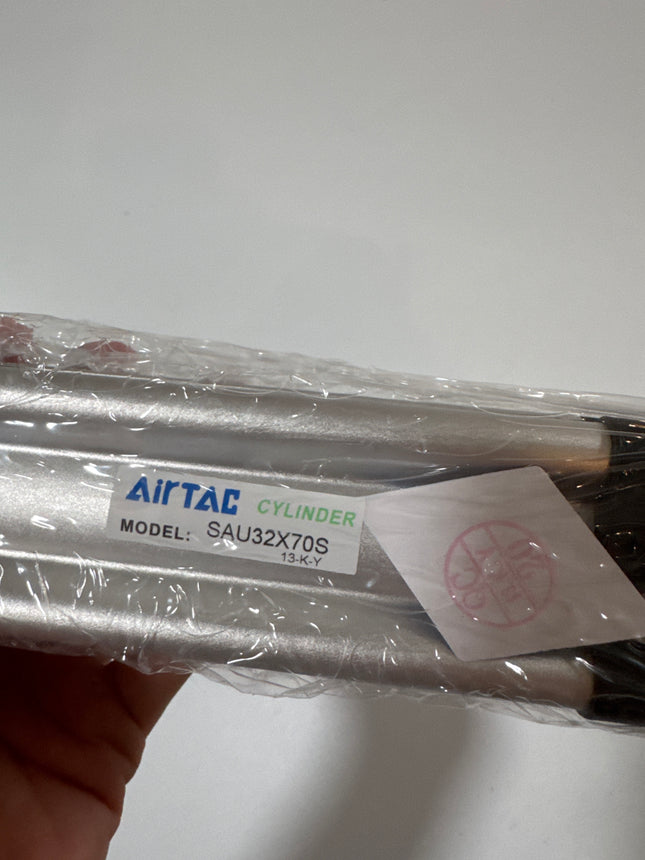

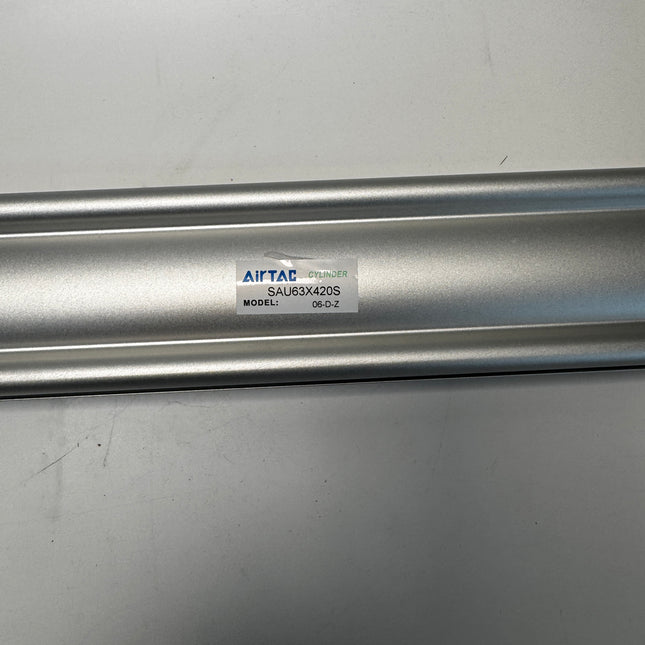

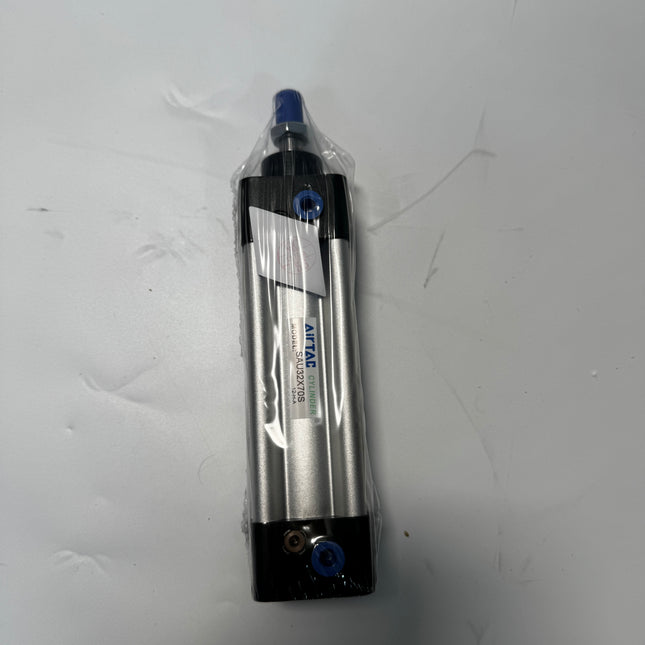

SAU Series Standard Cylinder (No Tie Rod Type)
Product Features
- Enterprise standard cylinder.
- The piston seal adopts a heterogeneous two-way seal structure. It has compact dimensions and a grease storage function.
- It is an aluminum tube with a "米" (star/cross) shaped profile, no tie rod, and has good corrosion resistance. It features sensor mounting grooves on the periphery, making it convenient to use.
- Compared with ISO15552 standard cylinders, SAU series cylinders with the same bore size are shorter in length.
- Cylinder cushion adjustment is smooth.
- Cylinder mounting accessories are shared with SC series cylinders.
- High-temperature resistant seal material is available to ensure the cylinder works normally at 150°C.
Specifications
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|
| Action | Double Acting | |||||
| Fluid | Air (Filtered 40μm or better) | |||||
| Mounting (SAU) | Basic, FA, FB, CA, CB, LB | |||||
| Mounting (SAUD, SAUJ) | Basic, FA, LB | |||||
| Operating Pressure | 0.15~1.0MPa (22~145psi) (1.5~10.0bar) | |||||
| Proof Pressure | 1.5MPa (215psi) (15bar) | |||||
| Temperature | -20~70°C | |||||
| Speed Range | 30~800 mm/s | |||||
| Stroke Tolerance |
0~250: +1.0/0 251~1000: +1.5/0 1001~1500: +2.0/0 |
|||||
| Cushion Type | Adjustable Cushion | |||||
| Cushion Stroke | 21mm | 28mm | 29mm | |||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT3/8 | PT1/2 | ||
Note: [1] PT thread and G thread are available.
Standard Stroke
| Bore Size (mm) | Standard Stroke (mm) | Max Stroke | Allowable Stroke |
|---|---|---|---|
| 32 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 1000 | 1800 |
| 40 | 1200 | 1800 | |
| 50 | 1200 | 1800 | |
| 63 | 1500 | 1800 | |
| 80 | 1500 | 1800 | |
| 100 | 1500 | 1800 |
Note: For 40~100mm bore sizes, strokes 600, 700, 800, 900, 1000 are also standard. Please contact the company for other special strokes.
Product Ordering Code
| No. | Item | Code | Description |
|---|---|---|---|
| 1 | Model | SAU | Standard Double Acting |
| SAUD | Double Shaft Double Acting | ||

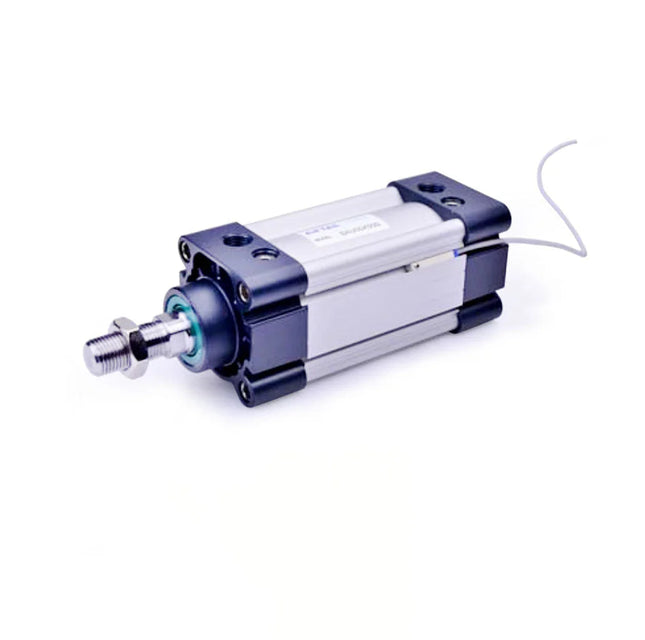

| SAUJ | Double Shaft Adjustable Stroke | ||
| 2 | Bore Size | 32 / 40 / 50 / 63 / 80 / 100 | Cylinder Diameter (mm) |
| 3 | Stroke | - | Refer to Stroke Table |
| 4 | Adjustable Stroke | 10, 20, 30... 100 | Only for SAUJ series. No code for SAU/SAUD. |
| 5 | Magnet | Blank | No Magnet |
| S | With Magnet | ||
| 6 | Mounting | Blank | Standard (No bracket) |
| LB, FA, FB, CA, CB | Mounting accessories (Note: FB, CA, CB, LB available depending on model) | ||
| 7 | Seal Material | Blank | TPU |
| H | Viton (High Temperature) | ||
| N | NBR | ||
| 8 | Thread Type | Blank | PT Thread |
| G | G Thread |
