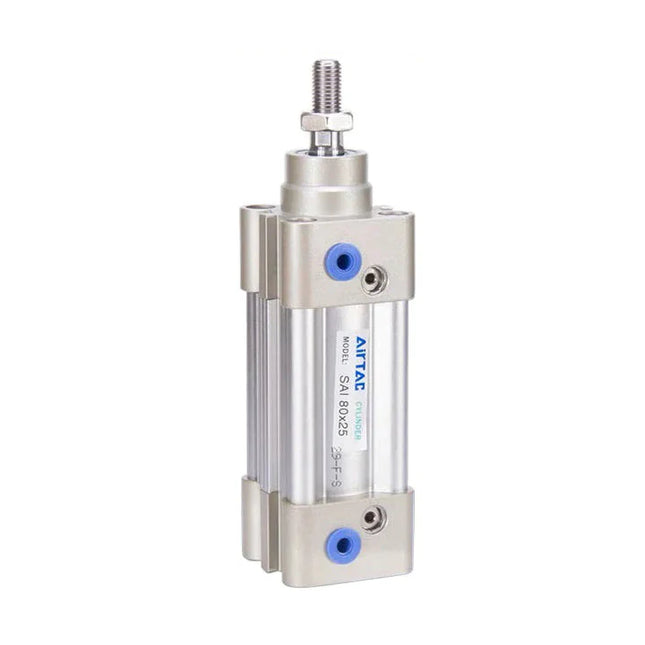

SAIL Series ISO15552 Standard Cylinder (Locking Type)
Product Features
- Locking Cylinder: Available in Front Cover Locking Type and Rear Cover Locking Type.
- Unlocking Method: Automatic and Manual.
Specifications
| Bore Size (mm) | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
|---|---|---|---|---|---|---|---|---|
| Action | Double Acting | |||||||
| Fluid | Air (Filtered 40μm or better) | |||||||
| Mounting | Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2 | |||||||
| Operating Pressure | 0.15~1.0MPa (22~145psi) (1.5~10.0bar) | |||||||
| Proof Pressure | 1.5MPa (215psi) (15bar) | |||||||
| Temperature | -20~70°C | |||||||
| Speed Range | 30~800 mm/s | 30~500 mm/s | ||||||
| Stroke Tolerance |
0~250: +1.0/0 251~1000: +1.5/0 1001~1500: +2.0/0 |
|||||||
| Cushion Type | Adjustable Cushion | |||||||
| Cushion Stroke | Non-Locking End: Refer to standard cushion stroke | |||||||
| 20mm | 20mm | 21mm | 22.5mm | 24mm | 24mm | 28mm | ||
| Port Size [Note 1] | PT1/4 | PT3/8 | PT1/2 | PT3/4 | ||||
Note: [1] PT thread and G thread are available.
Standard Stroke
| Bore Size (mm) | Standard Stroke (mm) | Max Stroke | Allowable Stroke |
|---|---|---|---|
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 1800 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 1800 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 125 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 | 160 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 200 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
Note: Please contact the company for other special strokes.
Product Ordering Code
| No. | Item | Code | Description |
|---|---|---|---|
| 1 | Model | SAIL | Standard Double Acting Locking Type (SAI) |
| 2 | Lock Position | B | Rear Cover Locking Type |
| F | Front Cover Locking Type | ||
| 3 | Bore Size | 40~200 | 40, 50, 63, 80, 100, 125, 160, 200 |
| 4 | Stroke | - | Refer to Stroke Table |
| 5 | Magnet | Blank | No Magnet |
| S | With Magnet | ||
| 6 | Mounting | Blank | Standard (No bracket) |
| LB, FA, FB, CA, CB, CR, FTC, TC | Mounting accessories | ||
| 7 | Thread Type | Blank | PT Thread |
| G | G Thread |
Notes:
1. CR mounting is used with CB.
2. FTC and TC mountings are used with TCM1, TCM2.
