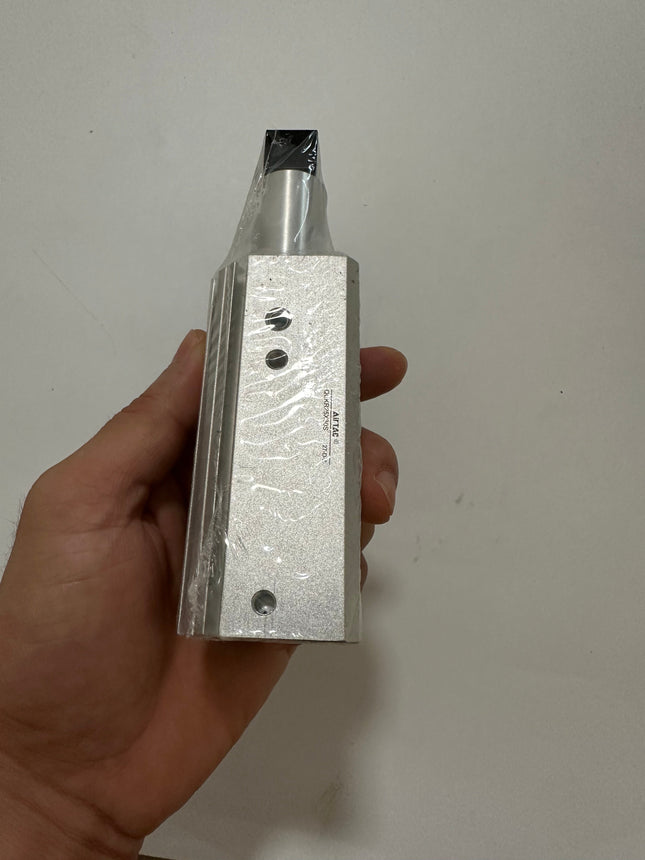

QCK Series Rotary Clamp Cylinder

QCK Series Rotary Clamp Cylinder

  • Product Features
  • Specifications
  • Stroke Specs
  • Ordering Code

Features

  • Welding Environment Ready: The piston rod undergoes QPQ treatment, offering superior weld spatter resistance compared to hard chrome plating.
  • Dust Protection: The front cover is equipped with a stainless steel scraper ring, which is durable and resistant to dust and welding spatter, protecting the cylinder from damage.
  • Compatibility: The body mounting dimensions and installation methods are identical to the ACQ series, allowing for the use of ACQ mounting accessories.

Specifications

Bore Size (mm) 12 16 20 25 32 40 50 63
Acting Type Double Acting
Fluid Air (to be filtered by 40μm filter element)
Operating Pressure 0.15~1.0MPa (22~145psi) (1.5~10bar)
Proof Pressure 1.5MPa (215psi) (15bar)
Temperature (°C) -20~70
Speed Range 50~200 mm/s
Rotation Angle 90° (Tolerance ±2°)
Rotation Direction Left (L) or Right (R)
Cushion Type Bumper
Port Size M5 x 0.8 PT1/8 PT1/4
[Note 1] PT, G, and NPT threads are available.

Stroke Specifications (mm)

Bore Size Rotary Stroke Clamping Stroke Options
12 / 16 7.5 10, 20, 30
20 / 25 9.5 10, 20, 30
32 / 40 15 10, 20, 30, 50
50 / 63 19 10, 20, 30, 50
Note: Stroke Tolerance +1.0 / 0.

Ordering Code

QCK L 32 x 10 S M FB □
No. Item Code Description
① Series QCK: Rotary Clamp Cylinder
② Rotation L: Left Rotation
R: Right Rotation
③ Bore Size 12, 16, 20, 25, 32, 40, 50, 63 (mm)
④ Clamp Stroke 10, 20, 30, 50 (Refer to Stroke Specs)
⑤ Magnet S: With Magnet
⑥ Rod End Blank: Cone type (With arm)
M: Flat type (Without arm)
⑦ Mounting [Note 1] Blank: No accessory
FB: Rear Flange
⑧ Thread [Note 2] Blank: PT Thread
G: G Thread
[Note 1] Rear flange dimensions are same as ACQ series; share the same mounting accessories.
[Note 2] When port is M5 (for Bore 12-25), this code is blank.

Show previous products

  • Airtac QCK series: rotary clamping cylinder - QCKL40X20SMG

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL40X20SMG

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 40mm Clamping stroke: 20mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: G tooth Specifications 1. Model: QCKL40X20SMG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ40FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $118.21

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL50X50SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL50X50SM

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 50mm Clamping stroke: 50mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: PT tooth Specifications 1. Model: QCKL50X50SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):19, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/4 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ50FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $184.79

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL40X10SMG

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL40X10SMG

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 40mm Clamping stroke: 10mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: G tooth Specifications 1. Model: QCKL40X10SMG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ40FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $108.59

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL40X50SMG

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL40X50SMG

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 40mm Clamping stroke: 50mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: G tooth Specifications 1. Model: QCKL40X50SMG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ40FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $146.99

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL25X20SFB

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL25X20SFB

    Specifications: rotary clamping cylinder Steering: Left Bore: 25mm Clamping stroke: 20mm Magnet: with magnet Piston rod end type: taper type (with swing arm) Fixed form: rear cover flange connecting plate Tooth type: M5X0.8 Specifications 1. Model: QCKL25X20SFB 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ25FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $102.98

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL25X20SMFB

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL25X20SMFB

    Specifications: rotary clamping cylinder Steering: Left Bore: 25mm Clamping stroke: 20mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: rear cover flange connecting plate Tooth type: M5X0.8 Specifications 1. Model: QCKL25X20SMFB 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ25FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $91.18

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL50X10SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL50X10SM

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 50mm Clamping stroke: 10mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: PT tooth Specifications 1. Model: QCKL50X10SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):19, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/4 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ50FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $133.16

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL32X20SMG

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL32X20SMG

    Specifications: rotary clamping cylinder Steering: Left Bore: 32mm Clamping stroke: 20mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: G tooth Specifications 1. Model: QCKL32X20SMG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ32FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $100.71

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL32X20SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL32X20SM

    Specifications: rotary clamping cylinder Steering: Left Bore: 32mm Clamping stroke: 20mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: PT tooth Specifications 1. Model: QCKL32X20SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ32FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $100.71

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL32X30SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL32X30SM

    Specifications: rotary clamping cylinder Steering: Left Bore: 32mm Clamping stroke: 30mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: PT tooth Specifications 1. Model: QCKL32X30SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ32FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $108.03

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL40X20SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL40X20SM

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 40mm Clamping stroke: 20mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: PT tooth Specifications 1. Model: QCKL40X20SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ40FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $118.21

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL25X30SFB

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL25X30SFB

    Specifications: rotary clamping cylinder Steering: Left Bore: 25mm Clamping stroke: 30mm Magnet: with magnet Piston rod end type: taper type (with swing arm) Fixed form: rear cover flange connecting plate Tooth type: M5X0.8 Specifications 1. Model: QCKL25X30SFB 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ25FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $108.57

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL16X30SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL16X30SM

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 16mm Clamping stroke: 30mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: M5X0.8 Specifications 1. Model: QCKL16X30SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):7.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ16FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $63.99

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL32X10SMG

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL32X10SMG

    Specifications: rotary clamping cylinder Steering: Left Bore: 32mm Clamping stroke: 10mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: G tooth Specifications 1. Model: QCKL32X10SMG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ32FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $93.45

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL32X30SMG

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL32X30SMG

    Specifications: rotary clamping cylinder Steering: Left Bore: 32mm Clamping stroke: 30mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: G tooth Specifications 1. Model: QCKL32X30SMG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ32FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $108.03

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL32X50SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL32X50SM

    Specifications: rotary clamping cylinder Steering: Left Bore: 32mm Clamping stroke: 50mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: PT tooth Specifications 1. Model: QCKL32X50SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ32FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $125.23

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL25X10SFB

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL25X10SFB

    Specifications: rotary clamping cylinder Steering: Left Bore: 25mm Clamping stroke: 10mm Magnet: with magnet Piston rod end type: taper type (with swing arm) Fixed form: rear cover flange connecting plate Tooth type: M5X0.8 Specifications 1. Model: QCKL25X10SFB 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ25FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $97.12

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL32X10SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL32X10SM

    Specifications: rotary clamping cylinder Steering: Left Bore: 32mm Clamping stroke: 10mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: PT tooth Specifications 1. Model: QCKL32X10SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):15, Clamping stroke (mm):10、20、30、50, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG,DMSJ,CMSJ Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ32FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $93.45

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL25X30SMFB

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL25X30SMFB

    Specifications: rotary clamping cylinder Steering: Left Bore: 25mm Clamping stroke: 30mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: rear cover flange connecting plate Tooth type: M5X0.8 Specifications 1. Model: QCKL25X30SMFB 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ25FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $96.77

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL25X10SMFB

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL25X10SMFB

    Specifications: rotary clamping cylinder Steering: Left Bore: 25mm Clamping stroke: 10mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: rear cover flange connecting plate Tooth type: M5X0.8 Specifications 1. Model: QCKL25X10SMFB 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ25FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $85.48

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL20X30SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL20X30SM

    Specifications: rotary clamping cylinder Steering: Left Bore: 20mm Clamping stroke: 30mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: M5X0.8 Specifications 1. Model: QCKL20X30SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ20FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $79.79

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL25X20SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL25X20SM

    Specifications: rotary clamping cylinder Steering: Left Bore: 25mm Clamping stroke: 20mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: M5X0.8 Specifications 1. Model: QCKL25X20SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ25FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $80.78

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL16X20SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL16X20SM

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 16mm Clamping stroke: 20mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: M5X0.8 Specifications 1. Model: QCKL16X20SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):7.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ16FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $59.97

    View options

  • Airtac QCK series: rotary clamping cylinder - QCKL25X10SM

    View options

    Airtac QCK series: rotary clamping cylinder - QCKL25X10SM

    Specifications: rotary clamping cylinder Steering: Left Bore: 25mm Clamping stroke: 10mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: no installation accessories Tooth type: M5X0.8 Specifications 1. Model: QCKL25X10SM 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10bar), Guaranteed pressure resistance :1.5MPa(215psi)(15bar), Working temperature :-20~70℃ 4. Use speed range :50~200mm/s, Rotation angle: 90°, Repeated positioning accuracy: ±2°, Rotation direction: left or right 5. Rotation stroke (mm):9.5, Clamping stroke (mm):10、20、30, Travel tolerance range :+0/1.0, Cushion type: anti-collision pad, nozzle diameter: M5X0.8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG,EMSG Internal structure and main parts material: 1. rocker arm: fast cutting steel/2. Hexagon socket countersunk head screws: medium carbon steel or mild steel/3. Dust scraping ring: none (ø12, 16), stainless steel (other)/4. Front cover O Order: NBR/5. Piston rod: SCr440/6. Front cover: aluminum alloy/7.C type buckle: spring steel/8. Screw: medium carbon steel or low alloy steel/9. Rivet: SCr440/10.O-ring: NBR/11.O-ring: NBR/12. Body: aluminum alloy/13. Magnet holder: brass (ø12, 16), aluminum alloy (other)/14. Magnet spacer: NBR/15. Magnet: sintered rubidium iron boron (12~25), plastic (other)/16. Piston Oring: NBR/17. Rear cover: Aluminum alloy/18. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/19. Wear pad (ring): none (ø12~32), wear resistant material (other)/20. Piston: Brass (ø12, 16), aluminum alloy (other)/21. Hexagon nut: carbon steel/22. Screw: fast cutting steel/23. Anti-collision cushion (ring):PTFE(ø12~40),POM (other) Installation accessories :F-ACQ25FA Flange connecting plate Click to download Airtac product catalog Product Features 1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod. 2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder. 3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

    Read more

    $74.95

    View options

You have seen 192 out of 472 products
