Manifold Base
Product Features
- Can integrate directional control valves of the same series into a valve bank, saving space and cost.
- Unified intake, exhaust, and wiring make troubleshooting convenient when a fault occurs.
- Flexible combination and strong expandability allow for any combination or expansion of the number of connected directional control valves.
Specifications
| Item / Base Model | 100M | 200M | 300M |
|---|---|---|---|
| Working Medium | Air (filtered by a 40μm or larger filter screen) | ||
| Operating Temperature | -20 ~ 70°C | ||
| Applicable Valve Series | 3A100 Series | 3A200 Series | 3A300 Series |
Product Ordering Code

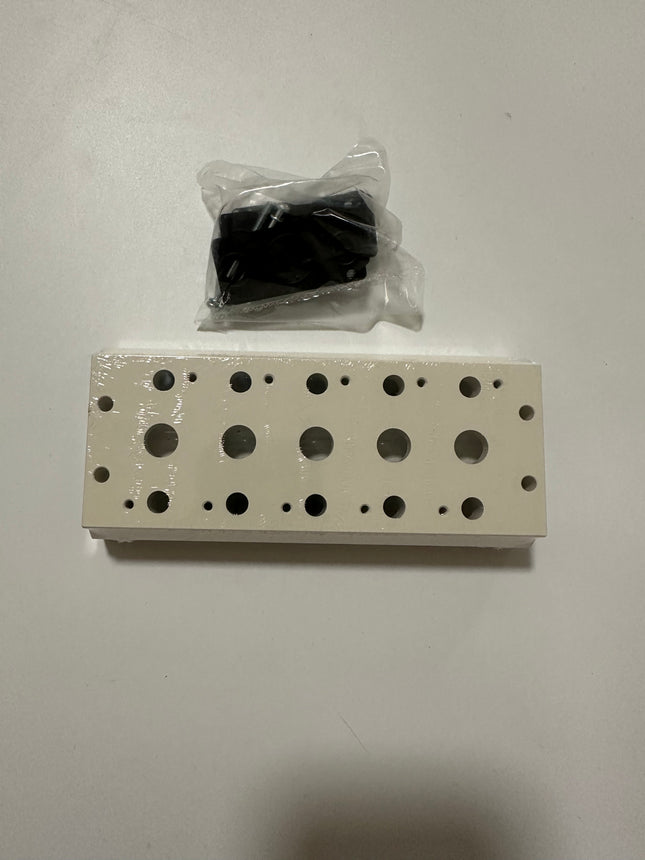

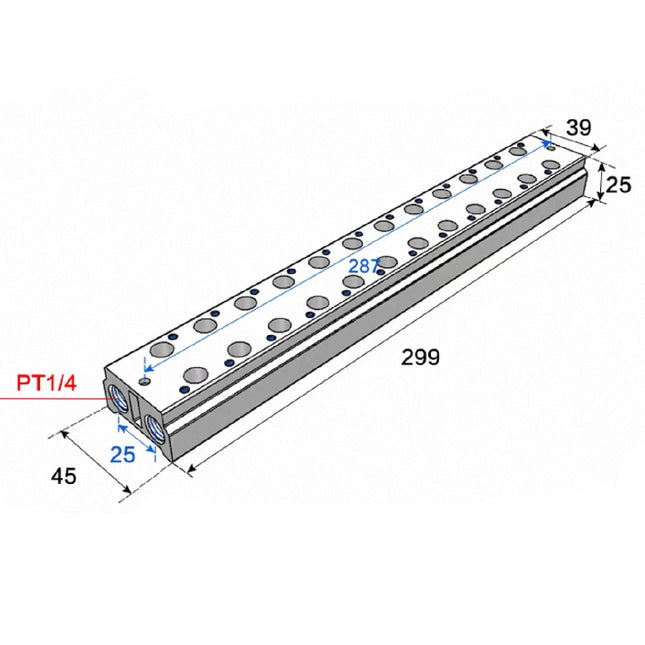

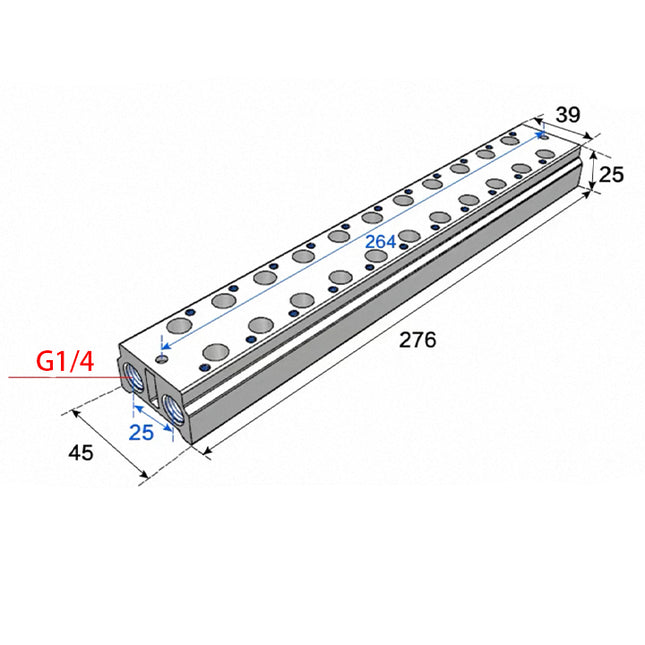

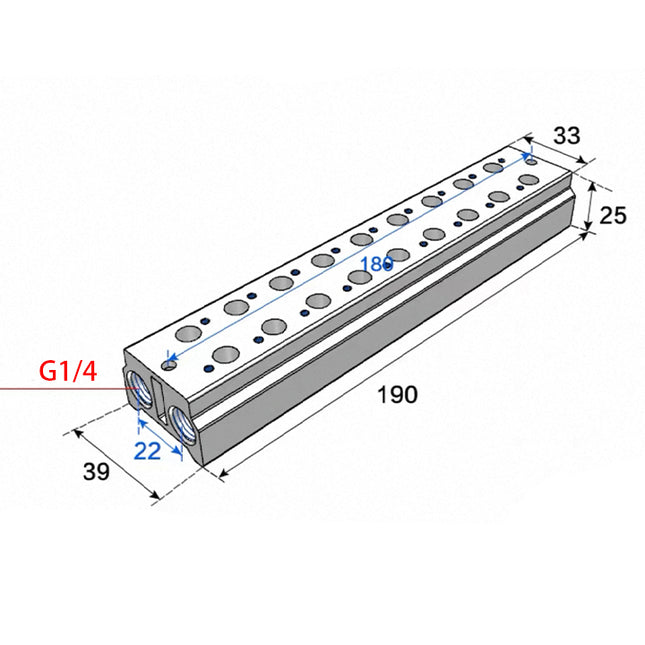

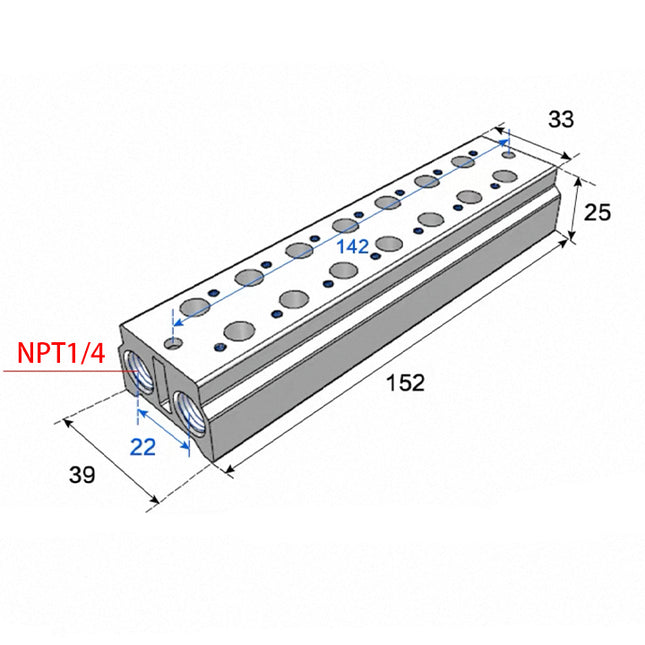

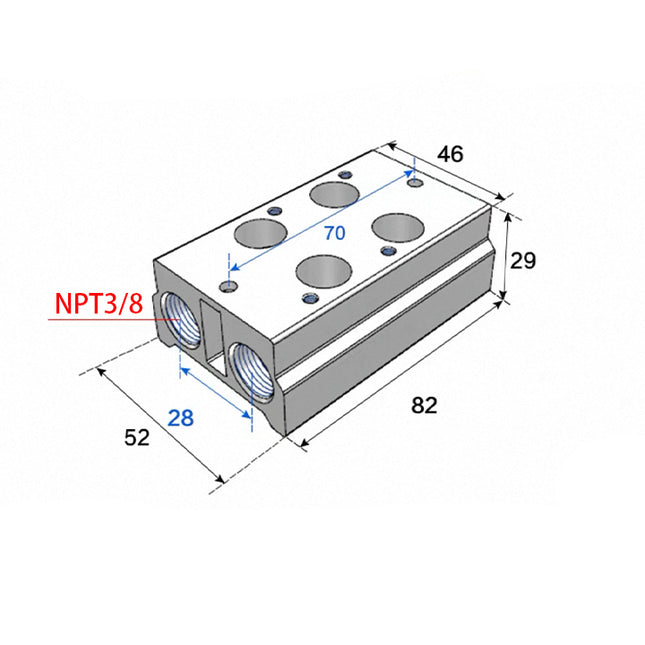

Base Order Code

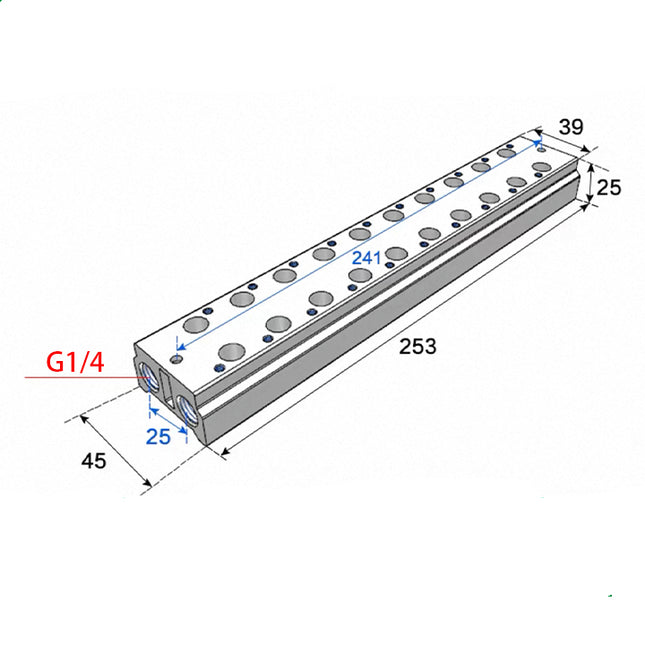

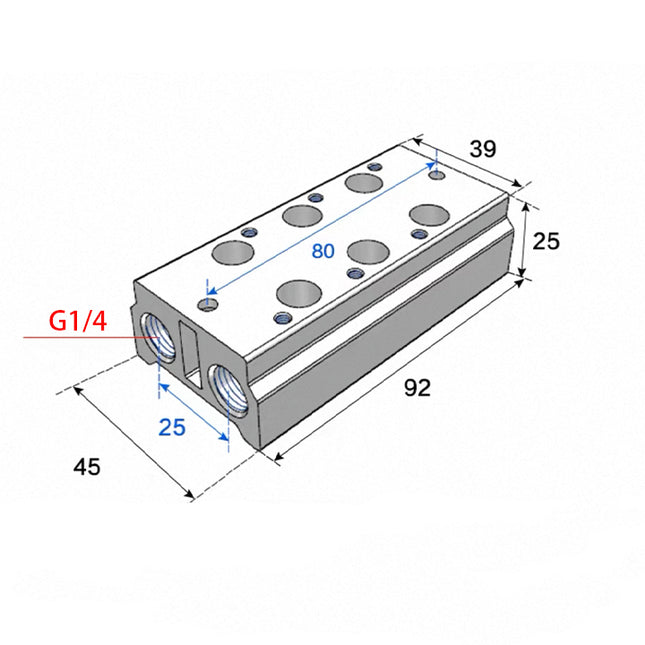

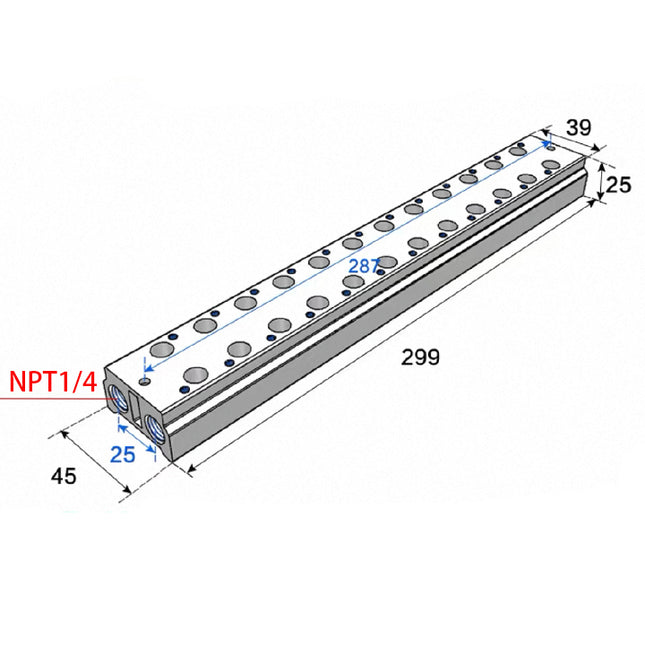

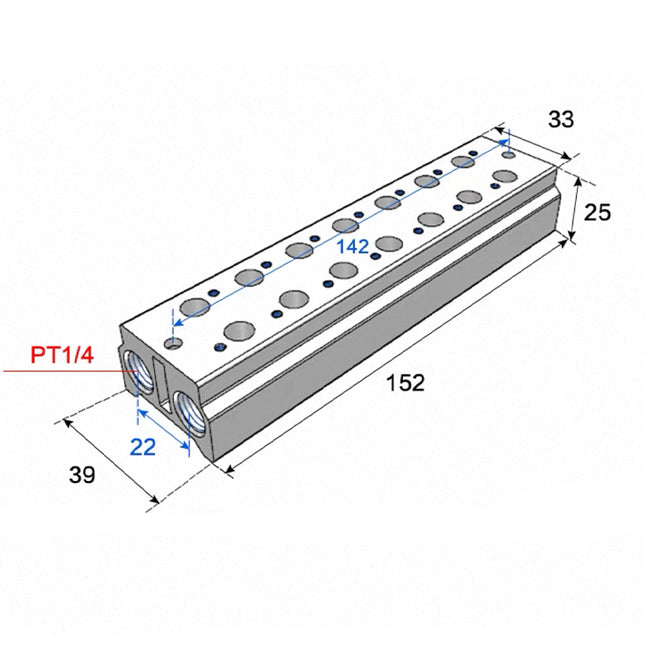

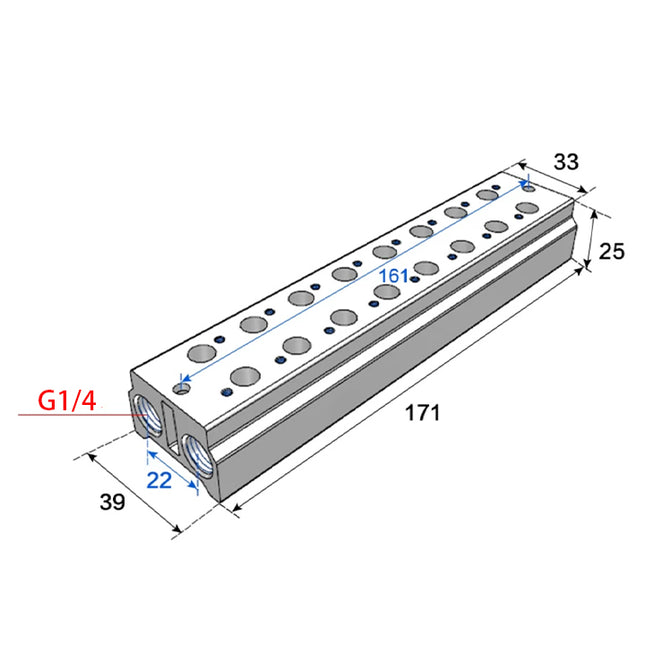

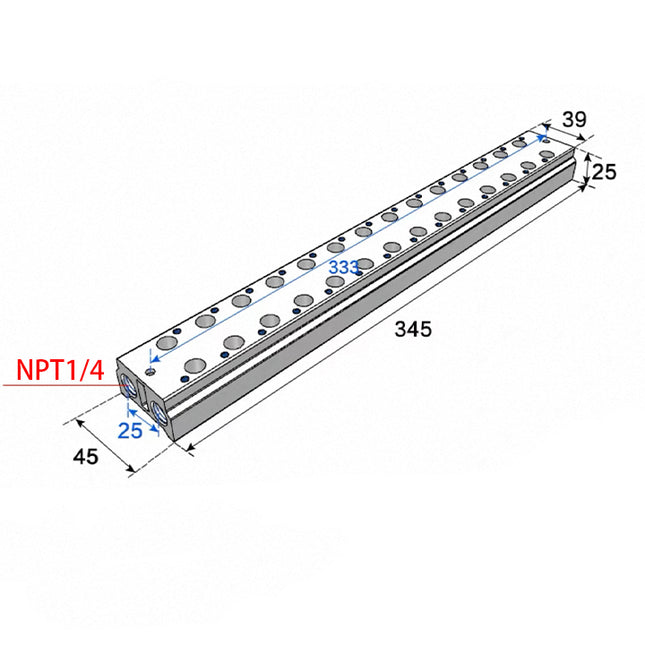

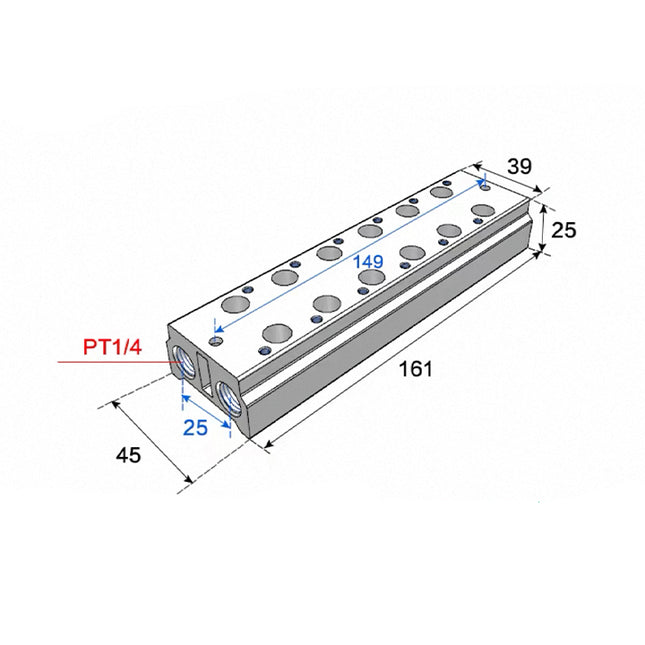

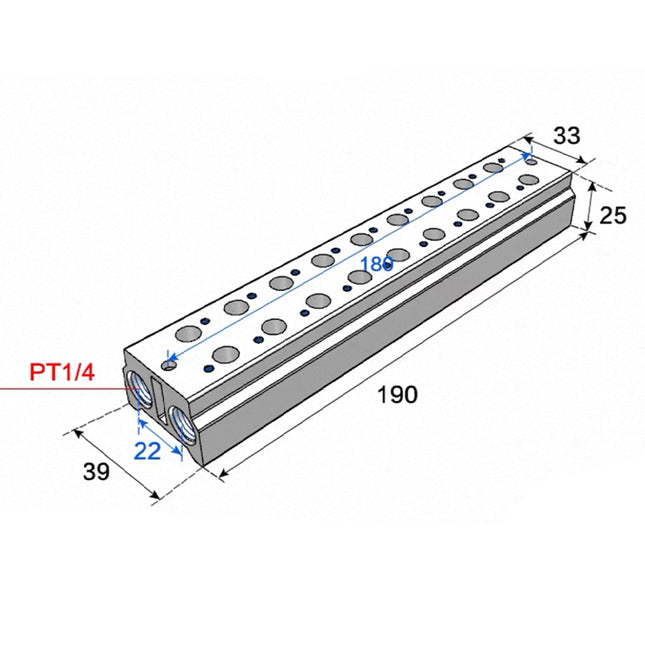

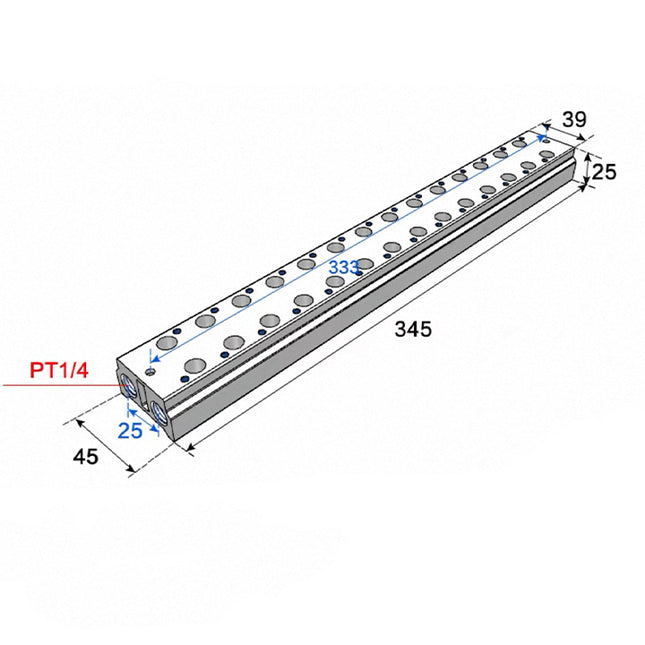

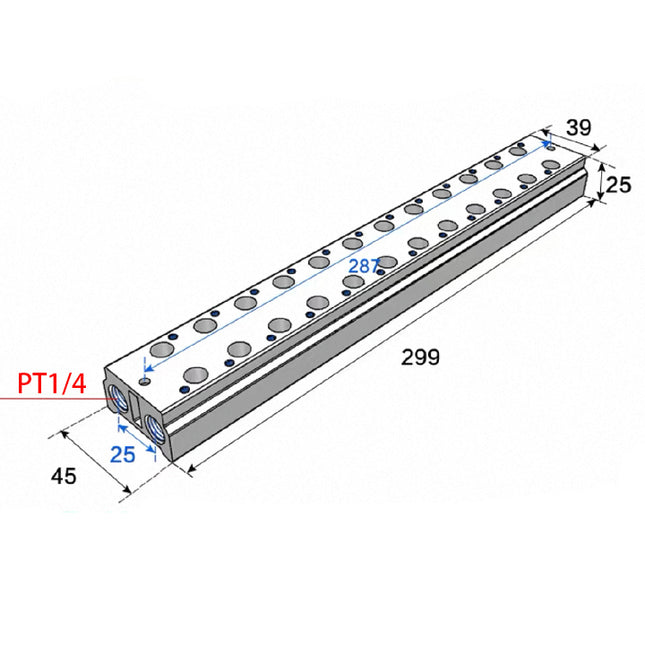

Example: 3V100M 5F □
| Specification Code | Number of Stations | Thread Type |
|---|---|---|
| 3V100M: 100 Series 3V200M: 200 Series 3V300M: 300 Series |
1F: 1 Station 2F: 2 Stations ... 16F: 16 Stations |

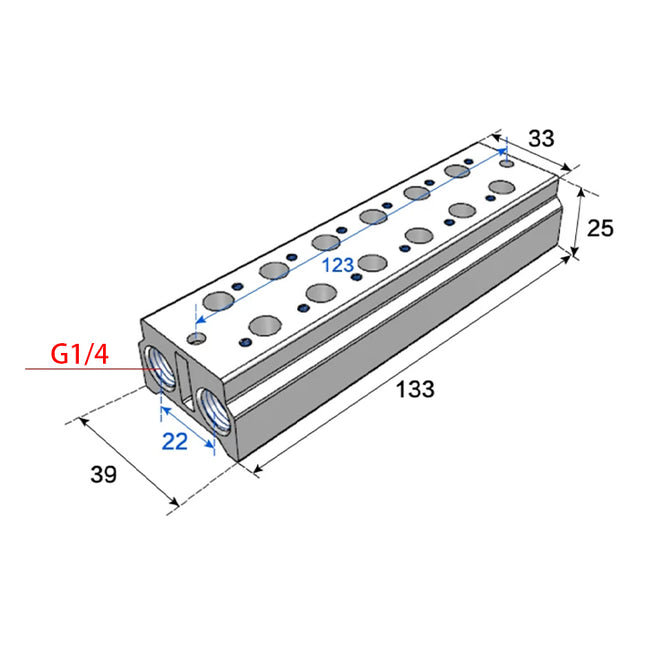

Blank: PT G: G Thread T: NPT Thread |

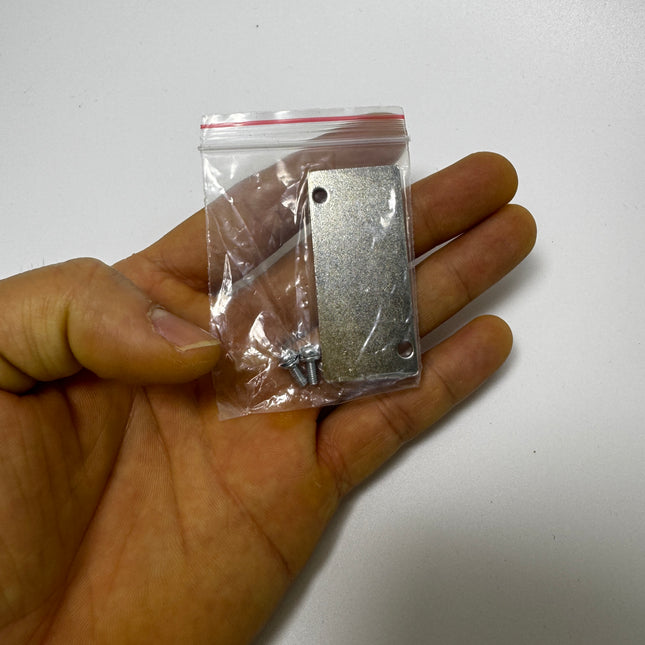

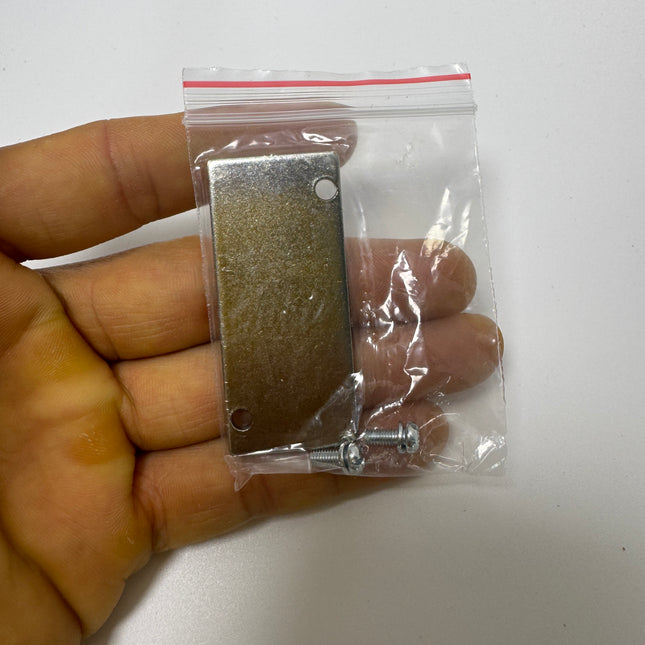

Blanking Plate Order Code

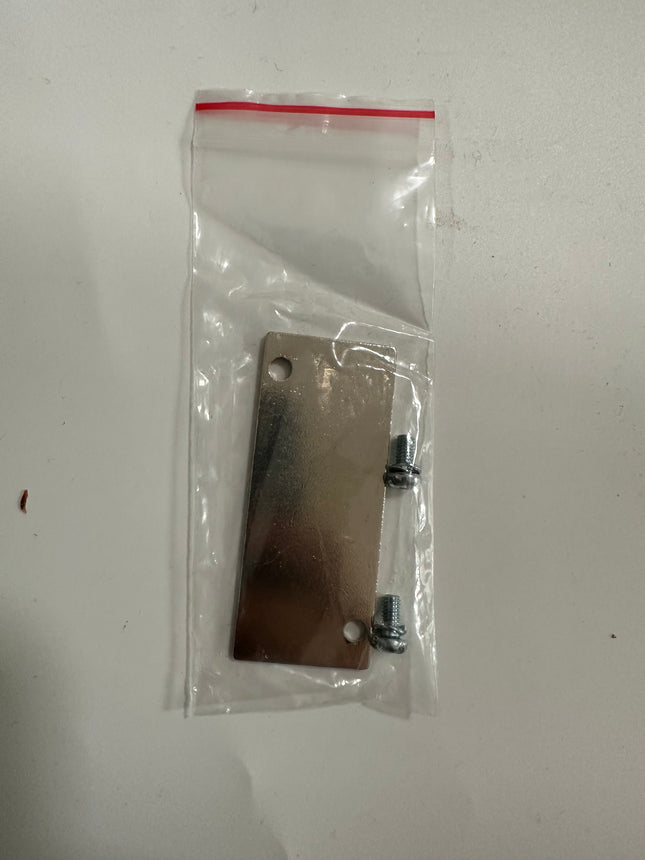

Example: P-3V100M-R2
| Component Code | Specification Code | Blanking Plate Code |
|---|---|---|
| P: Component | 3V100M: 100 Series 3V200M: 200 Series 3V300M: 300 Series |
R2: Blanking plate for base |
Note:
• The order code consists of two parts: the base and the blanking plate.

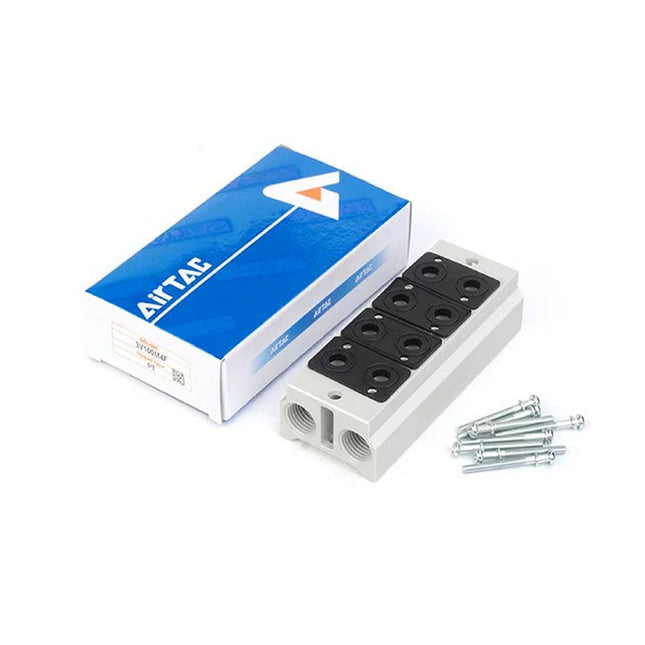

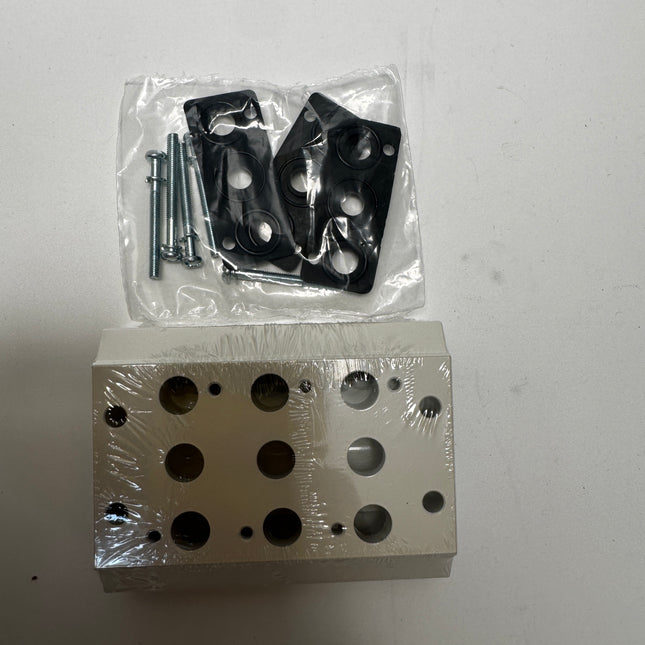

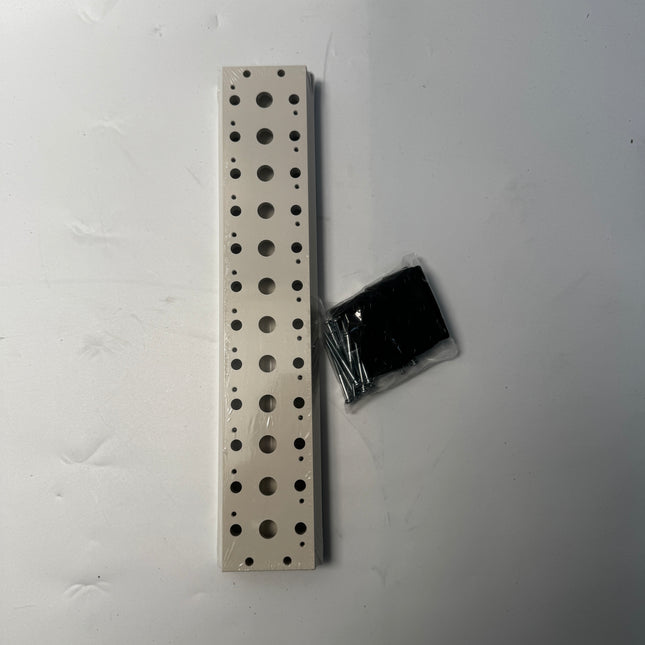

• The base assembly includes the base, gasket, and screws.

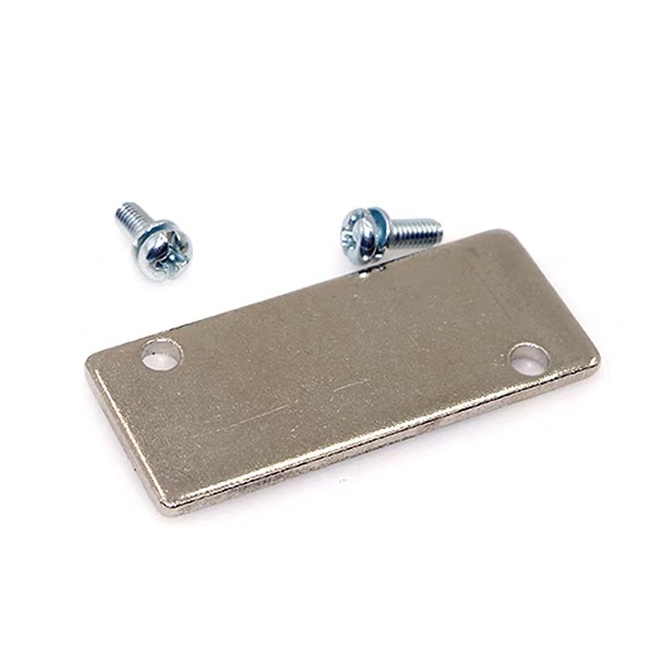

• The blanking plate assembly includes the blanking plate and screws.
• The order code consists of two parts: the base and the blanking plate.
• The base assembly includes the base, gasket, and screws.
• The blanking plate assembly includes the blanking plate and screws.
