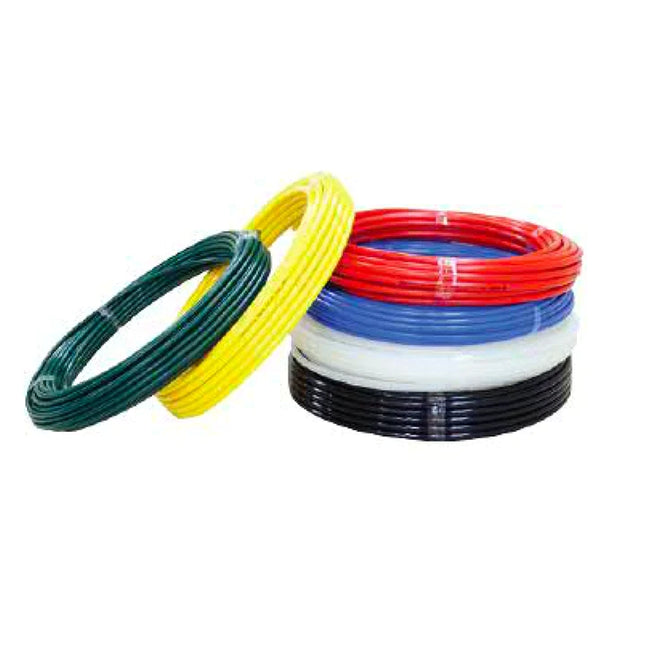

PA12 & PA6 Series Nylon Tubing
High Pressure | Wear Resistant | Precision Pneumatic Hose
Product Features
- High-Pressure Performance: Both PA12 and PA6 nylon tubes exhibit outstanding burst strength and are widely utilized in demanding high-pressure pneumatic and hydraulic environments.
- Exceptional Durability: Provides excellent aging resistance, oil resistance, and superior wear resistance, significantly extending its application range and lifespan compared to standard PU tubing.
- High Stability: Features high dimensional stability and extremely low permeability, making it ideal for precision fluid control systems.
- Versatile Aesthetics: Available in a wide variety of colors to facilitate complex circuit coding and system organization.
Technical Specifications
General Parameters
| Working Temperature (PA6) | -10 ~ 70°C |
| Working Temperature (PA12) | -40 ~ 70°C |
| Standard Roll Length | 100m (Except 4x2.5mm which is 200m) |
1. PA6 Series Dimensions & Specs
| Base Model Code | Tube Size (O.D. x I.D. mm) |
Wall (mm) |
Pressure @ 23°C (Working / Burst) |
Min. Bending Radius (mm) |
Weight (kg / 100m) |
|---|---|---|---|---|---|
| PA6040025 [ ] | 4.0 x 2.5 | 0.75 | 3.5 MPa / 11.0 MPa | 30 | 0.90 |
| PA6060040 [ ] | 6.0 x 4.0 | 1.00 | 3.0 MPa / 10.0 MPa | 45 | 1.80 |
| PA6080060 [ ] | 8.0 x 6.0 | 1.00 | 2.0 MPa / 7.0 MPa | 65 | 2.50 |
| PA6100075 [ ] | 10.0 x 7.5 | 1.25 | 2.0 MPa / 7.0 MPa | 75 | 3.90 |
| PA6120090 [ ] | 12.0 x 9.0 | 1.50 | 2.0 MPa / 7.0 MPa | 100 | 5.70 |
2. PA12 Series Dimensions & Specs
| Base Model Code | Tube Size (O.D. x I.D. mm) |
Wall (mm) |
Pressure @ 23°C (Working / Burst) |
Min. Bending Radius (mm) |
Weight (kg / 100m) |
|---|---|---|---|---|---|
| PA12040025 [ ] | 4.0 x 2.5 | 0.75 | 2.5 MPa / 7.5 MPa | 25 | 0.80 |
| PA12060040 [ ] | 6.0 x 4.0 | 1.00 | 2.0 MPa / 7.0 MPa | 35 | 1.60 |
| PA12080060 [ ] | 8.0 x 6.0 | 1.00 | 1.5 MPa / 5.0 MPa | 55 | 2.30 |
| PA12100075 [ ] | 10.0 x 7.5 | 1.25 | 1.5 MPa / 5.0 MPa | 75 | 3.50 |
| PA12120090 [ ] | 12.0 x 9.0 | 1.50 | 1.5 MPa / 5.0 MPa | 75 | 5.10 |
Working Pressure vs. Temperature
Important: Maximum safe working pressure decreases as environmental or fluid temperature increases. Please multiply the rated Working Pressure (@ 23°C) by the percentages below.
| Material | 20°C | 30°C | 40°C | 50°C | 60°C | 80°C | 100°C |
|---|---|---|---|---|---|---|---|
| PA6 | 100% | - | 74% | - | 57% | 47% | 40% |
| PA12 | 100% | 83% | - | 75% | 64% | 47% | - |
Product Ordering Code
Example: PA12 080 060 100M BU
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code |
PA6: Nylon 6 Tubing PA12: Nylon 12 Tubing |
| 2 | O.D. Code (Outer Dia.) |
040: Φ4mm | 060: Φ6mm | 080: Φ8mm 100: Φ10mm | 120: Φ12mm |
| 3 | I.D. Code (Inner Dia.) |
025: Φ2.5mm | 040: Φ4.0mm | 060: Φ6.0mm 075: Φ7.5mm | 090: Φ9.0mm |
| 4 | Length Code |
200M: 200m/roll (Specific to 4x2.5mm size) 100M: 100m/roll (For all other sizes) |
| 5 | Color Code |
BU: Blue | BK: Black | GE: Orange | N: Gray WH: White | GN: Green | R: Red | Y: Yellow |
