NTS Series Position Monitoring Switch (Limit Switch Box)

NTS Series Position Monitoring Switch

Product Features
Specifications
Wiring & Switch Types
Ordering Code

Features

Rotary Indication: Designed as a rotary position indicator device, suitable for rotary valves (Ball valves, Butterfly valves, Plug valves, etc.) and NAMUR rotary pneumatic actuators.
Easy Installation: Comes with a mounting bracket that complies with ISO5211, DIN3337, and VDI/VDE3845 standards. The NAMUR drive shaft allows direct mounting to all compliant actuators.
Versatile Switch Options: Available with mechanical switches (general purpose), proximity switches, or inductive sensors to suit various applications (intrinsically safe, etc.).

General Specifications

Item	Description	Remarks
Protection Class	Waterproof IP67	D & F Series have Plastic Housing
Coating	Polyester Powder Coating	-
Ambient Temp.	-20 ~ 80°C	Low temp silicone seal optional
Electric Interface	2 x 1/2" NPT (Standard)	Exd Explosion-proof Series: 2x3/4" NPT
Terminals	8 Terminals	4-Switch / DPDT models have 12 terminals
Position Indicator	0 ~ 90° Dome Indicator	-
Mounting Bracket	Stainless Steel NAMUR Standard	D Series limit switches have integrated plastic bracket
Switch Type	2 x SPDT Mechanical (Standard)	Proximity / Inductive optional

Switch Types & Wiring

Code	Type	Description
10	Mechanical (2xSPDT)	Standard Mechanical Switch.
12	Mechanical (4xSPDT)	4 Switches. Not for A and D series housing.
13	Mechanical (2xDPDT)	Double Pole Double Throw. Not for A and D series housing.
15	Mechanical + Potentiometer	2xSPDT + Potentiometer. Only for E series housing.
16	Position Transmitter	2xSPDT + 4-20mA DC Output. Only for E series housing.
21-P+F	Proximity (2-Wire)	NJ2-V3-N (Normally Open, ExiaIICT6 Intrinsically Safe).
23-P+F	Proximity (3-Wire)	NBB2-V3-E2 (PNP or NPN).
24	Proximity (3-Wire)	PSN17-5DNU (PNP or NPN).
27	Magnetic Proximity	2 x SPDT, 0.5A @ 240VAC.
30	Magnetic Inductive	2 x SPSP, 0.3A @ 250VAC. Only for F series housing.

Ordering Code

NTS - A - 10

No.	Item	Code Description
①	Series	NTS: Limit Switch Box
②	Housing Type (Protection)	A: Die-cast Aluminum, Waterproof IP67 C: Die-cast Aluminum, Waterproof IP67 E: Die-cast Aluminum, Explosion-proof EExdIIBT6 ES: SS316 Stainless Steel, Explosion-proof EExdIIBT6 H: Die-cast Aluminum, Explosion-proof EExdIIBT6 D: ABS Plastic, Waterproof IP67 F: ABS Plastic, Waterproof IP67
③	Switch Type	10: 2 x SPDT Mechanical (Standard) 12: 4 x SPDT Mechanical 13: 2 x DPDT Mechanical 21: P+F NJ2-V3-N (2-Wire Proximity) 23: P+F NBB2-V3-E2 (3-Wire Proximity) 27: Magnetic Proximity (See "Wiring & Switch Types" tab for full list and compatibility)

View options

Airtac NTS series: valve-position limit-switch assembly - NTS-F-30

Specifications: NTS-F-30 — valve-position limit-switch assembly with abs housing and switch option 30. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning NTS Quarter-turn valve limit-switch assembly F ABS housing; IP67 as cataloged 30 Magnetic proximity switch, 2 × SPSP as printed, 0.3 A at 250 VAC; F housing only Technical Specifications Parameter Details Position indication 0–90°, dome indicator Housing material ABS Catalog protection / explosion marking IP67 Finish Polyester powder coating on applicable metal housing Ambient temperature −20 to +80°C; silicone-rubber seal option is mentioned for low-temperature service Cable entries Two 3/4 in NPT for E series; two 1/2 in NPT for other series in the specification table. The E/ES drawing labels PF3/4 and H labels PF3/4, so match the delivered entry marking before selecting a gland. Terminal arrangement 8 terminals for standard 2-pole SPDT; 12 terminals for 4-pole SPDT arrangement Mounting bracket Stainless-steel NAMUR standard bracket; D housing uses an integrated plastic bracket Selected switching arrangement Magnetic proximity switch, 2 × SPSP as printed, 0.3 A at 250 VAC; F housing only Features and Application Visual indication and electrical position feedback for quarter-turn valves such as ball, butterfly and plug valves. Mounts to NAMUR actuators meeting the stated VDI/VDE 3845 interface, subject to the selected shaft/bracket dimensions. Choose the mechanical or proximity switch to suit the electrical circuit and required protection. Dimensions and Installation Parameter Details Plate overall length 76 mm Plate depth 51 mm Inner plate depth 40 mm Mounting pitch 30 mm Thickness/height shown 20 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. NAMUR describes the actuator interface, not a guarantee for every actuator. Check the mounting pitch, shaft engagement, enclosure clearance and switch signal against the mating actuator. Mechanical switches are intended for ordinary service; any intrinsically safe proximity-switch application requires the correct complete circuit and marked device rating. Switch option 30 is specified for F housing only in this catalog. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 16 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Assumed 76 × 51 × 20 mm enclosure reference envelope × material density 1.05 g/cm³ × 20% equivalent solid fill. The fill factor is an estimation assumption; actual switch and mounting hardware weights vary.

Read more less

$102.75

View options
View options

Airtac NTS series: valve-position limit-switch assembly - NTS-F-27

Specifications: NTS-F-27 — valve-position limit-switch assembly with abs housing and switch option 27. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning NTS Quarter-turn valve limit-switch assembly F ABS housing; IP67 as cataloged 27 Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Technical Specifications Parameter Details Position indication 0–90°, dome indicator Housing material ABS Catalog protection / explosion marking IP67 Finish Polyester powder coating on applicable metal housing Ambient temperature −20 to +80°C; silicone-rubber seal option is mentioned for low-temperature service Cable entries Two 3/4 in NPT for E series; two 1/2 in NPT for other series in the specification table. The E/ES drawing labels PF3/4 and H labels PF3/4, so match the delivered entry marking before selecting a gland. Terminal arrangement 8 terminals for standard 2-pole SPDT; 12 terminals for 4-pole SPDT arrangement Mounting bracket Stainless-steel NAMUR standard bracket; D housing uses an integrated plastic bracket Selected switching arrangement Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Features and Application Visual indication and electrical position feedback for quarter-turn valves such as ball, butterfly and plug valves. Mounts to NAMUR actuators meeting the stated VDI/VDE 3845 interface, subject to the selected shaft/bracket dimensions. Choose the mechanical or proximity switch to suit the electrical circuit and required protection. Dimensions and Installation Parameter Details Plate overall length 76 mm Plate depth 51 mm Inner plate depth 40 mm Mounting pitch 30 mm Thickness/height shown 20 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. NAMUR describes the actuator interface, not a guarantee for every actuator. Check the mounting pitch, shaft engagement, enclosure clearance and switch signal against the mating actuator. Mechanical switches are intended for ordinary service; any intrinsically safe proximity-switch application requires the correct complete circuit and marked device rating. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 16 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Assumed 76 × 51 × 20 mm enclosure reference envelope × material density 1.05 g/cm³ × 20% equivalent solid fill. The fill factor is an estimation assumption; actual switch and mounting hardware weights vary.

Read more less

$102.75

View options
View options

Airtac NTS series: valve-position limit-switch assembly - NTS-D-27

Specifications: NTS-D-27 — valve-position limit-switch assembly with abs housing and switch option 27. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning NTS Quarter-turn valve limit-switch assembly D ABS housing; IP67 as cataloged 27 Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Technical Specifications Parameter Details Position indication 0–90°, dome indicator Housing material ABS Catalog protection / explosion marking IP67 Finish Polyester powder coating on applicable metal housing Ambient temperature −20 to +80°C; silicone-rubber seal option is mentioned for low-temperature service Cable entries Two 3/4 in NPT for E series; two 1/2 in NPT for other series in the specification table. The E/ES drawing labels PF3/4 and H labels PF3/4, so match the delivered entry marking before selecting a gland. Terminal arrangement 8 terminals for standard 2-pole SPDT; 12 terminals for 4-pole SPDT arrangement Mounting bracket Stainless-steel NAMUR standard bracket; D housing uses an integrated plastic bracket Selected switching arrangement Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Features and Application Visual indication and electrical position feedback for quarter-turn valves such as ball, butterfly and plug valves. Mounts to NAMUR actuators meeting the stated VDI/VDE 3845 interface, subject to the selected shaft/bracket dimensions. Choose the mechanical or proximity switch to suit the electrical circuit and required protection. Dimensions and Installation Parameter Details Bracket length 130 mm NAMUR mounting pitch 80 mm Bracket height options shown 30 / 40 / 50 mm Housing height 57 mm Internal height shown 47 mm Transverse pitch 30 mm Drive engagement 20 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. NAMUR describes the actuator interface, not a guarantee for every actuator. Check the mounting pitch, shaft engagement, enclosure clearance and switch signal against the mating actuator. Mechanical switches are intended for ordinary service; any intrinsically safe proximity-switch application requires the correct complete circuit and marked device rating. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 93 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Assumed 130 × 60 × 57 mm enclosure reference envelope × material density 1.05 g/cm³ × 20% equivalent solid fill. The fill factor is an estimation assumption; actual switch and mounting hardware weights vary.

Read more less

$102.75

View options
View options

Airtac NTS series: valve-position limit-switch assembly - NTS-H-27

Specifications: NTS-H-27 — valve-position limit-switch assembly with die-cast aluminium housing and switch option 27. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning NTS Quarter-turn valve limit-switch assembly H Die-cast aluminium housing; ExdIIBT6 as cataloged 27 Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Technical Specifications Parameter Details Position indication 0–90°, dome indicator Housing material Die-cast aluminium Catalog protection / explosion marking ExdIIBT6 Finish Polyester powder coating on applicable metal housing Ambient temperature −20 to +80°C; silicone-rubber seal option is mentioned for low-temperature service Cable entries Two 3/4 in NPT for E series; two 1/2 in NPT for other series in the specification table. The E/ES drawing labels PF3/4 and H labels PF3/4, so match the delivered entry marking before selecting a gland. Terminal arrangement 8 terminals for standard 2-pole SPDT; 12 terminals for 4-pole SPDT arrangement Mounting bracket Stainless-steel NAMUR standard bracket; D housing uses an integrated plastic bracket Selected switching arrangement Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Features and Application Visual indication and electrical position feedback for quarter-turn valves such as ball, butterfly and plug valves. Mounts to NAMUR actuators meeting the stated VDI/VDE 3845 interface, subject to the selected shaft/bracket dimensions. Choose the mechanical or proximity switch to suit the electrical circuit and required protection. Dimensions and Installation Parameter Details Drawing body width 118 mm Overall mounting width 120 mm Height 141 mm Shaft diameter 5 mm Shaft width 4 mm Shaft projection 7.5 mm Mounting projection 18 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. NAMUR describes the actuator interface, not a guarantee for every actuator. Check the mounting pitch, shaft engagement, enclosure clearance and switch signal against the mating actuator. Mechanical switches are intended for ordinary service; any intrinsically safe proximity-switch application requires the correct complete circuit and marked device rating. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 1060 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Assumed 118 × 118 × 141 mm enclosure reference envelope × material density 2.7 g/cm³ × 20% equivalent solid fill. The fill factor is an estimation assumption; actual switch and mounting hardware weights vary.

Read more less

$102.75

View options
View options

Airtac NTS series: valve-position limit-switch assembly - NTS-ES-27

Specifications: NTS-ES-27 — valve-position limit-switch assembly with ss316 housing and switch option 27. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning NTS Quarter-turn valve limit-switch assembly ES SS316 housing; ExdIIBT6 as cataloged 27 Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Technical Specifications Parameter Details Position indication 0–90°, dome indicator Housing material SS316 Catalog protection / explosion marking ExdIIBT6 Finish Polyester powder coating on applicable metal housing Ambient temperature −20 to +80°C; silicone-rubber seal option is mentioned for low-temperature service Cable entries Two 3/4 in NPT for E series; two 1/2 in NPT for other series in the specification table. The E/ES drawing labels PF3/4 and H labels PF3/4, so match the delivered entry marking before selecting a gland. Terminal arrangement 8 terminals for standard 2-pole SPDT; 12 terminals for 4-pole SPDT arrangement Mounting bracket Stainless-steel NAMUR standard bracket; D housing uses an integrated plastic bracket Selected switching arrangement Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Features and Application Visual indication and electrical position feedback for quarter-turn valves such as ball, butterfly and plug valves. Mounts to NAMUR actuators meeting the stated VDI/VDE 3845 interface, subject to the selected shaft/bracket dimensions. Choose the mechanical or proximity switch to suit the electrical circuit and required protection. Dimensions and Installation Parameter Details Plan width 134 mm Plan depth 142 mm Drawing height 162 / 172 mm NAMUR mounting pitch 80 / 130 mm Transverse pitch 30 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. NAMUR describes the actuator interface, not a guarantee for every actuator. Check the mounting pitch, shaft engagement, enclosure clearance and switch signal against the mating actuator. Mechanical switches are intended for ordinary service; any intrinsically safe proximity-switch application requires the correct complete circuit and marked device rating. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 5237 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Assumed 134 × 142 × 172 mm enclosure reference envelope × material density 8 g/cm³ × 20% equivalent solid fill. The fill factor is an estimation assumption; actual switch and mounting hardware weights vary.

Read more less

$102.75

View options
View options

Airtac NTS series: valve-position limit-switch assembly - NTS-E-27

Specifications: NTS-E-27 — valve-position limit-switch assembly with die-cast aluminium housing and switch option 27. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning NTS Quarter-turn valve limit-switch assembly E Die-cast aluminium housing; ExdIIBT6 as cataloged 27 Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Technical Specifications Parameter Details Position indication 0–90°, dome indicator Housing material Die-cast aluminium Catalog protection / explosion marking ExdIIBT6 Finish Polyester powder coating on applicable metal housing Ambient temperature −20 to +80°C; silicone-rubber seal option is mentioned for low-temperature service Cable entries Two 3/4 in NPT for E series; two 1/2 in NPT for other series in the specification table. The E/ES drawing labels PF3/4 and H labels PF3/4, so match the delivered entry marking before selecting a gland. Terminal arrangement 8 terminals for standard 2-pole SPDT; 12 terminals for 4-pole SPDT arrangement Mounting bracket Stainless-steel NAMUR standard bracket; D housing uses an integrated plastic bracket Selected switching arrangement Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Features and Application Visual indication and electrical position feedback for quarter-turn valves such as ball, butterfly and plug valves. Mounts to NAMUR actuators meeting the stated VDI/VDE 3845 interface, subject to the selected shaft/bracket dimensions. Choose the mechanical or proximity switch to suit the electrical circuit and required protection. Dimensions and Installation Parameter Details Plan width 134 mm Plan depth 142 mm Drawing height 162 / 172 mm NAMUR mounting pitch 80 / 130 mm Transverse pitch 30 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. NAMUR describes the actuator interface, not a guarantee for every actuator. Check the mounting pitch, shaft engagement, enclosure clearance and switch signal against the mating actuator. Mechanical switches are intended for ordinary service; any intrinsically safe proximity-switch application requires the correct complete circuit and marked device rating. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 1767 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Assumed 134 × 142 × 172 mm enclosure reference envelope × material density 2.7 g/cm³ × 20% equivalent solid fill. The fill factor is an estimation assumption; actual switch and mounting hardware weights vary.

Read more less

$102.75

View options
View options

Airtac NTS series: valve-position limit-switch assembly - NTS-C-27

Specifications: NTS-C-27 — valve-position limit-switch assembly with die-cast aluminium housing and switch option 27. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning NTS Quarter-turn valve limit-switch assembly C Die-cast aluminium housing; IP67 as cataloged 27 Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Technical Specifications Parameter Details Position indication 0–90°, dome indicator Housing material Die-cast aluminium Catalog protection / explosion marking IP67 Finish Polyester powder coating on applicable metal housing Ambient temperature −20 to +80°C; silicone-rubber seal option is mentioned for low-temperature service Cable entries Two 3/4 in NPT for E series; two 1/2 in NPT for other series in the specification table. The E/ES drawing labels PF3/4 and H labels PF3/4, so match the delivered entry marking before selecting a gland. Terminal arrangement 8 terminals for standard 2-pole SPDT; 12 terminals for 4-pole SPDT arrangement Mounting bracket Stainless-steel NAMUR standard bracket; D housing uses an integrated plastic bracket Selected switching arrangement Magnetic switch, 2 × SPDT, 0.5 A at 240 VAC Features and Application Visual indication and electrical position feedback for quarter-turn valves such as ball, butterfly and plug valves. Mounts to NAMUR actuators meeting the stated VDI/VDE 3845 interface, subject to the selected shaft/bracket dimensions. Choose the mechanical or proximity switch to suit the electrical circuit and required protection. Dimensions and Installation Parameter Details Plan width 110 mm Plan depth 89 mm Drawing height 134 / 144 mm NAMUR mounting pitch 80 / 130 mm Transverse pitch 30 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. NAMUR describes the actuator interface, not a guarantee for every actuator. Check the mounting pitch, shaft engagement, enclosure clearance and switch signal against the mating actuator. Mechanical switches are intended for ordinary service; any intrinsically safe proximity-switch application requires the correct complete circuit and marked device rating. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 761 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Assumed 110 × 89 × 144 mm enclosure reference envelope × material density 2.7 g/cm³ × 20% equivalent solid fill. The fill factor is an estimation assumption; actual switch and mounting hardware weights vary.

Read more less

$102.75

View options
View options

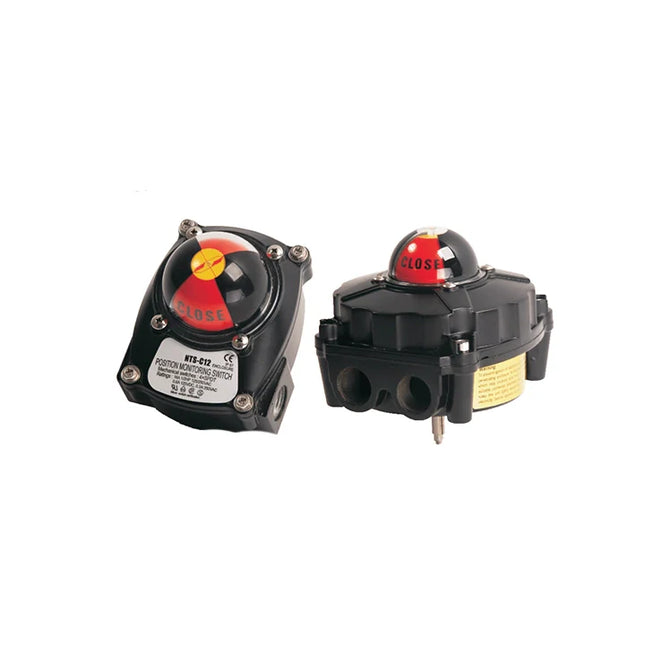

Airtac NTS series: valve-position limit-switch assembly - NTS-A-27
