Pneumatic Silencers & Mufflers

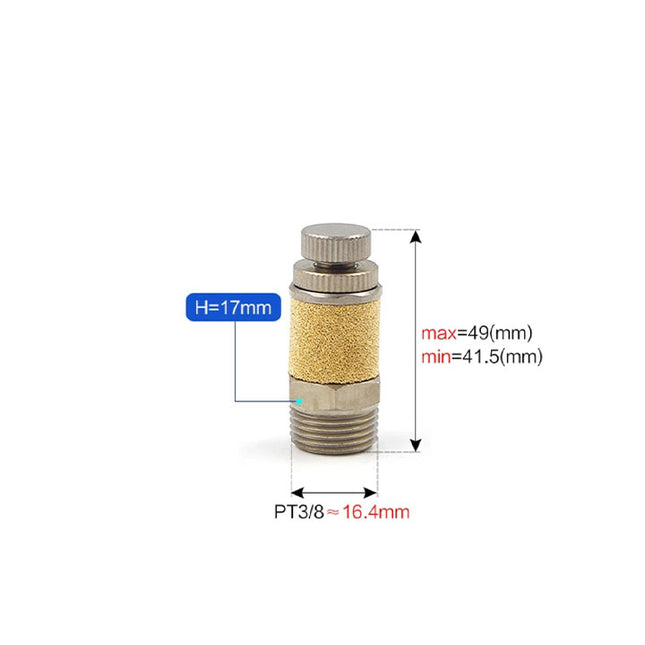

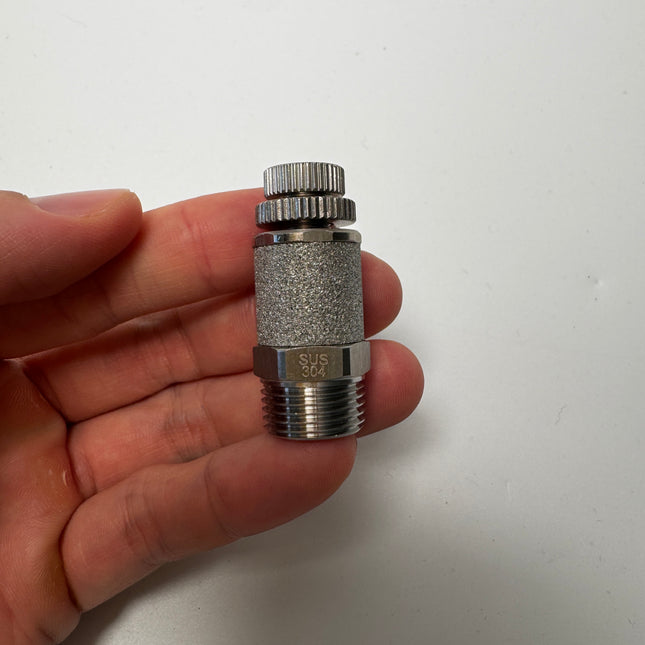

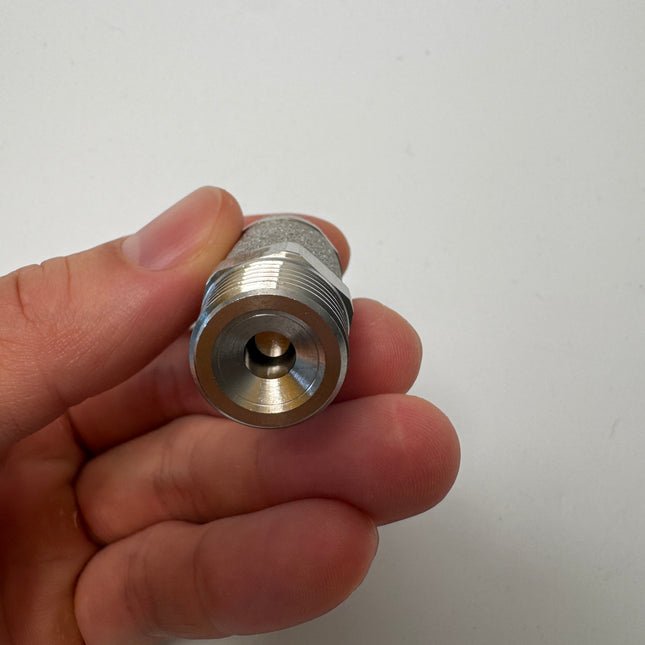

Specifications: BESL03-S is an Airtac throttling silencer. Throttling silencer; Connection thread: PT 3/8; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: the published component information identifies the silencer body as SUS304 and the silencer ring as sintered copper particles. The -S suffix does not mean that every component is stainless steel. Use these component-specific materials when selecting the product; this description makes no whole-product copper-free claim. Model Code Explained Code Meaning BESL Throttling silencer 03 Connection thread: PT 3/8 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 3/8 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The throttling adjustment varies the exhaust flow through the silencer. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 3/8 L 9 mm C max 49 mm C min 41.5 mm H (across flats) 17 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 30 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics With the throttling bolt completely open, the family chart plots inlet pressure 0–7 bar against outlet flow 0–2500 L/min. The controlled-channel graph plots adjustment turns 0–15 against flow 0–1600 L/min; the curves identify BESL01–04. It does not state a separate test pressure for this adjustment-turn graph. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components Part numbers refer to the current source edition and its applicable internal-structure drawing. Part / name Material 1 — Adjusting cap Aluminum alloy 2 — Throttling column Aluminum alloy 3 — Locking cap Aluminum alloy 4 — Locking ring Aluminum alloy 5 — Silencer ring Sintered copper particles 6 — Silencer body SUS304 Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

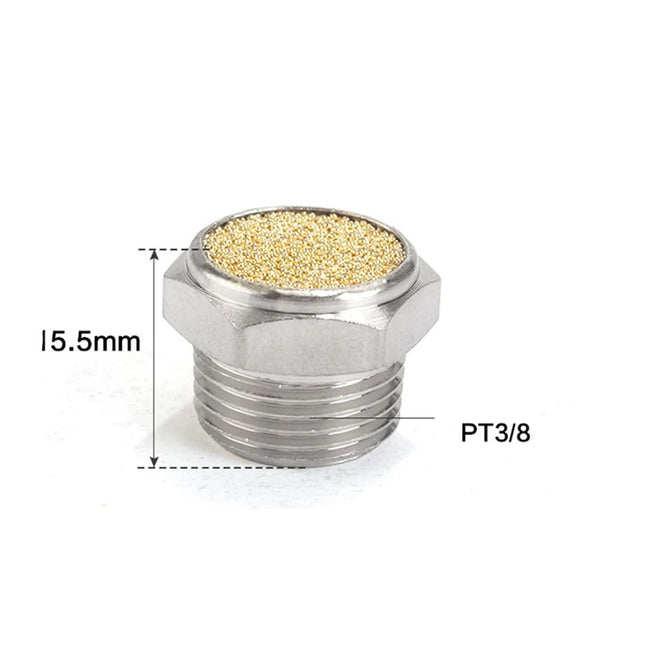

Specifications: BSLM03-S is an Airtac mini silencer. Mini silencer; Connection thread: PT 3/8; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: -S identifies the SUS304 version in the ordering code. The published BSL construction reference identifies a SUS304 body and a sintered-copper sound-absorbing cover; the mini BSLM has no separate component-material drawing in this PDF. The BSL reference is labelled as a series reference and does not establish a complete BSLM bill of materials. This description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSLM Mini silencer 03 Connection thread: PT 3/8 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 3/8 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The mini form has a compact outline for limited installation space. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 3/8 L 9 mm C 15.5 mm H (across flats) 19 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 15 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSLM family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–2000 L/min on the vertical axis. Select the curve labelled BSLM03; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

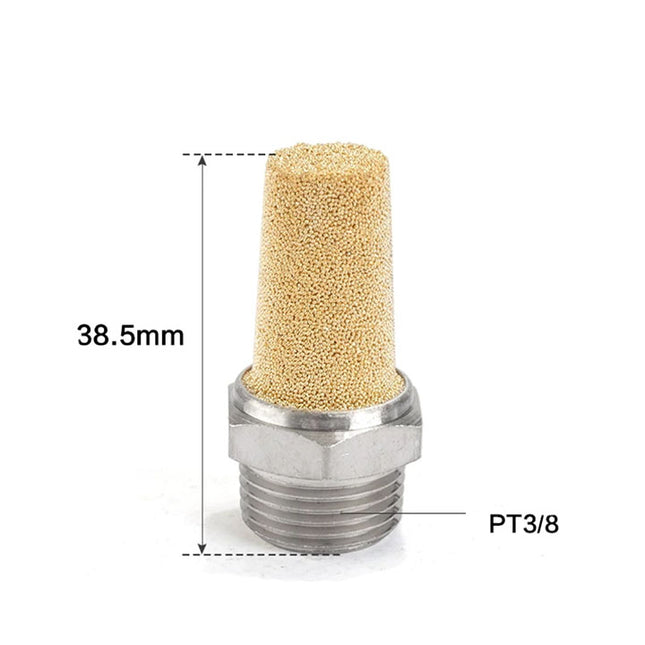

Specifications: BSL03-S is an Airtac universal silencer. Universal silencer; Connection thread: PT 3/8; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: the published component information identifies the silencer body as SUS304 and the sound-absorbing cover as sintered copper particles. The -S suffix does not mean that every component is stainless steel. Use these component-specific materials when selecting the product; this description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSL Universal silencer 03 Connection thread: PT 3/8 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 3/8 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 3/8 L 9 mm C 38.5 mm H (across flats) 19 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 24.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSL family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–8000 L/min on the vertical axis. Select the curve labelled BSL03; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

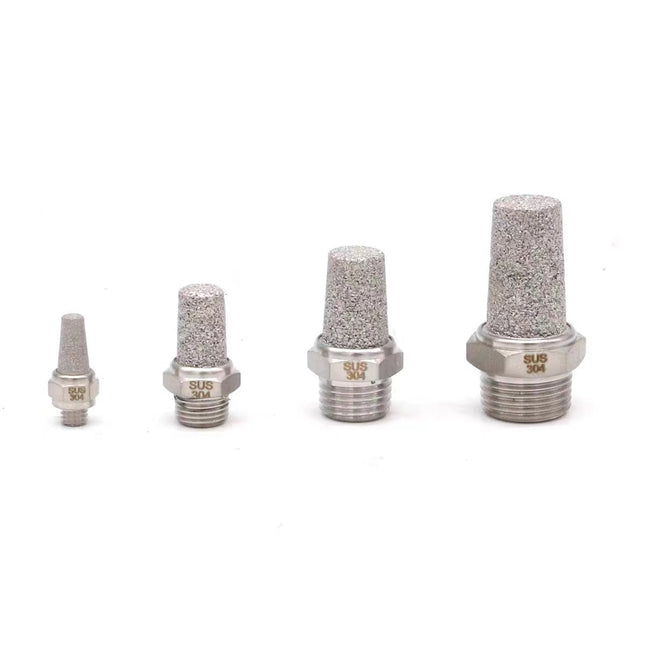

Specifications: BSL01-S is an Airtac universal silencer. Universal silencer; Connection thread: PT 1/8; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: the published component information identifies the silencer body as SUS304 and the sound-absorbing cover as sintered copper particles. The -S suffix does not mean that every component is stainless steel. Use these component-specific materials when selecting the product; this description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSL Universal silencer 01 Connection thread: PT 1/8 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/8 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/8 L 6 mm C 24 mm H (across flats) 12 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 7 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSL family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–8000 L/min on the vertical axis. Select the curve labelled BSL01; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

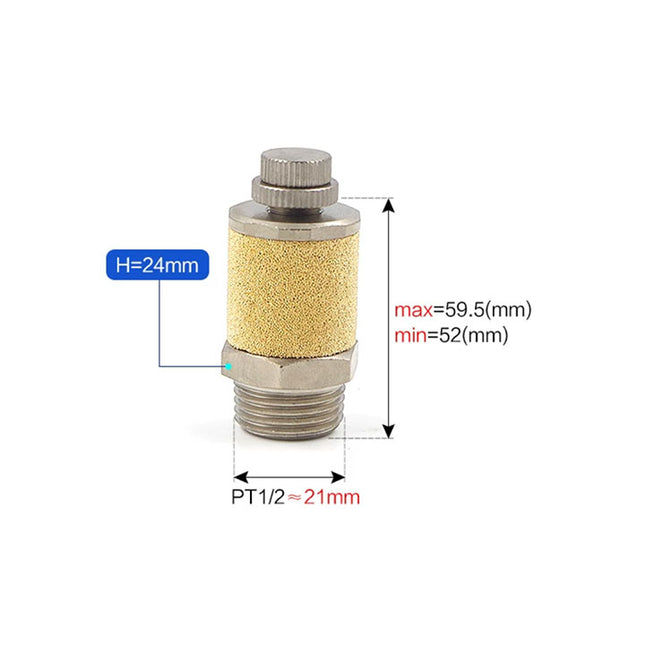

Specifications: BESL04-S is an Airtac throttling silencer. Throttling silencer; Connection thread: PT 1/2; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: the published component information identifies the silencer body as SUS304 and the silencer ring as sintered copper particles. The -S suffix does not mean that every component is stainless steel. Use these component-specific materials when selecting the product; this description makes no whole-product copper-free claim. Model Code Explained Code Meaning BESL Throttling silencer 04 Connection thread: PT 1/2 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/2 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The throttling adjustment varies the exhaust flow through the silencer. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/2 L 10.5 mm C max 59.5 mm C min 52 mm H (across flats) 24 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 66 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics With the throttling bolt completely open, the family chart plots inlet pressure 0–7 bar against outlet flow 0–2500 L/min. The controlled-channel graph plots adjustment turns 0–15 against flow 0–1600 L/min; the curves identify BESL01–04. It does not state a separate test pressure for this adjustment-turn graph. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components Part numbers refer to the current source edition and its applicable internal-structure drawing. Part / name Material 1 — Adjusting cap Aluminum alloy 2 — Throttling column Aluminum alloy 3 — Locking cap Aluminum alloy 4 — Locking ring Aluminum alloy 5 — Silencer ring Sintered copper particles 6 — Silencer body SUS304 Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

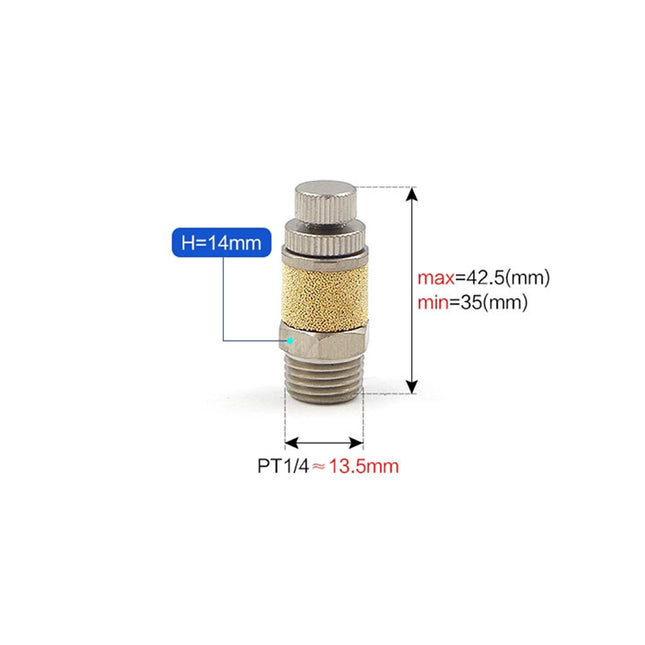

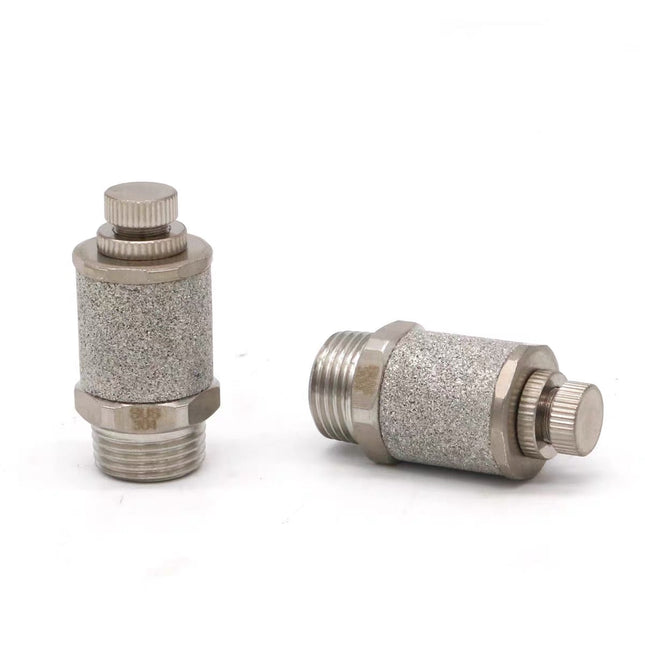

Specifications: BESL02-S is an Airtac throttling silencer. Throttling silencer; Connection thread: PT 1/4; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: the published component information identifies the silencer body as SUS304 and the silencer ring as sintered copper particles. The -S suffix does not mean that every component is stainless steel. Use these component-specific materials when selecting the product; this description makes no whole-product copper-free claim. Model Code Explained Code Meaning BESL Throttling silencer 02 Connection thread: PT 1/4 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/4 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The throttling adjustment varies the exhaust flow through the silencer. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/4 L 8 mm C max 42.5 mm C min 35 mm H (across flats) 14 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 17 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics With the throttling bolt completely open, the family chart plots inlet pressure 0–7 bar against outlet flow 0–2500 L/min. The controlled-channel graph plots adjustment turns 0–15 against flow 0–1600 L/min; the curves identify BESL01–04. It does not state a separate test pressure for this adjustment-turn graph. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components Part numbers refer to the current source edition and its applicable internal-structure drawing. Part / name Material 1 — Adjusting cap Aluminum alloy 2 — Throttling column Aluminum alloy 3 — Locking cap Aluminum alloy 4 — Locking ring Aluminum alloy 5 — Silencer ring Sintered copper particles 6 — Silencer body SUS304 Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

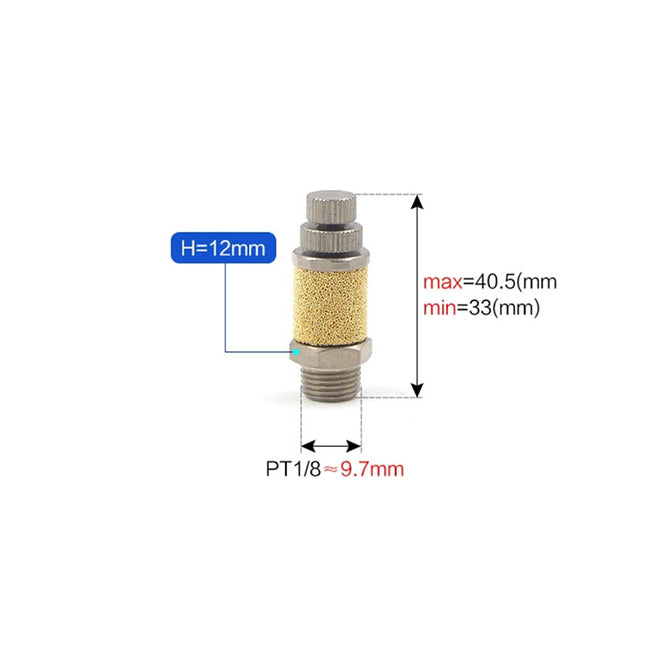

Specifications: BESL01-S is an Airtac throttling silencer. Throttling silencer; Connection thread: PT 1/8; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: the published component information identifies the silencer body as SUS304 and the silencer ring as sintered copper particles. The -S suffix does not mean that every component is stainless steel. Use these component-specific materials when selecting the product; this description makes no whole-product copper-free claim. Model Code Explained Code Meaning BESL Throttling silencer 01 Connection thread: PT 1/8 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/8 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The throttling adjustment varies the exhaust flow through the silencer. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/8 L 6 mm C max 40.5 mm C min 33 mm H (across flats) 12 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 11.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics With the throttling bolt completely open, the family chart plots inlet pressure 0–7 bar against outlet flow 0–2500 L/min. The controlled-channel graph plots adjustment turns 0–15 against flow 0–1600 L/min; the curves identify BESL01–04. It does not state a separate test pressure for this adjustment-turn graph. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components Part numbers refer to the current source edition and its applicable internal-structure drawing. Part / name Material 1 — Adjusting cap Aluminum alloy 2 — Throttling column Aluminum alloy 3 — Locking cap Aluminum alloy 4 — Locking ring Aluminum alloy 5 — Silencer ring Sintered copper particles 6 — Silencer body SUS304 Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

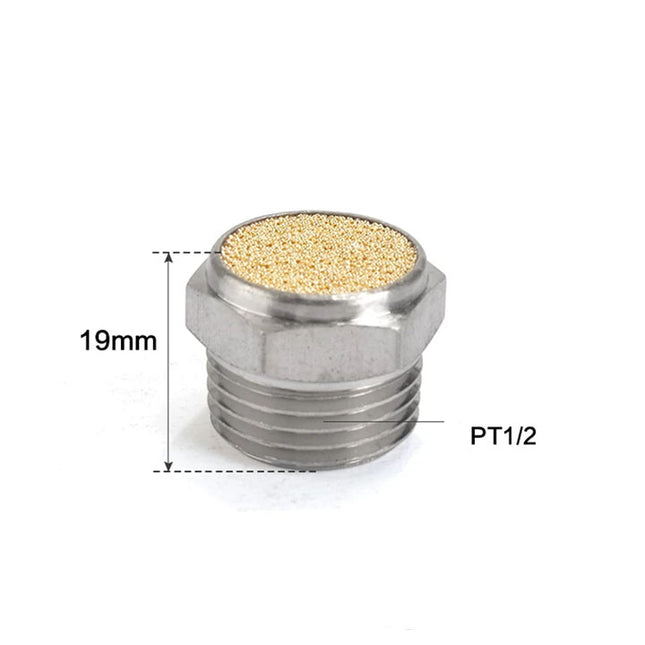

Specifications: BSLM04-S is an Airtac mini silencer. Mini silencer; Connection thread: PT 1/2; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: -S identifies the SUS304 version in the ordering code. The published BSL construction reference identifies a SUS304 body and a sintered-copper sound-absorbing cover; the mini BSLM has no separate component-material drawing in this PDF. The BSL reference is labelled as a series reference and does not establish a complete BSLM bill of materials. This description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSLM Mini silencer 04 Connection thread: PT 1/2 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/2 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The mini form has a compact outline for limited installation space. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/2 L 10.5 mm C 19 mm H (across flats) 22 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 25.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSLM family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–2000 L/min on the vertical axis. Select the curve labelled BSLM04; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

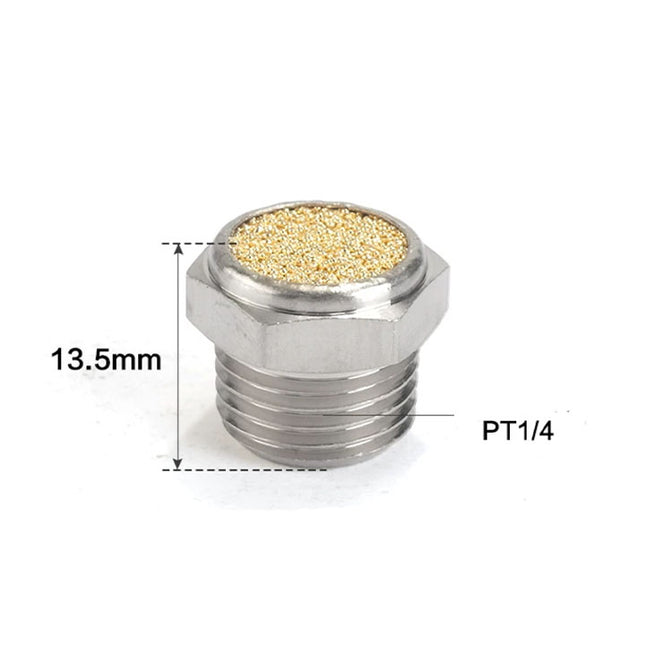

Specifications: BSLM02-S is an Airtac mini silencer. Mini silencer; Connection thread: PT 1/4; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: -S identifies the SUS304 version in the ordering code. The published BSL construction reference identifies a SUS304 body and a sintered-copper sound-absorbing cover; the mini BSLM has no separate component-material drawing in this PDF. The BSL reference is labelled as a series reference and does not establish a complete BSLM bill of materials. This description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSLM Mini silencer 02 Connection thread: PT 1/4 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/4 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The mini form has a compact outline for limited installation space. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/4 L 8 mm C 13.5 mm H (across flats) 15 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 9 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSLM family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–2000 L/min on the vertical axis. Select the curve labelled BSLM02; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

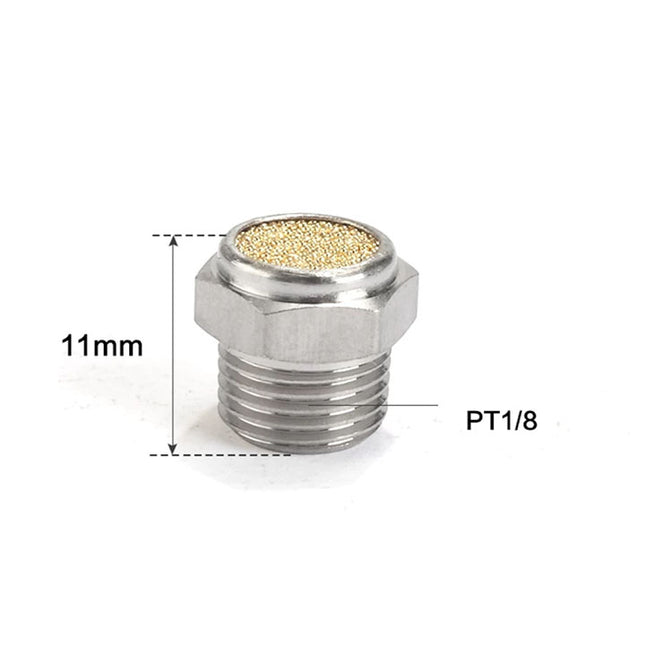

Specifications: BSLM01-S is an Airtac mini silencer. Mini silencer; Connection thread: PT 1/8; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: -S identifies the SUS304 version in the ordering code. The published BSL construction reference identifies a SUS304 body and a sintered-copper sound-absorbing cover; the mini BSLM has no separate component-material drawing in this PDF. The BSL reference is labelled as a series reference and does not establish a complete BSLM bill of materials. This description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSLM Mini silencer 01 Connection thread: PT 1/8 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/8 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The mini form has a compact outline for limited installation space. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/8 L 6 mm C 11 mm H (across flats) 12 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSLM family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–2000 L/min on the vertical axis. Select the curve labelled BSLM01; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

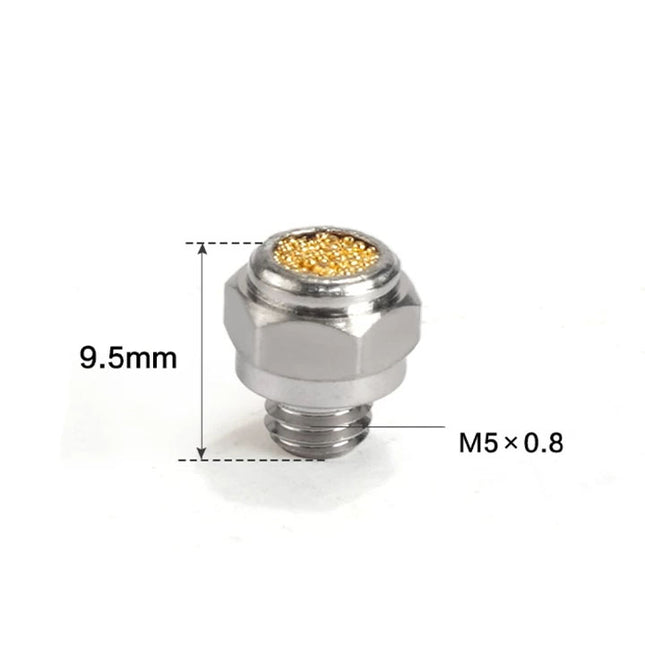

Specifications: BSLMM5-S is an Airtac mini silencer. Mini silencer; Connection thread: M5×0.8; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: -S identifies the SUS304 version in the ordering code. The published BSL construction reference identifies a SUS304 body and a sintered-copper sound-absorbing cover; the mini BSLM has no separate component-material drawing in this PDF. The BSL reference is labelled as a series reference and does not establish a complete BSLM bill of materials. This description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSLM Mini silencer M5 Connection thread: M5×0.8 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 15 dB at 0.5 MPa, as catalogued Connection M5×0.8 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. The mini form has a compact outline for limited installation space. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R M5×0.8 L 3.5 mm C 9.5 mm H (across flats) 8 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 2.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSLM family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–2000 L/min on the vertical axis. Select the curve labelled BSLMM5; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

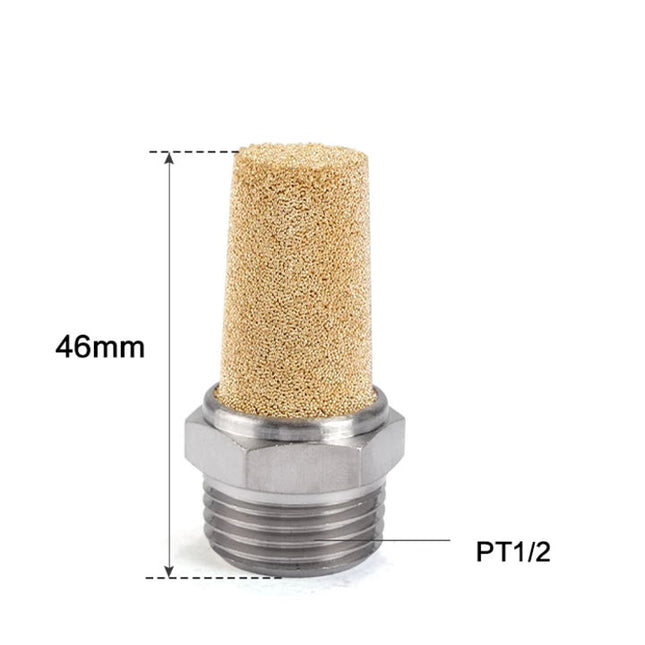

Specifications: BSL04-S is an Airtac universal silencer. Universal silencer; Connection thread: PT 1/2; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: the published component information identifies the silencer body as SUS304 and the sound-absorbing cover as sintered copper particles. The -S suffix does not mean that every component is stainless steel. Use these component-specific materials when selecting the product; this description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSL Universal silencer 04 Connection thread: PT 1/2 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/2 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/2 L 10.5 mm C 46 mm H (across flats) 22 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 37.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSL family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–8000 L/min on the vertical axis. Select the curve labelled BSL04; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

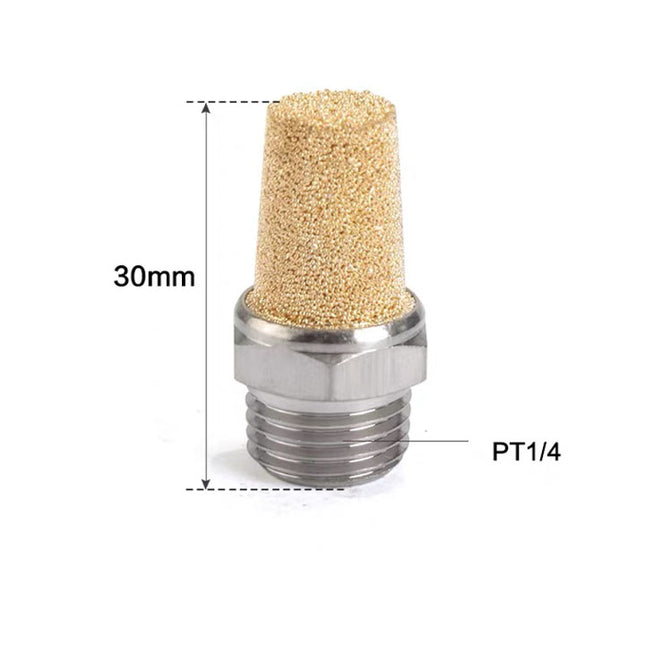

Specifications: BSL02-S is an Airtac universal silencer. Universal silencer; Connection thread: PT 1/4; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: the published component information identifies the silencer body as SUS304 and the sound-absorbing cover as sintered copper particles. The -S suffix does not mean that every component is stainless steel. Use these component-specific materials when selecting the product; this description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSL Universal silencer 02 Connection thread: PT 1/4 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 20 dB at 0.5 MPa, as catalogued Connection PT 1/4 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R 1/4 L 8 mm C 30 mm H (across flats) 15 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 14 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSL family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–8000 L/min on the vertical axis. Select the curve labelled BSL02; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less

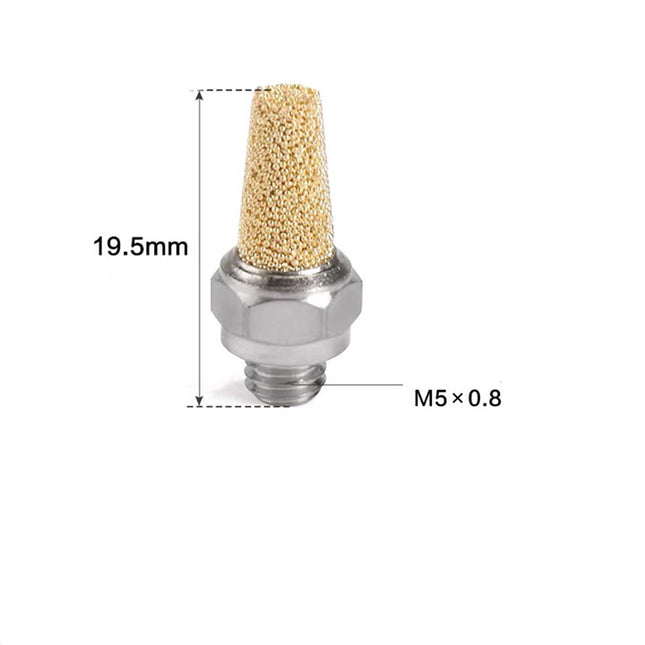

Specifications: BSLM5-S is an Airtac universal silencer. Universal silencer; Connection thread: M5×0.8; SUS304 stainless-steel version. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Material scope: -S identifies the SUS304 version in the ordering code. The published BSL construction reference identifies a SUS304 body and a sintered-copper sound-absorbing cover; the mini BSLM has no separate component-material drawing in this PDF. The BSL reference is labelled as a series reference and does not establish a complete BSLM bill of materials. This description makes no whole-product copper-free claim. Model Code Explained Code Meaning BSL Universal silencer M5 Connection thread: M5×0.8 -S SUS304 stainless-steel version Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Silencing effect 15 dB at 0.5 MPa, as catalogued Connection M5×0.8 Application Pneumatic exhaust port with the matching connection; no particular valve-series compatibility is specified in the product pages. Features and Operation The catalog describes effective noise silencing and convenient installation with a durable threaded connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details R M5×0.8 L 3.5 mm C 19.5 mm H (across flats) 8 mm Source: Linked stainless silencer PDF page 2, printed page 288. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 2.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Flow / Performance Characteristics BSL family chart: inlet pressure 0–7 bar on the horizontal axis and outlet flow 0–8000 L/min on the vertical axis. Select the curve labelled BSLM5; the plotted series names omit the stainless suffix within that edition. The curves are graphical selection references. Axis limits are not guaranteed rated-flow values; refer to the actual curve for the operating point. Internal Components BSL series cutaway; BSLM has its own dimensions but no separate material cutaway. Part / name Material Unnumbered — Silencer body SUS304 Unnumbered — Sound-absorbing cover Sintered copper particles Series Ordering Options BSL and BSLM connection options: M5, 1/8, 1/4, 3/8 and 1/2 inch. BESL: 1/8, 1/4, 3/8 and 1/2 inch.

Read more less
