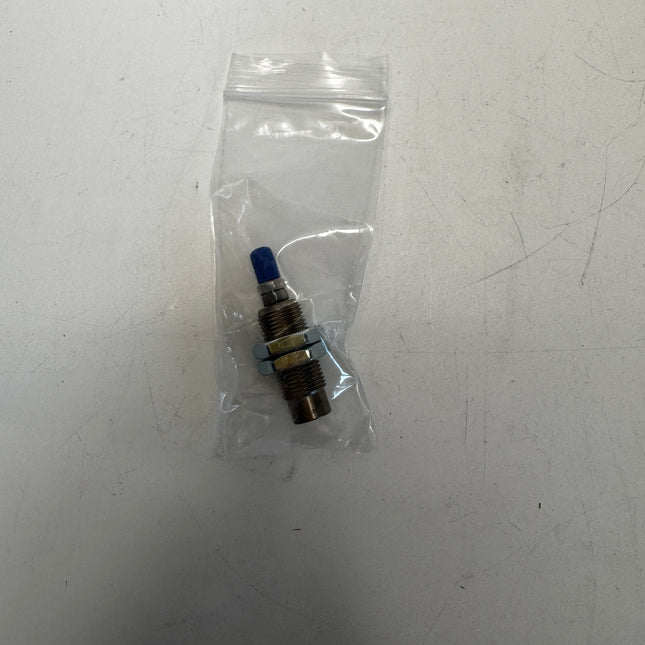

Specifications: MPE16X15N is an AirTAC single-acting, pneumatic extension with spring return with a 16 mm bore, 15 mm stroke, no magnetic option in the standard suffix position, and smooth rod end.
Product Catalog
Download Airtac Product Catalog (PDF)
Download 2022 cylinder installation and weight tables (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Model Code Explained
Code
Meaning for This Model
MPE
single-acting, pneumatic extension with spring return
16
16 mm bore
X15
15 mm nominal stroke
Blank magnetic position
No magnetic piston selected by the standard order-code position
N
smooth rod end
Blank mounting suffix
No optional mounting bracket selected
Technical Specifications
Parameter
Details
Action
single-acting, pneumatic extension with spring return
Working medium
Air filtered through a 40 μm filter or finer
Operating pressure
0.15–0.7 MPa
Proof pressure
1.2 MPa; a proof-test rating, not the continuous operating limit
Ambient and fluid temperature
−20 to 70 °C
Piston speed
50–500 mm/s
Stroke tolerance
+1.0 / 0 mm
Cushioning
None
Air connection
M5 × 0.8
Product Features
The miniature body fits restricted installation spaces and mounts directly.
The standard construction is single acting with a spring return; panel mounting and embedded mounting use different body drawings.
The return spring retracts the piston rod only. Do not attach a load that must be moved by the return spring; it may prevent full retraction.
Dimensions for This Bore and Configuration
Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 168–171 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship.
Parameter
Details
AB
14 mm
D
6 mm
G
27 mm
GA
5 mm
M
M22 × 1.5
MB
20 mm
N
19 mm
NA
7 mm
A
52.5 mm
AC
38.5 mm
MA
31.5 mm
Rod end E
Smooth; no e × ternal thread
Reference male-rod EA
12 mm
Reference male-rod F
8 mm
Reference male-rod FA
3 mm
N selects an unthreaded rod. EA, F and FA retained from the male-rod reference view describe the thread/nut callouts, not a supplied external thread or rod nut on the N variant.
A, AC and MA are already the complete tabulated values for the selected stroke; do not add the stroke again.
Construction and Materials
Parameter
Details
1 Hex nut
Stainless steel
2 Piston rod
Stainless steel
3 Front cover
Brass
4 Body
Nickel-plated brass
5 Body nut
Carbon steel
6 Return spring
Spring steel
7 Piston
Stainless steel
8 Piston seal
NBR
9 O-ring
NBR; MPEF embedded construction
Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities.
Matching Accessories and Mounting
Parameter
Details
Mounting and sensing
The compact body mounts directly using its body thread/nuts or the MPEF embedding seat. The order chart has no magnetic-piston option; magnetic switches are not specified for this series.
Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities.
Stroke and Option Selection
Parameter
Details
Standard strokes for this bore/action
5, 10, 15 mm
Intermediate strokes
Use the listed standard strokes and the dimensions for the selected stroke.
Magnetic selection
Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately.
Theoretical Output Reference
Parameter
Details
0.1 MPa extension (below the specified operating range)
9.4 N theoretical reference only
0.2 MPa extension
29.4 N
0.3 MPa extension
49.5 N
0.4 MPa extension
69.6 N
0.5 MPa extension
89.7 N
0.6 MPa extension
109.8 N
0.7 MPa extension
129.9 N
Spring return force
4.8 N; rod return only
Selection, Installation and Operation
Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder.
Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide.
Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication.
Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping.
Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation.
Circuit Selection Reference at 500 mm/s
Parameter
Details
Reference bore
16 mm
Effective flow area at the reference speed
.5 mm²
Tube outside / inside diameter
4 / 2.5 mm
Example speed controller
PTLM5
Example silencer
BSLM5
The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions.
Side-load Curve
The MPE graph plots allowable side force against stroke: the horizontal axis spans 5–15 mm and the vertical axis 0–0.7 N. Use the curve for the selected bore. A scale endpoint is not an allowable load for every stroke; the rod must not be used as a general-purpose lateral guide.
Optional single-acting air connections and controls
For this single-acting cylinder, use one working line: pressure extends the rod and the spring retracts it when the line exhausts. The listed direct-acting 3V1 valves are optional normally closed 3/2 choices: energizing connects P to A; de-energizing closes P and connects A to R. Select this valve only if its 1.2 mm orifice meets the required flow and response; these options do not guarantee an achieved speed or spring-return time.
PC4M5: M5×0.8 male × 4 mm tube ODStraight cylinder connection or selected valve A connection; also P only if the supply line uses the same tube OD
PTL4M5B-M: M5×0.8 male × 4 mm tube OD; mini B-typeCylinder-port meter-in extension control instead of the straight cylinder fitting, with free reverse flow for spring return
US98A040025100MBU: polyester polyurethane; 4 mm OD × 2.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length
UE95A040025100MBU: polyether polyurethane; 4 mm OD × 2.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length
3V1M5A, 3V1M5AI: M5×0.8 female P supply, A work and R exhaust ports; normally closed 3/2220 V AC direction control; DIN connection / 0.5 m flying leads respectively
3V1M5B, 3V1M5BI: M5×0.8 female P supply, A work and R exhaust ports; normally closed 3/224 V DC direction control; DIN connection / 0.5 m flying leads respectively
3V1M5C, 3V1M5CI: M5×0.8 female P supply, A work and R exhaust ports; normally closed 3/2110 V AC direction control; DIN connection / 0.5 m flying leads respectively
3V1M5E, 3V1M5EI: M5×0.8 female P supply, A work and R exhaust ports; normally closed 3/224 V AC direction control; DIN connection / 0.5 m flying leads respectively
3V1M5F, 3V1M5FI: M5×0.8 female P supply, A work and R exhaust ports; normally closed 3/212 V DC direction control; DIN connection / 0.5 m flying leads respectively
For the 4 mm OD tubing in the circuit reference in this description, choose the straight fitting or B-type controller at the cylinder pressure port. Use a straight fitting at the valve A port. The B-type controller restricts tube-to-cylinder supply and allows cylinder-to-tube exhaust for spring return; it is not the A-type meter-out arrangement used for double-acting reference circuits.
The listed gray PC fittings and PTL controllers accept soft nylon or polyurethane tubing at 0–1 MPa and −20 to +70°C. Seat the M5 sealing gaskets correctly. Recommended PTL cap-rotation torque is 0.05 N·m, not thread-tightening torque. Start with restricted flow, adjust gradually and secure the setting.
Use this working circuit at 0.15–0.7 MPa and −20 to +70°C, subject to any lower component limit. Keep the spring-return exhaust path open and respect the MPE rod-return-only spring limitation stated above; the return spring must not be used to move an attached external load.
For each voltage pair, the first complete code selects a DIN connection and the code ending I selects 0.5 m flying leads. Match the actual power supply: AC tolerance is ±15%, DC tolerance ±10%; consumption is 4.5 VA at 220/110 V AC, 5.0 VA at 24 V AC, 3.0 W at 24 V DC or 2.5 W at 12 V DC. Valve limits are 0–0.8 MPa and −20 to +70°C, IP65 and insulation class B; 10 Hz is the no-load frequency limit, not a loaded cylinder-cycle rating.
Use the existing BSLM5 reference at the selected valve’s M5 R exhaust port. Keep it free of blockage; excessive back pressure can impede spring return. Its limits are 0–1 MPa and −20 to +70°C. These accessories are separately ordered options, not an included kit.
The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for US98A/UE95A are 10/8 mm.Weight Reference
Catalog reference weight: 92.6 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight.
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
