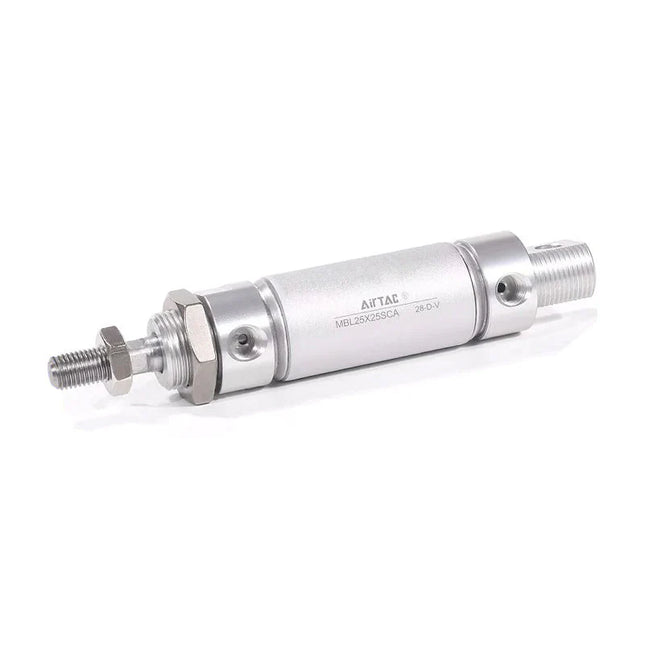

Stainless Steel Mini Cylinder - MA Series
Product Features
- 1. Implementing the enterprise standard.
- 2. Piston seal adopts heterogeneous two-way seal structure. It has compact dimensions and the function of oil storage.
- 3. The front and rear covers have fixed anti-collision pads (bumpers), which can reduce the impact of cylinder reversal.
- 4. Various types of rear covers available, making cylinder installation more convenient.
- 5. The front/rear cover and stainless steel body adopt a riveted rolling package structure (crimped), ensuring a reliable connection.
- 6. The cylinder body uses high-precision stainless steel tubing with high strength and corrosion resistance.
- 7. A variety of cylinder mounting accessories are available for customers to choose from.
- 8. All cylinders in this series come with magnets.
Specifications
| Bore Size (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
|---|---|---|---|---|---|---|---|
| Acting Type | MSA/MTA: Single Acting | - | |||||
| MA/MAD/MAJ: Double Acting | - | ||||||
| - | MAR: Double Acting | ||||||
| MAC/MACD/MACJ: Double Acting (Adjustable Cushion) | |||||||
| Fluid | Air (filtered to 40μm or better) | ||||||
| Operating Pressure |
Double Acting: 0.15~1.0MPa (22~145psi) (1.5~10.0bar) Single Acting: 0.2~1.0MPa (28~145psi) (2.0~10.0bar) |
||||||
| Proof Pressure | 1.5MPa (215psi) (15bar) | ||||||
| Temperature | -20 ~ 70 °C | ||||||
| Speed Range | Double Acting: 30~800 mm/s | Single Acting: 50~800 mm/s | ||||||
| Cushion Type | MAC, MACD, MACJ: Adjustable Cushion | Others: Anti-collision Pad (Bumper) | ||||||
| Port Size [Note 1] | M5 × 0.8 | PT1/8 | PT1/4 | ||||
[Note 1] PT thread, G thread, and NPT thread are available. For sensor selection, please refer to the accessories catalog.
Stroke Table
| Model / Bore | Standard Stroke (mm) | Max. Stroke | Allowable Stroke | |
|---|---|---|---|---|
| MA MAC |
16 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | 600 |
| MA MAC MAR |
20, 25 32, 40 |
10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | 800 |
| MAC MAR |
50, 63 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | 800 |
| MAD/MAJ MACD/MACJ |
16, 20, 25 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 | 300 | - |
| 32, 40 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | - | |
| MACD MACJ |
50, 63 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | - |
|
MSA (Single Acting) |
16 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100 | - | - |
| 20, 25 32, 40 |
10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150 | - | - | |
|
MTA (Single Acting) |
16, 20, 25 32, 40 |
10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100 | - | - |
Note: Please contact the company for other special strokes.
Ordering Code Guide
MA 20 x 50 S CM - □
| No. | Item | Description |
|---|---|---|
| 1 | Model |
MA: Mini Cylinder (Double Acting) MAC: Mini Cylinder (Double Acting Adj. Cushion) MSA: Single Acting (Push) [Note 1] MTA: Single Acting (Pull) MAD: Double Shaft MAJ: Double Shaft Adj. Stroke MAR: Adjustable Cushion (Special) |
| 2 | Front Cover |
No Code: Standard F: Front Fixed Type (For MAR only) U: Upper Fixed Type (For MAR only) |
| 3 | Bore Size | 16, 20, 25, 32, 40, 50, 63 (mm) |
| 4 | Stroke | Refer to Stroke Table |
| 5 | Adj. Stroke |
Only for MAJ/MACJ: 10, 20, 30, 40, 50, 75, 100 Others: No Code |
| 6 | Magnet |
S: With Magnet (Standard for this series) Blank: No Magnet |
| 7 | Rear Cover |
CA: Pivot Type (Tail) U: Flat Type (Tail) CM: Round Type (Tail) (Double shaft models: No Code) |
| 8 | Mounting [Note 2] |
Blank: No Accessory FA: Front Flange SDB: Rear Pivot (Clevis) LB: Axial Foot (Bracket) |
| 9 | Thread Type [Note 3] |
Blank: PT Thread G: G Thread T: NPT Thread |
[Note 1]
Single Acting Push: Piston rod extends when air is supplied; retracts by spring force.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] Please refer to P110~111 for mounting accessories.
[Note 3] When port size is M5 (Bore 16), this code is blank.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] Please refer to P110~111 for mounting accessories.
[Note 3] When port size is M5 (Bore 16), this code is blank.
