M5 Series Mechanical Valve
Product Features
- The air inlet is located on the valve body and comes equipped with a silencer to significantly reduce noise and environmental pollution.

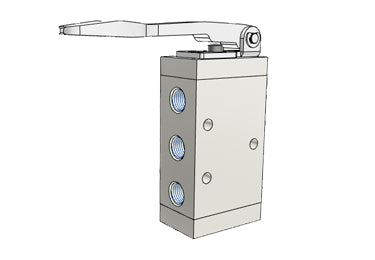

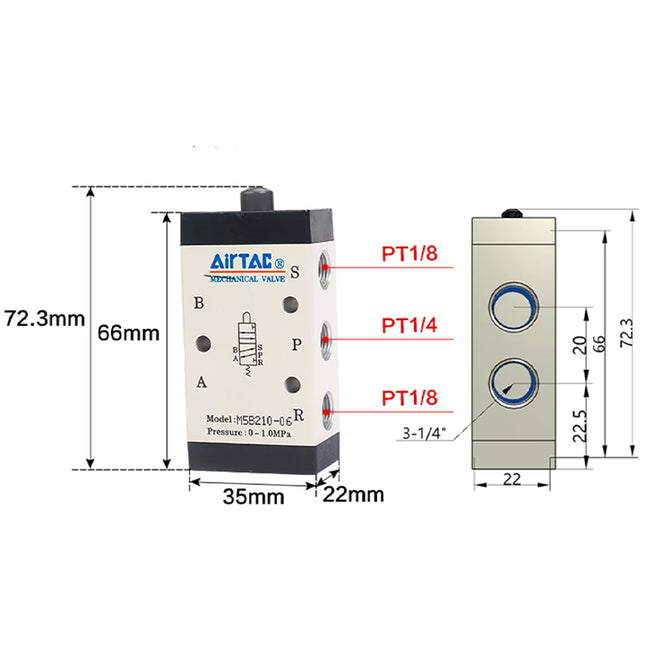

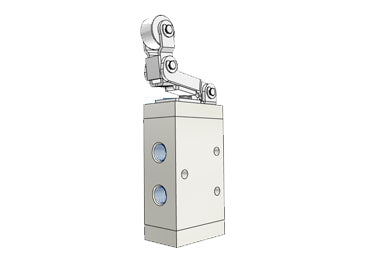

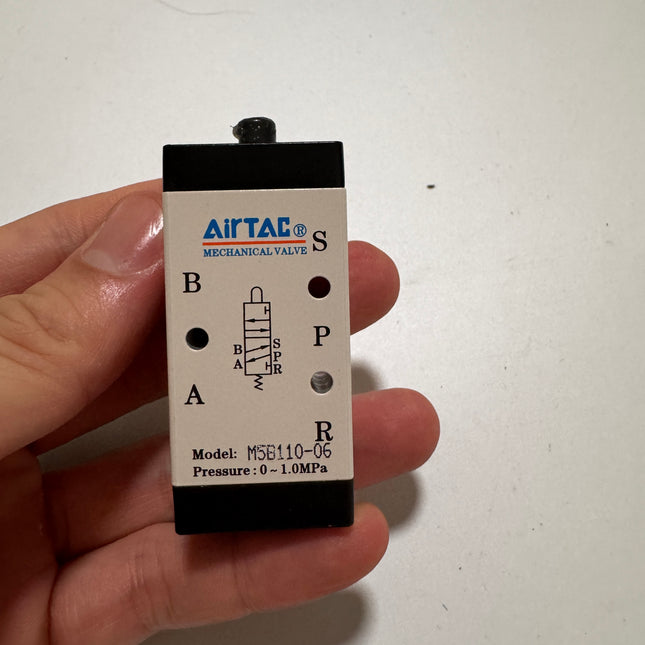

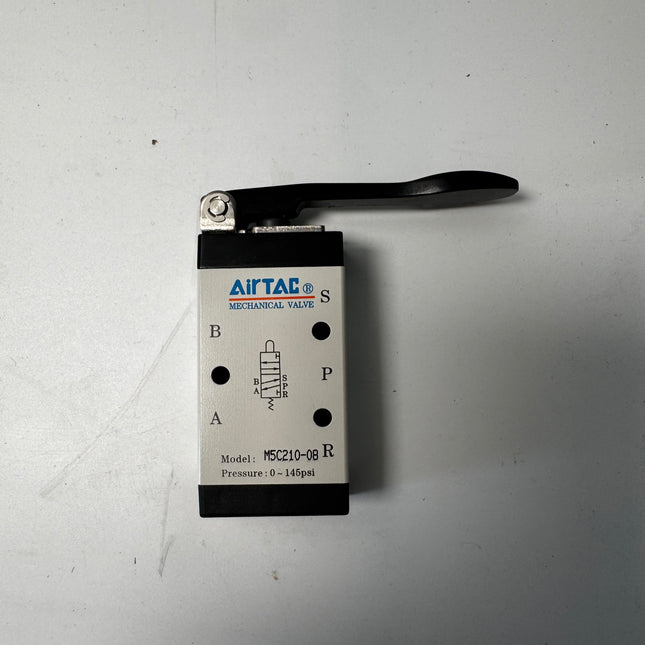

- The M5B, M5C, and M5L series require external force for operation, offering various switch stroke options and position reset functionality.

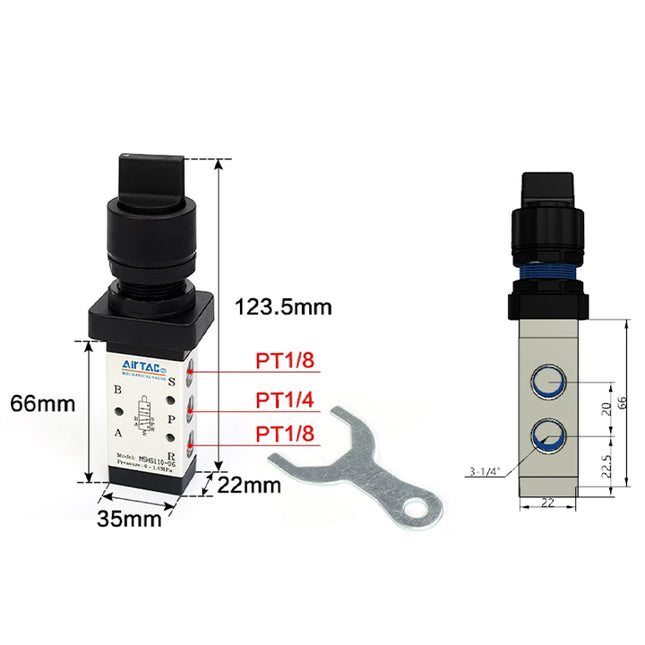

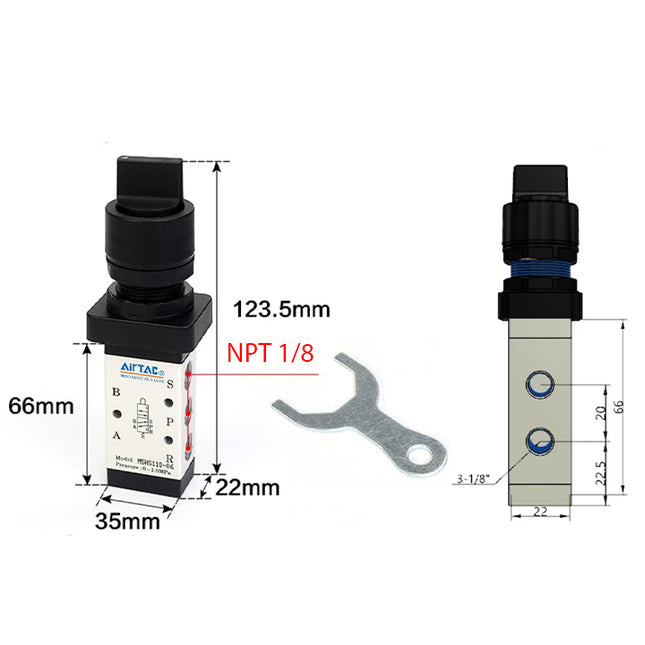

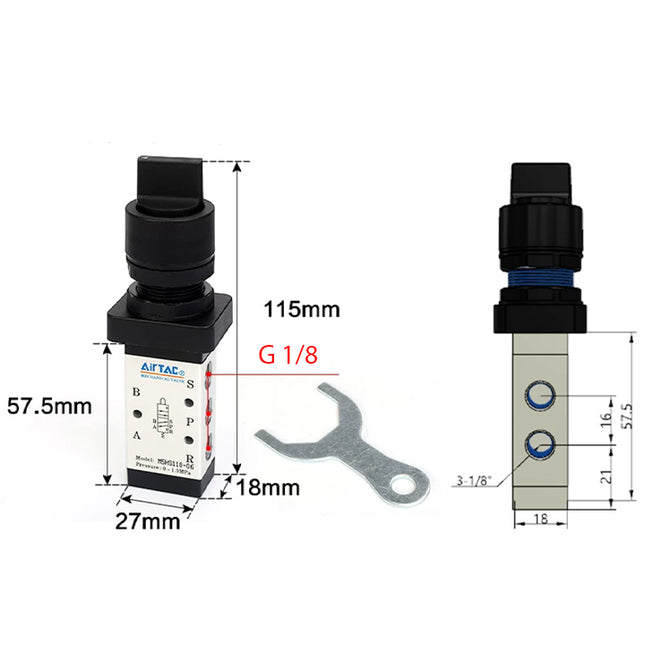

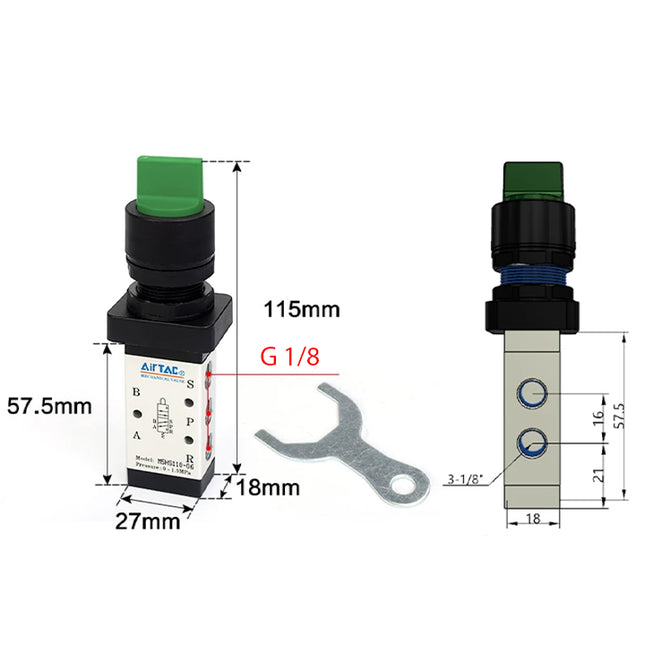

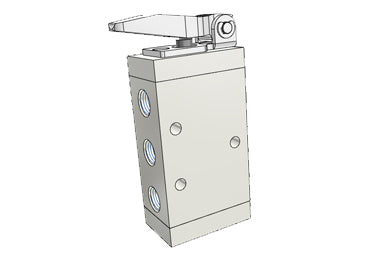

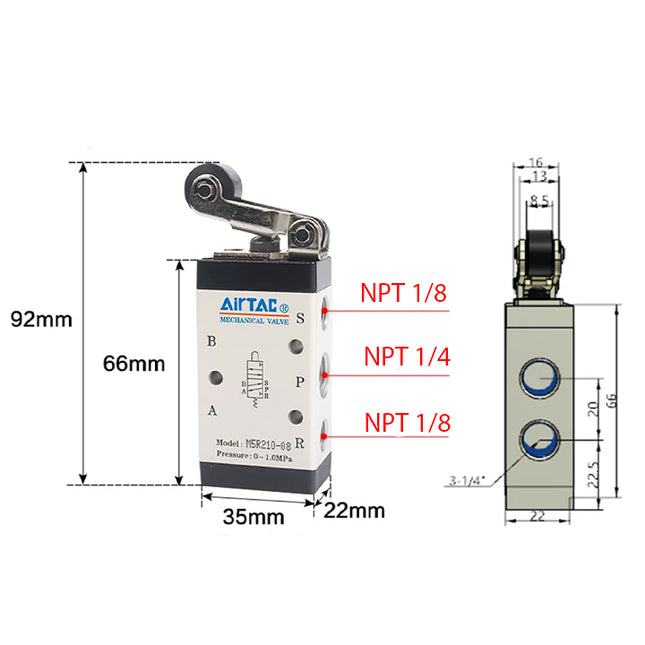

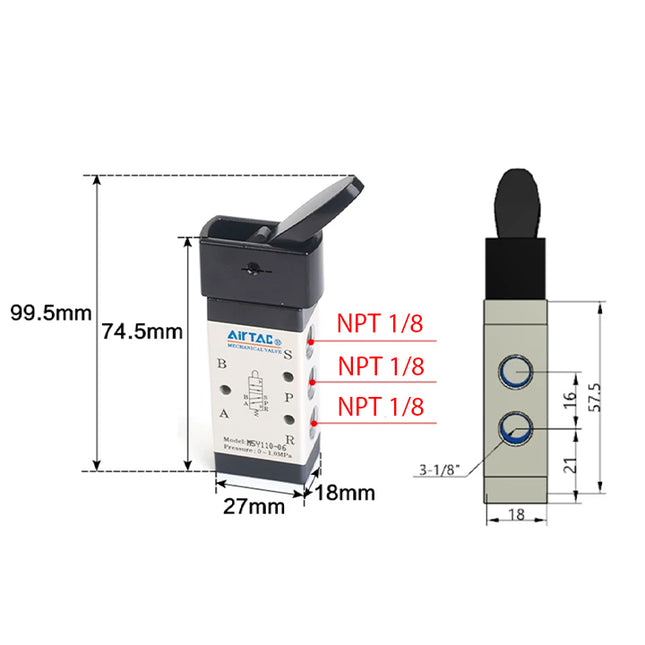

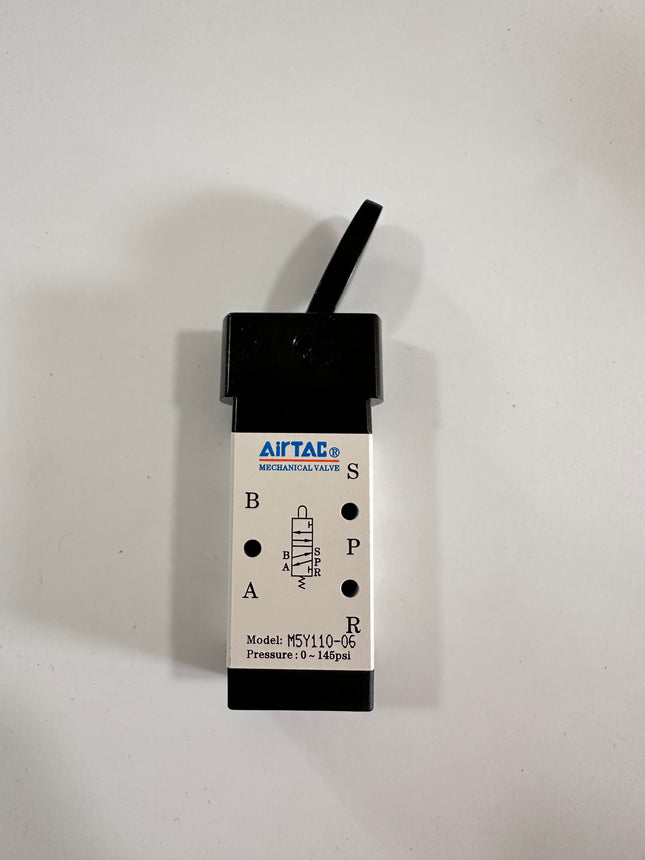

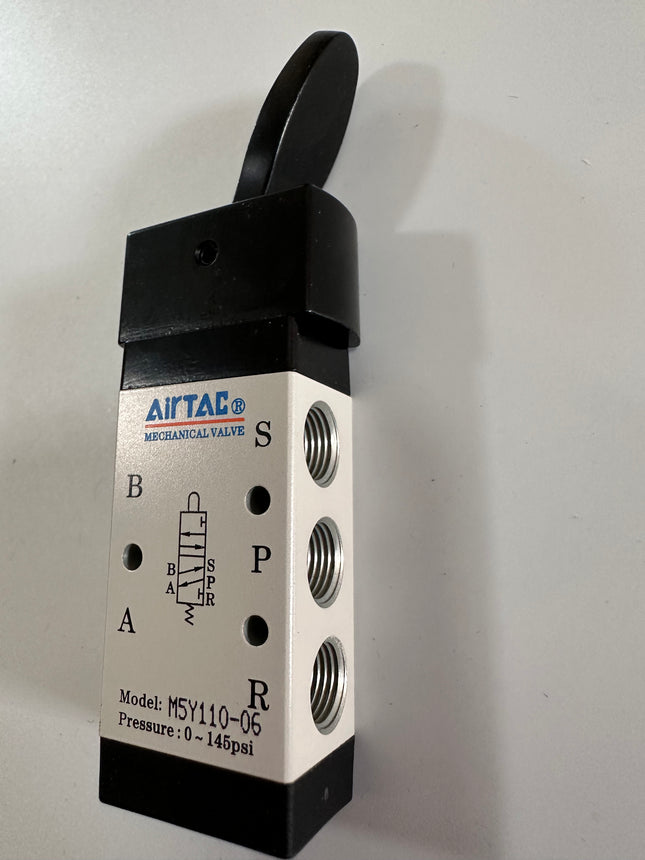

- The M5D, M5Y, M5R, M5V, M5PF, M5PM, M5PP, M5PL, and M5HS series are manually operated, providing versatile structural forms for convenience under different working conditions.

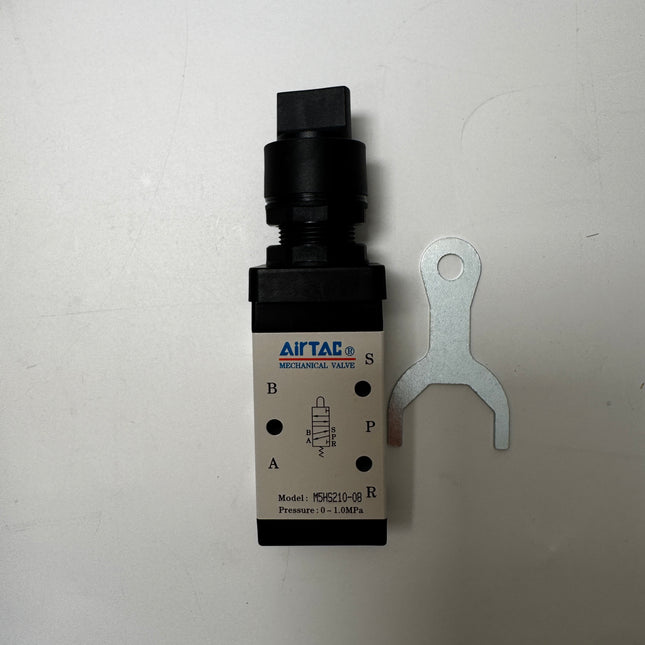

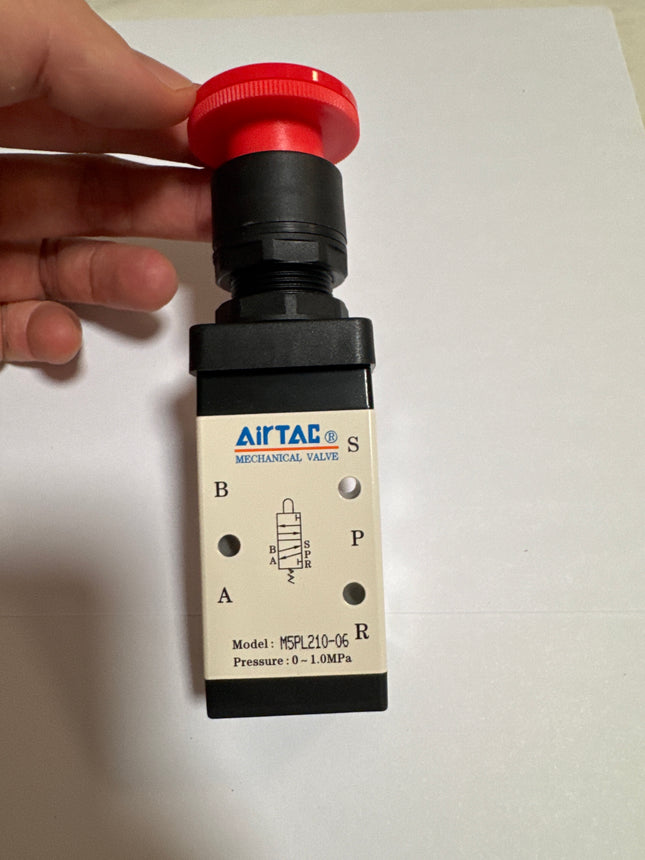

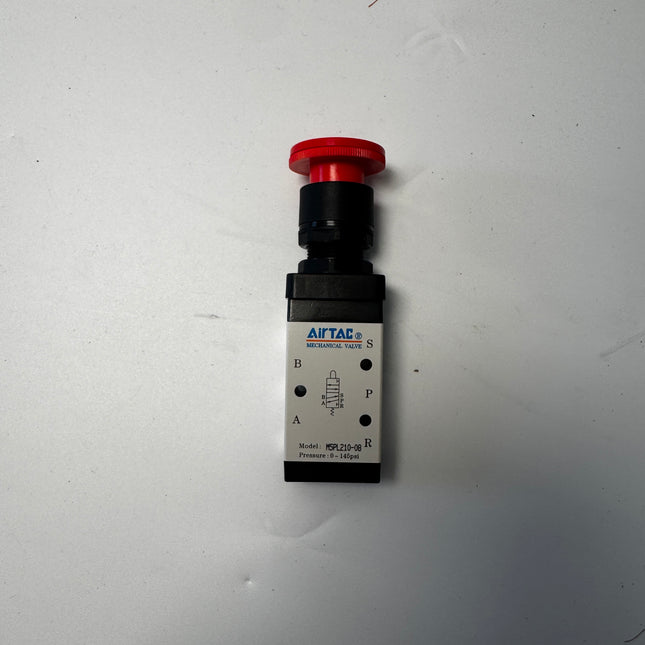

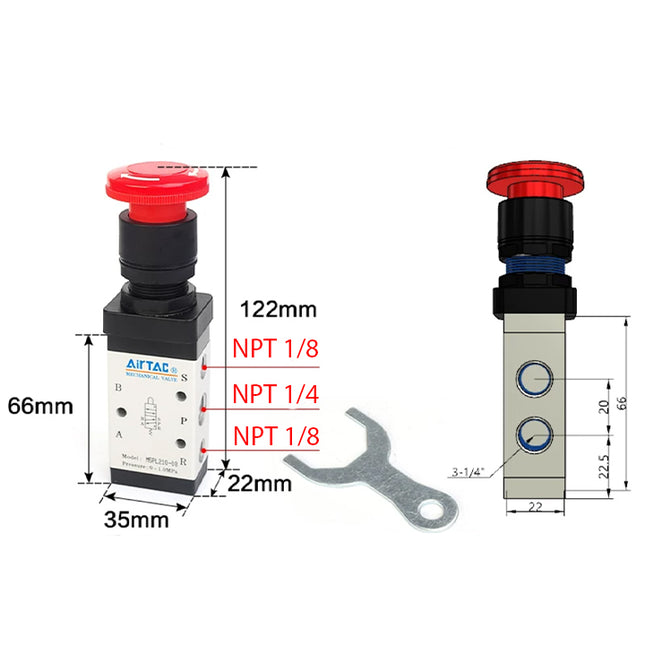

- The M5PL, M5PP, M5PM, M5PF, and M5HS series act as two-position three-way valves featuring a manual reset function.
- The internal valve spool ensures excellent sealing performance, sensitive response, and a prolonged service life.
- Designed with a compact structure for effortless installation and maintenance.
- The connecting components of the M5B, M5C, M5D, M5Y, M5R, and M5L series are constructed from robust metal, guaranteeing durability and stable performance over time.
General Specifications
| Item | Miniature Type (05 Series) | Standard Type (110 / 210 Series) |
|---|---|---|
| Applicable Models | M5B, M5R, M5L | M5B, M5C, M5D, M5R, M5L, M5Y, M5PM, M5PP, M5PF, M5PL, M5HS |
| Working Medium | Air (Filtered through a 40μm or finer filter screen) | |
| Actuation Style | External Pilot Operated / Mechanical / Manual | |
| Number of Positions | 5-Port 2-Position (Two-position Five-way) | |
| Port Size [Note 1] | 05: M5 | 06: PT1/8 08: PT1/4 |
| Effective Area (Cv) | 05: 2.5mm² (Cv=0.14) |
110 Type: 06: 8.0mm² (Cv=0.45) 210 Type: 06: 9.0mm² (Cv=0.50) | 08: 12.0mm² (Cv=0.67) |
| Operating Pressure | 0 ~ 1.0 MPa (0 ~ 145 psi) | |
| Proof Pressure | 1.5 MPa (215 psi) | |
| Operating Temperature | -20 ~ 70°C | |
| Body Material | Aluminum Alloy | |
| Lubrication [Note 2] | Not required | |
Notes:
[1] G thread and NPT thread are available options for 1/8" and 1/4" port sizes.
[2] If lubrication is applied initially, it must not be discontinued mid-use. We recommend using ISO VG32 or equivalent lubricating oil.
[1] G thread and NPT thread are available options for 1/8" and 1/4" port sizes.
[2] If lubrication is applied initially, it must not be discontinued mid-use. We recommend using ISO VG32 or equivalent lubricating oil.
Product Ordering Code

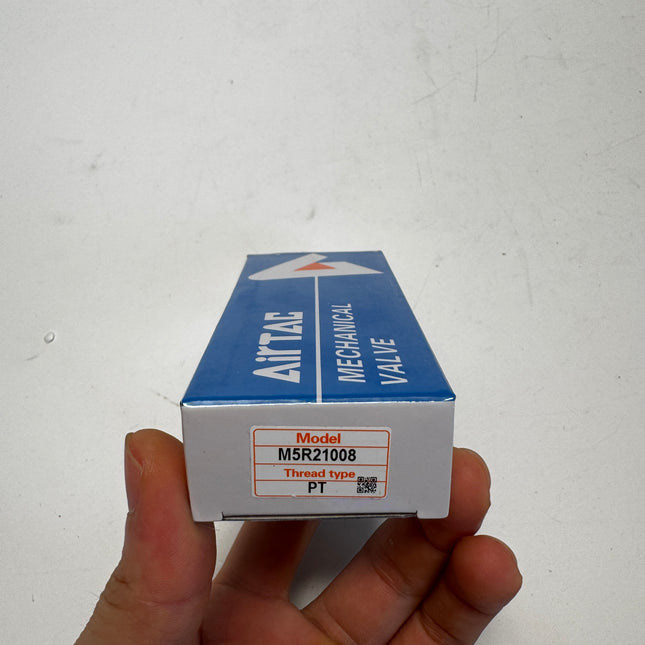

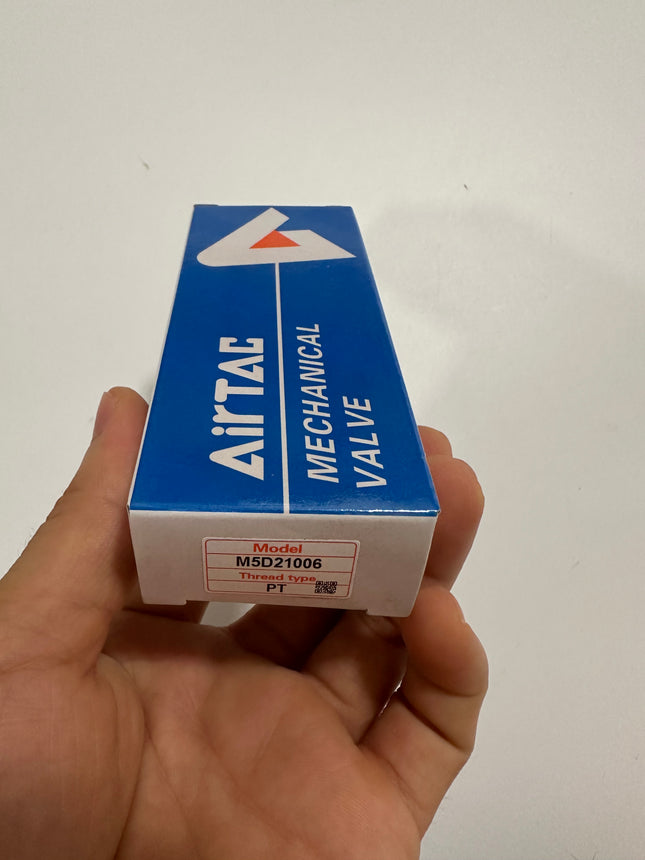

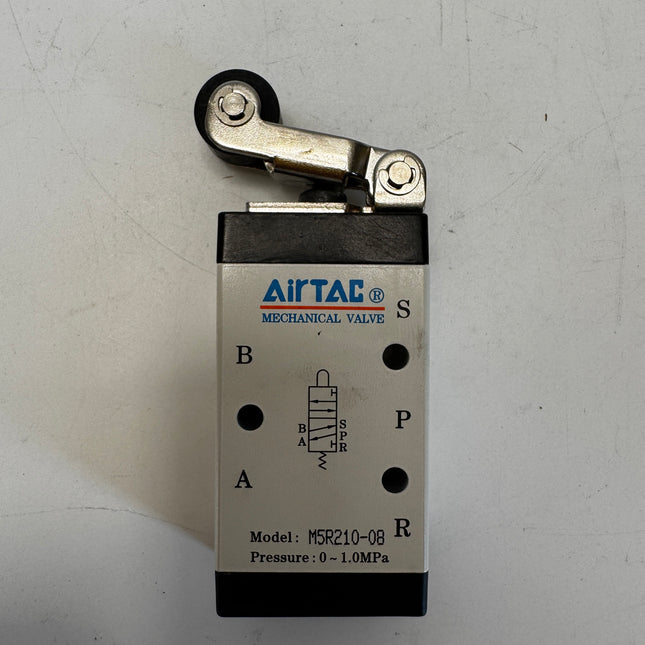

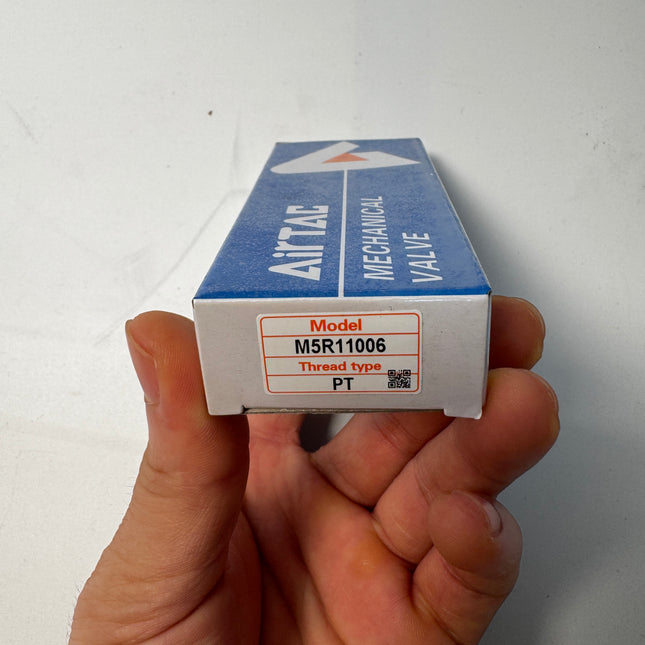

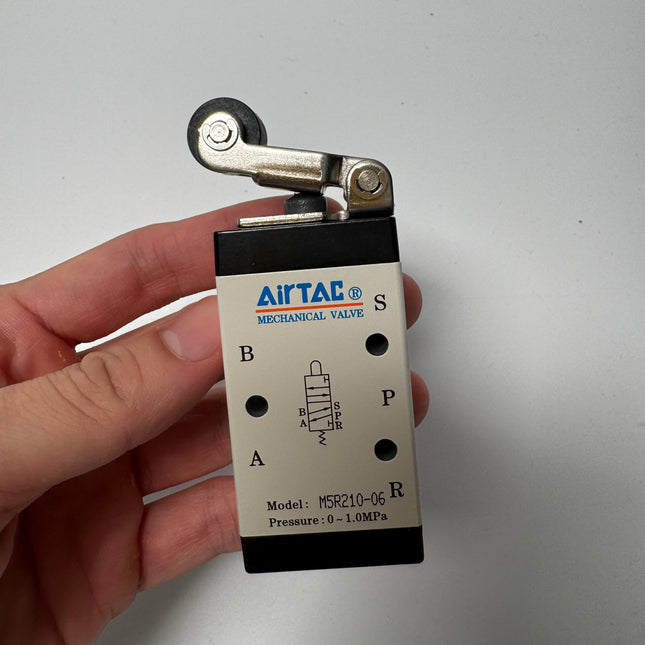

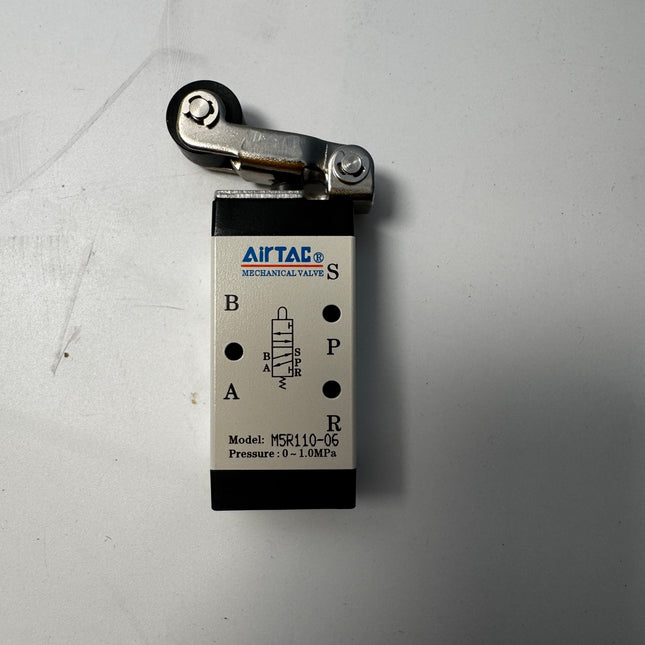

1. Standard Type Ordering
Example: M5 PM 210 06 R G
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | M5: 5-Port 2-Position Valve |
| 2 | Actuator Code |

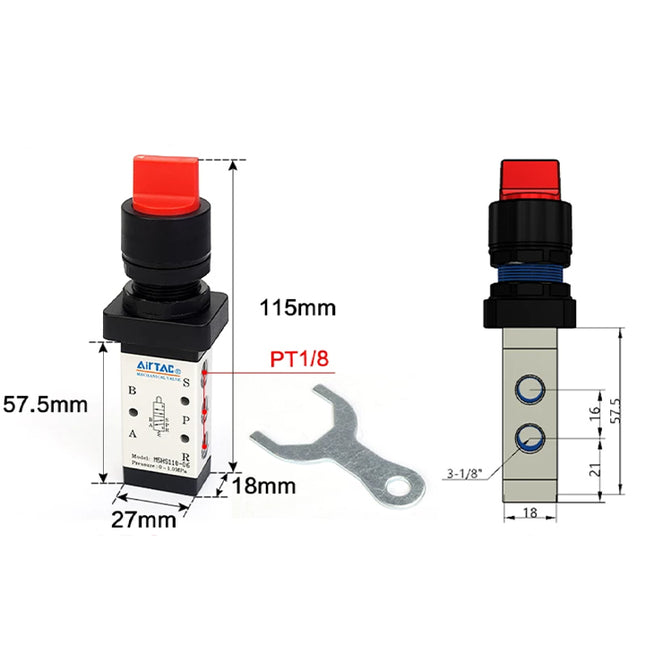

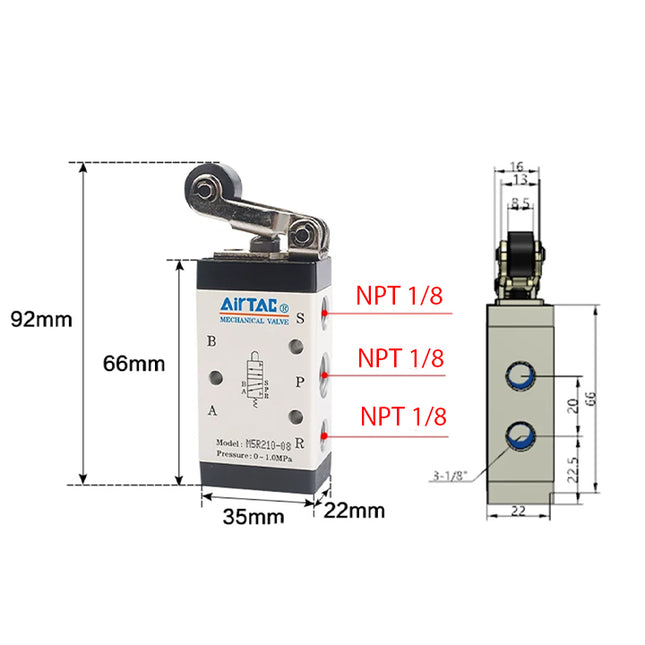

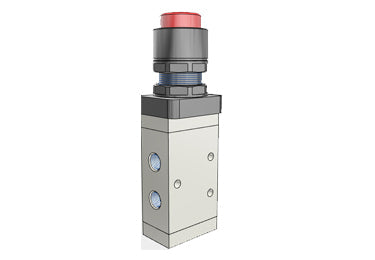

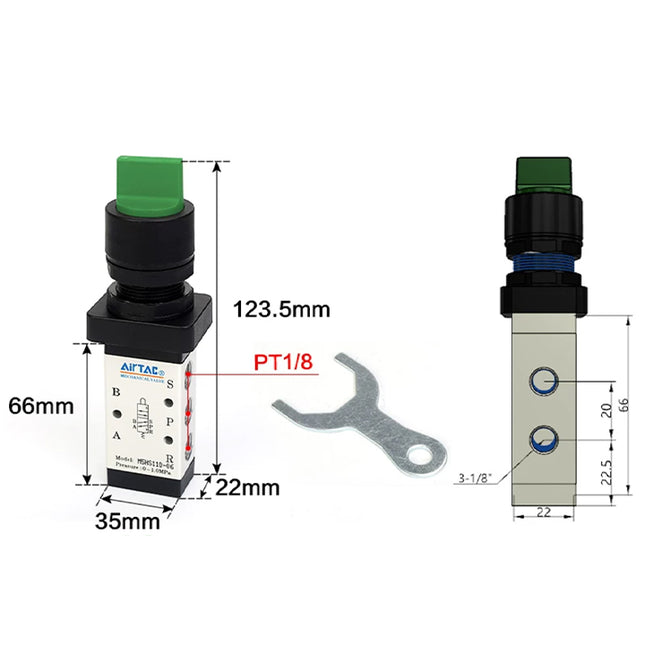

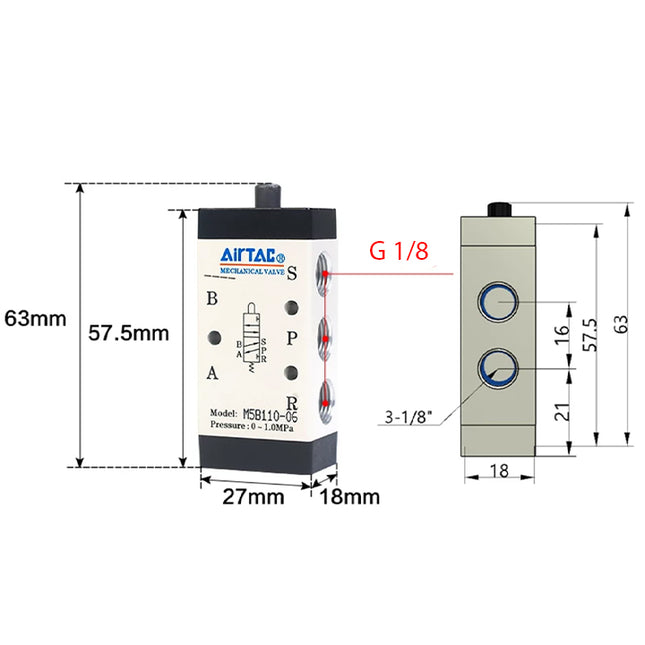

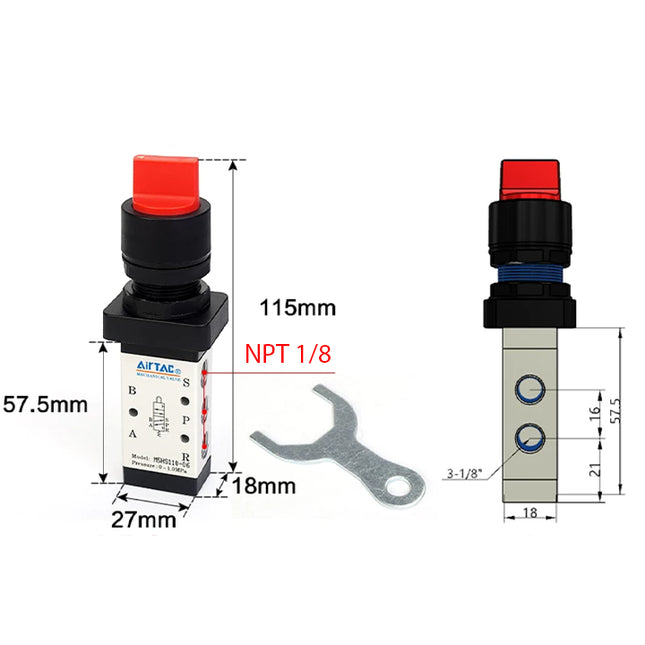

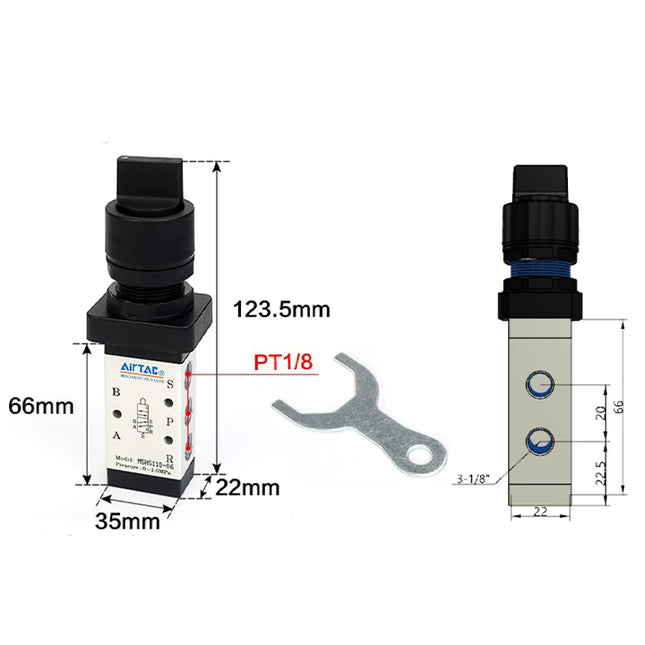

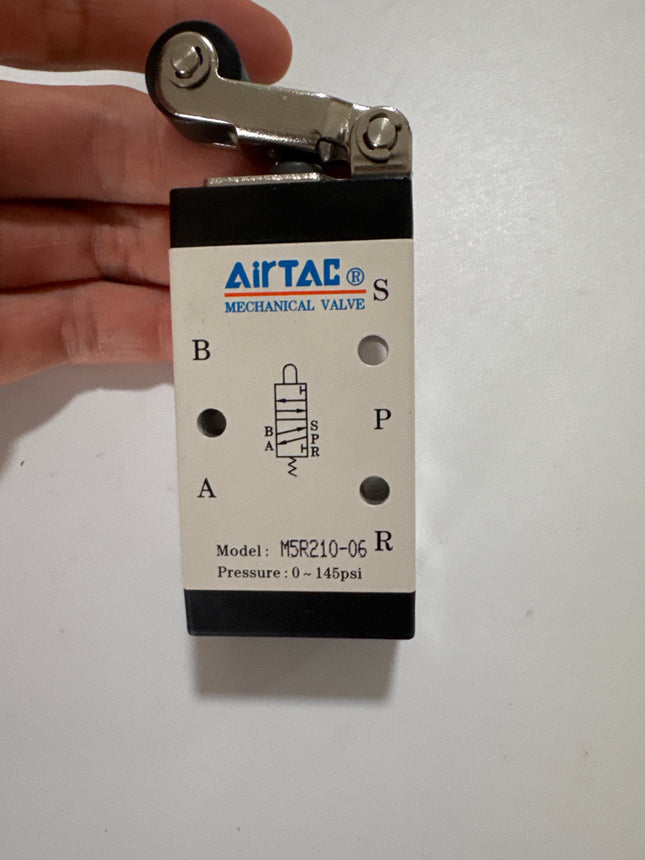

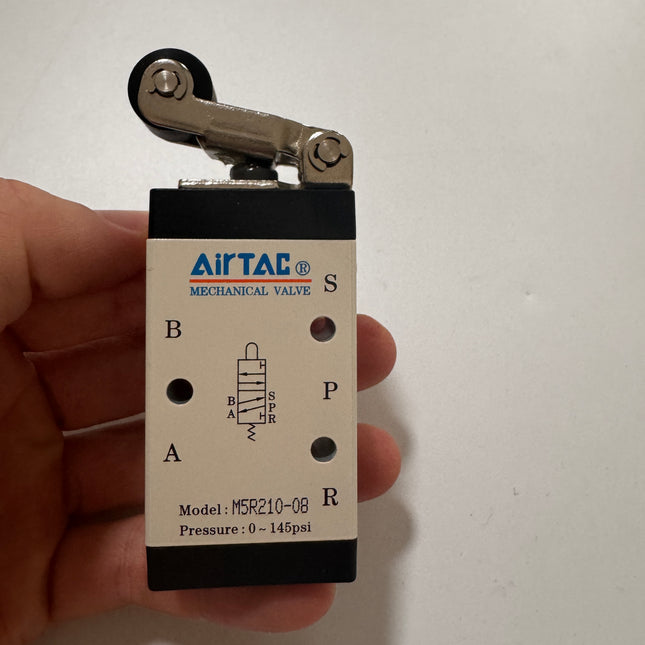

B: Basic Mechanical C: Long Plunger D: Short Plunger Y: Roller Plunger R: Roller Lever Mechanical L: One-way Roller Lever (Long) PL: Rotary Push-Button Manual PF: Flat Round Pushbutton PM / PP: Mushroom Pushbutton HS: Selector Hand Valve |
| 3 | Series Code |
110: 100 Series 210: 200 Series |
| 4 | Port Size |
06: 1/8" 08: 1/4" |
| 5 | Button Color |
Blank / R: Red G: Green B: Black (Only applicable to manual button types) |
| 6 | Thread Type |
Blank: PT Thread G: G Thread T: NPT Thread |

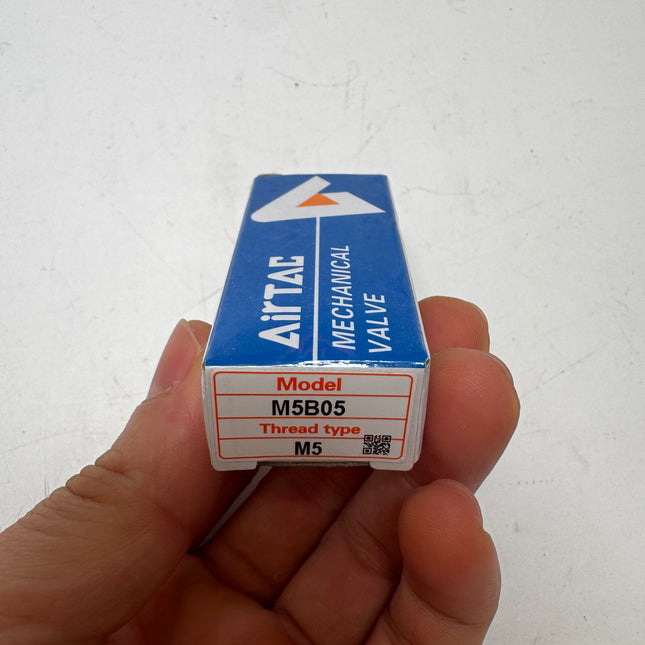

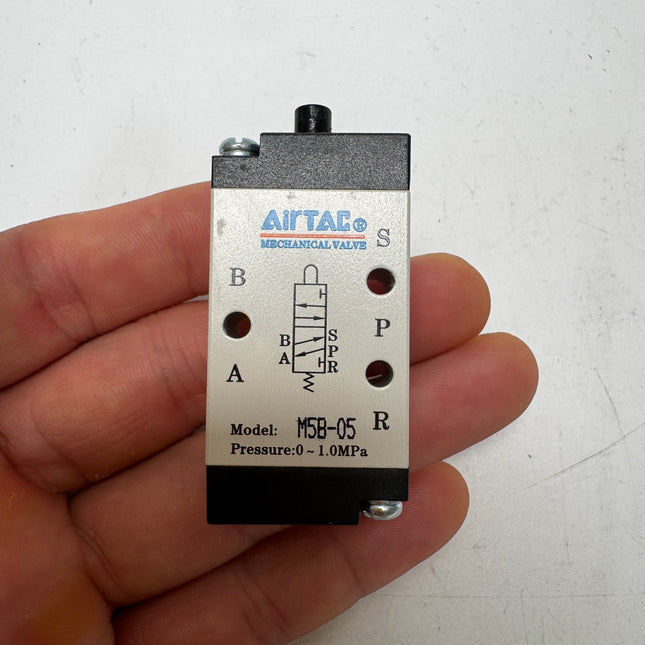

2. Miniature Type Ordering (05 Series)
Example: M5 R 05
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | M5: 5-Port 2-Position Valve |
| 2 | Actuator Code |

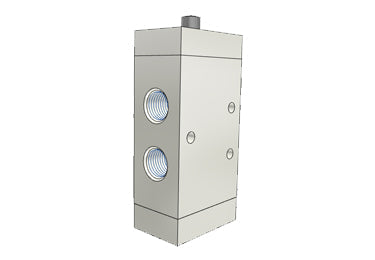

B: Basic Mechanical Type R: Roller Lever Mechanical Type L: One-way Roller Lever Type |
| 3 | Port Size | 05: M5 Thread (No additional thread code needed) |
