LSHH Series High Temperature Linear Guide

Max Temperature 150°C | Stainless Steel End Cap

Product Features
Set Ordering Code
Component Ordering

Product Features

High Temperature Resistance: Specifically engineered utilizing stainless steel end cap components and high-temperature resistant rubber for scrapers, achieving a maximum continuous operating temperature of 150°C.
Dimensional Stability: The AirTAC exclusive special end cap structure ensures excellent dimensional stability, preventing jamming or deformation during extreme heating and cooling cycles.
Dust Protection: Retains highly effective dust-proof sealing even at high temperatures, significantly reducing damage and wear from foreign object intrusion.
Special Lubrication: Factory pre-packed with premium high-temperature grease to ensure smooth operation, low friction, and low noise in extreme environments.
Current Availability: Currently available in Size 25 (23mm Rail Width).

1. Assembled Set Ordering Code

Example: LSHH 25 H N 1 X220 S20 A H - AM8 - B - T Use this complete code when ordering a pre-assembled set containing both the rail and block(s).

No.	Item	Options & Description
1	Series Code	LSHH: High Temperature Linear Guide (Size 25 only)
2	Rail Width	25: 23mm Rail Width
3	Block Type	H: Square F1: Flange (Upper Lock) F2: Flange (Lower Lock) F3: Flange (Up/Low Lock)
4	Block Spec	N: Standard Block \| L: Long Block
5	Block Quantity	1, 2, 3... : Quantity of blocks installed per rail
6	Rail Length	Total length in mm (e.g., X220)
7	Hole Pitch (Ends)	S: Standard (Equal ends) Value: Custom End Distance in mm (e.g., S20)
8	Preload Class	A: No Preload \| B: Light \| C: Medium \| D: Heavy
9	Accuracy Grade	N: Normal \| H: High \| P: Precision
10	Grease Fitting	M6: M6 Nipple (Standard) A01: M6-PT1/8 (Straight) \| L01: M6-PT1/8 (L-Shape) AM8 / LM8: M6-M8 Adapters
11	Packaging	Blank: Fully Assembled \| B: Separate Packaging
12	Rail Lock Type	Blank: Upper Lock (Standard) \| T: Lower Lock

2. Jointed Rail Ordering

Example: LSHH 25 H N 1 X2970 T 2940 T 2970 A H ... Used for rails that exceed the maximum single-piece length. The letter "T" indicates the joint mark.

Block Only Ordering Code

Example: LSHH 25 BK - H N - H - D - AM8

Item	Options & Description
Model Code	LSHH: High Temperature Series
Rail Width	25: 23mm Width
Component Code	BK: Block Only
Block Type	H: Square \| F1 / F2 / F3: Flange Types
Block Spec	N: Standard Block \| L: Long Block
Accuracy Grade	N: Normal \| H: High (Standard component accuracy options)
Assembly Match	SG, SF, SE, SD, SC, SB, SA, A, B, C, D, E (Preload Match Code - Refer to LSH Preload Catalog Table)
Grease Fitting	Optional (e.g., M6, A01, AM8, L01, LM8, SM6)

Important Note: When ordering separate blocks and rails, it is critical to use the correct Assembly Match Code to ensure proper preload matching upon final installation.

Show previous products

View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-B-SM6

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group code: B Nozzle/tubing joint specification: M6 straight nozzle Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-C-AM8

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group Code: C Nozzle/tubing joint specification: M6 to M8, straight-through type Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-A-LM8

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group code: A Nozzle/tubing joint specification: M6 to M8,L type Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-B-A01

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group code: B Nozzle/tubing joint specification: M6 to PT1/8, straight-through type Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-SB-L01

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group code: SB Nozzle/tubing joint specification: M6 to PT1/8,L type Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-SE-AM8

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group code: SE Nozzle/tubing joint specification: M6 to M8, straight-through type Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-A-L01

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group code: A Nozzle/tubing joint specification: M6 to PT1/8,L type Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-SA-SM6

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group Code: SA Nozzle/tubing joint specification: M6 straight nozzle Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-A-M6

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group code: A Nozzle/tubing joint specification: M6 nozzle Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-SG-L01

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: ordinary Group code: SG Nozzle/tubing joint specification: M6 to PT1/8,L type Click to download Airtac product catalog Product Features 1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion. 2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity. 3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.

Read more less

$127.02

View options
View options

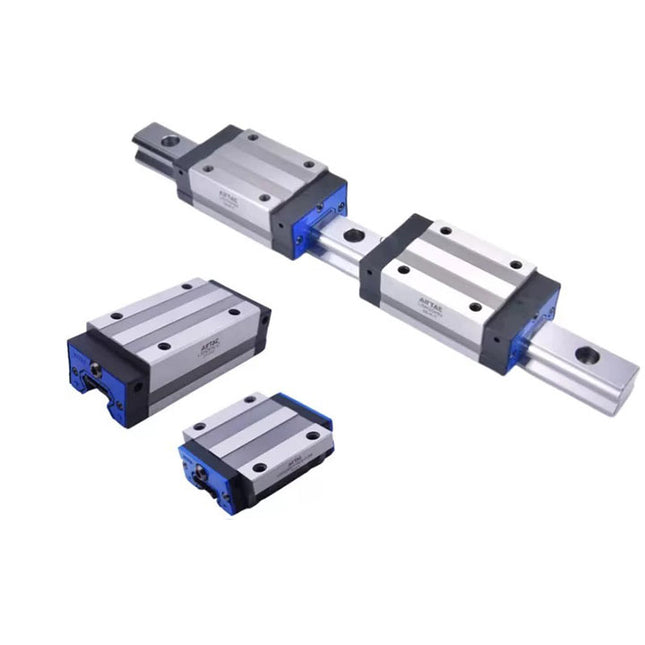

Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-N-B-M6
