LSHH Series High Temperature Linear Guide

Max Temperature 150°C | Stainless Steel End Cap
  • Product Features
  • Set Ordering Code
  • Component Ordering

Product Features

  • High Temperature Resistance: Specifically engineered utilizing stainless steel end cap components and high-temperature resistant rubber for scrapers, achieving a maximum continuous operating temperature of 150°C.
  • Dimensional Stability: The AirTAC exclusive special end cap structure ensures excellent dimensional stability, preventing jamming or deformation during extreme heating and cooling cycles.
  • Dust Protection: Retains highly effective dust-proof sealing even at high temperatures, significantly reducing damage and wear from foreign object intrusion.
  • Special Lubrication: Factory pre-packed with premium high-temperature grease to ensure smooth operation, low friction, and low noise in extreme environments.
  • Current Availability: Currently available in Size 25 (23mm Rail Width).

1. Assembled Set Ordering Code

Example: LSHH 25 H N 1 X220 S20 A H - AM8 - B - T Use this complete code when ordering a pre-assembled set containing both the rail and block(s).
No. Item Options & Description
1 Series Code LSHH: High Temperature Linear Guide (Size 25 only)
2 Rail Width 25: 23mm Rail Width
3 Block Type H: Square
F1: Flange (Upper Lock)
F2: Flange (Lower Lock)
F3: Flange (Up/Low Lock)
4 Block Spec N: Standard Block  |  L: Long Block
5 Block Quantity 1, 2, 3... : Quantity of blocks installed per rail
6 Rail Length Total length in mm (e.g., X220)
7 Hole Pitch (Ends) S: Standard (Equal ends)
Value: Custom End Distance in mm (e.g., S20)
8 Preload Class A: No Preload  |  B: Light  |  C: Medium  |  D: Heavy
9 Accuracy Grade N: Normal  |  H: High  |  P: Precision
10 Grease Fitting M6: M6 Nipple (Standard)
A01: M6-PT1/8 (Straight)  |  L01: M6-PT1/8 (L-Shape)
AM8 / LM8: M6-M8 Adapters
11 Packaging Blank: Fully Assembled  |  B: Separate Packaging
12 Rail Lock Type Blank: Upper Lock (Standard)  |  T: Lower Lock

2. Jointed Rail Ordering

Example: LSHH 25 H N 1 X2970 T 2940 T 2970 A H ... Used for rails that exceed the maximum single-piece length. The letter "T" indicates the joint mark.

Block Only Ordering Code

Example: LSHH 25 BK - H N - H - D - AM8
Item Options & Description
Model Code LSHH: High Temperature Series
Rail Width 25: 23mm Width
Component Code BK: Block Only
Block Type H: Square  |  F1 / F2 / F3: Flange Types
Block Spec N: Standard Block  |  L: Long Block
Accuracy Grade N: Normal  |  H: High
(Standard component accuracy options)
Assembly Match SG, SF, SE, SD, SC, SB, SA, A, B, C, D, E
(Preload Match Code - Refer to LSH Preload Catalog Table)
Grease Fitting Optional (e.g., M6, A01, AM8, L01, LM8, SM6)
Important Note: When ordering separate blocks and rails, it is critical to use the correct Assembly Match Code to ensure proper preload matching upon final installation.
  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-D-A01

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-D-A01

    Specifications: LSHH25BK-F3L-H-D-A01 — LSHH25 high-temperature individual block, F3L form, H accuracy, group D, with A01 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy D Block pairing code; verify against the matching rail group A01 straight oil-line adapter; block-side M6X0.75; line-side PT1/8 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group D with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is A01: straight oil-line adapter, with M6X0.75 block-side connection and PT1/8 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-A01. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-B-AM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-B-AM8

    Specifications: LSHH25BK-F3L-H-B-AM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group B, with AM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy B Block pairing code; verify against the matching rail group AM8 straight oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group B with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is AM8: straight oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-AM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-D-AM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-D-AM8

    Specifications: LSHH25BK-F3L-H-D-AM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group D, with AM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy D Block pairing code; verify against the matching rail group AM8 straight oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group D with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is AM8: straight oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-AM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-SB-L01

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-SB-L01

    Specifications: LSHH25BK-F3L-H-SB-L01 — LSHH25 high-temperature individual block, F3L form, H accuracy, group SB, with L01 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy SB Block pairing code; verify against the matching rail group L01 elbow oil-line adapter; block-side M6X0.75; line-side PT1/8 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group SB with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is L01: elbow oil-line adapter, with M6X0.75 block-side connection and PT1/8 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-L01. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-D-L01

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-D-L01

    Specifications: LSHH25BK-F3L-H-D-L01 — LSHH25 high-temperature individual block, F3L form, H accuracy, group D, with L01 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy D Block pairing code; verify against the matching rail group L01 elbow oil-line adapter; block-side M6X0.75; line-side PT1/8 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group D with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is L01: elbow oil-line adapter, with M6X0.75 block-side connection and PT1/8 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-L01. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-E-L01

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-E-L01

    Specifications: LSHH25BK-F3L-H-E-L01 — LSHH25 high-temperature individual block, F3L form, H accuracy, group E, with L01 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy E Block pairing code; verify against the matching rail group L01 elbow oil-line adapter; block-side M6X0.75; line-side PT1/8 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group E with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is L01: elbow oil-line adapter, with M6X0.75 block-side connection and PT1/8 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-L01. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-D-LM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-D-LM8

    Specifications: LSHH25BK-F3L-H-D-LM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group D, with LM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy D Block pairing code; verify against the matching rail group LM8 elbow oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group D with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is LM8: elbow oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-LM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-E-SM6

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-E-SM6

    Specifications: LSHH25BK-F3L-H-E-SM6 — LSHH25 high-temperature individual block, F3L form, H accuracy, group E, with SM6 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy E Block pairing code; verify against the matching rail group SM6 straight grease nipple; block-side M6X0.75 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group E with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is SM6: straight grease nipple, with M6X0.75 block-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-SM6. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-E-LM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-E-LM8

    Specifications: LSHH25BK-F3L-H-E-LM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group E, with LM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy E Block pairing code; verify against the matching rail group LM8 elbow oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group E with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is LM8: elbow oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-LM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-C-LM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-C-LM8

    Specifications: LSHH25BK-F3L-H-C-LM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group C, with LM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy C Block pairing code; verify against the matching rail group LM8 elbow oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group C with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is LM8: elbow oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-LM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-D-SM6

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-D-SM6

    Specifications: LSHH25BK-F3L-H-D-SM6 — LSHH25 high-temperature individual block, F3L form, H accuracy, group D, with SM6 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy D Block pairing code; verify against the matching rail group SM6 straight grease nipple; block-side M6X0.75 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group D with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is SM6: straight grease nipple, with M6X0.75 block-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-SM6. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-C-SM6

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-C-SM6

    Specifications: LSHH25BK-F3L-H-C-SM6 — LSHH25 high-temperature individual block, F3L form, H accuracy, group C, with SM6 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy C Block pairing code; verify against the matching rail group SM6 straight grease nipple; block-side M6X0.75 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group C with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is SM6: straight grease nipple, with M6X0.75 block-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-SM6. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-E-AM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-E-AM8

    Specifications: LSHH25BK-F3L-H-E-AM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group E, with AM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy E Block pairing code; verify against the matching rail group AM8 straight oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group E with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is AM8: straight oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-AM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-E-A01

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-E-A01

    Specifications: LSHH25BK-F3L-H-E-A01 — LSHH25 high-temperature individual block, F3L form, H accuracy, group E, with A01 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy E Block pairing code; verify against the matching rail group A01 straight oil-line adapter; block-side M6X0.75; line-side PT1/8 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group E with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is A01: straight oil-line adapter, with M6X0.75 block-side connection and PT1/8 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-A01. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-A-SM6

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-A-SM6

    Specifications: LSHH25BK-F3L-H-A-SM6 — LSHH25 high-temperature individual block, F3L form, H accuracy, group A, with SM6 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy A Block pairing code; verify against the matching rail group SM6 straight grease nipple; block-side M6X0.75 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group A with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is SM6: straight grease nipple, with M6X0.75 block-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-SM6. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. The same-volume size-25 rail/block pairing chart does not assign selected group A. Confirm the high-temperature assembly pairing before ordering; no preload grade is assumed for this code. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-C-AM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-C-AM8

    Specifications: LSHH25BK-F3L-H-C-AM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group C, with AM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy C Block pairing code; verify against the matching rail group AM8 straight oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group C with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is AM8: straight oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-AM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-C-M6

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-C-M6

    Specifications: LSHH25BK-F3L-H-C-M6 — LSHH25 high-temperature individual block, F3L form, H accuracy, group C, with M6 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy C Block pairing code; verify against the matching rail group M6 grease nipple; block-side M6X0.75 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group C with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is M6: grease nipple, with M6X0.75 block-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-M6. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-SA-LM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-SA-LM8

    Specifications: LSHH25BK-F3L-H-SA-LM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group SA, with LM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy SA Block pairing code; verify against the matching rail group LM8 elbow oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group SA with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is LM8: elbow oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-LM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. The same-volume size-25 rail/block pairing chart does not assign selected group SA. Confirm the high-temperature assembly pairing before ordering; no preload grade is assumed for this code. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

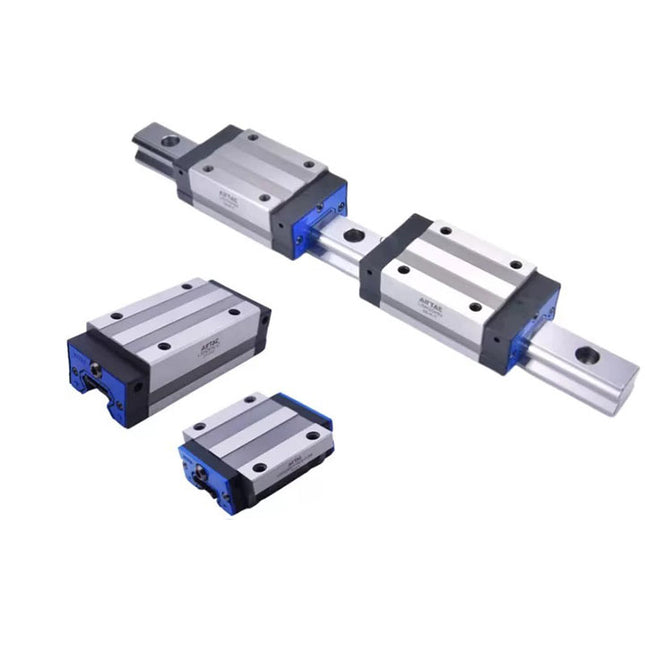

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-C-L01

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-C-L01

    Specifications: LSHH25BK-F3L-H-C-L01 — LSHH25 high-temperature individual block, F3L form, H accuracy, group C, with L01 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy C Block pairing code; verify against the matching rail group L01 elbow oil-line adapter; block-side M6X0.75; line-side PT1/8 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group C with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is L01: elbow oil-line adapter, with M6X0.75 block-side connection and PT1/8 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-L01. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-E-M6

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-E-M6

    Specifications: LSHH25BK-F3L-H-E-M6 — LSHH25 high-temperature individual block, F3L form, H accuracy, group E, with M6 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy E Block pairing code; verify against the matching rail group M6 grease nipple; block-side M6X0.75 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group E with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is M6: grease nipple, with M6X0.75 block-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-M6. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-D-M6

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-D-M6

    Specifications: LSHH25BK-F3L-H-D-M6 — LSHH25 high-temperature individual block, F3L form, H accuracy, group D, with M6 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy D Block pairing code; verify against the matching rail group M6 grease nipple; block-side M6X0.75 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group D with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is M6: grease nipple, with M6X0.75 block-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-M6. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-B-L01

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-B-L01

    Specifications: LSHH25BK-F3L-H-B-L01 — LSHH25 high-temperature individual block, F3L form, H accuracy, group B, with L01 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy B Block pairing code; verify against the matching rail group L01 elbow oil-line adapter; block-side M6X0.75; line-side PT1/8 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group B with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is L01: elbow oil-line adapter, with M6X0.75 block-side connection and PT1/8 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-L01. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-SE-AM8

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-SE-AM8

    Specifications: LSHH25BK-F3L-H-SE-AM8 — LSHH25 high-temperature individual block, F3L form, H accuracy, group SE, with AM8 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy SE Block pairing code; verify against the matching rail group AM8 straight oil-line adapter; block-side M6X0.75; line-side M8X1 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group SE with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is AM8: straight oil-line adapter, with M6X0.75 block-side connection and M8X1 line-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-AM8. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. Use the inner bushing with soft tubing; it is unnecessary with hard tubing. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

  • Airtac LSHH Series-Linear Slide-Slider - LSHH25BK-F3L-H-A-M6

    View options

    Airtac LSHH series: high-temperature linear guide block - LSHH25BK-F3L-H-A-M6

    Specifications: LSHH25BK-F3L-H-A-M6 — LSHH25 high-temperature individual block, F3L form, H accuracy, group A, with M6 lubrication fitting Product Catalog Download Airtac Product Catalog (PDF) Download LSH / LSHH25 2025 Chinese Supplement (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Configuration and Catalog Version The dedicated 2025 Chinese supplement covers the high-temperature construction and H1 correction. The original standard LSH catalog is retained for the remaining corresponding body dimensions. Model Code Explained Code Meaning LSHH High-temperature linear guide series 25 Size 25; actual rail width 23 mm BK Individual block F3 Flange, top or bottom mount L Long block H High accuracy A Block pairing code; verify against the matching rail group M6 grease nipple; block-side M6X0.75 Technical Specifications Parameter Details Supplied component One LSHH25 block; rail ordered separately Maximum working temperature 150°C Catalog availability LSHH size 25 only Block underside clearance H1 7 mm; standard LSH25 is 6.5 mm Other drawing dimensions Same as the corresponding standard LSH25 block, as stated in the LSHH catalog Reference weight 0.85 kg (850 g), estimated from the corresponding standard LSH25 body; not a separately published LSHH net weight. Features and Operation Stainless-steel end-cap components and high-temperature rubber in the scraper enable the catalog maximum working temperature of 150°C. The end-cap structure is designed for dimensional stability through heating and cooling. Dust protection is retained to reduce damage caused by contamination. High-temperature grease is used for smooth travel and lower noise. The dedicated page does not specify its brand or an independent LSHH replenishment interval. External and Mounting Dimensions Dimensions are in millimetres unless another unit is shown. Letter labels follow the catalog drawing; assembly height is not the height of the loose block. Drawing / item Value H — Assembly height 36 mm H1 — Block underside clearance 7 mm F — Block width 70 mm Y — Lateral offset to rail datum 23.5 mm C — Overall block length 105 mm C1 — Block body length 80 mm A — Longitudinal mounting-hole pitch 45 mm B — Transverse mounting-hole pitch 57 mm K — Drawing K 6.9 mm D — Drawing D 12.5 mm G — Rail width 23 mm H2 — Rail height 22 mm P — Rail mounting-hole pitch 60 mm Q — Rail counterbore diameter 11.2 mm U — Rail through-hole diameter 7 mm H3 — Rail counterbore depth 9 mm M — Block mounting hole / thread M8X1.25 T1 — Drawing T1 16 mm T — Drawing T 10 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Parts and Assembly Use this block in a matching LSHH25 high-temperature guide assembly. Match accuracy H and block group A with the applicable rail/preload chart; a block group alone is not a preload rating. The ordered fitting is M6: grease nipple, with M6X0.75 block-side connection. For a replacement fitting, the standard size-25 catalog reference is L-P-M6. Verify the fitting, seal and lubricant suitability for the actual high-temperature service. The same-volume size-25 rail/block pairing chart does not assign selected group A. Confirm the high-temperature assembly pairing before ordering; no preload grade is assumed for this code. Installation, Lubrication and Use Use grease suitable for the LSHH operating temperature and service conditions. Do not apply the ordinary LSH temperature limit or ordinary grease interval as an LSHH rating. Keep rail and block reference surfaces clean and aligned. Support the transport rail while transferring the block to avoid damaging seals or losing balls. Provide adequate clearance for the selected grease nipple or oil-line adapter. Protect the raceways from impact and foreign matter. The catalog states a maximum working temperature, not a thermal load-derating curve. For high-temperature load selection, obtain the applicable operating-load and preload conditions rather than treating standard room-temperature load ratings as validated at 150°C. Series Ordering Options These are catalog options for this product family. Only the codes in the ordered model define the supplied configuration. H, F1, F2 and F3 forms; N standard and L long blocks; N/H accuracy; choose the exact fitting and grouping shown in the current model.

    Read more

    $133.99

    View options

You have seen 24 out of 1152 products
