LSD Series Low Profile Linear Guide (Specifications & Ordering)
Standard Assembled Set Ordering Code
Example: LSD 15 H N 2 220 S20 A H - AM6 - B - T - DD
Applicable for standard rail lengths (single piece). For long rails requiring jointing, see Tab 2.
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series | LSD: Low Profile Linear Guide |
| 2 | Surface Treat. |
Blank: Natural (Standard) BB: Black Chrome Plating (Rail & Block) |
| 3 | Width |
15: 15mm 20: 20mm 25: 23mm 30: 28mm 35: 34mm |
| 4 | Block Type |
H: Square Type F1: Flange (Upper Lock) F2: Flange (Lower Lock) F3: Flange (Upper/Lower Lock) |
| 5 | Block Length |
S: Short Type N: Standard Type |
| 6 | Block Count | 1, 2...: Number of blocks per rail |
| 7 | Rail Length | Length in mm (e.g., 220, 1000) |
| 8 | Hole Pitch (E) |
S: Standard Pitch (Equal ends) Value: Custom end distance (e.g., 20) |
| 9 | Preload |
A: No Preload (Clearance) B: Light Preload C: Medium Preload |
| 10 | Accuracy | N: Normal H: High P: Precision |
| 11 | Grease Fitting |
See Tab 4 for codes (e.g., M4, AM6, PT1/8) Note: Standard varies by size. |
| 12 | Packaging |
Blank: Assembled Set B: Components Packed Separately |
| 13 | Rail Mounting |
Blank: Upper Locking (Bolt from top) T: Lower Locking (Bolt from bottom) |
| 14 | Dust Proof |
Blank: Standard Seal DD: Double Seals ZZ: Scraper + Metal Scraper |
Jointed Rail Ordering Code
Example: LSD 15 H N 1X3920 T 3900 T 3920 A H ...
Used when the required rail length exceeds the maximum standard single-piece length (approx. 4000mm), requiring multiple rails to be jointed.
Key Differences in Ordering
| Code Pos. | Item | Description |
|---|---|---|
| 7 | 1st Rail Length | Length of the first rail segment (e.g., 3920). |
| 8 | Joint Mark 1 | T: Joint mark for 1st connection. |
| 9 | 2nd Rail Length | Length of the second rail segment (e.g., 3900). |
| 10 | Joint Mark 2 | T: Joint mark for 2nd connection (if applicable). |
| 11 | 3rd Rail Length | Length of the third rail segment (e.g., 3920). |
Note: The rest of the code (Preload, Accuracy, Grease, etc.) follows the standard sequence after the rail definition.
Individual Component Ordering

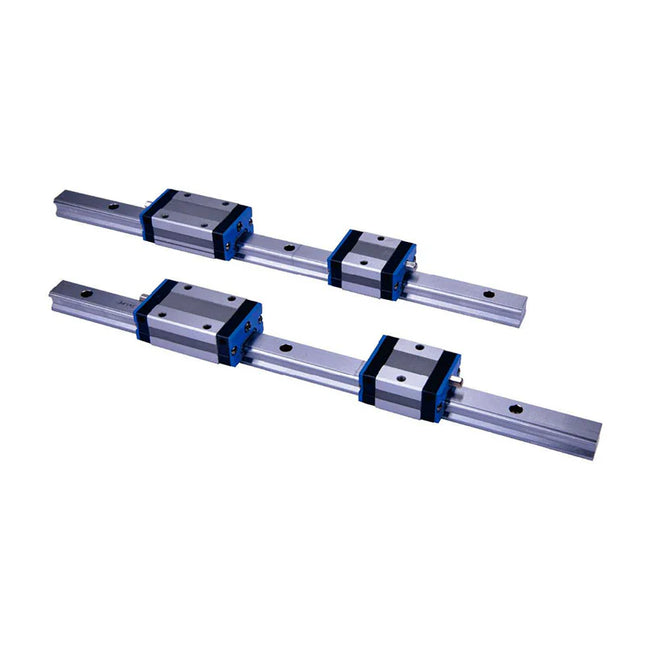

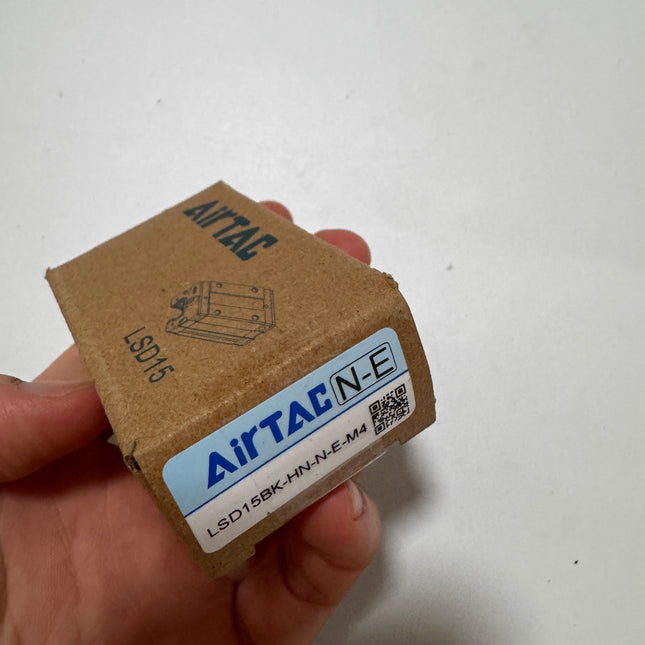

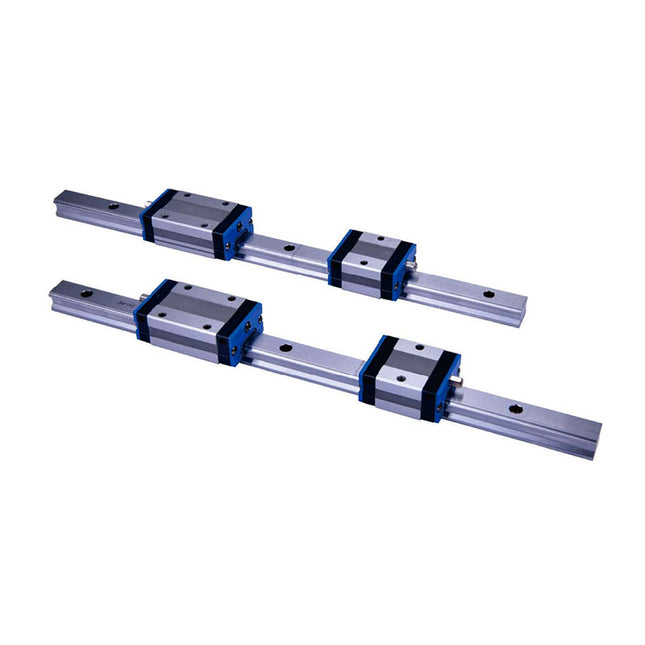

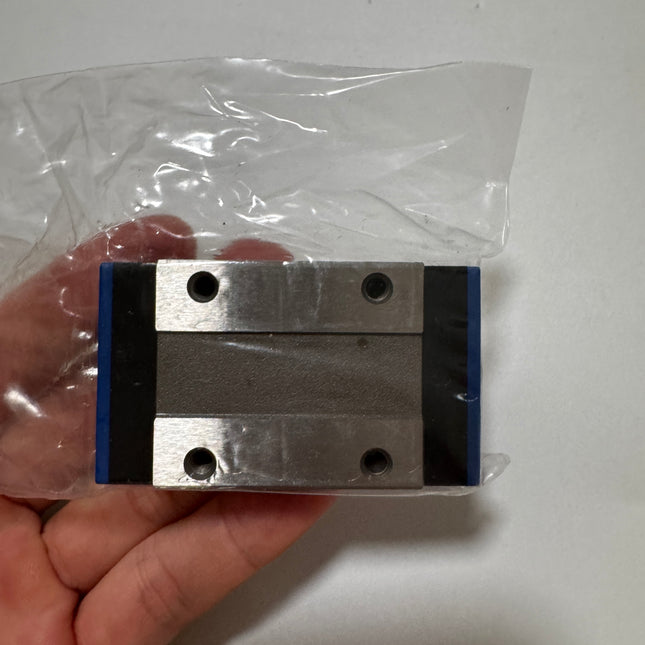

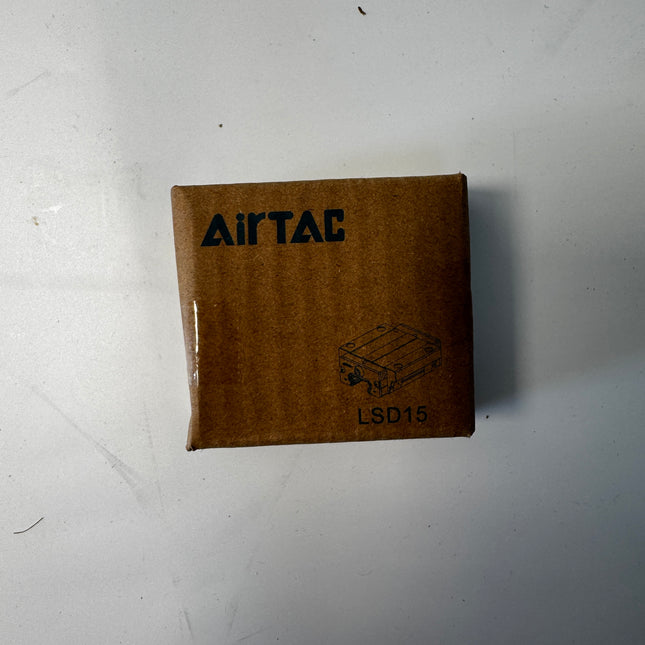

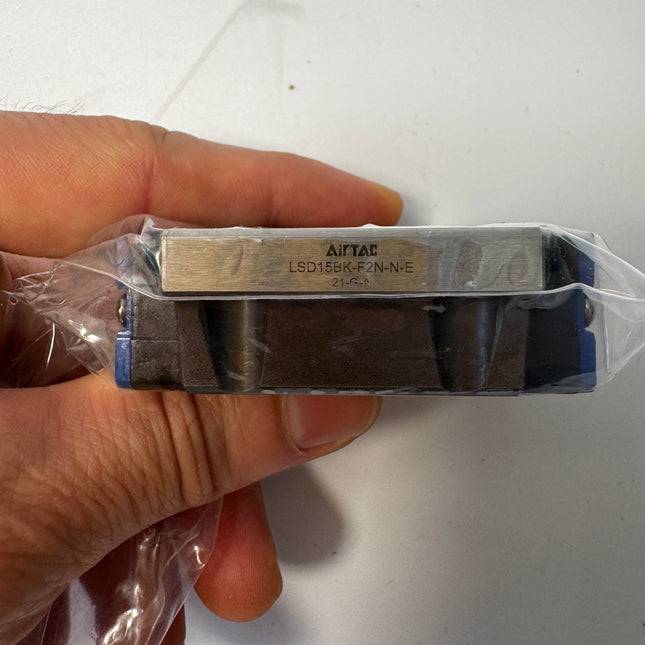

1. Block Only Ordering (BK)
Example: LSD 15 BK-H N - H - D - AM6 - DD
| Item | Options |
|---|---|
| Model | LSD + Width (15/20/25/30/35) + BK (Block) |
| Surface | -Blank: Natural, -H: Black Chrome (Note: suffix position may vary) |
| Type | N: Standard Length, S: Short |
| Shape | H: Square, F1/F2/F3: Flange |
| Accuracy | N: Normal, H: High, P: Precision |
| Assembly | D, E, F... (See Assembly Table below) |
| Grease | Optional (e.g., AM6) |
| Dust | Optional (e.g., DD, ZZ) |

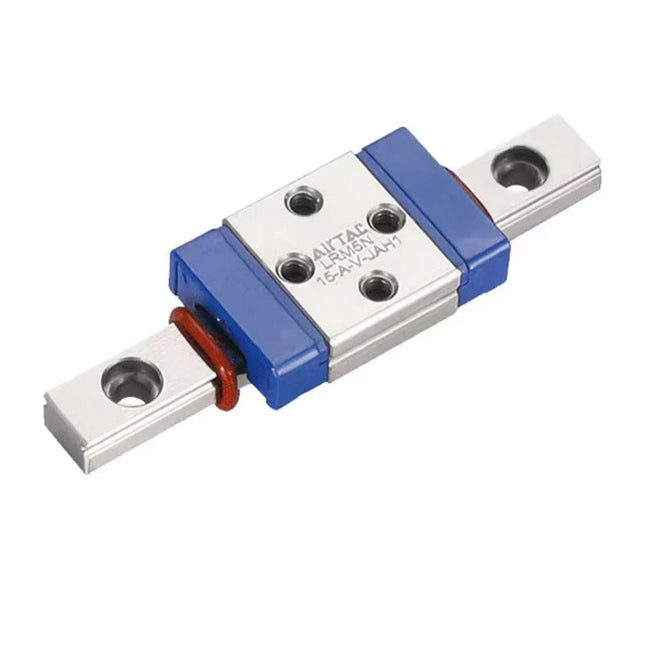

2. Rail Only Ordering (RL)
Example: LSD 15 RL X 220 - S20 - H - D - T
| Item | Options |
|---|---|
| Model | LSD + Width + RL (Rail) |
| Joint | X: Jointed, Blank: Single piece |
| Length | Rail Length (mm) |
| End Dist. | S: Standard, Value: Custom (e.g., S20) |
| Accuracy | N: Normal, H: High |
| Assembly | D, E (See Assembly Table below) |
| Mounting | Blank: Upper Lock, T: Lower Lock |
3. Assembly Code Matching Table (组配表)
Used when ordering blocks and rails separately to ensure correct fit.
| Accuracy | Preload Class | ||
|---|---|---|---|
| No Preload (A) | Light Preload (B) | Medium Preload (C) | |
| Normal (N) | Code: D | Code: D | Code: SB |
| High (H) | Code: E | Code: C | Code: SA |
| Precision (P) | - | Code: E | Code: SB |
Grease Fittings & Accessories
| Applicable Model | Code | Thread Spec | Description |
|---|---|---|---|
| LSD 15 | M4 | M4 Thread | Standard Straight Nipple |
| AM6 | M4 to M6 | Straight Adapter (M4 male to M6 female) | |
| LM6 | M4 to M6 | L-Shape Adapter (M4 male to M6 female) | |
| SC | - | M4 Oil Port Plug (Plastic) | |
| LSD 20 LSD 25 LSD 30 LSD 35 |
M6 | M6 Thread | Standard Straight Nipple |
| A01 | M6 to PT1/8 | Straight Adapter | |
| AM8 | M6 to M8 | Straight Adapter | |
| L01 | M6 to PT1/8 | L-Shape Adapter | |
| LM8 | M6 to M8 | L-Shape Adapter | |
| SM6 | M6 | Straight Nipple (Short type) | |
| D | - | M6 Oil Port Plug |
