AirTAC Pneumatic Fittings Series
One-Touch Push-In | Stop Valve | Metal Lock-Nut
Product Features
General Fittings (Standard APC/APL Series)
- Highly compact design with a vast array of shapes (Straight, Elbow, T, Y, Multi-way Manifold) to suit any complex pneumatic piping layout.
- Available in high-strength plastic and robust metal construction options.
- Ensures reliable sealing with effortless, one-touch tube insertion and release.

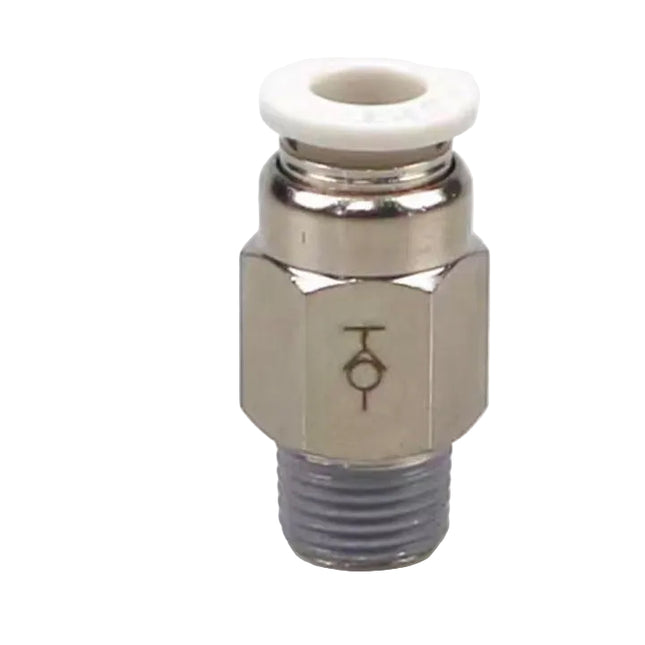

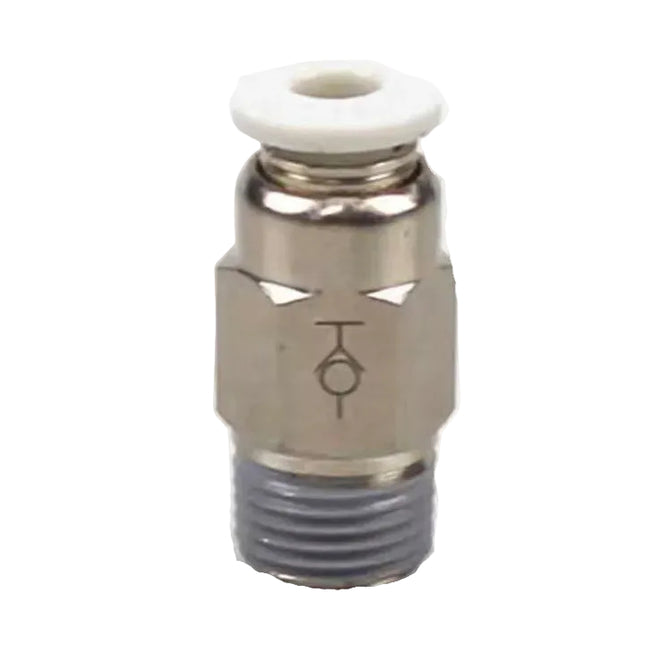

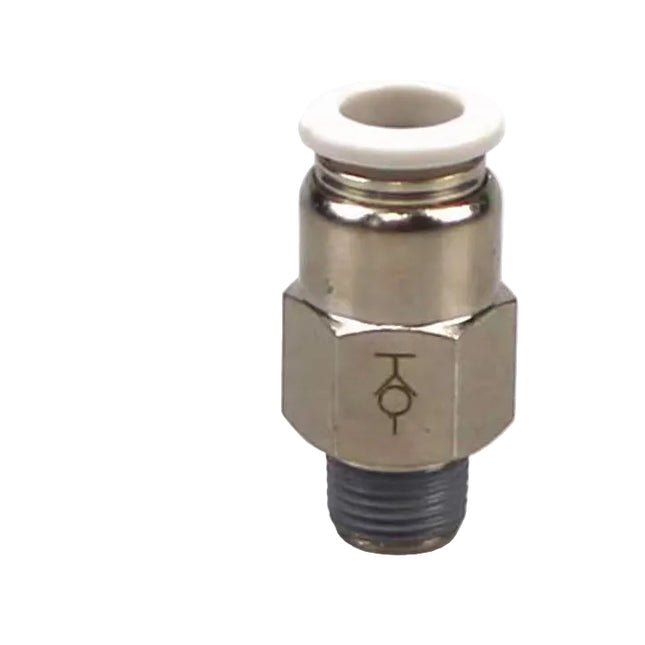

One-way Function Fittings (ASPC / ASPL Series)
- Highly recommended for locations where pneumatic tubing needs to be frequently disconnected and changed.
- Auto-Stop: The moment the tube is pulled out, the internal valve instantly closes to stop air leakage.
- Auto-Flow: Once a tube is securely inserted, the internal valve opens automatically to allow air flow.
Check Valve Fittings (APCVC Series)
- Functions as a non-return valve, allowing compressed air to flow in one direction only and completely blocking reverse flow.
- Helps maintain constant output pressure in critical circuit segments.
- Features an exceptionally low opening pressure (0.1 kgf/cm²), making it suitable for low-pressure actuation.
Technical Specifications
| Operating Fluid | Compressed Air |
| Operating Pressure Range | 0 ~ 1.02 MPa (0 ~ 145 psi) |
| Proof Pressure | 1.53 MPa (218 psi) |
| Ambient & Fluid Temperature | 0 ~ 60°C (No freezing) |
| Applicable Tubing Material | Nylon or Polyurethane (PU) Tube |
| Opening Pressure (For Check Valve Type Only) |
0.1 kgf/cm² (approx. 0.01 MPa) |
Comprehensive Model Index
Please refer to the classification below to find the specific series prefix for your desired fitting shape and function.
1. Standard Two-Way Series (Straight & Elbows)
| Model Prefix | Shape / Description |
|---|---|
| APC | Male Connector (Straight Thread-to-Tube) |
| APCF | Female Connector (Straight Thread-to-Tube) |
| APL | Male Elbow |
| APLL | Extended Male Elbow |
| APLM | Bulkhead Elbow (Panel Mount) |
| APH | Hexagon Socket Head Male Elbow |
| APM | Bulkhead Union (Straight Tube-to-Tube Panel Mount) |
| APMF | Bulkhead Female Connector |
| APLF | Female Elbow |
| APU | Union Straight (Tube-to-Tube) |
| APV | Union Elbow (Tube-to-Tube) |
| APG | Union Reducer (Unequal Tube-to-Tube) |
| APGJ | Plug-in Reducer (Stem to Tube) |
| APPC | Copper/Plastic Hybrid Straight |
| APCS | Plastic Body Female Straight |
| APLS | Plastic Body Female Elbow |
2. Functional Plugs & Check Valves
| Model Prefix | Category | Shape / Description |
|---|---|---|
| ASPC |
Auto-Stop Valve (Closes when tube removed) |
Straight (Male Thread) |
| ASPL | Elbow (Male Thread) | |
| ASPU | Tube End / Union Straight | |
| APCVC |
Check Valve (One-way non-return) |
Straight (Male Thread) |
| APCVF | Straight (Female Thread) | |
| APCVU | Straight (Tube to Tube) |
3. Insert Type Series (Plug-in Stem)
| Model Prefix | Shape Description |
|---|---|
| APGJC | Plug-in Straight |
| APLJ | Plug-in Elbow |
| APBJ | Plug-in T-Type (Branch) |
| APDJ | Plug-in Side T-Type (Run) |
| APYJ | Plug-in Y-Type |
| APKJ | Plug-in Manifold (5-way) |
4. Three-way & Multi-port Series
| Model Prefix | Shape / Description |
|---|---|
| APB | Male Branch Tee |
| APD | Male Run Tee |
| APE | Union Tee (Tube-to-Tube) |
| APEG | Reducer Union Tee |
| APEW | Different Diameter Union Tee |
| APX | Male Y-Joint |
| APY | Union Y-Joint (Tube-to-Tube) |
| APW | Reducer Union Y-Joint |
| APHF | Series Joint |
| APHW | Rotatable F-Type (Male Thread) |
| APKB | Manifold (5-way Threaded) |
| APKD | Reducer Manifold (Threaded) |
| APK | Union Manifold (5-way Tube) |
| APKG | Reducer Union Manifold |
| APKS | Rotatable Manifold |
| APZR | Male Cross (4-way) |
| APZA | Union Cross (Tube-to-Tube) |
| APHZ | Reducer Cross |
| AFD | Rotatable Manifold (6-way) |

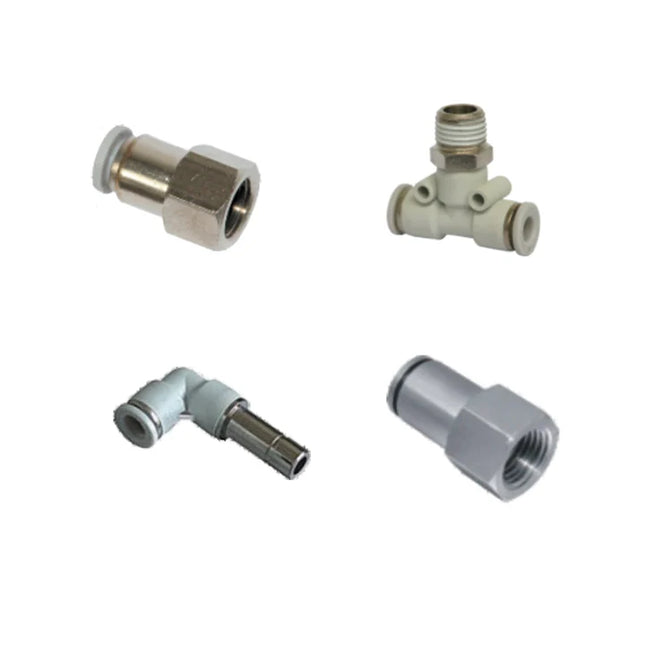

5. All-Copper & Lock-Nut Series (Full Metal)
Lock-Nut Series Selection Note: Suffix "-A" (e.g., ABL8-01-A) indicates the nut is designed for PU (Polyurethane) tubing. No suffix indicates it is designed for rigid Nylon tubing.
| Model Prefix | Type Class | Shape Description |
|---|---|---|
| APCT | All Copper Push-in | Male Straight |
| APCFT | Female Straight | |
| APMFT | Bulkhead Female | |
| APLT | Male Elbow | |
| APHT | Hexagon Elbow | |
| APBT | Male Tee | |
| APDT | Male Run Tee | |
| APUT | Union Straight | |
| APVT | Union Elbow | |
| APMT | Bulkhead Union | |
| APET | Union Tee | |
| APZT | Union Cross | |
| APGJT | Plug-in Straight | |
| ASCT | Exhaust Throttle Valve | |
| AUA | Threaded Base/Plug | Female Thread Union |
| ABD | Male/Female Thread Adapter | |
| ABB | Double Male Thread Union | |
| ABP | Hexagon Socket Plug | |
| ABZ | External Hexagon Plug | |
| ABC |
Lock-Nut Type (For vibration resistance) |
Lock-nut Male Straight |
| ABF | Lock-nut Female Straight | |
| ABL | Lock-nut Male Elbow | |
| ABT | Lock-nut Male Tee | |
| ABU | Lock-nut Union Straight | |
| ABV | Lock-nut Union Elbow | |
| ABE | Lock-nut Union Tee |
