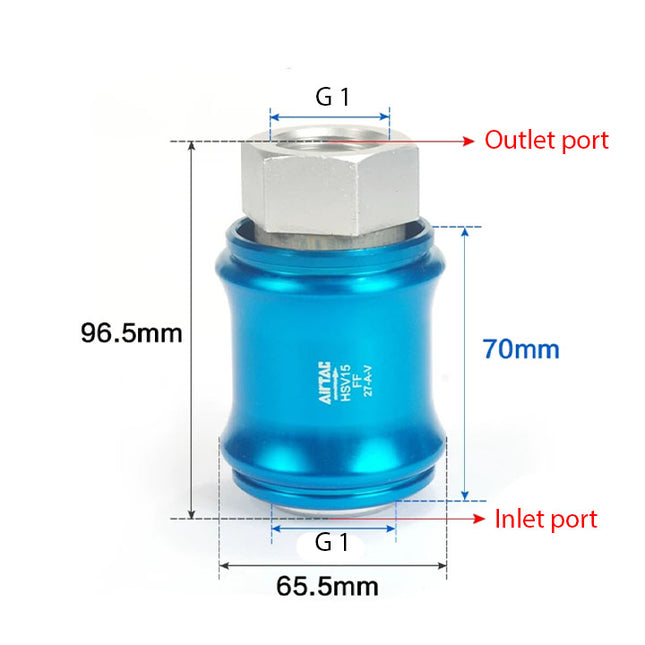

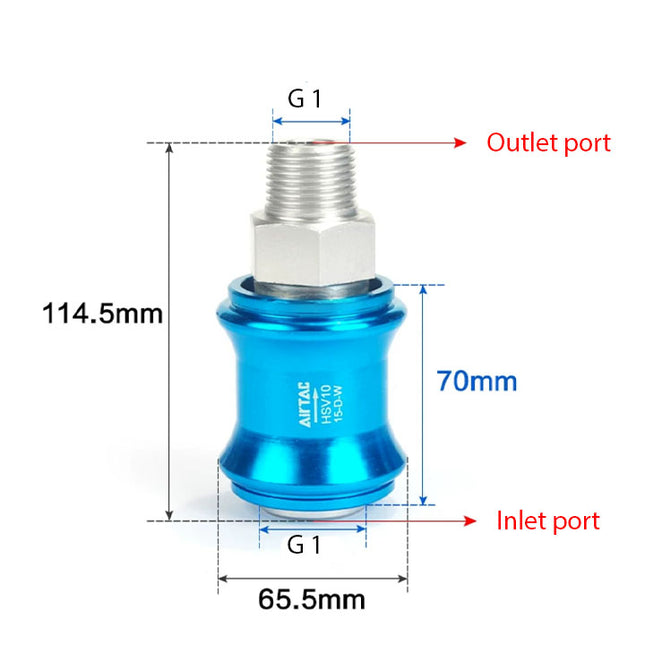

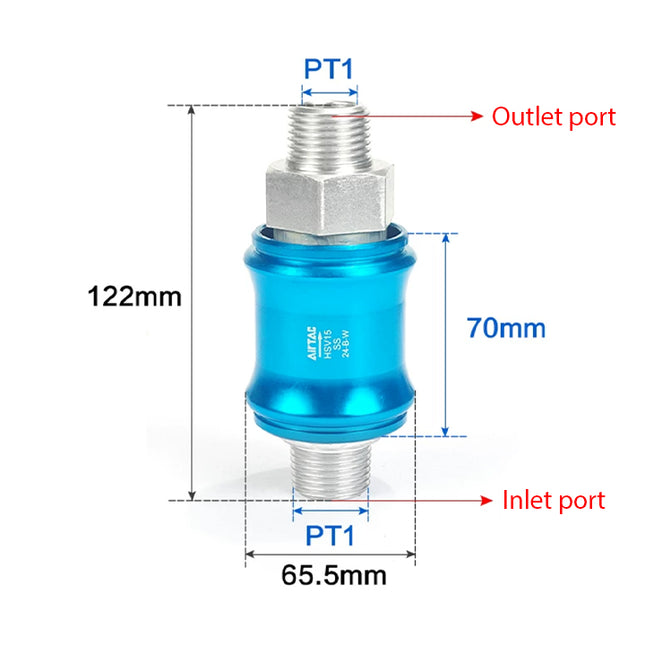

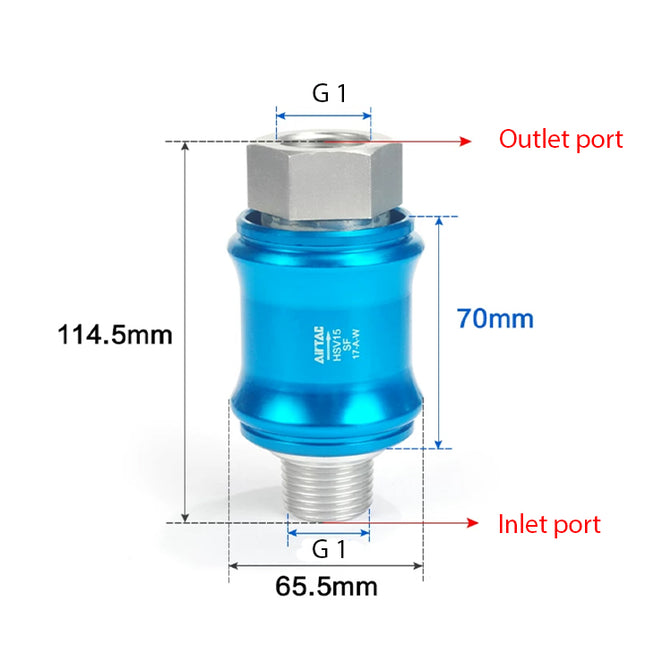

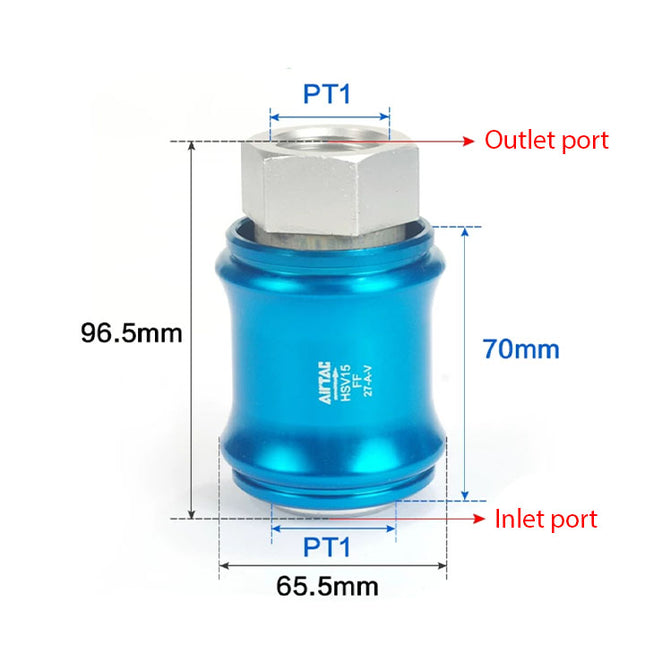

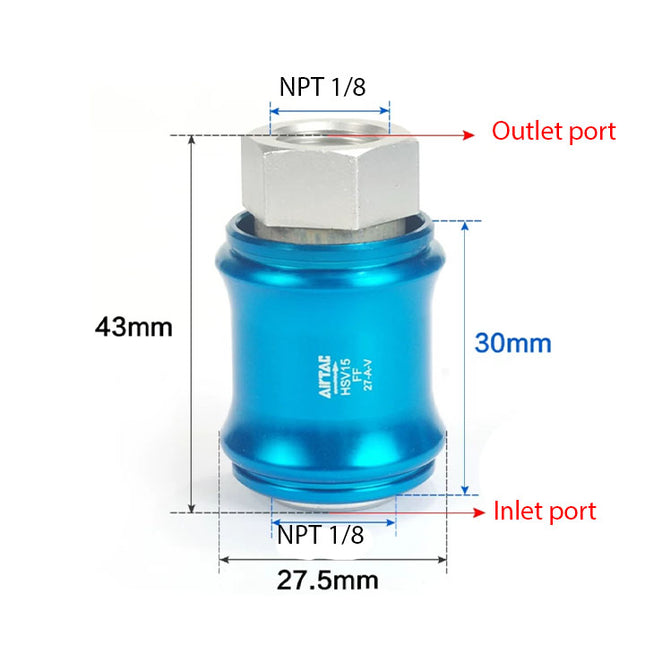

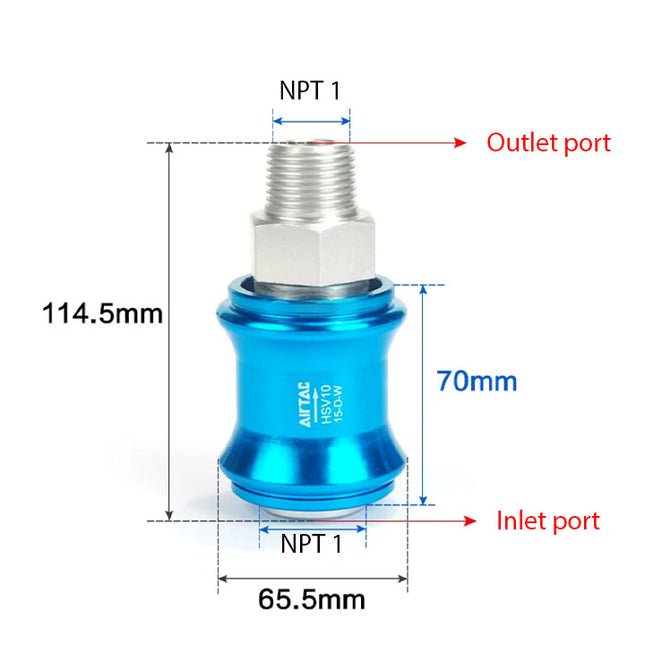

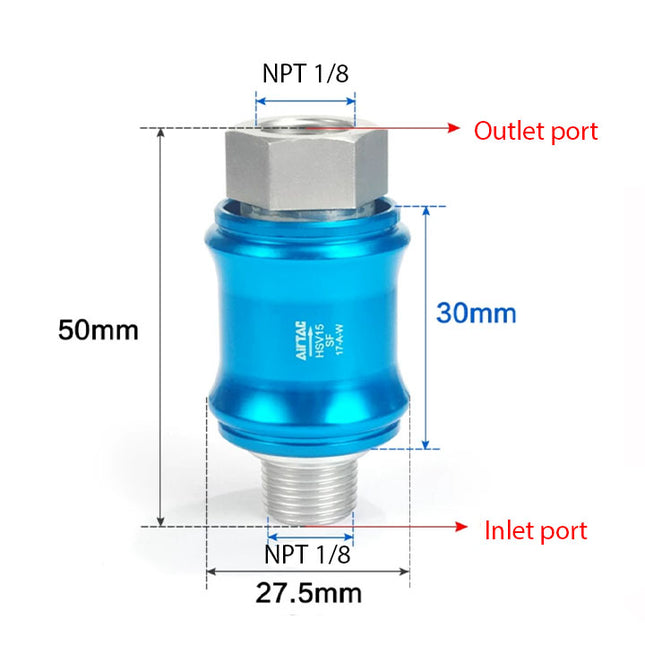

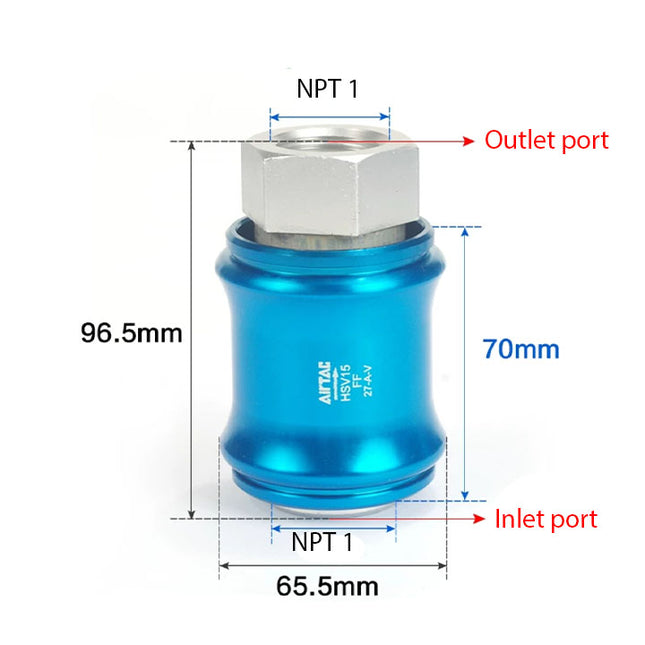

HSV Series Valve

Show previous products

•

  View options

  Airtac HSV series: hand slide valve - HSV08FF

  Specifications: HSV08FF is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 08 selects the 1/4-inch connection size, FF selects female-thread connections at both ends, and the omitted final suffix selects PT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 08 Port size PT 1/4 FF Female-thread connections at both ends Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size PT 1/4 Connection arrangement Female-thread connections at both ends Effective flow area 40 mm² Cv 2.2 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — FF drawing 47 mm B — outside diameter Ø30 mm BA — hexagon reference 19 mm D — body-length reference 32.5 mm E PT 1/4 EA PT 1/4 Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 40 mm² and Cv 2.2 for the 1/4-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 45 g. The reference is HSV08, published at 45 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (PT1/4, female, drawing E); OUT = its controlled outlet (PT1/4, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PSL elbow flow control; PSS flow control; PTL push-lock flow control; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC20008,GAFR20008S,GAFR30008S IN,OUT male PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT1/4 ↔ male PT1/4: BB0202,BB0202-Smale PT3/8 ↔ male PT1/4: BB0203,BB0203-Smale PT1/2 ↔ male PT1/4: BB0204,BB0204-Smale PT1/4 ↔ female PT1/8: BD0102,BD0102-S6 × 4: BKC0604-02,BKC0604-02-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-02,BKC0805-02-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-02,BKC0806-02-S10 × 6.5: BKC1065-02,BKC1065-02-S,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: BKC1075-02,BKC1075-02-S12 × 8: BKC1208-02,BKC1208-02-S,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: BKC1209-02,BKC1209-02-S10: BPC1002,BPOC1002,GPSA10,GPSA10D,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PSL1002A,PSL1002A-S,PSL1002AD,PSL1002AD-S,PSL1002B,PSL1002B-S,PSL1002BD,PSL1002BD-S,PSS1002A,PSS1002A-S,PSS1002AD,PSS1002AD-S,PSS1002B,PSS1002B-S,PSS1002BD,PSS1002BD-S,PTL1002A,PTL1002AD,PTL1002B,PTL1002BD,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S12: BPC1202,GPSA12,GPSA12D,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PSA12,PSA12-S,PSA12D,PSA12D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S4: BPC402,GPSA4,GPSA4D,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PYB402,PYB402-S,PYB402D,PYB402D-S6: BPC602,BPOC602,GPSA6,GPSA6D,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL602A,PSL602A-S,PSL602AD,PSL602AD-S,PSL602B,PSL602B-S,PSL602BD,PSL602BD-S,PSS602A,PSS602A-S,PSS602AD,PSS602AD-S,PSS602B,PSS602B-S,PSS602BD,PSS602BD-S,PTL602A,PTL602AD,PTL602B,PTL602BD,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S8: BPC802,BPOC802,GPSA8,GPSA8D,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL802A,PSL802A-S,PSL802AD,PSL802AD-S,PSL802B,PSL802B-S,PSL802BD,PSL802BD-S,PSS802A,PSS802A-S,PSS802AD,PSS802AD-S,PSS802B,PSS802B-S,PSS802BD,PSS802BD-S,PTL802A,PTL802AD,PTL802B,PTL802BD,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S10; male RA PT1/4 / female RB PT1/4: PHF1002,PHF1002-S,PHF1002D,PHF1002D-S6; male RA PT1/4 / female RB PT1/4: PHF602,PHF602-S,PHF602D,PHF602D-S8; male RA PT1/4 / female RB PT1/4: PHF802,PHF802-S,PHF802D,PHF802D-Smain 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S4 × 2.5: UE95A040025100MBU,US98A040025100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. PHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. BD first size is female RB and the second male RA. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa. BKC/BB/BD: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. PTL recommended cap-adjustment torque: 0.16 N·m for 1/4. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $11.10

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV08FFG

  Specifications: HSV08FFG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 08 selects the 1/4-inch connection size, FF selects female-thread connections at both ends, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 08 Port size G 1/4 FF Female-thread connections at both ends G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 1/4 Connection arrangement Female-thread connections at both ends Effective flow area 40 mm² Cv 2.2 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — FF drawing 47 mm B — outside diameter Ø30 mm BA — hexagon reference 19 mm D — body-length reference 32.5 mm E G 1/4 EA G 1/4 Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 40 mm² and Cv 2.2 for the 1/4-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 45 g. The reference is HSV08, published at 45 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G1/4, female, drawing E); OUT = its controlled outlet (G1/4, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC20008G,GAFR20008SG,GAFR30008SG IN,OUT male G1/4 ↔ male G1/8: GBB0102male G1/4 ↔ male G1/4: GBB0202male G3/8 ↔ male G1/4: GBB0203male G1/2 ↔ male G1/4: GBB0204male G1/4 ↔ female G1/8: GBD01026 × 4: GBKC0604-02,UE95A060040100MBU,US98A060040100MBU8 × 5: GBKC0805-02,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: GBKC0806-0210 × 6.5: GBKC1065-02,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: GBKC1075-0212 × 8: GBKC1208-02,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: GBKC1209-0210: GBPC1002,GPC1002,GPC1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPH1002,GPH1002D,GPHW1002,GPHW1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPSA10,GPSA10D,GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD,GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD,GPYB1002,GPYB1002D,GPZB1002,GPZB1002D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GBPC1202,GPC1202,GPC1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPSA12,GPSA12D,GPYB1202,GPYB1202D,PSA12,PSA12-S,PSA12D,PSA12D-S4: GBPC402,GPC402-M,GPC402D-M,GPEB402,GPEB402D,GPED402,GPED402D,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPSA4,GPSA4D,GPYB402,GPYB402D,PSA4,PSA4-S,PSA4D,PSA4D-S6: GBPC602,GPC602,GPC602D,GPEB602,GPEB602D,GPED602,GPED602D,GPH602,GPH602D,GPHW602,GPHW602D,GPL602,GPL602D,GPLL602,GPLL602D,GPSA6,GPSA6D,GPSS602A,GPSS602AD,GPSS602B,GPSS602BD,GPTL602A,GPTL602AD,GPTL602B,GPTL602BD,GPYB602,GPYB602D,GPZB602,GPZB602D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GBPC802,GPC802,GPC802D,GPEB802,GPEB802D,GPED802,GPED802D,GPH802,GPH802D,GPHW802,GPHW802D,GPL802,GPL802D,GPLL802,GPLL802D,GPSA8,GPSA8D,GPSS802A,GPSS802AD,GPSS802B,GPSS802BD,GPTL802A,GPTL802AD,GPTL802B,GPTL802BD,GPYB802,GPYB802D,GPZB802,GPZB802D,PSA8,PSA8-S,PSA8D,PSA8D-S10; male RA G1/4 / female RB G1/4: GPHF1002,GPHF1002D6; male RA G1/4 / female RB G1/4: GPHF602,GPHF602D8; male RA G1/4 / female RB G1/4: GPHF802,GPHF802Dmain 8 / branch 6: GPKD8-602,GPKD8-602D4 × 2.5: UE95A040025100MBU,US98A040025100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa. GBKC/GBB/GBD: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.16 N·m for 1/4. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $11.10

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV08G

  Specifications: HSV08G is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 08 selects the 1/4-inch connection size, the omitted connection suffix selects the standard arrangement, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 08 Port size G 1/4 Connection suffix omitted Standard connection arrangement G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 1/4 Connection arrangement Standard connection arrangement Effective flow area 40 mm² Cv 2.2 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 45 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — standard drawing 58 mm B — outside diameter Ø30 mm BA — hexagon reference 19 mm D — body-length reference 32.5 mm E G 1/4 F G 1/4 Use the Standard drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 40 mm² and Cv 2.2 for the 1/4-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Optional Piping Accessories IN = this HSV valve’s inlet (G1/4, female, drawing E); OUT = its controlled outlet (G1/4, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPC straight; GPCF female straight connector; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLF female elbow; GPLL extended elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC20008G,GAFR20008SG,GAFR30008SGmale G1/4 ↔ male G1/8: GBB0102male G1/4 ↔ male G1/4: GBB0202male G3/8 ↔ male G1/4: GBB0203male G1/2 ↔ male G1/4: GBB0204male G1/4 ↔ female G1/8: GBD01026 × 4: GBKC0604-028 × 5: GBKC0805-028 × 5.5 or 6: GBKC0806-0210 × 6.5: GBKC1065-0210 × 7.5 or 8: GBKC1075-0212 × 8: GBKC1208-0212 × 9 or 10: GBKC1209-0210: GBPC1002,GPC1002,GPC1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPH1002,GPH1002D,GPHW1002,GPHW1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD,GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD,GPYB1002,GPYB1002D,GPZB1002,GPZB1002D12: GBPC1202,GPC1202,GPC1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPYB1202,GPYB1202D4: GBPC402,GPC402-M,GPC402D-M,GPEB402,GPEB402D,GPED402,GPED402D,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPYB402,GPYB402D6: GBPC602,GPC602,GPC602D,GPEB602,GPEB602D,GPED602,GPED602D,GPH602,GPH602D,GPHW602,GPHW602D,GPL602,GPL602D,GPLL602,GPLL602D,GPSS602A,GPSS602AD,GPSS602B,GPSS602BD,GPTL602A,GPTL602AD,GPTL602B,GPTL602BD,GPYB602,GPYB602D,GPZB602,GPZB602D8: GBPC802,GPC802,GPC802D,GPEB802,GPEB802D,GPED802,GPED802D,GPH802,GPH802D,GPHW802,GPHW802D,GPL802,GPL802D,GPLL802,GPLL802D,GPSS802A,GPSS802AD,GPSS802B,GPSS802BD,GPTL802A,GPTL802AD,GPTL802B,GPTL802BD,GPYB802,GPYB802D,GPZB802,GPZB802Dmain 8 / branch 6: GPKD8-602,GPKD8-602D OUT male G3/8 ↔ female G1/4: GBD0203male G1/2 ↔ female G1/4: GBD0204G1/4 female / 10 OD: GBPCF1002,GBPMF1002,GPCF1002,GPCF1002D,GPLF1002,GPLF1002D,GPMF1002,GPMF1002DG1/4 female / 6 OD: GBPCF602,GBPMF602,GPCF602,GPCF602D,GPLF602,GPLF602D,GPMF602,GPMF602DG1/4 female / 8 OD: GBPCF802,GBPMF802,GPCF802,GPCF802D,GPLF802,GPLF802D,GPMF802,GPMF802DG1/4 female / G1/4 female: GBU0202G1/4 female / 12 OD: GPCF1202,GPCF1202D,GPLF1202,GPLF1202D,GPMF1202,GPMF1202DG1/4 female / 4 OD: GPCF402,GPCF402D,GPLF402,GPLF402D,GPMF402,GPMF402D IN,OUT 10; male RA G1/4 / female RB G1/4: GPHF1002,GPHF1002D6; male RA G1/4 / female RB G1/4: GPHF602,GPHF602D8; male RA G1/4 / female RB G1/4: GPHF802,GPHF802D10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S4: GPSA4,GPSA4D,PSA4,PSA4-S,PSA4D,PSA4D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S4 × 2.5: UE95A040025100MBU,US98A040025100MBU6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC/GBPCF/GBPMF: ≤0.9 MPa. GBKC/GBB/GBD/GBU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.16 N·m for 1/4. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $11.10

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV08SFG

  Specifications: HSV08SFG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 08 selects the 1/4-inch connection size, SF selects one male-thread and one female-thread connection, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 08 Port size G 1/4 SF One male-thread and one female-thread connection G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 1/4 Connection arrangement One male-thread and one female-thread connection Effective flow area 40 mm² Cv 2.2 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SF drawing 58 mm B — outside diameter Ø30 mm BA — hexagon reference 19 mm D — body-length reference 32.5 mm EA G 1/4 FA G 1/4 Use the SF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 40 mm² and Cv 2.2 for the 1/4-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 45 g. The reference is HSV08, published at 45 g. The SF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G1/4, male, drawing FA); OUT = its controlled outlet (G1/4, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPC straight; GPCF female straight connector; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLF female elbow; GPLL extended elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC20008G,GAFR20008SG,GAFR30008SGmale G3/8 ↔ female G1/4: GBD0203male G1/2 ↔ female G1/4: GBD0204G1/4 female / 10 OD: GBPCF1002,GBPMF1002,GPCF1002,GPCF1002D,GPLF1002,GPLF1002D,GPMF1002,GPMF1002DG1/4 female / 6 OD: GBPCF602,GBPMF602,GPCF602,GPCF602D,GPLF602,GPLF602D,GPMF602,GPMF602DG1/4 female / 8 OD: GBPCF802,GBPMF802,GPCF802,GPCF802D,GPLF802,GPLF802D,GPMF802,GPMF802DG1/4 female / G1/4 female: GBU0202G1/4 female / 12 OD: GPCF1202,GPCF1202D,GPLF1202,GPLF1202D,GPMF1202,GPMF1202DG1/4 female / 4 OD: GPCF402,GPCF402D,GPLF402,GPLF402D,GPMF402,GPMF402D OUT male G1/4 ↔ male G1/8: GBB0102male G1/4 ↔ male G1/4: GBB0202male G3/8 ↔ male G1/4: GBB0203male G1/2 ↔ male G1/4: GBB0204male G1/4 ↔ female G1/8: GBD01026 × 4: GBKC0604-028 × 5: GBKC0805-028 × 5.5 or 6: GBKC0806-0210 × 6.5: GBKC1065-0210 × 7.5 or 8: GBKC1075-0212 × 8: GBKC1208-0212 × 9 or 10: GBKC1209-0210: GBPC1002,GPC1002,GPC1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPH1002,GPH1002D,GPHW1002,GPHW1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD,GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD,GPYB1002,GPYB1002D,GPZB1002,GPZB1002D12: GBPC1202,GPC1202,GPC1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPYB1202,GPYB1202D4: GBPC402,GPC402-M,GPC402D-M,GPEB402,GPEB402D,GPED402,GPED402D,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPYB402,GPYB402D6: GBPC602,GPC602,GPC602D,GPEB602,GPEB602D,GPED602,GPED602D,GPH602,GPH602D,GPHW602,GPHW602D,GPL602,GPL602D,GPLL602,GPLL602D,GPSS602A,GPSS602AD,GPSS602B,GPSS602BD,GPTL602A,GPTL602AD,GPTL602B,GPTL602BD,GPYB602,GPYB602D,GPZB602,GPZB602D8: GBPC802,GPC802,GPC802D,GPEB802,GPEB802D,GPED802,GPED802D,GPH802,GPH802D,GPHW802,GPHW802D,GPL802,GPL802D,GPLL802,GPLL802D,GPSS802A,GPSS802AD,GPSS802B,GPSS802BD,GPTL802A,GPTL802AD,GPTL802B,GPTL802BD,GPYB802,GPYB802D,GPZB802,GPZB802Dmain 8 / branch 6: GPKD8-602,GPKD8-602D IN,OUT 10; male RA G1/4 / female RB G1/4: GPHF1002,GPHF1002D6; male RA G1/4 / female RB G1/4: GPHF602,GPHF602D8; male RA G1/4 / female RB G1/4: GPHF802,GPHF802D10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S4: GPSA4,GPSA4D,PSA4,PSA4-S,PSA4D,PSA4D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S4 × 2.5: UE95A040025100MBU,US98A040025100MBU6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC/GBPCF/GBPMF: ≤0.9 MPa. GBKC/GBB/GBD/GBU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.16 N·m for 1/4. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $11.10

  View options

•

  View options

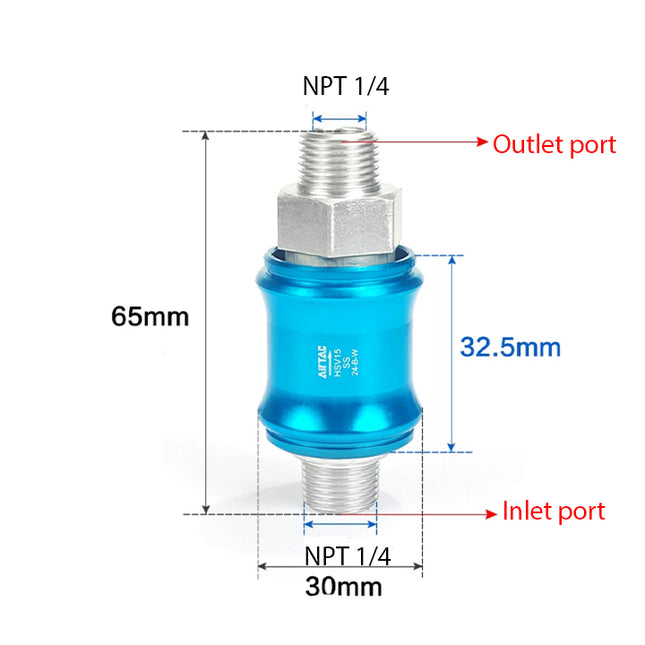

  Airtac HSV series: hand slide valve - HSV08SS

  Specifications: HSV08SS is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 08 selects the 1/4-inch connection size, SS selects male-thread connections at both ends, and the omitted final suffix selects PT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 08 Port size PT 1/4 SS Male-thread connections at both ends Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size PT 1/4 Connection arrangement Male-thread connections at both ends Effective flow area 40 mm² Cv 2.2 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SS drawing 69 mm B — outside diameter Ø30 mm BA — hexagon reference 19 mm D — body-length reference 32.5 mm F PT 1/4 FA PT 1/4 Use the SS drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 40 mm² and Cv 2.2 for the 1/4-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 45 g. The reference is HSV08, published at 45 g. The SS end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (PT1/4, male, drawing FA); OUT = its controlled outlet (PT1/4, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BD male–female; BPCF metal female straight connector; BPMF metal female bulkhead connector; BU double female straight coupling; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PCF female straight connector; PHF female branch banjo; PLF female elbow; PMF female bulkhead connector; UE PU tube; US PU tube. Use Size / complete codes IN ASC20008,GAFR20008S,GAFR30008S IN,OUT male PT3/8 ↔ female PT1/4: BD0203,BD0203-Smale PT1/2 ↔ female PT1/4: BD0204,BD0204-SPT1/4 female / 10 OD: BPCF1002,BPMF1002,PCF1002,PCF1002D,PLF1002,PLF1002D,PMF1002,PMF1002DPT1/4 female / 6 OD: BPCF602,BPMF602,PCF602,PCF602D,PLF602,PLF602D,PMF602,PMF602DPT1/4 female / 8 OD: BPCF802,BPMF802,PCF802,PCF802D,PLF802,PLF802D,PMF802,PMF802DPT1/4 female / PT1/4 female: BU0202,BU0202-S10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S4: GPSA4,GPSA4D,PSA4,PSA4-S,PSA4D,PSA4D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-SPT1/4 female / 12 OD: PCF1202,PCF1202D,PLF1202,PLF1202D,PMF1202,PMF1202DPT1/4 female / 4 OD: PCF402,PCF402D,PLF402,PLF402D,PMF402,PMF402D10; male RA PT1/4 / female RB PT1/4: PHF1002,PHF1002-S,PHF1002D,PHF1002D-S6; male RA PT1/4 / female RB PT1/4: PHF602,PHF602-S,PHF602D,PHF602D-S8; male RA PT1/4 / female RB PT1/4: PHF802,PHF802-S,PHF802D,PHF802D-S4 × 2.5: UE95A040025100MBU,US98A040025100MBU6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. PCF/PLF/PMF/BPCF/BPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On PMF/BPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For PCF/PMF, D specifies a black release button (blank: grey). For PLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. PHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. BD first size is female RB and the second male RA. BU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal BPCF/BPMF: ≤0.9 MPa. BD/BU: ≤1 MPa. The listed metal push-in, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $13.43

  View options

•

  View options

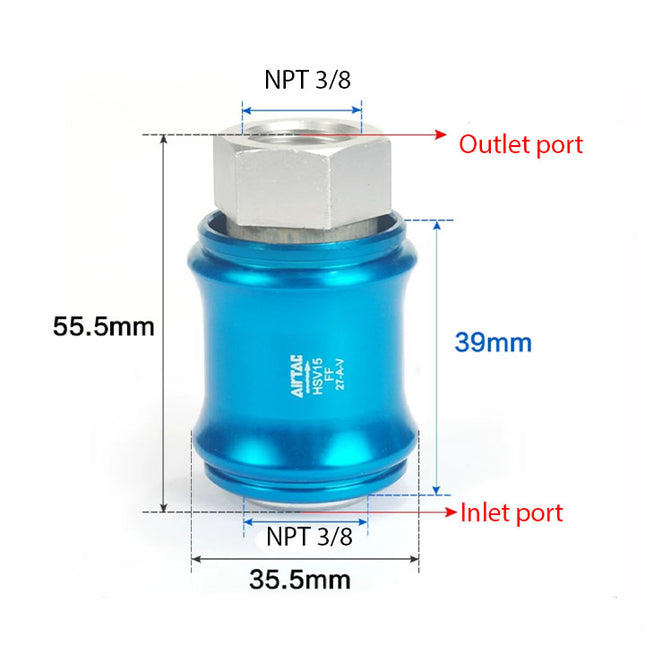

  Airtac HSV series: hand slide valve - HSV10FF

  Specifications: HSV10FF is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, FF selects female-thread connections at both ends, and the omitted final suffix selects PT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size PT 3/8 FF Female-thread connections at both ends Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size PT 3/8 Connection arrangement Female-thread connections at both ends Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — FF drawing 55.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm E PT 3/8 EA PT 3/8 Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 71 g. The reference is HSV10, published at 71 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (PT3/8, female, drawing E); OUT = its controlled outlet (PT3/8, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PSL elbow flow control; PSS flow control; PTL push-lock flow control; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30010,GAFR30010S,GAFR40010S IN,OUT male PT3/8 ↔ male PT1/8: BB0103,BB0103-Smale PT3/8 ↔ male PT1/4: BB0203,BB0203-Smale PT3/8 ↔ male PT3/8: BB0303,BB0303-Smale PT1/2 ↔ male PT3/8: BB0304,BB0304-Smale PT3/8 ↔ female PT1/8: BD0103,BD0103-Smale PT3/8 ↔ female PT1/4: BD0203,BD0203-S6 × 4: BKC0604-03,BKC0604-03-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-03,BKC0805-03-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-03,BKC0806-03-S10 × 6.5: BKC1065-03,BKC1065-03-S,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: BKC1075-03,BKC1075-03-S12 × 8: BKC1208-03,BKC1208-03-S,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: BKC1209-03,BKC1209-03-S10: BPC1003,BPOC1003,GPSA10,GPSA10D,PC1003,PC1003-S,PC1003D,PC1003D-S,PEB1003,PEB1003-S,PEB1003D,PEB1003D-S,PED1003,PED1003-S,PED1003D,PED1003D-S,PH1003,PH1003-S,PH1003D,PH1003D-S,PHW1003,PHW1003-S,PHW1003D,PHW1003D-S,PL1003,PL1003-S,PL1003D,PL1003D-S,PLL1003,PLL1003-S,PLL1003D,PLL1003D-S,POC1003,POC1003-S,POC1003D,POC1003D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PSL1003A,PSL1003A-S,PSL1003AD,PSL1003AD-S,PSL1003B,PSL1003B-S,PSL1003BD,PSL1003BD-S,PSS1003A,PSS1003A-S,PSS1003AD,PSS1003AD-S,PSS1003B,PSS1003B-S,PSS1003BD,PSS1003BD-S,PTL1003A,PTL1003AD,PTL1003B,PTL1003BD,PYB1003,PYB1003-S,PYB1003D,PYB1003D-S,PZB1003,PZB1003-S,PZB1003D,PZB1003D-S12: BPC1203,BPOC1203,GPSA12,GPSA12D,PC1203,PC1203-S,PC1203D,PC1203D-S,PEB1203,PEB1203-S,PEB1203D,PEB1203D-S,PED1203,PED1203-S,PED1203D,PED1203D-S,PH1203,PH1203-S,PH1203D,PH1203D-S,PHW1203,PHW1203-S,PHW1203D,PHW1203D-S,PL1203,PL1203-S,PL1203D,PL1203D-S,PLL1203,PLL1203-S,PLL1203D,PLL1203D-S,POC1203,POC1203-S,POC1203D,POC1203D-S,PSA12,PSA12-S,PSA12D,PSA12D-S,PSL1203A,PSL1203A-S,PSL1203AD,PSL1203AD-S,PSL1203B,PSL1203B-S,PSL1203BD,PSL1203BD-S,PSS1203A,PSS1203A-S,PSS1203AD,PSS1203AD-S,PSS1203B,PSS1203B-S,PSS1203BD,PSS1203BD-S,PTL1203A,PTL1203AD,PTL1203B,PTL1203BD,PYB1203,PYB1203-S,PYB1203D,PYB1203D-S,PZB1203,PZB1203-S,PZB1203D,PZB1203D-S6: BPC603,GPSA6,GPSA6D,PC603,PC603-S,PC603D,PC603D-S,PEB603,PEB603-S,PEB603D,PEB603D-S,PED603,PED603-S,PED603D,PED603D-S,PH603,PH603-S,PH603D,PH603D-S,PHW603,PHW603-S,PHW603D,PHW603D-S,PL603,PL603-S,PL603D,PL603D-S,PLL603,PLL603-S,PLL603D,PLL603D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL603A,PSL603A-S,PSL603AD,PSL603AD-S,PSL603B,PSL603B-S,PSL603BD,PSL603BD-S,PTL603A,PTL603AD,PTL603B,PTL603BD,PYB603,PYB603-S,PYB603D,PYB603D-S,PZB603,PZB603-S,PZB603D,PZB603D-S8: BPC803,GPSA8,GPSA8D,PC803,PC803-S,PC803D,PC803D-S,PEB803,PEB803-S,PEB803D,PEB803D-S,PED803,PED803-S,PED803D,PED803D-S,PH803,PH803-S,PH803D,PH803D-S,PHW803,PHW803-S,PHW803D,PHW803D-S,PL803,PL803-S,PL803D,PL803D-S,PLL803,PLL803-S,PLL803D,PLL803D-S,POC803,POC803-S,POC803D,POC803D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL803A,PSL803A-S,PSL803AD,PSL803AD-S,PSL803B,PSL803B-S,PSL803BD,PSL803BD-S,PTL803A,PTL803AD,PTL803B,PTL803BD,PYB803,PYB803-S,PYB803D,PYB803D-S,PZB803,PZB803-S,PZB803D,PZB803D-S10; male RA PT3/8 / female RB PT3/8: PHF1003,PHF1003-S,PHF1003D,PHF1003D-S12; male RA PT3/8 / female RB PT3/8: PHF1203,PHF1203-S,PHF1203D,PHF1203D-S6; male RA PT3/8 / female RB PT3/8: PHF603,PHF603-S,PHF603D,PHF603D-S8; male RA PT3/8 / female RB PT3/8: PHF803,PHF803-S,PHF803D,PHF803D-Smain 10 / branch 8: PKD10-803,PKD10-803-S,PKD10-803D,PKD10-803D-S The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. PHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. BD first size is female RB and the second male RA. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa. BKC/BB/BD: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. PTL recommended cap-adjustment torque: 0.24 N·m for 3/8. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $13.43

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV10FFG

  Specifications: HSV10FFG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, FF selects female-thread connections at both ends, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size G 3/8 FF Female-thread connections at both ends G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 3/8 Connection arrangement Female-thread connections at both ends Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — FF drawing 55.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm E G 3/8 EA G 3/8 Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 71 g. The reference is HSV10, published at 71 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G3/8, female, drawing E); OUT = its controlled outlet (G3/8, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30010G,GAFR30010SG,GAFR40010SG IN,OUT male G3/8 ↔ male G1/8: GBB0103male G3/8 ↔ male G1/4: GBB0203male G3/8 ↔ male G3/8: GBB0303male G1/2 ↔ male G3/8: GBB0304male G3/8 ↔ female G1/8: GBD0103male G3/8 ↔ female G1/4: GBD02036 × 4: GBKC0604-03,UE95A060040100MBU,US98A060040100MBU8 × 5: GBKC0805-03,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: GBKC0806-0310 × 6.5: GBKC1065-03,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: GBKC1075-0312 × 8: GBKC1208-03,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: GBKC1209-0310: GBPC1003,GPC1003,GPC1003D,GPEB1003,GPEB1003D,GPED1003,GPED1003D,GPH1003,GPH1003D,GPHW1003,GPHW1003D,GPL1003,GPL1003D,GPLL1003,GPLL1003D,GPSA10,GPSA10D,GPSS1003A,GPSS1003AD,GPSS1003B,GPSS1003BD,GPTL1003A,GPTL1003AD,GPTL1003B,GPTL1003BD,GPYB1003,GPYB1003D,GPZB1003,GPZB1003D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GBPC1203,GPC1203,GPC1203D,GPEB1203,GPEB1203D,GPED1203,GPED1203D,GPH1203,GPH1203D,GPHW1203,GPHW1203D,GPL1203,GPL1203D,GPLL1203,GPLL1203D,GPSA12,GPSA12D,GPSS1203A,GPSS1203AD,GPSS1203B,GPSS1203BD,GPTL1203A,GPTL1203AD,GPTL1203B,GPTL1203BD,GPYB1203,GPYB1203D,GPZB1203,GPZB1203D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GBPC603,GPC603,GPC603D,GPEB603,GPEB603D,GPED603,GPED603D,GPH603,GPH603D,GPHW603,GPHW603D,GPL603,GPL603D,GPLL603,GPLL603D,GPSA6,GPSA6D,GPTL603A,GPTL603AD,GPTL603B,GPTL603BD,GPYB603,GPYB603D,GPZB603,GPZB603D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GBPC803,GPC803,GPC803D,GPEB803,GPEB803D,GPED803,GPED803D,GPH803,GPH803D,GPHW803,GPHW803D,GPL803,GPL803D,GPLL803,GPLL803D,GPSA8,GPSA8D,GPTL803A,GPTL803AD,GPTL803B,GPTL803BD,GPYB803,GPYB803D,GPZB803,GPZB803D,PSA8,PSA8-S,PSA8D,PSA8D-S10; male RA G3/8 / female RB G3/8: GPHF1003,GPHF1003D12; male RA G3/8 / female RB G3/8: GPHF1203,GPHF1203D6; male RA G3/8 / female RB G3/8: GPHF603,GPHF603D8; male RA G3/8 / female RB G3/8: GPHF803,GPHF803Dmain 10 / branch 8: GPKD10-803,GPKD10-803D The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa. GBKC/GBB/GBD: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.24 N·m for 3/8. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $13.43

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV10G

  Specifications: HSV10G is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, the omitted connection suffix selects the standard arrangement, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size G 3/8 Connection suffix omitted Standard connection arrangement G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 3/8 Connection arrangement Standard connection arrangement Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 71 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — standard drawing 68.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm E G 3/8 F G 3/8 Use the Standard drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Optional Piping Accessories IN = this HSV valve’s inlet (G3/8, female, drawing E); OUT = its controlled outlet (G3/8, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPC straight; GPCF female straight connector; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLF female elbow; GPLL extended elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30010G,GAFR30010SG,GAFR40010SGmale G3/8 ↔ male G1/8: GBB0103male G3/8 ↔ male G1/4: GBB0203male G3/8 ↔ male G3/8: GBB0303male G1/2 ↔ male G3/8: GBB0304male G3/8 ↔ female G1/8: GBD0103male G3/8 ↔ female G1/4: GBD02036 × 4: GBKC0604-038 × 5: GBKC0805-038 × 5.5 or 6: GBKC0806-0310 × 6.5: GBKC1065-0310 × 7.5 or 8: GBKC1075-0312 × 8: GBKC1208-0312 × 9 or 10: GBKC1209-0310: GBPC1003,GPC1003,GPC1003D,GPEB1003,GPEB1003D,GPED1003,GPED1003D,GPH1003,GPH1003D,GPHW1003,GPHW1003D,GPL1003,GPL1003D,GPLL1003,GPLL1003D,GPSS1003A,GPSS1003AD,GPSS1003B,GPSS1003BD,GPTL1003A,GPTL1003AD,GPTL1003B,GPTL1003BD,GPYB1003,GPYB1003D,GPZB1003,GPZB1003D12: GBPC1203,GPC1203,GPC1203D,GPEB1203,GPEB1203D,GPED1203,GPED1203D,GPH1203,GPH1203D,GPHW1203,GPHW1203D,GPL1203,GPL1203D,GPLL1203,GPLL1203D,GPSS1203A,GPSS1203AD,GPSS1203B,GPSS1203BD,GPTL1203A,GPTL1203AD,GPTL1203B,GPTL1203BD,GPYB1203,GPYB1203D,GPZB1203,GPZB1203D6: GBPC603,GPC603,GPC603D,GPEB603,GPEB603D,GPED603,GPED603D,GPH603,GPH603D,GPHW603,GPHW603D,GPL603,GPL603D,GPLL603,GPLL603D,GPTL603A,GPTL603AD,GPTL603B,GPTL603BD,GPYB603,GPYB603D,GPZB603,GPZB603D8: GBPC803,GPC803,GPC803D,GPEB803,GPEB803D,GPED803,GPED803D,GPH803,GPH803D,GPHW803,GPHW803D,GPL803,GPL803D,GPLL803,GPLL803D,GPTL803A,GPTL803AD,GPTL803B,GPTL803BD,GPYB803,GPYB803D,GPZB803,GPZB803Dmain 10 / branch 8: GPKD10-803,GPKD10-803D OUT male G1/2 ↔ female G3/8: GBD0304G3/8 female / 10 OD: GBPCF1003,GBPMF1003,GPCF1003,GPCF1003D,GPLF1003,GPLF1003D,GPMF1003,GPMF1003DG3/8 female / 12 OD: GBPCF1203,GBPMF1203,GPCF1203,GPCF1203D,GPLF1203,GPLF1203D,GPMF1203,GPMF1203DG3/8 female / G3/8 female: GBU0303G3/8 female / 6 OD: GPCF603,GPCF603D,GPLF603,GPLF603D,GPMF603,GPMF603DG3/8 female / 8 OD: GPCF803,GPCF803D,GPLF803,GPLF803D,GPMF803,GPMF803D IN,OUT 10; male RA G3/8 / female RB G3/8: GPHF1003,GPHF1003D12; male RA G3/8 / female RB G3/8: GPHF1203,GPHF1203D6; male RA G3/8 / female RB G3/8: GPHF603,GPHF603D8; male RA G3/8 / female RB G3/8: GPHF803,GPHF803D10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC/GBPCF/GBPMF: ≤0.9 MPa. GBKC/GBB/GBD/GBU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.24 N·m for 3/8. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $13.43

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV10SF

  Specifications: HSV10SF is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, SF selects one male-thread and one female-thread connection, and the omitted final suffix selects PT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size PT 3/8 SF One male-thread and one female-thread connection Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size PT 3/8 Connection arrangement One male-thread and one female-thread connection Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SF drawing 68.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm EA PT 3/8 FA PT 3/8 Use the SF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 71 g. The reference is HSV10, published at 71 g. The SF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (PT3/8, male, drawing FA); OUT = its controlled outlet (PT3/8, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPCF metal female straight connector; BPMF metal female bulkhead connector; BPOC metal straight; BU double female straight coupling; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PC straight; PCF female straight connector; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLF female elbow; PLL extended elbow; PMF female bulkhead connector; POC round straight; PSL elbow flow control; PSS flow control; PTL push-lock flow control; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30010,GAFR30010S,GAFR40010Smale PT1/2 ↔ female PT3/8: BD0304,BD0304-SPT3/8 female / 10 OD: BPCF1003,BPMF1003,PCF1003,PCF1003D,PLF1003,PLF1003D,PMF1003,PMF1003DPT3/8 female / 12 OD: BPCF1203,BPMF1203,PCF1203,PCF1203D,PLF1203,PLF1203D,PMF1203,PMF1203DPT3/8 female / PT3/8 female: BU0303,BU0303-SPT3/8 female / 6 OD: PCF603,PCF603D,PLF603,PLF603D,PMF603,PMF603DPT3/8 female / 8 OD: PCF803,PCF803D,PLF803,PLF803D,PMF803,PMF803D OUT male PT3/8 ↔ male PT1/8: BB0103,BB0103-Smale PT3/8 ↔ male PT1/4: BB0203,BB0203-Smale PT3/8 ↔ male PT3/8: BB0303,BB0303-Smale PT1/2 ↔ male PT3/8: BB0304,BB0304-Smale PT3/8 ↔ female PT1/8: BD0103,BD0103-Smale PT3/8 ↔ female PT1/4: BD0203,BD0203-S6 × 4: BKC0604-03,BKC0604-03-S8 × 5: BKC0805-03,BKC0805-03-S8 × 5.5 or 6: BKC0806-03,BKC0806-03-S10 × 6.5: BKC1065-03,BKC1065-03-S10 × 7.5 or 8: BKC1075-03,BKC1075-03-S12 × 8: BKC1208-03,BKC1208-03-S12 × 9 or 10: BKC1209-03,BKC1209-03-S10: BPC1003,BPOC1003,PC1003,PC1003-S,PC1003D,PC1003D-S,PEB1003,PEB1003-S,PEB1003D,PEB1003D-S,PED1003,PED1003-S,PED1003D,PED1003D-S,PH1003,PH1003-S,PH1003D,PH1003D-S,PHW1003,PHW1003-S,PHW1003D,PHW1003D-S,PL1003,PL1003-S,PL1003D,PL1003D-S,PLL1003,PLL1003-S,PLL1003D,PLL1003D-S,POC1003,POC1003-S,POC1003D,POC1003D-S,PSL1003A,PSL1003A-S,PSL1003AD,PSL1003AD-S,PSL1003B,PSL1003B-S,PSL1003BD,PSL1003BD-S,PSS1003A,PSS1003A-S,PSS1003AD,PSS1003AD-S,PSS1003B,PSS1003B-S,PSS1003BD,PSS1003BD-S,PTL1003A,PTL1003AD,PTL1003B,PTL1003BD,PYB1003,PYB1003-S,PYB1003D,PYB1003D-S,PZB1003,PZB1003-S,PZB1003D,PZB1003D-S12: BPC1203,BPOC1203,PC1203,PC1203-S,PC1203D,PC1203D-S,PEB1203,PEB1203-S,PEB1203D,PEB1203D-S,PED1203,PED1203-S,PED1203D,PED1203D-S,PH1203,PH1203-S,PH1203D,PH1203D-S,PHW1203,PHW1203-S,PHW1203D,PHW1203D-S,PL1203,PL1203-S,PL1203D,PL1203D-S,PLL1203,PLL1203-S,PLL1203D,PLL1203D-S,POC1203,POC1203-S,POC1203D,POC1203D-S,PSL1203A,PSL1203A-S,PSL1203AD,PSL1203AD-S,PSL1203B,PSL1203B-S,PSL1203BD,PSL1203BD-S,PSS1203A,PSS1203A-S,PSS1203AD,PSS1203AD-S,PSS1203B,PSS1203B-S,PSS1203BD,PSS1203BD-S,PTL1203A,PTL1203AD,PTL1203B,PTL1203BD,PYB1203,PYB1203-S,PYB1203D,PYB1203D-S,PZB1203,PZB1203-S,PZB1203D,PZB1203D-S6: BPC603,PC603,PC603-S,PC603D,PC603D-S,PEB603,PEB603-S,PEB603D,PEB603D-S,PED603,PED603-S,PED603D,PED603D-S,PH603,PH603-S,PH603D,PH603D-S,PHW603,PHW603-S,PHW603D,PHW603D-S,PL603,PL603-S,PL603D,PL603D-S,PLL603,PLL603-S,PLL603D,PLL603D-S,PSL603A,PSL603A-S,PSL603AD,PSL603AD-S,PSL603B,PSL603B-S,PSL603BD,PSL603BD-S,PTL603A,PTL603AD,PTL603B,PTL603BD,PYB603,PYB603-S,PYB603D,PYB603D-S,PZB603,PZB603-S,PZB603D,PZB603D-S8: BPC803,PC803,PC803-S,PC803D,PC803D-S,PEB803,PEB803-S,PEB803D,PEB803D-S,PED803,PED803-S,PED803D,PED803D-S,PH803,PH803-S,PH803D,PH803D-S,PHW803,PHW803-S,PHW803D,PHW803D-S,PL803,PL803-S,PL803D,PL803D-S,PLL803,PLL803-S,PLL803D,PLL803D-S,POC803,POC803-S,POC803D,POC803D-S,PSL803A,PSL803A-S,PSL803AD,PSL803AD-S,PSL803B,PSL803B-S,PSL803BD,PSL803BD-S,PTL803A,PTL803AD,PTL803B,PTL803BD,PYB803,PYB803-S,PYB803D,PYB803D-S,PZB803,PZB803-S,PZB803D,PZB803D-Smain 10 / branch 8: PKD10-803,PKD10-803-S,PKD10-803D,PKD10-803D-S IN,OUT 10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S10; male RA PT3/8 / female RB PT3/8: PHF1003,PHF1003-S,PHF1003D,PHF1003D-S12; male RA PT3/8 / female RB PT3/8: PHF1203,PHF1203-S,PHF1203D,PHF1203D-S6; male RA PT3/8 / female RB PT3/8: PHF603,PHF603-S,PHF603D,PHF603D-S8; male RA PT3/8 / female RB PT3/8: PHF803,PHF803-S,PHF803D,PHF803D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. PCF/PLF/PMF/BPCF/BPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On PMF/BPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For PCF/PMF, D specifies a black release button (blank: grey). For PLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. PHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. BD first size is female RB and the second male RA. BU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal BPC/BPOC/BPCF/BPMF: ≤0.9 MPa. BKC/BB/BD/BU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. PTL recommended cap-adjustment torque: 0.24 N·m for 3/8. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $13.43

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV10SFG

  Specifications: HSV10SFG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, SF selects one male-thread and one female-thread connection, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size G 3/8 SF One male-thread and one female-thread connection G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 3/8 Connection arrangement One male-thread and one female-thread connection Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SF drawing 68.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm EA G 3/8 FA G 3/8 Use the SF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 71 g. The reference is HSV10, published at 71 g. The SF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G3/8, male, drawing FA); OUT = its controlled outlet (G3/8, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPC straight; GPCF female straight connector; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLF female elbow; GPLL extended elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30010G,GAFR30010SG,GAFR40010SGmale G1/2 ↔ female G3/8: GBD0304G3/8 female / 10 OD: GBPCF1003,GBPMF1003,GPCF1003,GPCF1003D,GPLF1003,GPLF1003D,GPMF1003,GPMF1003DG3/8 female / 12 OD: GBPCF1203,GBPMF1203,GPCF1203,GPCF1203D,GPLF1203,GPLF1203D,GPMF1203,GPMF1203DG3/8 female / G3/8 female: GBU0303G3/8 female / 6 OD: GPCF603,GPCF603D,GPLF603,GPLF603D,GPMF603,GPMF603DG3/8 female / 8 OD: GPCF803,GPCF803D,GPLF803,GPLF803D,GPMF803,GPMF803D OUT male G3/8 ↔ male G1/8: GBB0103male G3/8 ↔ male G1/4: GBB0203male G3/8 ↔ male G3/8: GBB0303male G1/2 ↔ male G3/8: GBB0304male G3/8 ↔ female G1/8: GBD0103male G3/8 ↔ female G1/4: GBD02036 × 4: GBKC0604-038 × 5: GBKC0805-038 × 5.5 or 6: GBKC0806-0310 × 6.5: GBKC1065-0310 × 7.5 or 8: GBKC1075-0312 × 8: GBKC1208-0312 × 9 or 10: GBKC1209-0310: GBPC1003,GPC1003,GPC1003D,GPEB1003,GPEB1003D,GPED1003,GPED1003D,GPH1003,GPH1003D,GPHW1003,GPHW1003D,GPL1003,GPL1003D,GPLL1003,GPLL1003D,GPSS1003A,GPSS1003AD,GPSS1003B,GPSS1003BD,GPTL1003A,GPTL1003AD,GPTL1003B,GPTL1003BD,GPYB1003,GPYB1003D,GPZB1003,GPZB1003D12: GBPC1203,GPC1203,GPC1203D,GPEB1203,GPEB1203D,GPED1203,GPED1203D,GPH1203,GPH1203D,GPHW1203,GPHW1203D,GPL1203,GPL1203D,GPLL1203,GPLL1203D,GPSS1203A,GPSS1203AD,GPSS1203B,GPSS1203BD,GPTL1203A,GPTL1203AD,GPTL1203B,GPTL1203BD,GPYB1203,GPYB1203D,GPZB1203,GPZB1203D6: GBPC603,GPC603,GPC603D,GPEB603,GPEB603D,GPED603,GPED603D,GPH603,GPH603D,GPHW603,GPHW603D,GPL603,GPL603D,GPLL603,GPLL603D,GPTL603A,GPTL603AD,GPTL603B,GPTL603BD,GPYB603,GPYB603D,GPZB603,GPZB603D8: GBPC803,GPC803,GPC803D,GPEB803,GPEB803D,GPED803,GPED803D,GPH803,GPH803D,GPHW803,GPHW803D,GPL803,GPL803D,GPLL803,GPLL803D,GPTL803A,GPTL803AD,GPTL803B,GPTL803BD,GPYB803,GPYB803D,GPZB803,GPZB803Dmain 10 / branch 8: GPKD10-803,GPKD10-803D IN,OUT 10; male RA G3/8 / female RB G3/8: GPHF1003,GPHF1003D12; male RA G3/8 / female RB G3/8: GPHF1203,GPHF1203D6; male RA G3/8 / female RB G3/8: GPHF603,GPHF603D8; male RA G3/8 / female RB G3/8: GPHF803,GPHF803D10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC/GBPCF/GBPMF: ≤0.9 MPa. GBKC/GBB/GBD/GBU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.24 N·m for 3/8. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $13.43

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV10SS

  Specifications: HSV10SS is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, SS selects male-thread connections at both ends, and the omitted final suffix selects PT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size PT 3/8 SS Male-thread connections at both ends Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size PT 3/8 Connection arrangement Male-thread connections at both ends Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SS drawing 81.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm F PT 3/8 FA PT 3/8 Use the SS drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 71 g. The reference is HSV10, published at 71 g. The SS end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (PT3/8, male, drawing FA); OUT = its controlled outlet (PT3/8, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BD male–female; BPCF metal female straight connector; BPMF metal female bulkhead connector; BU double female straight coupling; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PCF female straight connector; PHF female branch banjo; PLF female elbow; PMF female bulkhead connector; UE PU tube; US PU tube. Use Size / complete codes IN ASC30010,GAFR30010S,GAFR40010S IN,OUT male PT1/2 ↔ female PT3/8: BD0304,BD0304-SPT3/8 female / 10 OD: BPCF1003,BPMF1003,PCF1003,PCF1003D,PLF1003,PLF1003D,PMF1003,PMF1003DPT3/8 female / 12 OD: BPCF1203,BPMF1203,PCF1203,PCF1203D,PLF1203,PLF1203D,PMF1203,PMF1203DPT3/8 female / PT3/8 female: BU0303,BU0303-S10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-SPT3/8 female / 6 OD: PCF603,PCF603D,PLF603,PLF603D,PMF603,PMF603DPT3/8 female / 8 OD: PCF803,PCF803D,PLF803,PLF803D,PMF803,PMF803D10; male RA PT3/8 / female RB PT3/8: PHF1003,PHF1003-S,PHF1003D,PHF1003D-S12; male RA PT3/8 / female RB PT3/8: PHF1203,PHF1203-S,PHF1203D,PHF1203D-S6; male RA PT3/8 / female RB PT3/8: PHF603,PHF603-S,PHF603D,PHF603D-S8; male RA PT3/8 / female RB PT3/8: PHF803,PHF803-S,PHF803D,PHF803D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. PCF/PLF/PMF/BPCF/BPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On PMF/BPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For PCF/PMF, D specifies a black release button (blank: grey). For PLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. PHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. BD first size is female RB and the second male RA. BU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal BPCF/BPMF: ≤0.9 MPa. BD/BU: ≤1 MPa. The listed metal push-in, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $15.76

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV10SSG

  Specifications: HSV10SSG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, SS selects male-thread connections at both ends, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size G 3/8 SS Male-thread connections at both ends G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 3/8 Connection arrangement Male-thread connections at both ends Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SS drawing 81.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm F G 3/8 FA G 3/8 Use the SS drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 71 g. The reference is HSV10, published at 71 g. The SS end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G3/8, male, drawing FA); OUT = its controlled outlet (G3/8, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBD male–female; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPCF female straight connector; GPHF female branch banjo; GPLF female elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; UE PU tube; US PU tube. Use Size / complete codes IN ASC30010G,GAFR30010SG,GAFR40010SG IN,OUT male G1/2 ↔ female G3/8: GBD0304G3/8 female / 10 OD: GBPCF1003,GBPMF1003,GPCF1003,GPCF1003D,GPLF1003,GPLF1003D,GPMF1003,GPMF1003DG3/8 female / 12 OD: GBPCF1203,GBPMF1203,GPCF1203,GPCF1203D,GPLF1203,GPLF1203D,GPMF1203,GPMF1203DG3/8 female / G3/8 female: GBU0303G3/8 female / 6 OD: GPCF603,GPCF603D,GPLF603,GPLF603D,GPMF603,GPMF603DG3/8 female / 8 OD: GPCF803,GPCF803D,GPLF803,GPLF803D,GPMF803,GPMF803D10; male RA G3/8 / female RB G3/8: GPHF1003,GPHF1003D12; male RA G3/8 / female RB G3/8: GPHF1203,GPHF1203D6; male RA G3/8 / female RB G3/8: GPHF603,GPHF603D8; male RA G3/8 / female RB G3/8: GPHF803,GPHF803D10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPCF/GBPMF: ≤0.9 MPa. GBD/GBU: ≤1 MPa. The listed metal push-in, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $15.76

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV10SST

  Specifications: HSV10SST is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, SS selects male-thread connections at both ends, and the T final suffix selects NPT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size NPT 3/8 SS Male-thread connections at both ends T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size NPT 3/8 Connection arrangement Male-thread connections at both ends Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SS drawing 81.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm F NPT 3/8 FA NPT 3/8 Use the SS drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 71 g. The reference is HSV10, published at 71 g. The SS end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (NPT3/8, male, drawing FA); OUT = its controlled outlet (NPT3/8, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; NBD male–female; NBPCF metal female straight connector; NBPMF metal female bulkhead connector; NBU double female straight coupling; NPCF female straight connector; NPHF female branch banjo; NPLF female elbow; NPMF female bulkhead connector; NPSA inline flow control. Use Size / complete codes IN ASC30010T,GAFR30010ST,GAFR40010ST IN,OUT (discontinued) male NPT1/2 ↔ female NPT3/8: NBD3/8-1/2NPT3/8 female / 1/2 inch OD: NBPCF1/2-3/8,NBPMF1/2-3/8NPT3/8 female / 3/8 inch OD: NBPCF3/8-3/8,NBPMF3/8-3/8NPT3/8 female / NPT3/8 female: NBU3/8-3/81/2 in; male RA NPT3/8 / female RB NPT3/8: NPHF1/2-3/81/4 in; male RA NPT3/8 / female RB NPT3/8: NPHF1/4-3/83/8 in; male RA NPT3/8 / female RB NPT3/8: NPHF3/8-3/85/16 in; male RA NPT3/8 / female RB NPT3/8: NPHF5/16-3/8 IN,OUT NPT3/8 female / 1/2 inch OD: NPCF1/2-3/8,NPLF1/2-3/8,NPMF1/2-3/8NPT3/8 female / 1/4 inch OD: NPCF1/4-3/8,NPLF1/4-3/8,NPMF1/4-3/8NPT3/8 female / 3/8 inch OD: NPCF3/8-3/8,NPLF3/8-3/8,NPMF3/8-3/8NPT3/8 female / 5/16 inch OD: NPCF5/16-3/8,NPLF5/16-3/8,NPMF5/16-3/81/2 in: NPSA1/21/4 in: NPSA1/43/8 in: NPSA3/85/16 in: NPSA5/16 The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. NPCF/NPLF/NPMF/NBPCF/NBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On NPMF/NBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. NPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. NBD first size is female RB and the second male RA. NBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. NBPCF/NBPMF/NBD/NBU: ≤1 MPa. The listed metal push-in, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. NPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (psi/bar) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $15.76

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV10T

  Specifications: HSV10T is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 10 selects the 3/8-inch connection size, the omitted connection suffix selects the standard arrangement, and the T final suffix selects NPT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 10 Port size NPT 3/8 Connection suffix omitted Standard connection arrangement T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size NPT 3/8 Connection arrangement Standard connection arrangement Effective flow area 62 mm² Cv 3.5 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 71 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — standard drawing 68.5 mm B — outside diameter Ø35.5 mm BA — hexagon reference 22 mm D — body-length reference 39 mm E NPT 3/8 F NPT 3/8 Use the Standard drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 62 mm² and Cv 3.5 for the 3/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Optional Piping Accessories IN = this HSV valve’s inlet (NPT3/8, female, drawing E); OUT = its controlled outlet (NPT3/8, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; NBB male–male; NBD male–female; NBKC compression fitting; NBPC metal straight; NBPCF metal female straight connector; NBPMF metal female bulkhead connector; NBU double female straight coupling; NPC straight; NPCF female straight connector; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLF female elbow; NPLL extended elbow; NPMF female bulkhead connector; NPSA inline flow control; NPSS flow control; NPTL push-lock flow control; NPYB Y; NPZB cross. Use Size / complete codes IN ASC30010T,GAFR30010ST,GAFR40010ST1/2 in: NPC1/2-3/8,NPEB1/2-3/8,NPED1/2-3/8,NPL1/2-3/8,NPTL1/2-3/8A,NPTL1/2-3/8B,NPYB1/2-3/81/4 in: NPC1/4-3/8,NPEB1/4-3/8,NPED1/4-3/8,NPL1/4-3/8,NPTL1/4-3/8A,NPTL1/4-3/8B,NPYB1/4-3/83/8 in: NPC3/8-3/8,NPEB3/8-3/8,NPED3/8-3/8,NPL3/8-3/8,NPTL3/8-3/8A,NPTL3/8-3/8B,NPYB3/8-3/85/16 in: NPC5/16-3/8,NPEB5/16-3/8,NPED5/16-3/8,NPL5/16-3/8,NPTL5/16-3/8A,NPTL5/16-3/8B,NPYB5/16-3/8 IN (discontinued) male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8male NPT1/8 ↔ male NPT3/8: NBB1/8-3/8male NPT1/2 ↔ male NPT3/8: NBB3/8-1/2male NPT3/8 ↔ male NPT3/8: NBB3/8-3/8male NPT3/8 ↔ female NPT1/4: NBD1/4-3/8male NPT3/8 ↔ female NPT1/8: NBD1/8-3/81/2 × 1/3 in: NBKC1/2-1/3-3/81/4 × 5/32 in: NBKC1/4-5/32-3/83/8 × 1/4 in: NBKC3/8-1/4-3/85/16 × 1/5 in: NBKC5/16-1/5-3/81/2 in: NBPC1/2-3/8,NPH1/2-3/8,NPHW1/2-3/8,NPLL1/2-3/8,NPSS1/2-3/8A,NPSS1/2-3/8B,NPZB1/2-3/81/4 in: NBPC1/4-3/8,NPH1/4-3/8,NPHW1/4-3/8,NPLL1/4-3/8,NPZB1/4-3/83/8 in: NBPC3/8-3/8,NPH3/8-3/8,NPHW3/8-3/8,NPLL3/8-3/8,NPSS3/8-3/8A,NPSS3/8-3/8B,NPZB3/8-3/85/16 in: NBPC5/16-3/8,NPH5/16-3/8,NPHW5/16-3/8,NPLL5/16-3/8,NPZB5/16-3/8main 3/8 / branch 5/16 in: NPKD3/8-5/16-3/8 OUT (discontinued) male NPT1/2 ↔ female NPT3/8: NBD3/8-1/2NPT3/8 female / 1/2 inch OD: NBPCF1/2-3/8,NBPMF1/2-3/8NPT3/8 female / 3/8 inch OD: NBPCF3/8-3/8,NBPMF3/8-3/8NPT3/8 female / NPT3/8 female: NBU3/8-3/8 OUT NPT3/8 female / 1/2 inch OD: NPCF1/2-3/8,NPLF1/2-3/8,NPMF1/2-3/8NPT3/8 female / 1/4 inch OD: NPCF1/4-3/8,NPLF1/4-3/8,NPMF1/4-3/8NPT3/8 female / 3/8 inch OD: NPCF3/8-3/8,NPLF3/8-3/8,NPMF3/8-3/8NPT3/8 female / 5/16 inch OD: NPCF5/16-3/8,NPLF5/16-3/8,NPMF5/16-3/8 IN,OUT (discontinued) 1/2 in; male RA NPT3/8 / female RB NPT3/8: NPHF1/2-3/81/4 in; male RA NPT3/8 / female RB NPT3/8: NPHF1/4-3/83/8 in; male RA NPT3/8 / female RB NPT3/8: NPHF3/8-3/85/16 in; male RA NPT3/8 / female RB NPT3/8: NPHF5/16-3/8 IN,OUT 1/2 in: NPSA1/21/4 in: NPSA1/43/8 in: NPSA3/85/16 in: NPSA5/16 The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. NPCF/NPLF/NPMF/NBPCF/NBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On NPMF/NBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. NPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. NBD first size is female RB and the second male RA. NBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. NBPC/NBPCF/NBPMF/NBKC/NBB/NBD/NBU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. NPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (psi/bar) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. NPTL maximum cap-adjustment torque: 0.24 N·m for 3/8. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $13.43

  View options

•

  View options

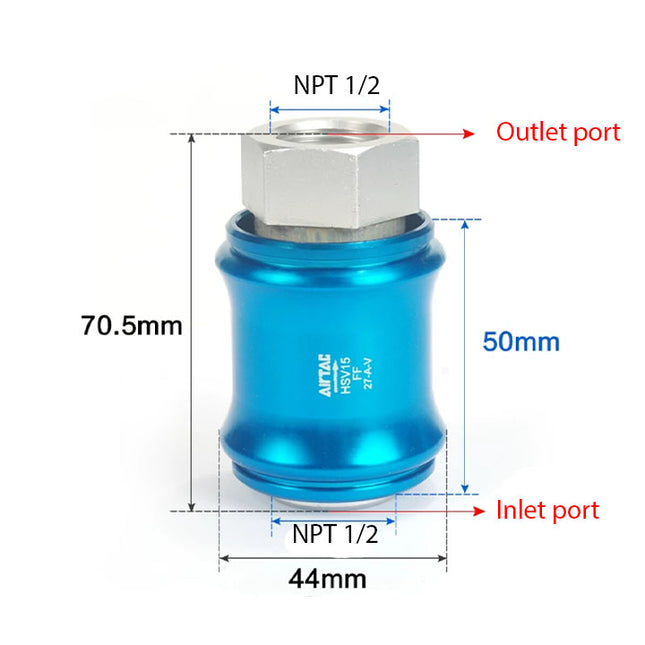

  Airtac HSV series: hand slide valve - HSV15FF

  Specifications: HSV15FF is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 15 selects the 1/2-inch connection size, FF selects female-thread connections at both ends, and the omitted final suffix selects PT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 15 Port size PT 1/2 FF Female-thread connections at both ends Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size PT 1/2 Connection arrangement Female-thread connections at both ends Effective flow area 140 mm² Cv 7.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — FF drawing 70.5 mm B — outside diameter Ø44 mm BA — hexagon reference 30 mm D — body-length reference 50 mm E PT 1/2 EA PT 1/2 Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 140 mm² and Cv 7.8 for the 1/2-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 145 g. The reference is HSV15, published at 145 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (PT1/2, female, drawing E); OUT = its controlled outlet (PT1/2, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PL elbow; PLL extended elbow; POC round straight; PSL elbow flow control; PSS flow control; PTL push-lock flow control; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30015,GAFR30015S,GAFR40015S IN,OUT male PT1/2 ↔ male PT1/4: BB0204,BB0204-Smale PT1/2 ↔ male PT3/8: BB0304,BB0304-Smale PT1/2 ↔ male PT1/2: BB0404,BB0404-Smale PT1/2 ↔ female PT1/8: BD0104,BD0104-Smale PT1/2 ↔ female PT1/4: BD0204,BD0204-Smale PT1/2 ↔ female PT3/8: BD0304,BD0304-S10 × 6.5: BKC1065-04,BKC1065-04-S,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: BKC1075-04,BKC1075-04-S12 × 8: BKC1208-04,BKC1208-04-S,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: BKC1209-04,BKC1209-04-S10: BPC1004,GPSA10,GPSA10D,PC1004,PC1004-S,PC1004D,PC1004D-S,PEB1004,PEB1004-S,PEB1004D,PEB1004D-S,PED1004,PED1004-S,PED1004D,PED1004D-S,PH1004,PH1004-S,PH1004D,PH1004D-S,PHW1004,PHW1004-S,PHW1004D,PHW1004D-S,PL1004,PL1004-S,PL1004D,PL1004D-S,PLL1004,PLL1004-S,PLL1004D,PLL1004D-S,POC1004,POC1004-S,POC1004D,POC1004D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PSL1004A,PSL1004A-S,PSL1004AD,PSL1004AD-S,PSL1004B,PSL1004B-S,PSL1004BD,PSL1004BD-S,PTL1004A,PTL1004AD,PTL1004B,PTL1004BD,PYB1004,PYB1004-S,PYB1004D,PYB1004D-S,PZB1004,PZB1004-S,PZB1004D,PZB1004D-S12: BPC1204,BPOC1204,GPSA12,GPSA12D,PC1204,PC1204-S,PC1204D,PC1204D-S,PEB1204,PEB1204-S,PEB1204D,PEB1204D-S,PED1204,PED1204-S,PED1204D,PED1204D-S,PH1204,PH1204-S,PH1204D,PH1204D-S,PHW1204,PHW1204-S,PHW1204D,PHW1204D-S,PL1204,PL1204-S,PL1204D,PL1204D-S,PLL1204,PLL1204-S,PLL1204D,PLL1204D-S,POC1204,POC1204-S,POC1204D,POC1204D-S,PSA12,PSA12-S,PSA12D,PSA12D-S,PSL1204A,PSL1204A-S,PSL1204AD,PSL1204AD-S,PSL1204B,PSL1204B-S,PSL1204BD,PSL1204BD-S,PSS1204A,PSS1204A-S,PSS1204AD,PSS1204AD-S,PSS1204B,PSS1204B-S,PSS1204BD,PSS1204BD-S,PTL1204A,PTL1204AD,PTL1204B,PTL1204BD,PYB1204,PYB1204-S,PYB1204D,PYB1204D-S,PZB1204,PZB1204-S,PZB1204D,PZB1204D-S6: GPSA6,GPSA6D,PC604,PC604-S,PC604D,PC604D-S,PL604,PL604-S,PL604D,PL604D-S,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PC804,PC804-S,PC804D,PC804D-S,PEB804,PEB804-S,PEB804D,PEB804D-S,PED804,PED804-S,PED804D,PED804D-S,PH804,PH804-S,PH804D,PH804D-S,PHW804,PHW804-S,PHW804D,PHW804D-S,PL804,PL804-S,PL804D,PL804D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL804A,PSL804A-S,PSL804AD,PSL804AD-S,PSL804B,PSL804B-S,PSL804BD,PSL804BD-S,PTL804A,PTL804AD,PTL804B,PTL804BD,PYB804,PYB804-S,PYB804D,PYB804D-S,PZB804,PZB804-S,PZB804D,PZB804D-S10; male RA PT1/2 / female RB PT1/2: PHF1004,PHF1004-S,PHF1004D,PHF1004D-S12; male RA PT1/2 / female RB PT1/2: PHF1204,PHF1204-S,PHF1204D,PHF1204D-S8; male RA PT1/2 / female RB PT1/2: PHF804,PHF804-S,PHF804D,PHF804D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. PHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. BD first size is female RB and the second male RA. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa. BKC/BB/BD: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. PTL recommended cap-adjustment torque: 0.32 N·m for 1/2. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $22.88

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV15FFG

  Specifications: HSV15FFG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 15 selects the 1/2-inch connection size, FF selects female-thread connections at both ends, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 15 Port size G 1/2 FF Female-thread connections at both ends G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 1/2 Connection arrangement Female-thread connections at both ends Effective flow area 140 mm² Cv 7.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — FF drawing 70.5 mm B — outside diameter Ø44 mm BA — hexagon reference 30 mm D — body-length reference 50 mm E G 1/2 EA G 1/2 Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 140 mm² and Cv 7.8 for the 1/2-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 145 g. The reference is HSV15, published at 145 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G1/2, female, drawing E); OUT = its controlled outlet (G1/2, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPL elbow; GPLL extended elbow; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30015G,GAFR30015SG,GAFR40015SG IN,OUT male G1/2 ↔ male G1/4: GBB0204male G1/2 ↔ male G3/8: GBB0304male G1/2 ↔ male G1/2: GBB0404male G1/2 ↔ female G1/8: GBD0104male G1/2 ↔ female G1/4: GBD0204male G1/2 ↔ female G3/8: GBD030410 × 6.5: GBKC1065-04,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: GBKC1075-0412 × 8: GBKC1208-04,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: GBKC1209-0410: GBPC1004,GPC1004,GPC1004D,GPEB1004,GPEB1004D,GPED1004,GPED1004D,GPH1004,GPH1004D,GPHW1004,GPHW1004D,GPL1004,GPL1004D,GPLL1004,GPLL1004D,GPSA10,GPSA10D,GPTL1004A,GPTL1004AD,GPTL1004B,GPTL1004BD,GPYB1004,GPYB1004D,GPZB1004,GPZB1004D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GBPC1204,GPC1204,GPC1204D,GPEB1204,GPEB1204D,GPED1204,GPED1204D,GPH1204,GPH1204D,GPHW1204,GPHW1204D,GPL1204,GPL1204D,GPLL1204,GPLL1204D,GPSA12,GPSA12D,GPSS1204A,GPSS1204AD,GPSS1204B,GPSS1204BD,GPTL1204A,GPTL1204AD,GPTL1204B,GPTL1204BD,GPYB1204,GPYB1204D,GPZB1204,GPZB1204D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPC604,GPC604D,GPL604,GPL604D,GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPC804,GPC804D,GPEB804,GPEB804D,GPED804,GPED804D,GPH804,GPH804D,GPHW804,GPHW804D,GPL804,GPL804D,GPSA8,GPSA8D,GPTL804A,GPTL804AD,GPTL804B,GPTL804BD,GPYB804,GPYB804D,GPZB804,GPZB804D,PSA8,PSA8-S,PSA8D,PSA8D-S10; male RA G1/2 / female RB G1/2: GPHF1004,GPHF1004D12; male RA G1/2 / female RB G1/2: GPHF1204,GPHF1204D8; male RA G1/2 / female RB G1/2: GPHF804,GPHF804D6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa. GBKC/GBB/GBD: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.32 N·m for 1/2. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $22.88

  View options

•

  View options

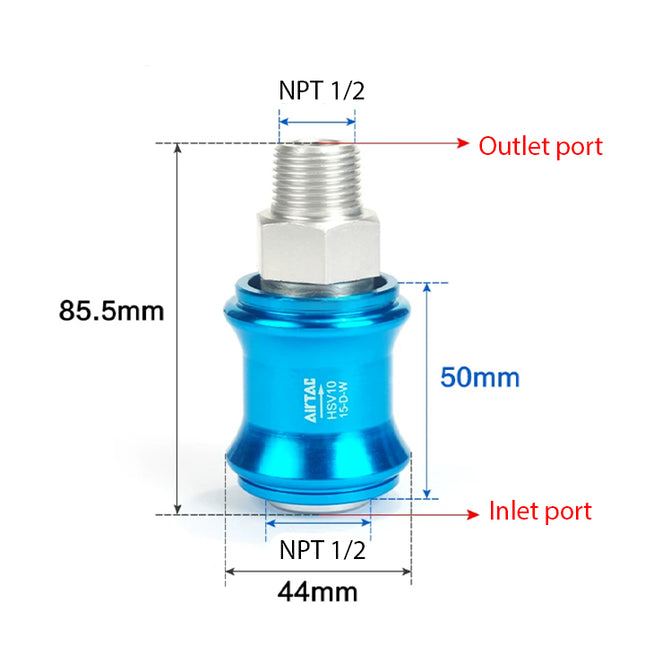

  Airtac HSV series: hand slide valve - HSV15G

  Specifications: HSV15G is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 15 selects the 1/2-inch connection size, the omitted connection suffix selects the standard arrangement, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 15 Port size G 1/2 Connection suffix omitted Standard connection arrangement G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 1/2 Connection arrangement Standard connection arrangement Effective flow area 140 mm² Cv 7.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 145 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — standard drawing 85.5 mm B — outside diameter Ø44 mm BA — hexagon reference 30 mm D — body-length reference 50 mm E G 1/2 F G 1/2 Use the Standard drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 140 mm² and Cv 7.8 for the 1/2-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Optional Piping Accessories IN = this HSV valve’s inlet (G1/2, female, drawing E); OUT = its controlled outlet (G1/2, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPC straight; GPCF female straight connector; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPL elbow; GPLF female elbow; GPLL extended elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30015G,GAFR30015SG,GAFR40015SGmale G1/2 ↔ male G1/4: GBB0204male G1/2 ↔ male G3/8: GBB0304male G1/2 ↔ male G1/2: GBB0404male G1/2 ↔ female G1/8: GBD0104male G1/2 ↔ female G1/4: GBD0204male G1/2 ↔ female G3/8: GBD030410 × 6.5: GBKC1065-0410 × 7.5 or 8: GBKC1075-0412 × 8: GBKC1208-0412 × 9 or 10: GBKC1209-0410: GBPC1004,GPC1004,GPC1004D,GPEB1004,GPEB1004D,GPED1004,GPED1004D,GPH1004,GPH1004D,GPHW1004,GPHW1004D,GPL1004,GPL1004D,GPLL1004,GPLL1004D,GPTL1004A,GPTL1004AD,GPTL1004B,GPTL1004BD,GPYB1004,GPYB1004D,GPZB1004,GPZB1004D12: GBPC1204,GPC1204,GPC1204D,GPEB1204,GPEB1204D,GPED1204,GPED1204D,GPH1204,GPH1204D,GPHW1204,GPHW1204D,GPL1204,GPL1204D,GPLL1204,GPLL1204D,GPSS1204A,GPSS1204AD,GPSS1204B,GPSS1204BD,GPTL1204A,GPTL1204AD,GPTL1204B,GPTL1204BD,GPYB1204,GPYB1204D,GPZB1204,GPZB1204D6: GPC604,GPC604D,GPL604,GPL604D8: GPC804,GPC804D,GPEB804,GPEB804D,GPED804,GPED804D,GPH804,GPH804D,GPHW804,GPHW804D,GPL804,GPL804D,GPTL804A,GPTL804AD,GPTL804B,GPTL804BD,GPYB804,GPYB804D,GPZB804,GPZB804D OUT G1/2 female / 12 OD: GBPCF1204,GBPMF1204,GPCF1204,GPCF1204D,GPLF1204,GPLF1204D,GPMF1204,GPMF1204DG1/2 female / G1/2 female: GBU0404G1/2 female / 10 OD: GPCF1004,GPCF1004D,GPLF1004,GPLF1004D,GPMF1004,GPMF1004DG1/2 female / 6 OD: GPCF604,GPCF604DG1/2 female / 8 OD: GPCF804,GPCF804D,GPLF804,GPLF804D,GPMF804,GPMF804D IN,OUT 10; male RA G1/2 / female RB G1/2: GPHF1004,GPHF1004D12; male RA G1/2 / female RB G1/2: GPHF1204,GPHF1204D8; male RA G1/2 / female RB G1/2: GPHF804,GPHF804D10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC/GBPCF/GBPMF: ≤0.9 MPa. GBKC/GBB/GBD/GBU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Connect its female ports to this female HSV IN through separately selected matching male piping. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.32 N·m for 1/2. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $22.88

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV15SF

  Specifications: HSV15SF is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 15 selects the 1/2-inch connection size, SF selects one male-thread and one female-thread connection, and the omitted final suffix selects PT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 15 Port size PT 1/2 SF One male-thread and one female-thread connection Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size PT 1/2 Connection arrangement One male-thread and one female-thread connection Effective flow area 140 mm² Cv 7.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SF drawing 85.5 mm B — outside diameter Ø44 mm BA — hexagon reference 30 mm D — body-length reference 50 mm EA PT 1/2 FA PT 1/2 Use the SF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 140 mm² and Cv 7.8 for the 1/2-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 145 g. The reference is HSV15, published at 145 g. The SF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (PT1/2, male, drawing FA); OUT = its controlled outlet (PT1/2, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPCF metal female straight connector; BPMF metal female bulkhead connector; BPOC metal straight; BU double female straight coupling; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PC straight; PCF female straight connector; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PL elbow; PLF female elbow; PLL extended elbow; PMF female bulkhead connector; POC round straight; PSL elbow flow control; PSS flow control; PTL push-lock flow control; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30015,GAFR30015S,GAFR40015SPT1/2 female / 12 OD: BPCF1204,BPMF1204,PCF1204,PCF1204D,PLF1204,PLF1204D,PMF1204,PMF1204DPT1/2 female / PT1/2 female: BU0404,BU0404-SPT1/2 female / 10 OD: PCF1004,PCF1004D,PLF1004,PLF1004D,PMF1004,PMF1004DPT1/2 female / 6 OD: PCF604,PCF604DPT1/2 female / 8 OD: PCF804,PCF804D,PLF804,PLF804D,PMF804,PMF804D OUT male PT1/2 ↔ male PT1/4: BB0204,BB0204-Smale PT1/2 ↔ male PT3/8: BB0304,BB0304-Smale PT1/2 ↔ male PT1/2: BB0404,BB0404-Smale PT1/2 ↔ female PT1/8: BD0104,BD0104-Smale PT1/2 ↔ female PT1/4: BD0204,BD0204-Smale PT1/2 ↔ female PT3/8: BD0304,BD0304-S10 × 6.5: BKC1065-04,BKC1065-04-S10 × 7.5 or 8: BKC1075-04,BKC1075-04-S12 × 8: BKC1208-04,BKC1208-04-S12 × 9 or 10: BKC1209-04,BKC1209-04-S10: BPC1004,PC1004,PC1004-S,PC1004D,PC1004D-S,PEB1004,PEB1004-S,PEB1004D,PEB1004D-S,PED1004,PED1004-S,PED1004D,PED1004D-S,PH1004,PH1004-S,PH1004D,PH1004D-S,PHW1004,PHW1004-S,PHW1004D,PHW1004D-S,PL1004,PL1004-S,PL1004D,PL1004D-S,PLL1004,PLL1004-S,PLL1004D,PLL1004D-S,POC1004,POC1004-S,POC1004D,POC1004D-S,PSL1004A,PSL1004A-S,PSL1004AD,PSL1004AD-S,PSL1004B,PSL1004B-S,PSL1004BD,PSL1004BD-S,PTL1004A,PTL1004AD,PTL1004B,PTL1004BD,PYB1004,PYB1004-S,PYB1004D,PYB1004D-S,PZB1004,PZB1004-S,PZB1004D,PZB1004D-S12: BPC1204,BPOC1204,PC1204,PC1204-S,PC1204D,PC1204D-S,PEB1204,PEB1204-S,PEB1204D,PEB1204D-S,PED1204,PED1204-S,PED1204D,PED1204D-S,PH1204,PH1204-S,PH1204D,PH1204D-S,PHW1204,PHW1204-S,PHW1204D,PHW1204D-S,PL1204,PL1204-S,PL1204D,PL1204D-S,PLL1204,PLL1204-S,PLL1204D,PLL1204D-S,POC1204,POC1204-S,POC1204D,POC1204D-S,PSL1204A,PSL1204A-S,PSL1204AD,PSL1204AD-S,PSL1204B,PSL1204B-S,PSL1204BD,PSL1204BD-S,PSS1204A,PSS1204A-S,PSS1204AD,PSS1204AD-S,PSS1204B,PSS1204B-S,PSS1204BD,PSS1204BD-S,PTL1204A,PTL1204AD,PTL1204B,PTL1204BD,PYB1204,PYB1204-S,PYB1204D,PYB1204D-S,PZB1204,PZB1204-S,PZB1204D,PZB1204D-S6: PC604,PC604-S,PC604D,PC604D-S,PL604,PL604-S,PL604D,PL604D-S8: PC804,PC804-S,PC804D,PC804D-S,PEB804,PEB804-S,PEB804D,PEB804D-S,PED804,PED804-S,PED804D,PED804D-S,PH804,PH804-S,PH804D,PH804D-S,PHW804,PHW804-S,PHW804D,PHW804D-S,PL804,PL804-S,PL804D,PL804D-S,PSL804A,PSL804A-S,PSL804AD,PSL804AD-S,PSL804B,PSL804B-S,PSL804BD,PSL804BD-S,PTL804A,PTL804AD,PTL804B,PTL804BD,PYB804,PYB804-S,PYB804D,PYB804D-S,PZB804,PZB804-S,PZB804D,PZB804D-S IN,OUT 10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S10; male RA PT1/2 / female RB PT1/2: PHF1004,PHF1004-S,PHF1004D,PHF1004D-S12; male RA PT1/2 / female RB PT1/2: PHF1204,PHF1204-S,PHF1204D,PHF1204D-S8; male RA PT1/2 / female RB PT1/2: PHF804,PHF804-S,PHF804D,PHF804D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. PCF/PLF/PMF/BPCF/BPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On PMF/BPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For PCF/PMF, D specifies a black release button (blank: grey). For PLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. PHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. BD first size is female RB and the second male RA. BU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal BPC/BPOC/BPCF/BPMF: ≤0.9 MPa. BKC/BB/BD/BU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. PTL recommended cap-adjustment torque: 0.32 N·m for 1/2. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $22.88

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV15SFG

  Specifications: HSV15SFG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 15 selects the 1/2-inch connection size, SF selects one male-thread and one female-thread connection, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 15 Port size G 1/2 SF One male-thread and one female-thread connection G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 1/2 Connection arrangement One male-thread and one female-thread connection Effective flow area 140 mm² Cv 7.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SF drawing 85.5 mm B — outside diameter Ø44 mm BA — hexagon reference 30 mm D — body-length reference 50 mm EA G 1/2 FA G 1/2 Use the SF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 140 mm² and Cv 7.8 for the 1/2-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 145 g. The reference is HSV15, published at 145 g. The SF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G1/2, male, drawing FA); OUT = its controlled outlet (G1/2, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPC straight; GPCF female straight connector; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPL elbow; GPLF female elbow; GPLL extended elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN ASC30015G,GAFR30015SG,GAFR40015SGG1/2 female / 12 OD: GBPCF1204,GBPMF1204,GPCF1204,GPCF1204D,GPLF1204,GPLF1204D,GPMF1204,GPMF1204DG1/2 female / G1/2 female: GBU0404G1/2 female / 10 OD: GPCF1004,GPCF1004D,GPLF1004,GPLF1004D,GPMF1004,GPMF1004DG1/2 female / 6 OD: GPCF604,GPCF604DG1/2 female / 8 OD: GPCF804,GPCF804D,GPLF804,GPLF804D,GPMF804,GPMF804D OUT male G1/2 ↔ male G1/4: GBB0204male G1/2 ↔ male G3/8: GBB0304male G1/2 ↔ male G1/2: GBB0404male G1/2 ↔ female G1/8: GBD0104male G1/2 ↔ female G1/4: GBD0204male G1/2 ↔ female G3/8: GBD030410 × 6.5: GBKC1065-0410 × 7.5 or 8: GBKC1075-0412 × 8: GBKC1208-0412 × 9 or 10: GBKC1209-0410: GBPC1004,GPC1004,GPC1004D,GPEB1004,GPEB1004D,GPED1004,GPED1004D,GPH1004,GPH1004D,GPHW1004,GPHW1004D,GPL1004,GPL1004D,GPLL1004,GPLL1004D,GPTL1004A,GPTL1004AD,GPTL1004B,GPTL1004BD,GPYB1004,GPYB1004D,GPZB1004,GPZB1004D12: GBPC1204,GPC1204,GPC1204D,GPEB1204,GPEB1204D,GPED1204,GPED1204D,GPH1204,GPH1204D,GPHW1204,GPHW1204D,GPL1204,GPL1204D,GPLL1204,GPLL1204D,GPSS1204A,GPSS1204AD,GPSS1204B,GPSS1204BD,GPTL1204A,GPTL1204AD,GPTL1204B,GPTL1204BD,GPYB1204,GPYB1204D,GPZB1204,GPZB1204D6: GPC604,GPC604D,GPL604,GPL604D8: GPC804,GPC804D,GPEB804,GPEB804D,GPED804,GPED804D,GPH804,GPH804D,GPHW804,GPHW804D,GPL804,GPL804D,GPTL804A,GPTL804AD,GPTL804B,GPTL804BD,GPYB804,GPYB804D,GPZB804,GPZB804D IN,OUT 10; male RA G1/2 / female RB G1/2: GPHF1004,GPHF1004D12; male RA G1/2 / female RB G1/2: GPHF1204,GPHF1204D8; male RA G1/2 / female RB G1/2: GPHF804,GPHF804D10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC/GBPCF/GBPMF: ≤0.9 MPa. GBKC/GBB/GBD/GBU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. GPTL recommended cap-adjustment torque: 0.32 N·m for 1/2. This is not thread-installation torque. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $22.88

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV15SS

  Specifications: HSV15SS is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 15 selects the 1/2-inch connection size, SS selects male-thread connections at both ends, and the omitted final suffix selects PT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 15 Port size PT 1/2 SS Male-thread connections at both ends Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size PT 1/2 Connection arrangement Male-thread connections at both ends Effective flow area 140 mm² Cv 7.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SS drawing 100.5 mm B — outside diameter Ø44 mm BA — hexagon reference 30 mm D — body-length reference 50 mm F PT 1/2 FA PT 1/2 Use the SS drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 140 mm² and Cv 7.8 for the 1/2-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 145 g. The reference is HSV15, published at 145 g. The SS end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (PT1/2, male, drawing FA); OUT = its controlled outlet (PT1/2, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BPCF metal female straight connector; BPMF metal female bulkhead connector; BU double female straight coupling; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PCF female straight connector; PHF female branch banjo; PLF female elbow; PMF female bulkhead connector; UE PU tube; US PU tube. Use Size / complete codes IN ASC30015,GAFR30015S,GAFR40015S IN,OUT PT1/2 female / 12 OD: BPCF1204,BPMF1204,PCF1204,PCF1204D,PLF1204,PLF1204D,PMF1204,PMF1204DPT1/2 female / PT1/2 female: BU0404,BU0404-S10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-SPT1/2 female / 10 OD: PCF1004,PCF1004D,PLF1004,PLF1004D,PMF1004,PMF1004DPT1/2 female / 6 OD: PCF604,PCF604DPT1/2 female / 8 OD: PCF804,PCF804D,PLF804,PLF804D,PMF804,PMF804D10; male RA PT1/2 / female RB PT1/2: PHF1004,PHF1004-S,PHF1004D,PHF1004D-S12; male RA PT1/2 / female RB PT1/2: PHF1204,PHF1204-S,PHF1204D,PHF1204D-S8; male RA PT1/2 / female RB PT1/2: PHF804,PHF804-S,PHF804D,PHF804D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. PCF/PLF/PMF/BPCF/BPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On PMF/BPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For PCF/PMF, D specifies a black release button (blank: grey). For PLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. PHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. BU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal BPCF/BPMF: ≤0.9 MPa. BU: ≤1 MPa. The listed metal push-in, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $26.99

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV15SSG

  Specifications: HSV15SSG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 15 selects the 1/2-inch connection size, SS selects male-thread connections at both ends, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 15 Port size G 1/2 SS Male-thread connections at both ends G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 1/2 Connection arrangement Male-thread connections at both ends Effective flow area 140 mm² Cv 7.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SS drawing 100.5 mm B — outside diameter Ø44 mm BA — hexagon reference 30 mm D — body-length reference 50 mm F G 1/2 FA G 1/2 Use the SS drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 140 mm² and Cv 7.8 for the 1/2-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 145 g. The reference is HSV15, published at 145 g. The SS end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G1/2, male, drawing FA); OUT = its controlled outlet (G1/2, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPCF female straight connector; GPHF female branch banjo; GPLF female elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; UE PU tube; US PU tube. Use Size / complete codes IN ASC30015G,GAFR30015SG,GAFR40015SG IN,OUT G1/2 female / 12 OD: GBPCF1204,GBPMF1204,GPCF1204,GPCF1204D,GPLF1204,GPLF1204D,GPMF1204,GPMF1204DG1/2 female / G1/2 female: GBU0404G1/2 female / 10 OD: GPCF1004,GPCF1004D,GPLF1004,GPLF1004D,GPMF1004,GPMF1004DG1/2 female / 6 OD: GPCF604,GPCF604DG1/2 female / 8 OD: GPCF804,GPCF804D,GPLF804,GPLF804D,GPMF804,GPMF804D10; male RA G1/2 / female RB G1/2: GPHF1004,GPHF1004D12; male RA G1/2 / female RB G1/2: GPHF1204,GPHF1204D8; male RA G1/2 / female RB G1/2: GPHF804,GPHF804D10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S6 × 4: UE95A060040100MBU,US98A060040100MBU8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings. GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPCF/GBPMF: ≤0.9 MPa. GBU: ≤1 MPa. The listed metal push-in, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $26.99

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV15SST

  Specifications: HSV15SST is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 15 selects the 1/2-inch connection size, SS selects male-thread connections at both ends, and the T final suffix selects NPT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 15 Port size NPT 1/2 SS Male-thread connections at both ends T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size NPT 1/2 Connection arrangement Male-thread connections at both ends Effective flow area 140 mm² Cv 7.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — SS drawing 100.5 mm B — outside diameter Ø44 mm BA — hexagon reference 30 mm D — body-length reference 50 mm F NPT 1/2 FA NPT 1/2 Use the SS drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 140 mm² and Cv 7.8 for the 1/2-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 145 g. The reference is HSV15, published at 145 g. The SS end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (NPT1/2, male, drawing FA); OUT = its controlled outlet (NPT1/2, male, drawing F). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; NBPCF metal female straight connector; NBPMF metal female bulkhead connector; NBU double female straight coupling; NPCF female straight connector; NPHF female branch banjo; NPLF female elbow; NPMF female bulkhead connector; NPSA inline flow control. Use Size / complete codes IN ASC30015T,GAFR30015ST,GAFR40015ST IN,OUT (discontinued) NPT1/2 female / 1/2 inch OD: NBPCF1/2-1/2,NBPMF1/2-1/2NPT1/2 female / NPT1/2 female: NBU1/2-1/21/2 in; male RA NPT1/2 / female RB NPT1/2: NPHF1/2-1/23/8 in; male RA NPT1/2 / female RB NPT1/2: NPHF3/8-1/2 IN,OUT NPT1/2 female / 1/2 inch OD: NPCF1/2-1/2,NPLF1/2-1/2,NPMF1/2-1/2NPT1/2 female / 3/8 inch OD: NPCF3/8-1/2,NPLF3/8-1/2,NPMF3/8-1/21/2 in: NPSA1/23/8 in: NPSA3/8 The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings. NPCF/NPLF/NPMF/NBPCF/NBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On NPMF/NBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. NPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit. Match both adapter ends independently by size, gender and thread standard. NBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection. Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. NBPCF/NBPMF/NBU: ≤1 MPa. The listed metal push-in, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path. NPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation. ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range. GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (psi/bar) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $26.99

  View options

•

  View options

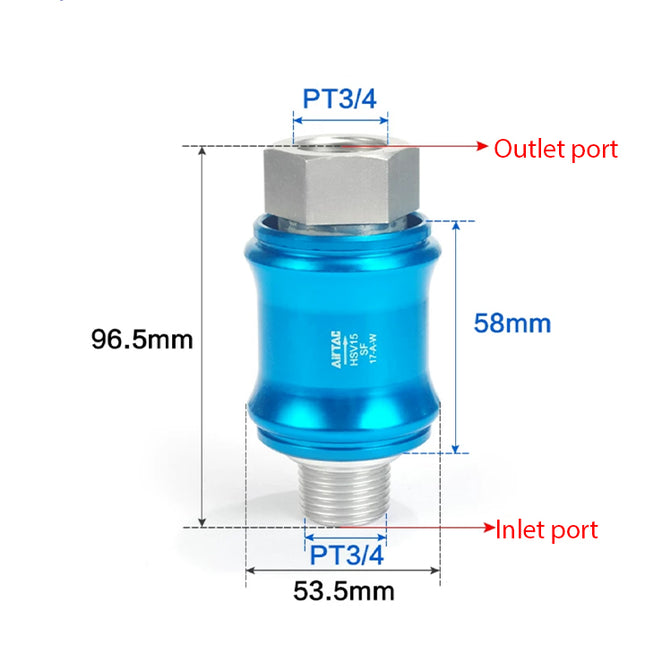

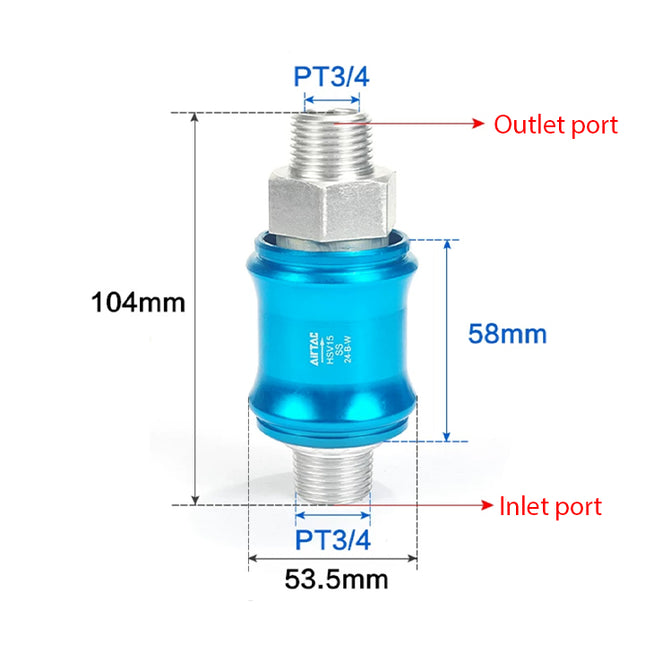

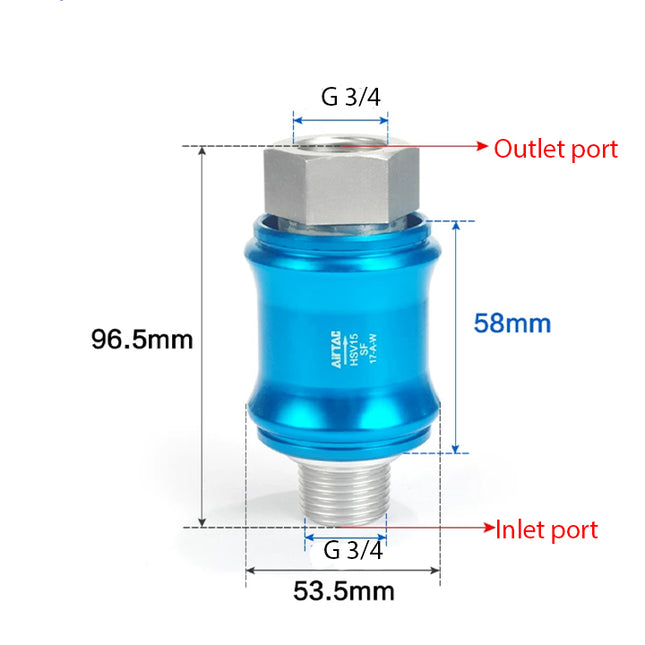

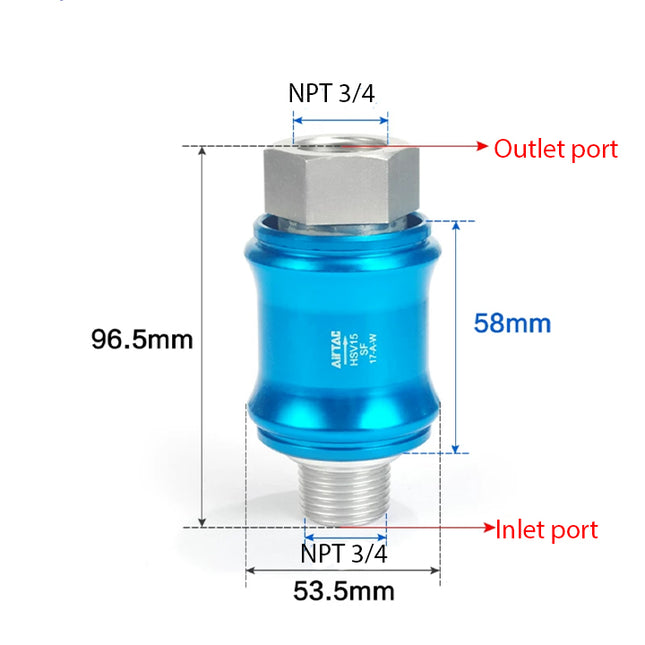

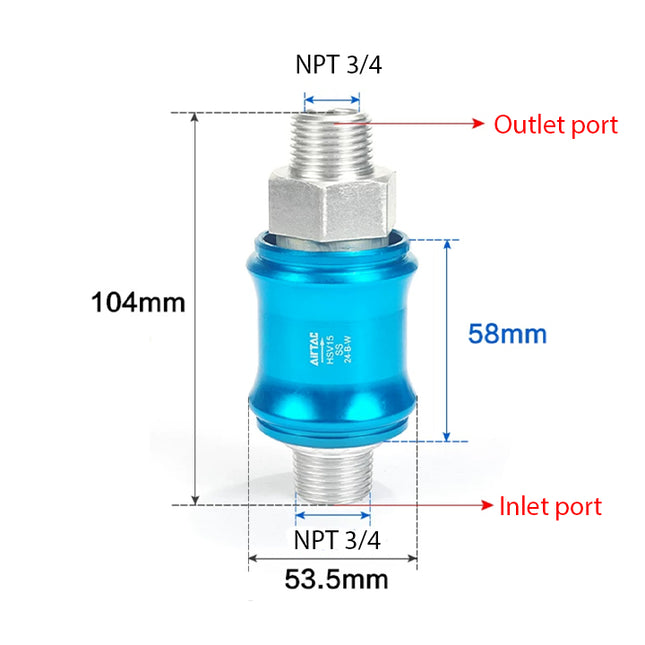

  Airtac HSV series: hand slide valve - HSV20FFG

  Specifications: HSV20FFG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 20 selects the 3/4-inch connection size, FF selects female-thread connections at both ends, and the G final suffix selects G thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 20 Port size G 3/4 FF Female-thread connections at both ends G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size G 3/4 Connection arrangement Female-thread connections at both ends Effective flow area 250 mm² Cv 13.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — FF drawing 79.5 mm B — outside diameter Ø53.5 mm BA — hexagon reference 36 mm D — body-length reference 58 mm E G 3/4 EA G 3/4 Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 250 mm² and Cv 13.8 for the 3/4-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 227 g. The reference is HSV20, published at 227 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (G3/4, female, drawing E); OUT = its controlled outlet (G3/4, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): GAFR upstream filter-regulator. Use Size / complete codes IN GAFR50020SG,GAFR600C20SG The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. GAFR500 uses the listed default PC bowl; GAFR600C requires the metal bowl C. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $38.63

  View options

•

  View options

  Airtac HSV series: hand slide valve - HSV20FFT

  Specifications: HSV20FFT is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 20 selects the 3/4-inch connection size, FF selects female-thread connections at both ends, and the T final suffix selects NPT thread. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model HSV Manual hand slide valve 20 Port size NPT 3/4 FF Female-thread connections at both ends T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual sliding control Connection size NPT 3/4 Connection arrangement Female-thread connections at both ends Effective flow area 250 mm² Cv 13.8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing. The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area. The valve plug receives a hard-anodized surface treatment, and the body is anodized. External and Mounting Dimensions Drawing label Value for this model A — FF drawing 79.5 mm B — outside diameter Ø53.5 mm BA — hexagon reference 36 mm D — body-length reference 58 mm E NPT 3/4 EA NPT 3/4 Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference The specification table lists an effective area of 250 mm² and Cv 13.8 for the 3/4-inch size. No separate performance curve or variant-specific weight table is supplied on this page. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Valve plug 2 Body 3 O-ring 4 Retaining clip Series Ordering Options The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities. Reference Weight Estimated reference weight: 227 g. The reference is HSV20, published at 227 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.Optional Piping Accessories IN = this HSV valve’s inlet (NPT3/4, female, drawing E); OUT = its controlled outlet (NPT3/4, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): GAFR upstream filter-regulator. Use Size / complete codes IN GAFR50020ST,GAFR600C20ST The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function. Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit. GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. GAFR500 uses the listed default PC bowl; GAFR600C requires the metal bowl C. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (psi/bar) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $38.63

  View options

Show more products
