Specifications: HFT10X60S is an AirTAC 10 mm wide-opening parallel gripper. It is double acting. The specification and dimensions below apply to the 2022 catalog configuration identified by the individual code elements.
Product Catalog
Download Airtac Product Catalog (PDF)
Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
The HFT download contains the complete HFT section from the 2022 Chinese catalog, printed pages 334–339, including specifications and mounting drawings.
This model code
Parameter
Details
HFT
wide-opening parallel gripper; double acting
10
10 mm nominal bore
X60
60 mm combined opening/closing stroke
S
Built-in magnet; sensor switch ordered separately
(thread code omitted)
M5×0.8
Design and operating features
Long synchronized jaw travel accommodates larger workpieces.
Dual pistons increase holding force; rack-and-pinion synchronization maintains parallel opening and closing.
Technical specifications
Parameter
Details
Nominal bore
10 mm
Actuation
double acting
Working medium
Compressed air, filtered through a 40 μm filter element
Operating temperature
−20 to +70 °C
Port thread
M5×0.8
Operating pressure
0.25–0.7 MPa
Proof pressure
1.2 MPa
Lubrication
No oil supply required
Repeatability
±0.1 mm
Maximum operating frequency
40 cycles/min
Combined opening/closing stroke
60 mm
Gripping force at 0.5 MPa
14 N
Force rating gripping-point distance
40 mm
Cushion
Bumper
Compatible position sensors
The 2022 selection information for HFT10 lists H profile: CMSH / DMSH / EMSH. Select the full sensor code for the required output, supply voltage, cable length and connector. Sensors are ordered separately; a matching mounting profile alone does not specify the electrical configuration.
Gripping-force and gripping-point selection
Select effective gripping force for the actual air pressure, jaw contact position and friction. The catalog uses F ≥ a × m × g / (n × μ), where F is force per jaw, n is the number of contacting jaws, μ is the attachment/workpiece friction coefficient, m is workpiece mass and g = 9.8 m/s². With two jaws and safety factor a = 4, μ = 0.2 requires approximately 10 × m × g per jaw and μ = 0.1 requires 20 × m × g. Allow a larger safety margin for high acceleration or impact; even at higher friction the catalog retains the conservative 10–20 times guideline.
Choose the opening span to fit the workpiece, then check the force curve for the exact bore and stroke group. The gripping position is R in mm. Short and long stroke groups have different curves, even at the same bore. Keep fingers short and light and stay within the graphed force range.

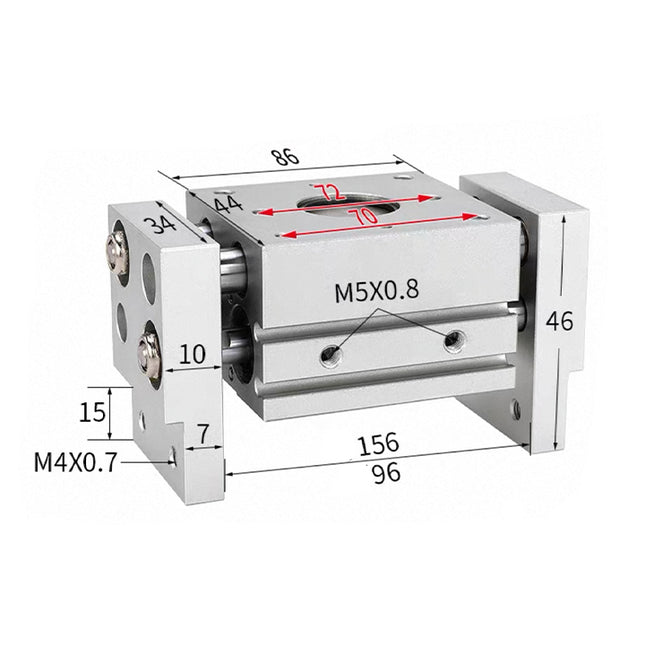

Dimensions for this configuration
Linear drawing dimensions are in mm unless a thread or angle is stated. Letter labels retain their meaning in the corresponding catalog view. Only the current action and attachment form are selected; parenthesized single-acting values from the source are resolved to this model.
Parameter
Details
A
181
AB
86
JB
72
KB
70
LB
60
PA
45
UA
156
UB
96
Overall body width
44
Overall height
46
Jaw attachment
4× M4×0.7 through
Body front / rear mounting
4× M4×0.7 depth 8
Through holes
2× Ø4.5
Locating bore
Ø18 (+0.05/0), depth 1
Dowel holes
Ø3 (+0.03/0), depth 3
Guide diameter
Ø6
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Internal structure and principal materials
Parameter
Details
1 Support
Aluminum alloy
2 Piston rod A
Stainless steel
3 Locknut
Alloy steel
4 Guide rod
Stainless steel
5 Retaining plate
Spring steel
6 Flat washer
Free-cutting steel
7 C-type retaining ring
Spring steel
8 Dust seal
TPU
9 DU dry bearing
Low-carbon steel + composite material
10 C-type retaining ring
Spring steel
11 O-ring
NBR
12 Gear
Chrome-molybdenum steel
13 Gear shaft
Bearing steel
14 Gear cover
Free-cutting steel
15 Body
Aluminum alloy
16 Front cover
Aluminum alloy
17 O-ring
NBR
18 Piston rod B
Stainless steel
19 Rod seal
NBR
20 Connecting screw
Stainless steel
21 Magnet holder
Brass / aluminum alloy
22 Magnet
Sintered neodymium-iron-boron
23 Piston seal
NBR
24 Piston
Brass / aluminum alloy
25 Bumper
TPU
Part numbers refer to this series and the illustrated configuration. The parts list describes construction; it is not a supplied spare-parts kit or an independent ordering list.
Accessories and configuration boundaries
Custom workpiece fingers mount to the current jaw attachment holes. The jaw suffix selects the factory attachment form; the drawings of fixture fingers do not establish a separately supplied accessory kit. Match screw threads, engagement depth and tightening torque to this bore and jaw form.
Mounting screws and tightening limits
Parameter
Details
Axial threaded mounting
M4×0.7; maximum 2.1 N·m; maximum engagement 8 mm
Axial through mounting
M4×0.7; maximum 2.1 N·m
Side mounting
M4×0.7; maximum 1.4 N·m; maximum engagement 5 mm
Jaw attachment
M4×0.7; maximum 1.4 N·m
The mounting method names above refer to cylinder-body attachment. Jaw suffix B, N, F, R, W or M describes the separate jaw attachment geometry. Use the dimensions of the selected jaw rather than treating these suffixes as a body-mount kit.
Installation and safe operation
Install a workpiece fall-prevention device wherever loss of circuit pressure could release the load. Do not rely on gripping force alone to keep a suspended part safe.
Prevent excessive external force, side load, impact and collision at the end of jaw or machine travel. Leave clearance around the workpiece and attachments throughout opening, transfer and reversal.
Keep custom fingers short and light. Align the workpiece with the jaw centerline, and make both contact surfaces engage together where the two-jaw arrangement is used. Do not use the gripper to force an off-center insertion.
Hold the jaw with an open-ended wrench when fastening an attachment; do not react the tightening torque through the gripper body. Use the specified screw length and torque to avoid internal damage.
Use a flow-control valve to limit opening and closing speed. Commission at reduced pressure and low speed, and verify there is no collision before normal operation.
Keep people and loose objects outside the moving envelope. Release the workpiece safely and exhaust the compressed air before removing the gripper.
Install finger attachments with the piston rods retracted to avoid scratching the rods and damaging their seals. The 32 mm bore has no axial through-hole mounting method in this catalog.
Optional magnetic sensors and matching cables
H-profile: CMSH — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSH-020, CMSH-030, CMSH-050, CMSH-100, CMSH-M08, CMSH-M08010, CMSH-M08020, CMSH-M08030, CMSH-M12, CMSH-M12010, CMSH-M12020, CMSH-M12030, A05-CMSH-020, A05-CMSH-030, A05-CMSH-050, A05-CMSH-100
H-profile: CMSH — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSH-020-H, CMSH-030-H, CMSH-050-H, CMSH-100-H, CMSH-M08-H, CMSH-M08010-H, CMSH-M08020-H, CMSH-M08030-H, CMSH-M12-H, CMSH-M12010-H, CMSH-M12020-H, CMSH-M12030-H
H-profile: DMSH — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSH-020, DMSH-030, DMSH-050, DMSH-100, DMSH-M08, DMSH-M08010, DMSH-M08020, DMSH-M08030, DMSH-M12, DMSH-M12010, DMSH-M12020, DMSH-M12030, DMSH-020-W, DMSH-030-W, DMSH-050-W, DMSH-100-W, A05-DMSH-020, A05-DMSH-030, A05-DMSH-050, A05-DMSH-100, A06-DMSH-020, A06-DMSH-030, A06-DMSH-050, A06-DMSH-100
H-profile: DMSH — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSH-N020, DMSH-N030, DMSH-N050, DMSH-N100, DMSH-NM08, DMSH-NM08010, DMSH-NM08020, DMSH-NM08030, DMSH-NM12, DMSH-NM12010, DMSH-NM12020, DMSH-NM12030, DMSH-N020-W, DMSH-N030-W, DMSH-N050-W, DMSH-N100-W
H-profile: DMSH — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSH-P020, DMSH-P030, DMSH-P050, DMSH-P100, DMSH-PM08, DMSH-PM08010, DMSH-PM08020, DMSH-PM08030, DMSH-PM12, DMSH-PM12010, DMSH-PM12020, DMSH-PM12030, DMSH-P020-W, DMSH-P030-W, DMSH-P050-W, DMSH-P100-W
H-profile: EMSH — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSH-020, EMSH-030, EMSH-050, EMSH-100, EMSH-M08, EMSH-M08010, EMSH-M08020, EMSH-M08030, EMSH-M12, EMSH-M12010, EMSH-M12020, EMSH-M12030, EMSH-020-W, EMSH-030-W, EMSH-050-W, EMSH-100-W, EMSH-M08-W, EMSH-M08010-W, EMSH-M08020-W, EMSH-M08030-W, EMSH-M12-W, EMSH-M12010-W, EMSH-M12020-W, EMSH-M12030-W, A05-EMSH-020, A05-EMSH-030, A05-EMSH-050, A05-EMSH-100, A06-EMSH-020, A06-EMSH-030, A06-EMSH-050, A06-EMSH-100
Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100
Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100
The listed options are alternatives, not a required set. The H in CMSH/DMSH/EMSH identifies the sensor profile; a final -H on a CMS order code instead selects the high-temperature reed version.
CMSH reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED.
Two-wire DMSH and EMSH require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively.
NPN/PNP DMSH outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings.
Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Select lead length to suit the installation independently of the combined jaw travel.
Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately.
A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSH also excludes the final high-temperature -H suffix. W means waterproof: DMSH-W has direct leads only; the listed EMSH-W options also include connectors.
Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSH versions with the final -H suffix. The HFT gripper remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the gripper, connectors or whole assembly; use their common limits.
CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative.
Install the selected H-profile sensor in the matching sensor groove on the HFT body, using its included magnet; no separate sensor mounting bracket is required. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not gripper mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication.
Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.
Optional air connections and electrical direction control
These are separately ordered options for a selected 4 mm OD tube circuit, not a supplied or HFT-validated complete kit. Choose the valve flow capacity, tubing and control response for the actual jaw load and required opening/closing time. Thread and pressure compatibility alone do not establish the catalog maximum operating frequency or gripping performance.
PC4M5: M5×0.8 male; exact 4 mm tube ODStraight connection at the selected valve P/A/B ports; also at an M5 gripper port if a straight fitting is chosen
PTL4M5A-M: M5×0.8 male; exact 4 mm tube OD; mini A-typeMeter-out controller at each M5 gripper port, as an alternative to a straight connection
BSLM5: M5×0.8 male; 0–1 MPa, −20 to +70°COptional silencer at selected 5V valve exhaust R/S only; not the gripper opening/closing work ports
US98A040025100MBU: Polyester PU; 4×2.5 mm; blue 100 m rollOptional tube packaging example, cut to installed length
UE95A040025100MBU: Polyether PU; 4×2.5 mm; blue 100 m rollAlternative tube packaging example, cut to installed length
5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cableOptional 220 V AC direction control; 050/200 = 0.5/2 m leads; select for the installed supply and control system
5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cableOptional 24 V DC direction control; 050/200 = 0.5/2 m leads; select for the installed supply and control system
5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cableOptional 110 V AC direction control; 050/200 = 0.5/2 m leads; select for the installed supply and control system
5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cableOptional 24 V AC direction control; 050/200 = 0.5/2 m leads; select for the installed supply and control system
5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cableOptional 12 V DC direction control; 050/200 = 0.5/2 m leads; select for the installed supply and control system
Choose PC4M5 straight fittings or PTL4M5A-M controllers at the M5 gripper opening/closing ports, with PC4M5 at the separate valve ports. The A-type controller restricts gripper-to-tube exhaust and permits free charging. These fittings/controllers take exact 4 mm OD soft nylon or PU tube at 0–1 MPa and −20 to +70°C. Seat the M5 sealing gasket correctly; recommended controller-cap rotation torque is 0.05 N·m, not thread-tightening torque.
The listed 5V100 valves are 5/2 directional valves with M5×0.8 supply P, work A/B and exhaust R/S ports. Keep the two work lines separate and connect them to the gripper's opening and closing ports as required. The 5V110 version is single-solenoid spring return; 5V120 is double-solenoid with memory. Select the required switching and loss-of-power behavior; valve memory is not mechanical load retention.
Select one complete valve code for the installed supply. The final 050/200 means a 0.5/2 m terminal cable, not a DIN plug. AC tolerance is +15%/−10% at 2.0 VA; DC is ±10% at 1.6 W. Connect the selected voltage and control signals according to the valve wiring requirements.
The selected 5V100 valve is rated 0.15–0.8 MPa and −20 to +70°C. The common operating pressure range of this selected HFT branch is 0.25–0.7 MPa. Keep the selected branch within −20 to +70°C, subject to temperature derating and any lower installed-component limit.
The two blue 100 m tube codes are alternative packaging examples, not required installed lengths. US98A polyester-PU is rated −20 to +70°C and UE95A polyether-PU −40 to +70°C; both are rated 1 MPa at 23°C. Minimum bend radii (US/UE) are 10/8 mm. Apply temperature derating and the lowest component limit.Catalog reference weight
465 g. Catalog reference only; the actual product governs. This is not a measured packed shipping weight.
