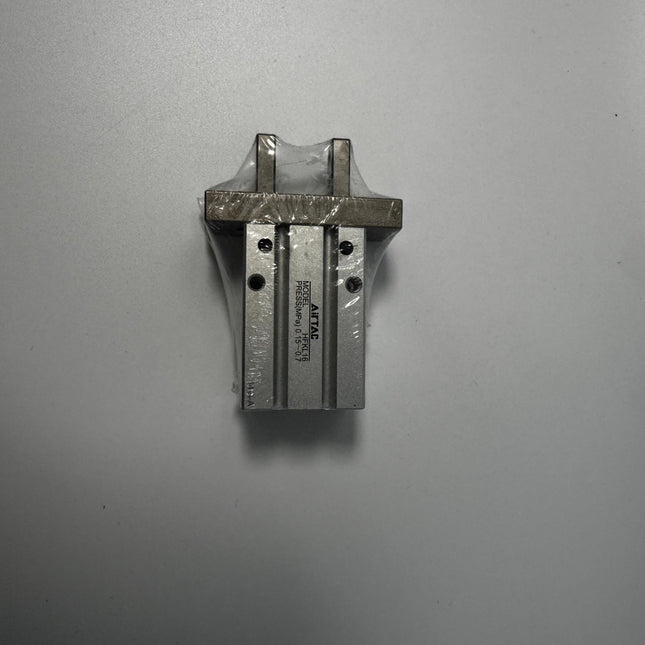

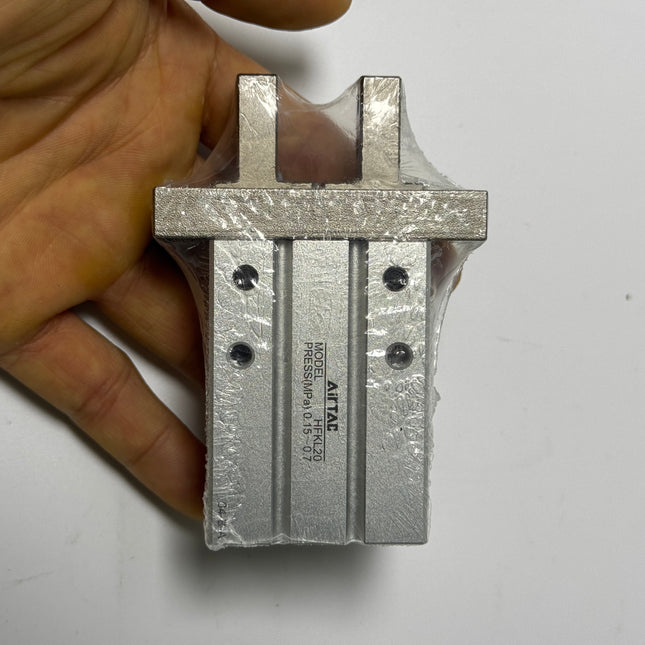

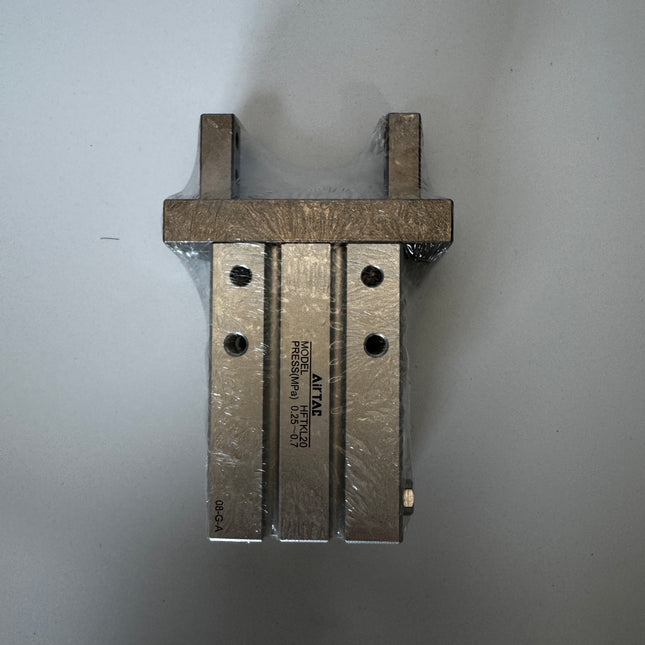

HFKL Series Air Gripper (Guide Track Parallel Style - Long Stroke Roller Type)
Features
- Guide Track & Roller Mechanism: Provides smooth operation and high rigidity.
- Long Stroke: Designed for applications requiring a wider opening/closing range compared to standard grippers.
- Multiple Acting Types: Available in Double Acting (Standard), Single Acting Normally Open, and Single Acting Normally Closed.
- Versatile Mounting: Four jaw installation types available: Standard, Side Mount, Through Hole Mount, and Bottom Mount.
- Built-in Magnet: All series come standard with a built-in magnet for sensor mounting.
Effective Gripping Force (N) [at 0.5MPa]
| Acting Type | Action Direction | 10 | 16 | 20 | 25 |
|---|---|---|---|---|---|
|
HFKL (Double Acting) |
Closing | 11 | 34 | 45 | 69 |
| Opening | 17 | 45 | 68 | 102 | |
|
HFTKL (Single Acting N.O.) |
Closing | 7 | 27 | 35 | 55 |
|
HFSKL (Single Acting N.C.) |
Opening | 13 | 38 | 59 | 87 |
Note: The gripping force in the table is the value at operating pressure of 0.5MPa and gripping point L=20mm.
Stroke & Weight Specifications
| Bore Size (mm) | Opening/Closing Stroke (Both Sides) (mm) | Weight (g) | ||
|---|---|---|---|---|
| HFKL (Double Acting) | HFTKL (Single Acting N.O.) | HFSKL (Single Acting N.C.) | ||
| 10 | 8 | 64 | 74 | 73 |
| 16 | 12 | 146 | 154 | 154 |
| 20 | 18 | 275 | 294 | 294 |
| 25 | 22 | 484 | 530 | 528 |
Note: Weight shown is for 'F Type' (Bottom Mount). Weights for other types (Standard/B/N) may vary slightly (approx ±2-5g).
Ordering Code
HFKL 20 □
| No. | Item | Code Description |
|---|---|---|
| ① | Series |
HFKL: Standard Double Acting HFSKL: Single Acting Normally Closed HFTKL: Single Acting Normally Open |
| ② | Bore Size | 10, 16, 20, 25 (mm) |
| ③ | Jaw Type |
Blank: Standard Type B: Side Installation Type N: Through Hole Installation Type F: Bottom Installation Type |
Note: All HFKL series are equipped with magnets. Sensors need to be ordered separately.
