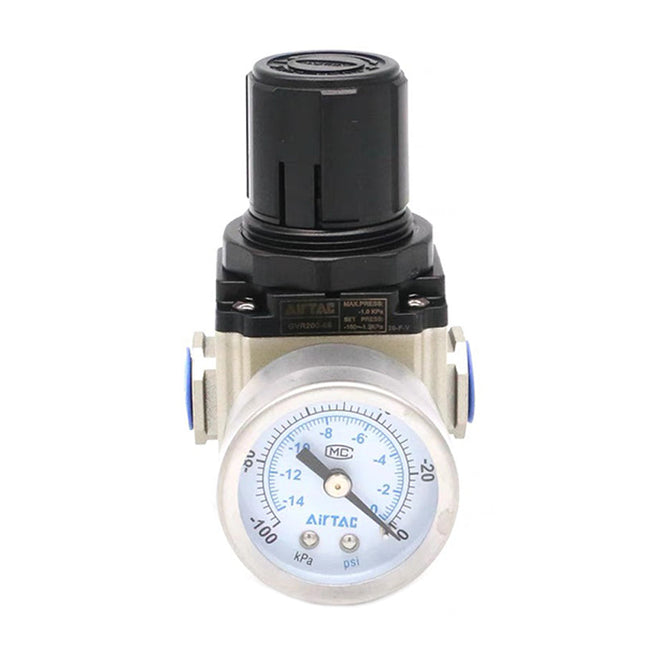

Vacuum Regulator
Product Features
- It features a self-locking pressure mechanism, which prevents pressure changes due to external interference.
- Stable pressure regulation, minimal drift, and good pressure characteristics.
- In addition to panel mounting, an optional fixed bracket is available for installation.
Specifications
| Model | GVR200-06 | GVR200-08 | GVR300-08 | GVR300-10 |
|---|---|---|---|---|
| Working Medium | Air (filtered through a 40μm or higher filter element) | |||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 |
| Pressure Regulation Range | -100 ~ -1.3kPa | |||
| Max Operating Pressure | -1.0kPa | |||
| Atmospheric Air Suction Consumption | 0.6 L/min(ANR) or less | |||
| Operating Temperature | -20–70°C | |||
| Weight (g) | 204 | 198 | 342 | 336 |
Note 1: NPT and G thread types are available for selection.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Port Size |
|
| 3 | Mounting Accessory |
|
| 4 | Pressure Gauge Code |
|
| 5 | Thread Code |
|
