Fittings
Product Features

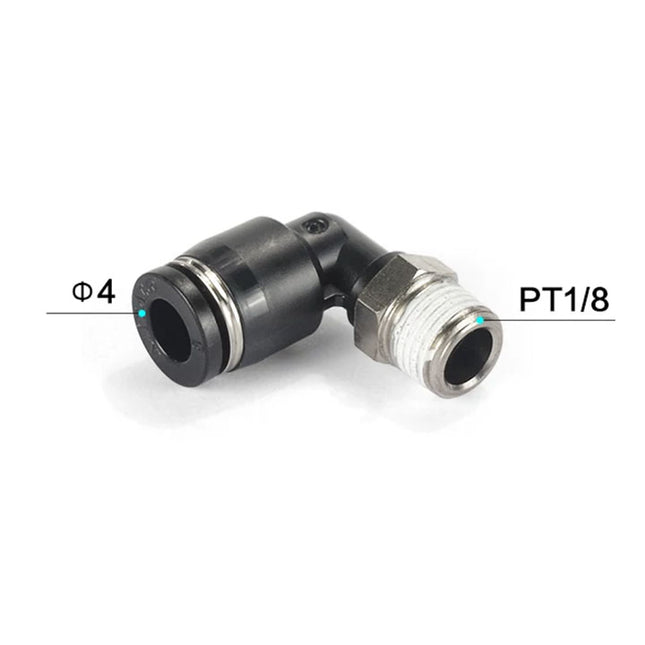

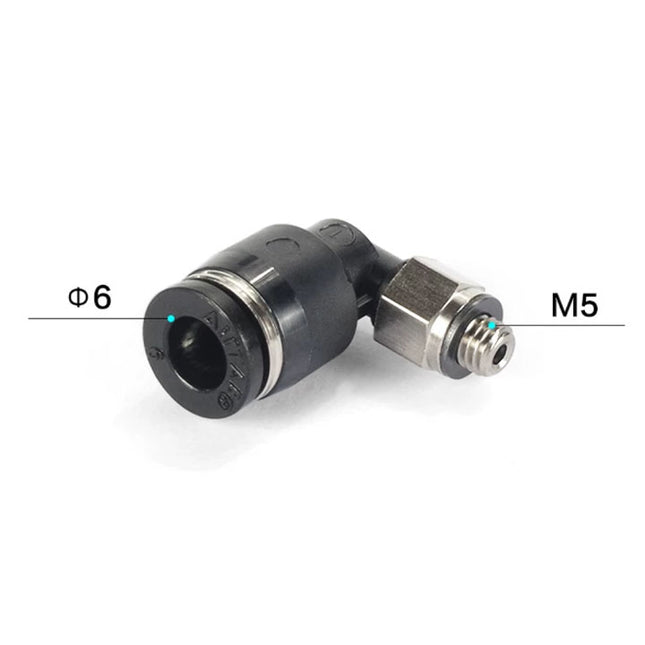

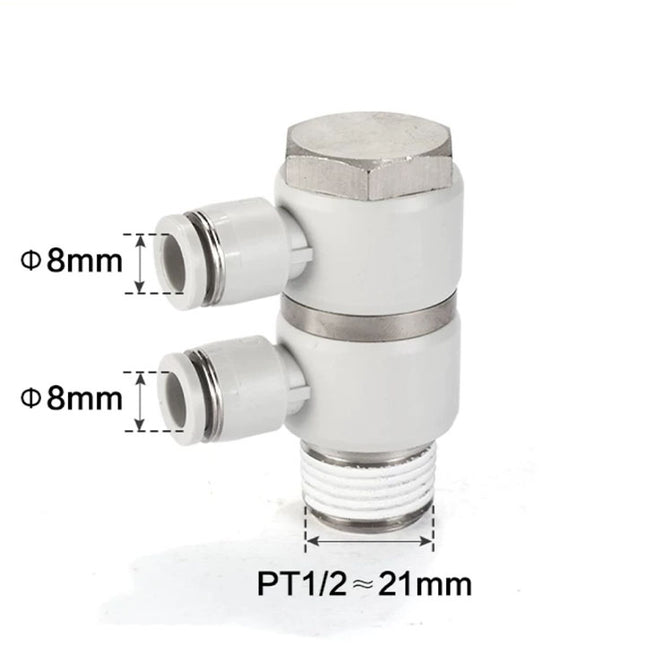

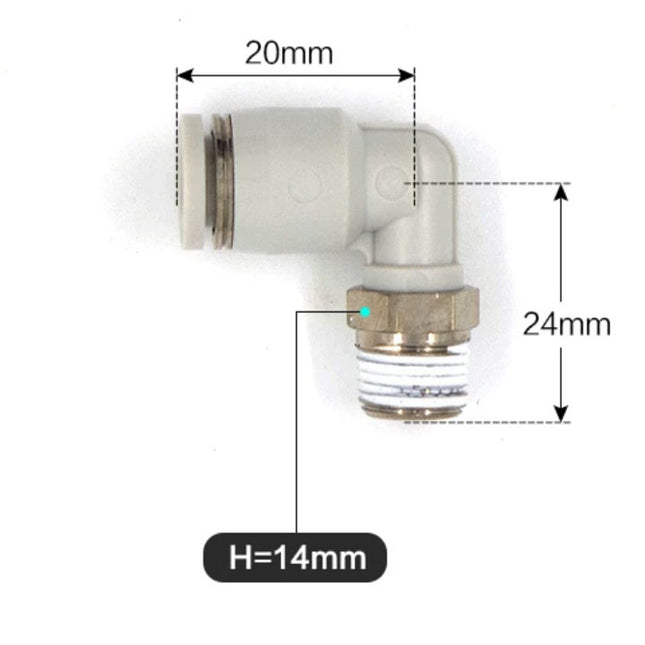

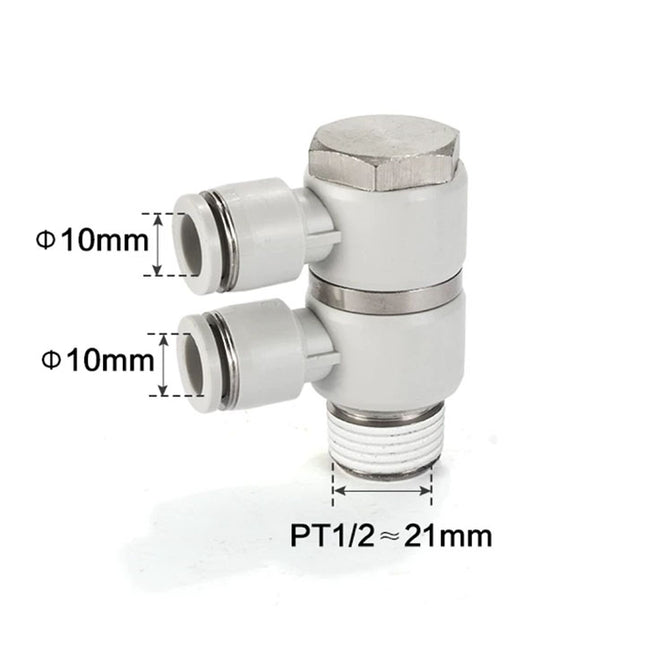

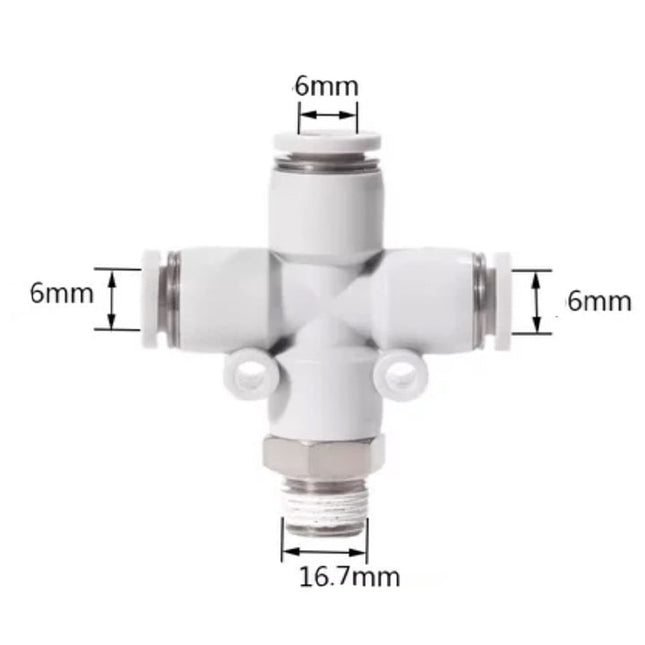

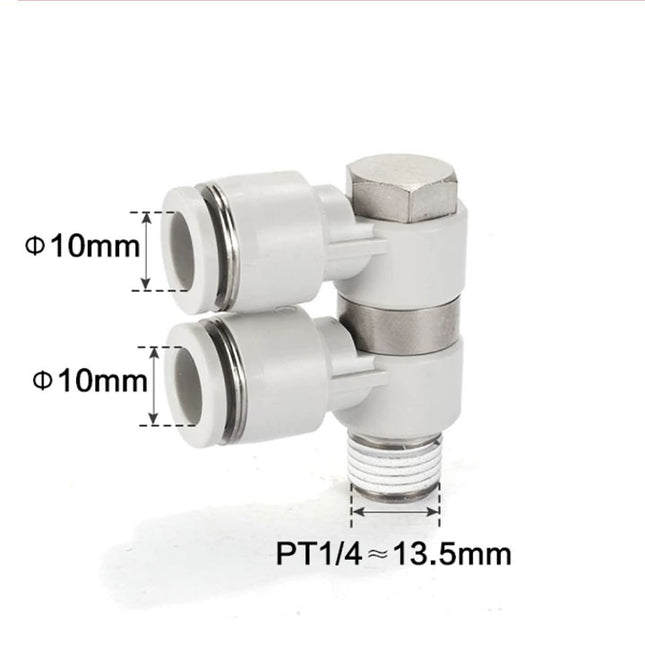

Plug-in Fittings - Threaded Type
- Stainless steel 304 material is available for selection.
- Multiple model specifications are available for various pneumatic systems.
- Excellent flow characteristics, allowing the medium to pass through with the full flow rate of the tube's inner diameter.
- The connection is simple and convenient, and the screw connection part between the pipe and the joint is safe, reliable, and durable.
- The screw part is coated with sealant, and the M5 metric thread has a gasket to ensure the connection thread is leak-free.

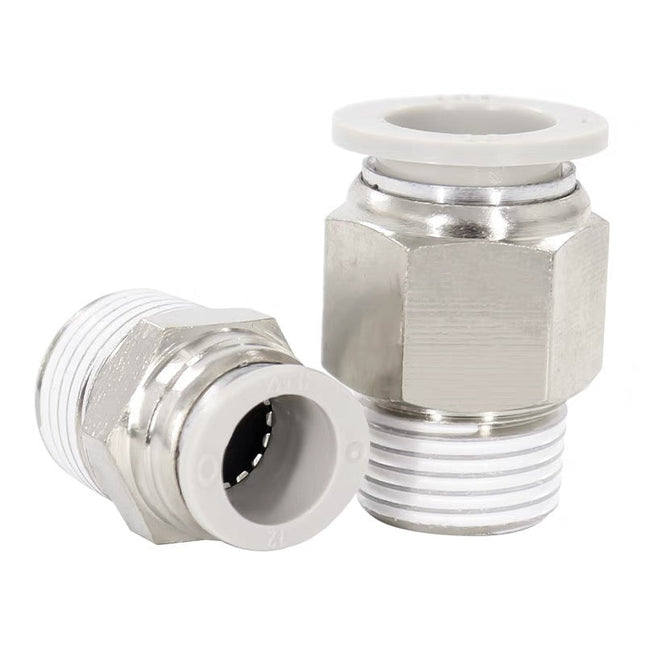

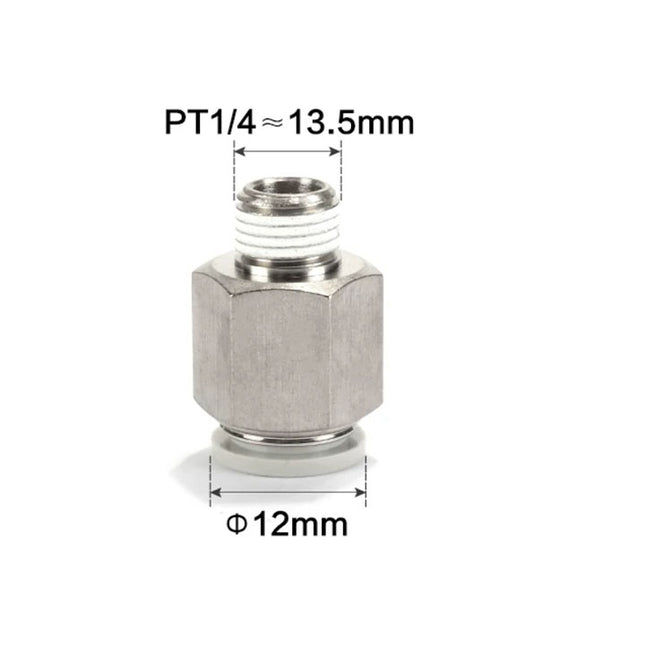

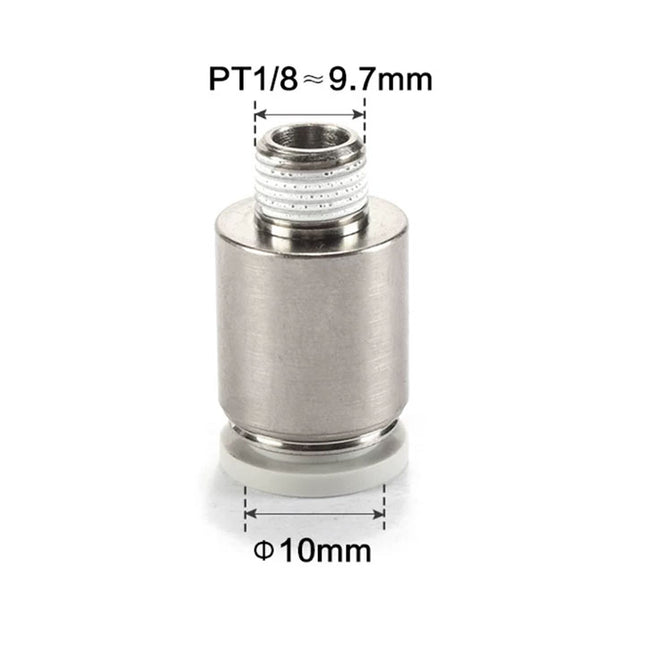

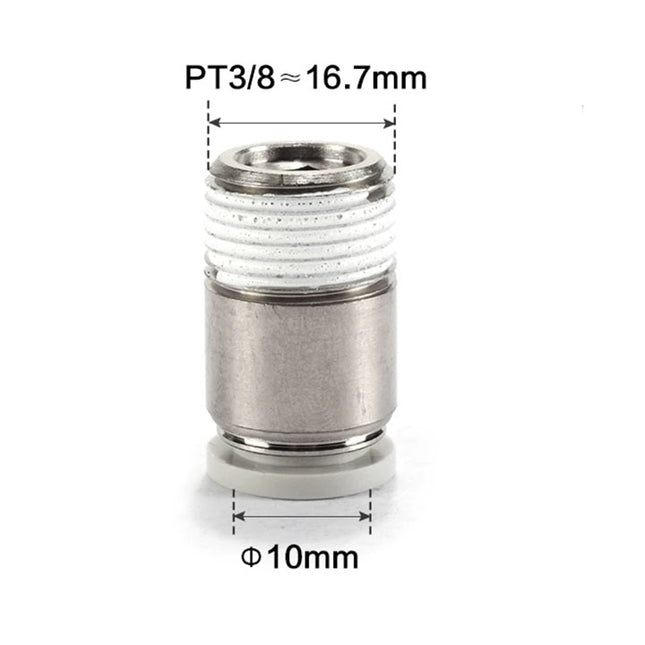

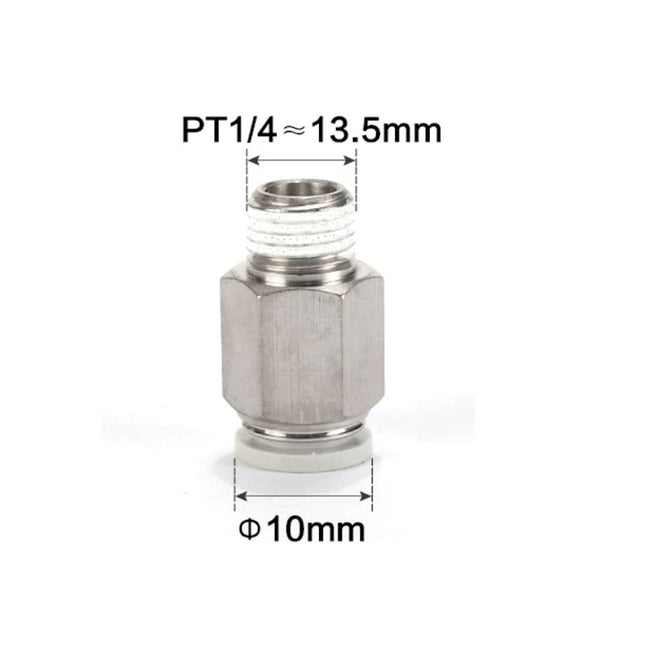

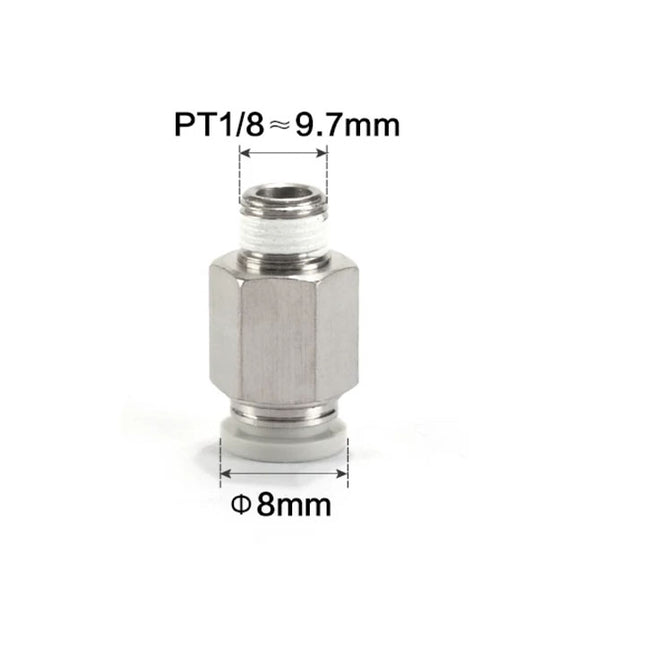

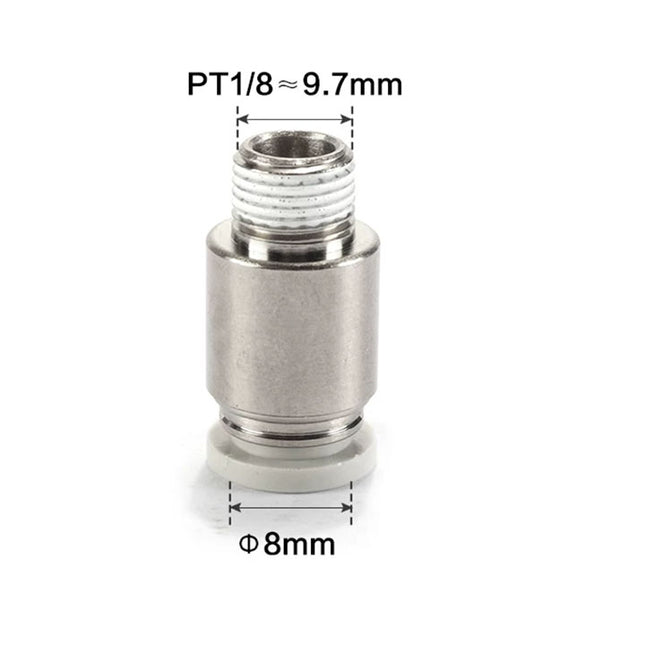

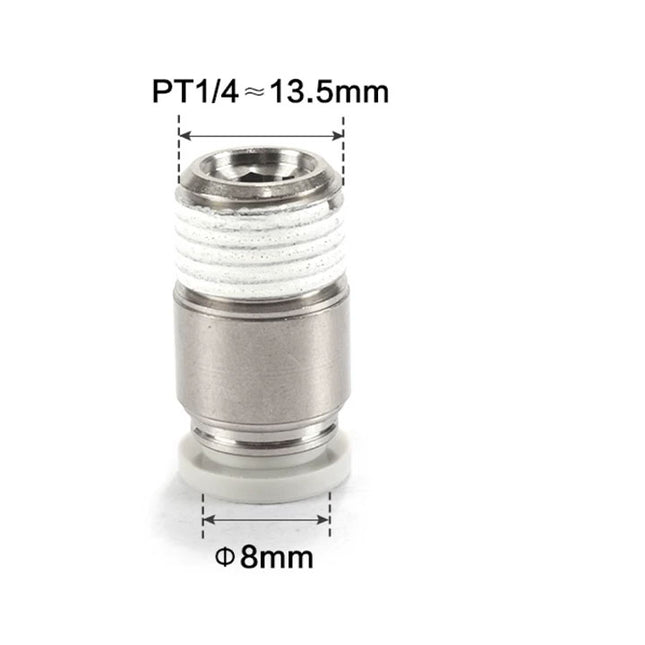

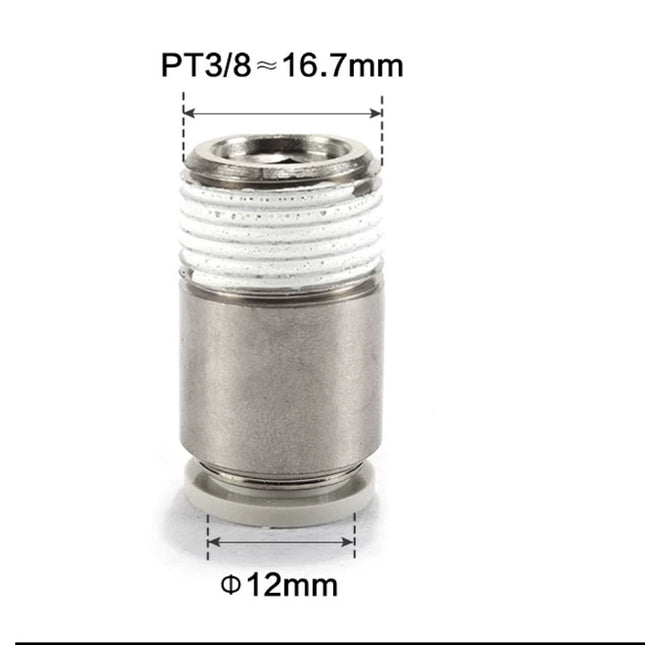

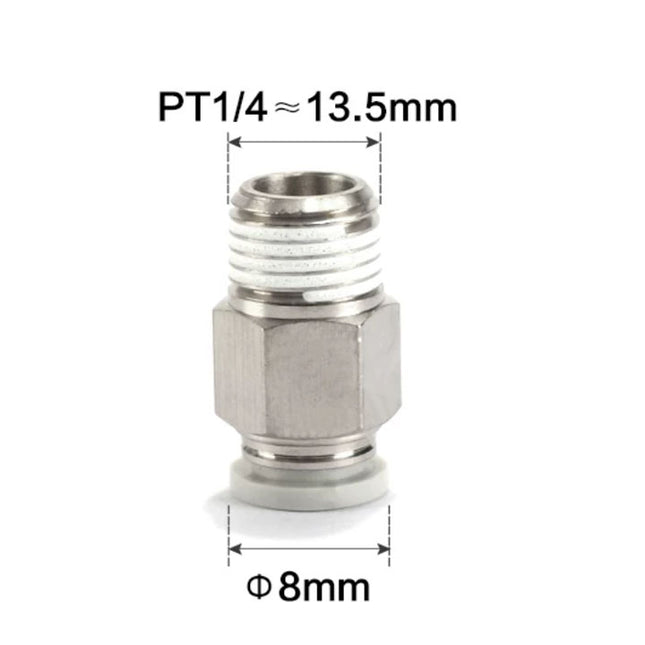

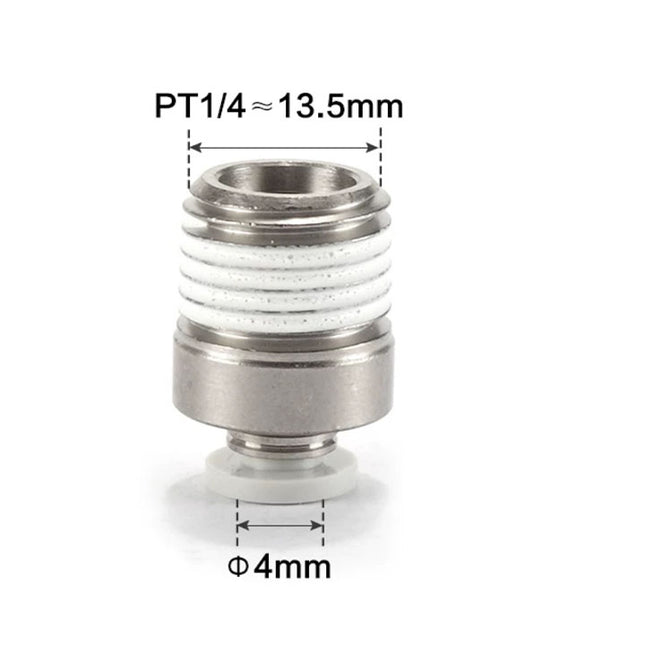

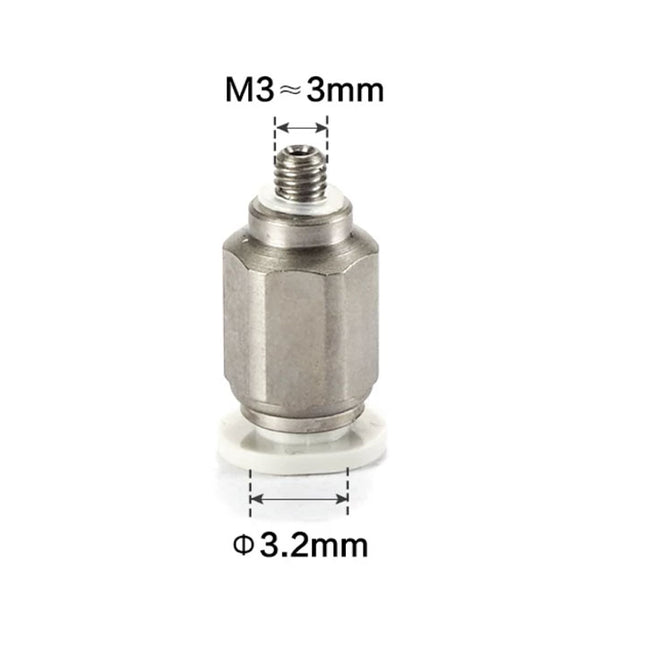

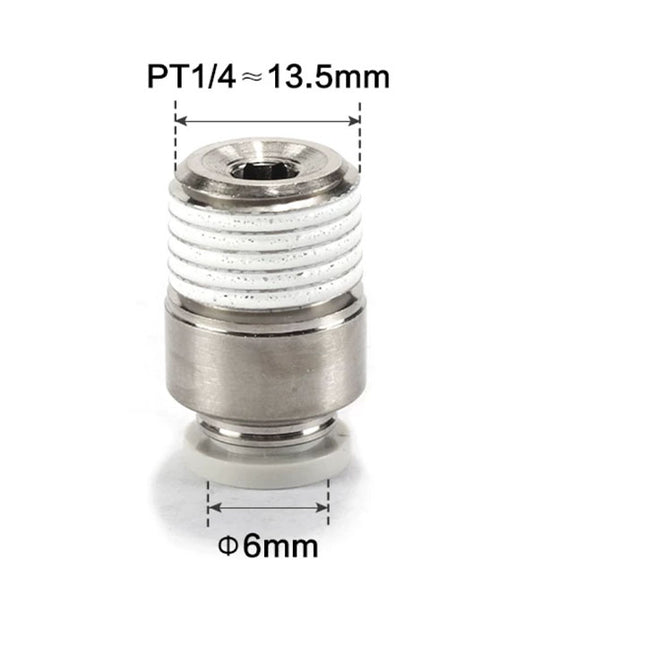

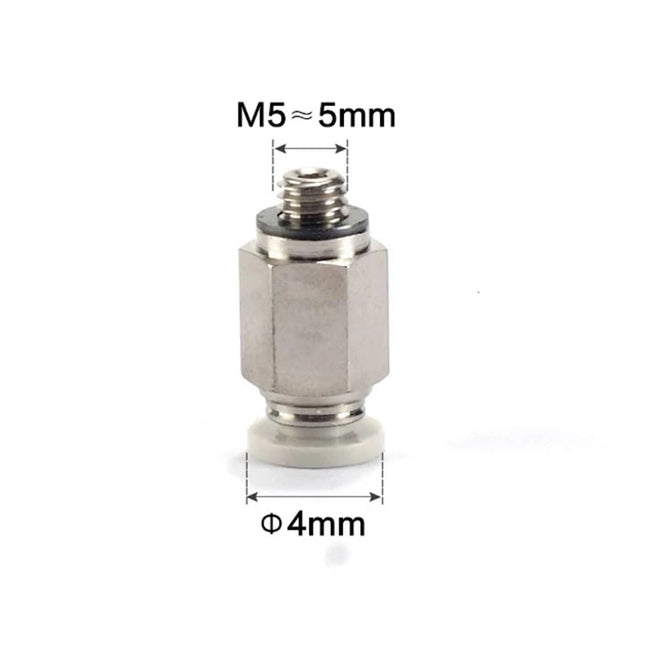

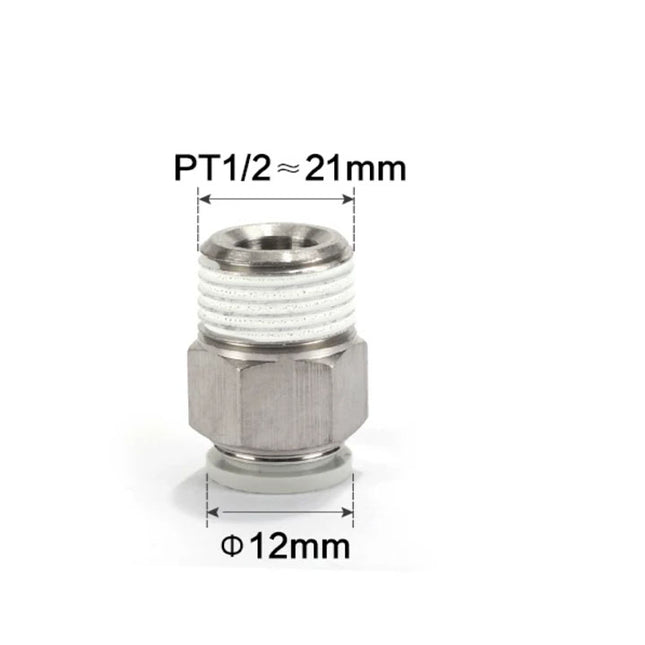

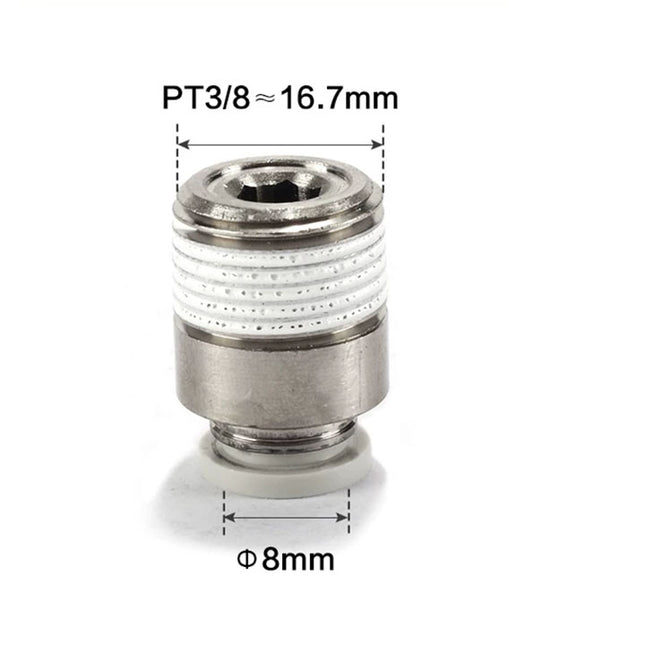

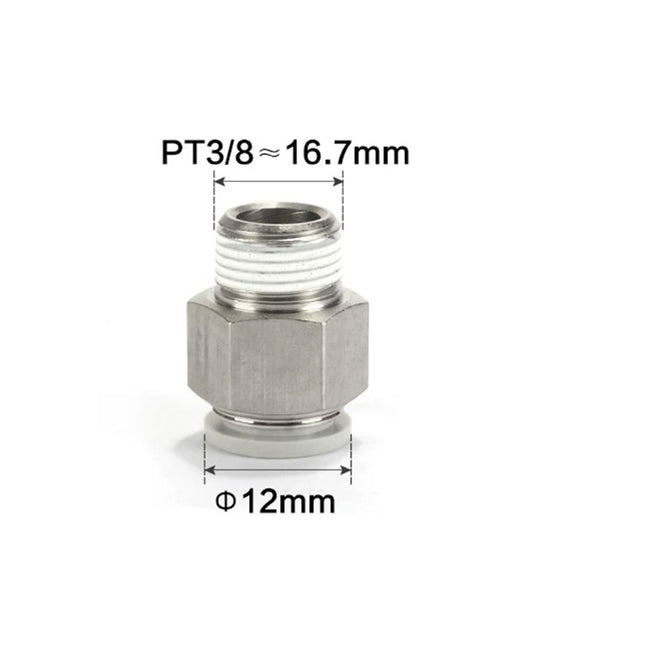

PC, POC Series
- The main body material is stainless steel 304, and all materials do not contain copper, making it suitable for fluorine-free environments.
- The thread is coated with sealant, and the M5 metric thread is attached with a sealing gasket to ensure the connection thread is leak-free.
- The plastic part is available in gray and black to meet your overall equipment requirements.
Specifications
| Operating Pressure Range | 0–10kgf/cm² (0–1.0MPa) |
| Negative Pressure | -750mmHg (10Torr) |
| Proof Pressure | 1.5MPa |
| Operating Temperature Range (°C) | -20–70 |
| Applicable Tubing | Nylon tubing or PU tubing |
| Color | Gray/Black |
Product Ordering Code
Plug-in Fittings - Threaded Type (PL, PHF, etc.)
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Tube OD |
|
| 3 | Connection Thread |
|
| 4 | Color Code |
|
| 5 | Thread Code |
|
| 6 | Material Code |
|
PKD Series
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Tube OD |
|
| 3 | Tube OD |
|
| 4 | Connection Thread |
|
| 5 | Color Code |
|
| 6 | Thread Code |
|
| 7 | Material Code |
|

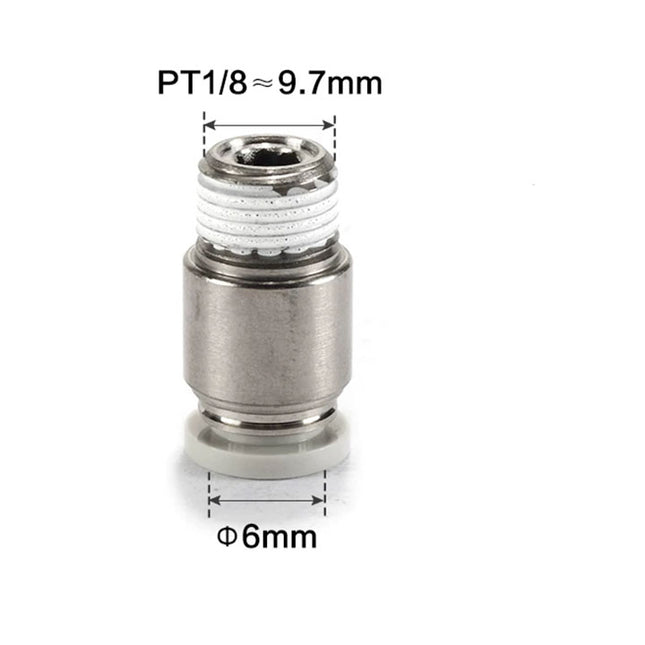

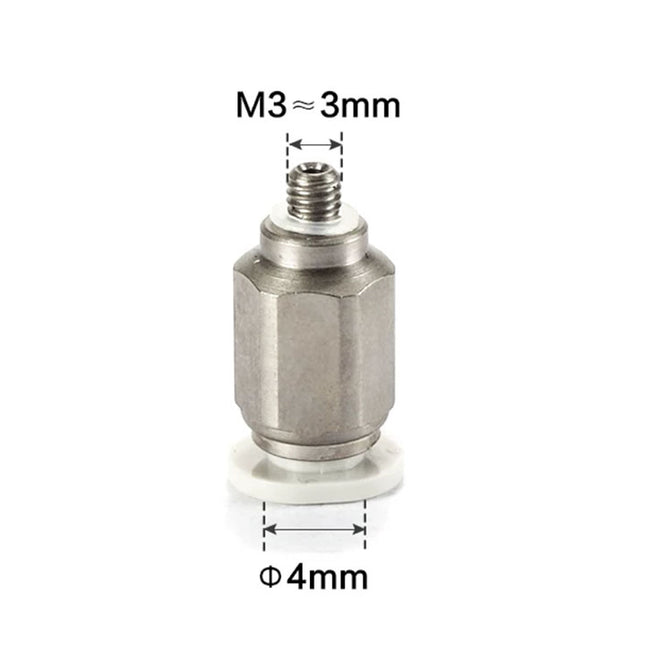

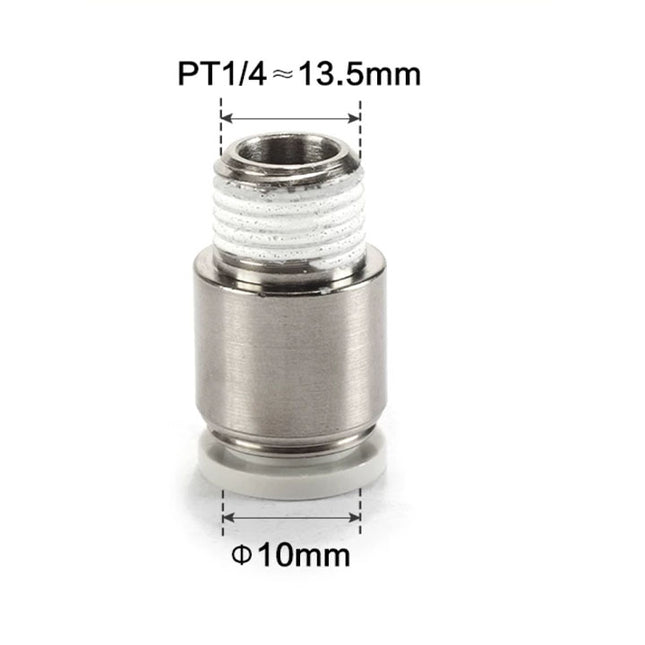

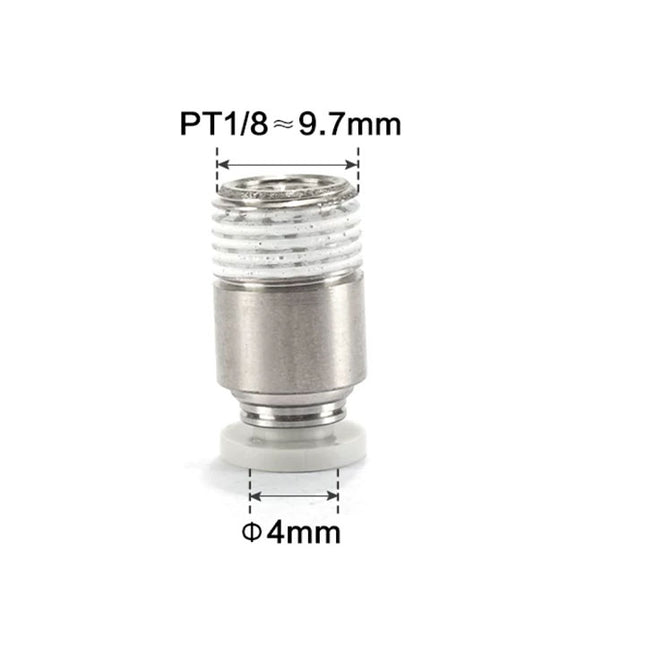

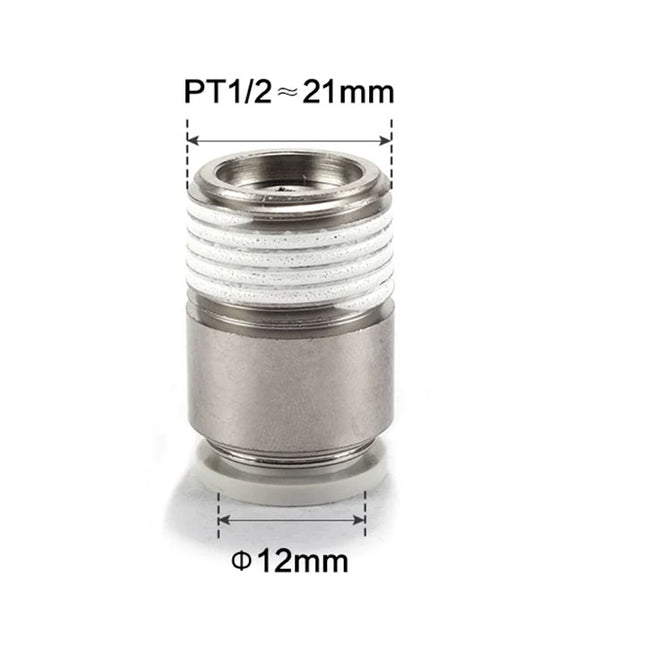

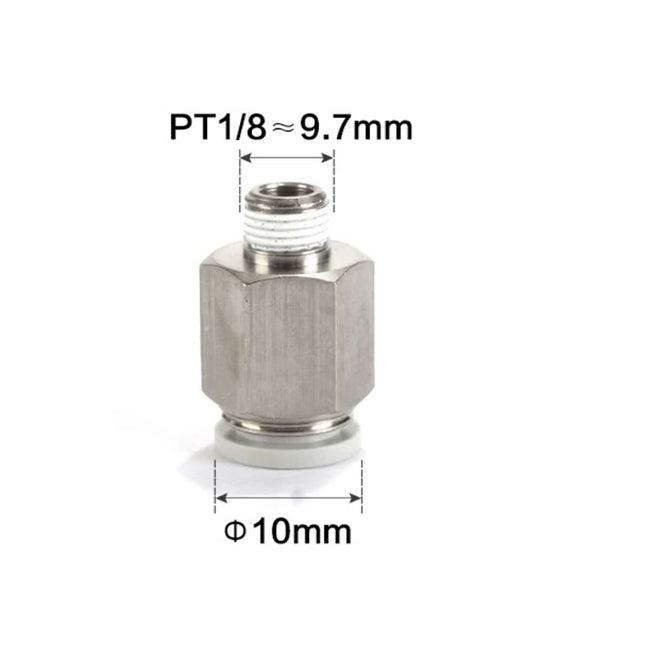

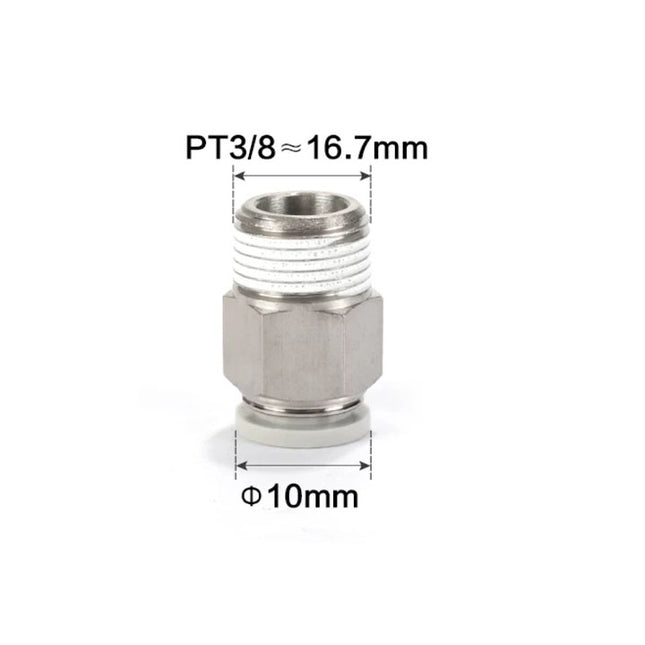

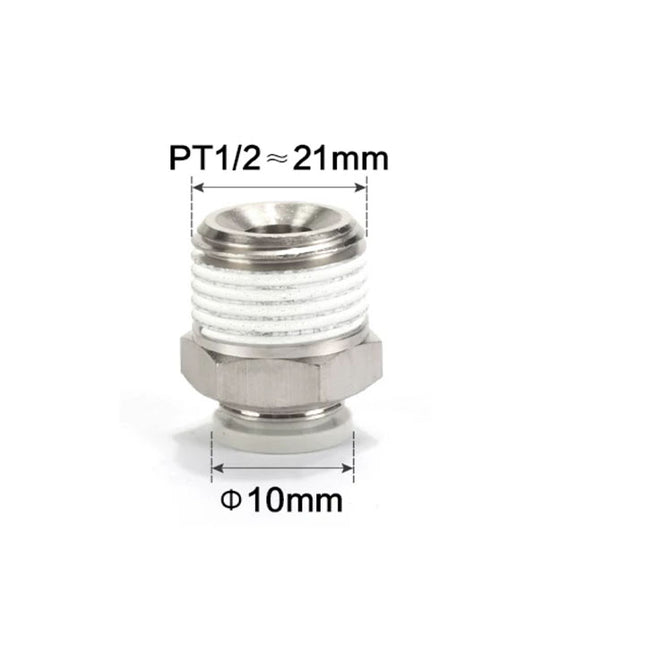

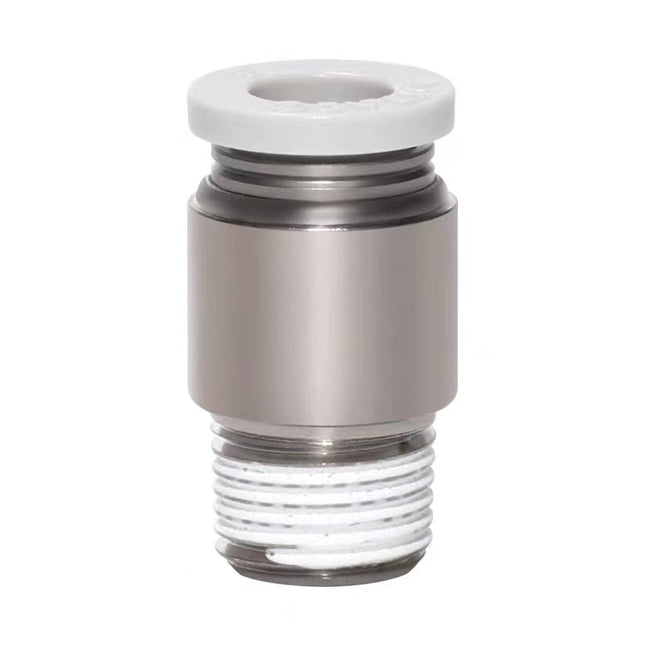

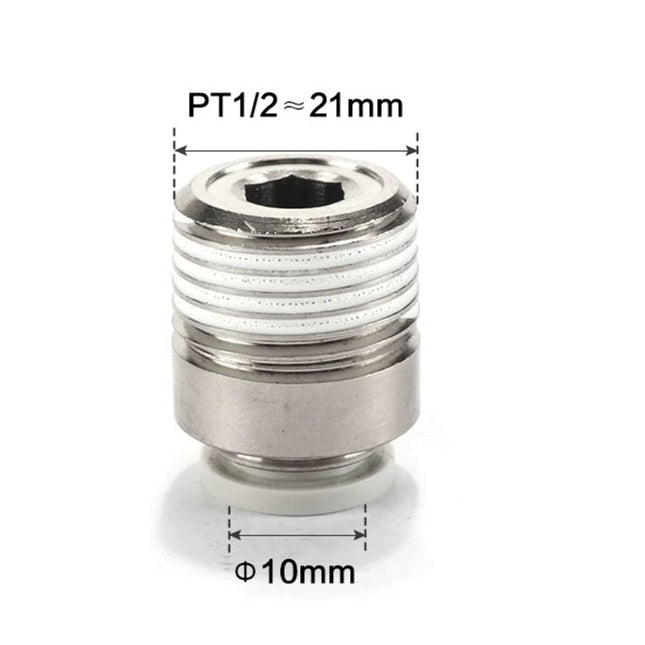

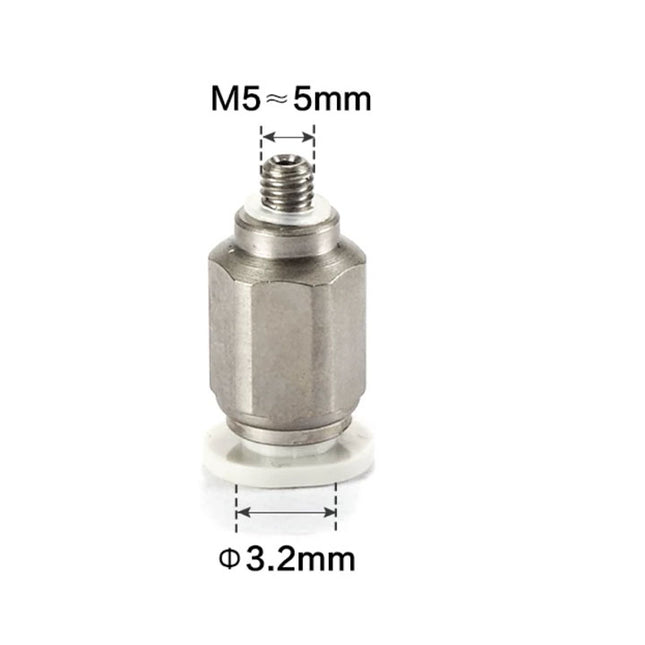

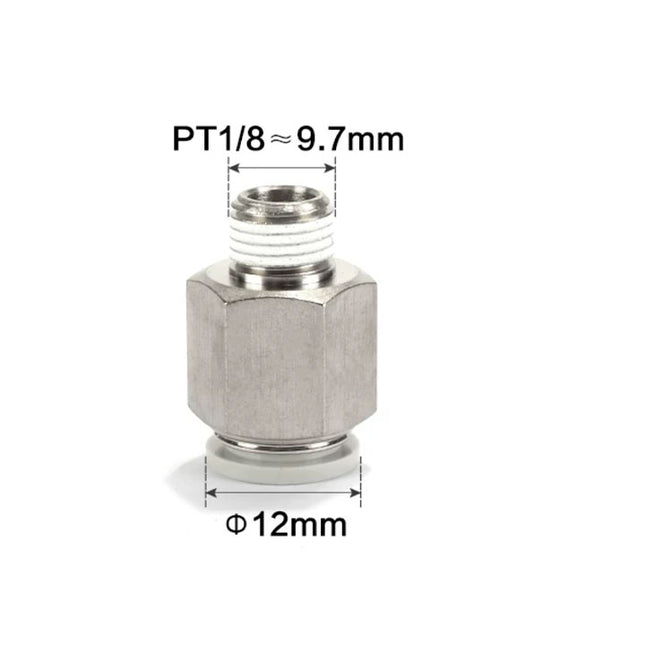

PC, POC Series
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Tube OD |
|
| 3 | Connection Thread |
|
| 4 | Color Code |
|
| 5 | Thread Code |
|
| 6 | Material Code |
|
