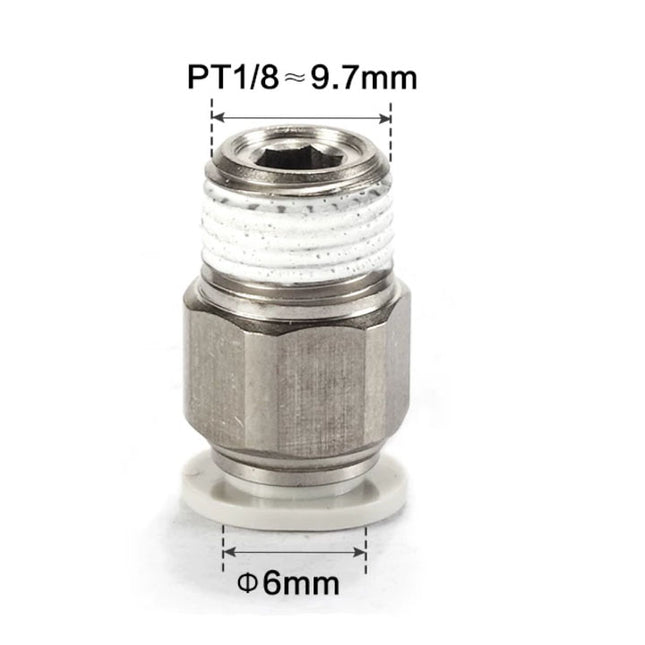

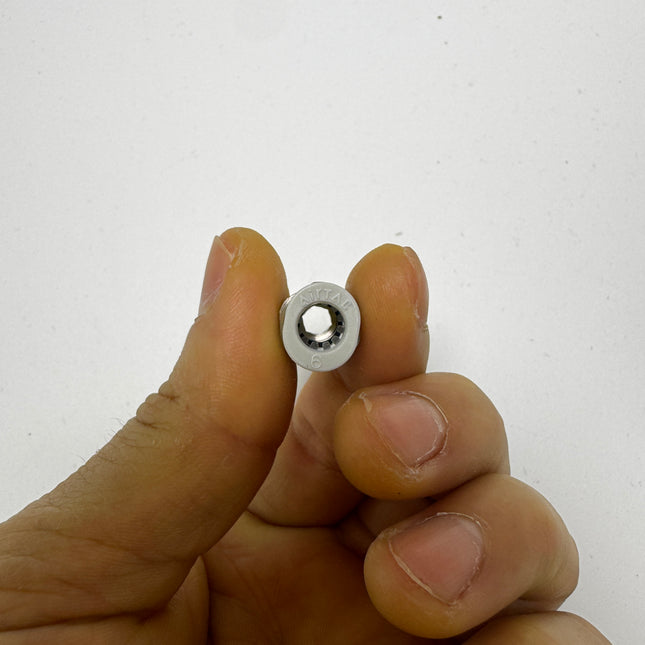

  Airtac PC series: male straight connector - PC601-M

  Specifications: PC601-M is an Airtac mini male straight connector. Male straight connector; Tube outside diameter: 6 mm; Male connection thread: PT 1/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PC Male straight connector 6 Tube outside diameter: 6 mm 01 Male connection thread: PT 1/8 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. -M Mini type Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: PT 1/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M3/M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R 1/8 L 7.5 mm C 19.0 mm K 15.5 mm X 9.8 mm Y 11.7 mm HA 10 mm HB 4 mm Source: Linked ordinary threaded fittings PDF page 2 printed page 257. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 6.0 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components Standard PC construction reference within this PDF. The mini page provides its own outline and specifications, but no dedicated mini internal-material table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PC3.2M3-M, PC3.2M5-M, PC401-M, PC4M3-M, PC4M5-M, PC601-M, PC6M5-M. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. The -M suffix selects the mini fitting; use its own outline and receiving socket. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. The -M mini version has its own outline and installation clearances; do not use the ordinary-size outline for mounting. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. The mini page provides its own outline and specifications but no dedicated mini internal-material table; the ordinary construction reference does not establish a separate mini parts list. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

  Airtac PL series: male elbow - PL4M3-M

  Specifications: PL4M3-M is an Airtac mini male elbow. Male elbow; Tube outside diameter: 4 mm; Male connection thread: M3×0.5; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PL Male elbow 4 Tube outside diameter: 4 mm M3 Male connection thread: M3×0.5 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. -M Mini type Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 4 mm; Male connection thread: M3×0.5; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M3/M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 4 mm R M3×0.5 ØP 8.5 mm L 3 mm K 12.5 mm EA 15 mm EB 14 mm H (across flats) 7 mm X 7.8 mm Y 9.5 mm Source: Linked ordinary threaded fittings PDF page 2 printed page 257. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 3.0 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components Standard PL construction reference within this PDF. The mini page provides its own outline and specifications, but no dedicated mini internal-material table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PL3.2M3-M, PL3.2M5-M, PL401-M, PL4M3-M, PL4M5-M, PL601-M, PL6M5-M. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 4 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male M3×0.5 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. The -M suffix selects the mini fitting; use its own outline and receiving socket. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 4 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R M3×0.5 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. This is M3×0.5; use the specified metric sealing gasket and confirm its seating. M3×0.5 and M5×0.8 are different metric connections; neither is an interchangeable substitute for #10-32 UNF. The -M mini version has its own outline and installation clearances; do not use the ordinary-size outline for mounting. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. The mini page provides its own outline and specifications but no dedicated mini internal-material table; the ordinary construction reference does not establish a separate mini parts list. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

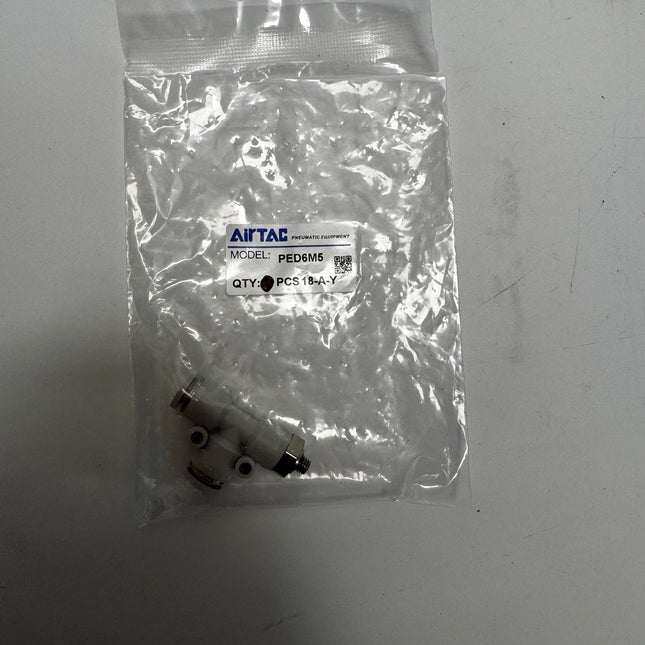

  Airtac PED series: male run tee - PED6M5

  Specifications: PED6M5 is an Airtac male run tee. Male run tee; Tube outside diameter: 6 mm; Male connection thread: M5×0.8; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PED Male run tee 6 Tube outside diameter: 6 mm M5 Male connection thread: M5×0.8 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: M5×0.8; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R M5×0.8 ØP 12.5 mm L 3.5 mm K 16.5 mm EA 20 mm EB 23.5 mm ØJ 3.2 mm JB 8 mm H (across flats) 12 mm Source: Linked ordinary threaded fittings PDF page 6 printed page 261. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 11.2 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PED1001, PED1002, PED1003, PED1004, PED1202, PED1203, PED1204, PED401, PED402, PED4M5, PED601, PED602, PED603, PED6M5, PED801, PED802, PED803, PED804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male M5×0.8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. All 2 sockets in the T group receive 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R M5×0.8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. This is M5×0.8; use the specified metric sealing gasket and confirm its seating. M3×0.5 and M5×0.8 are different metric connections; neither is an interchangeable substitute for #10-32 UNF. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.88

  View options

•

  View options

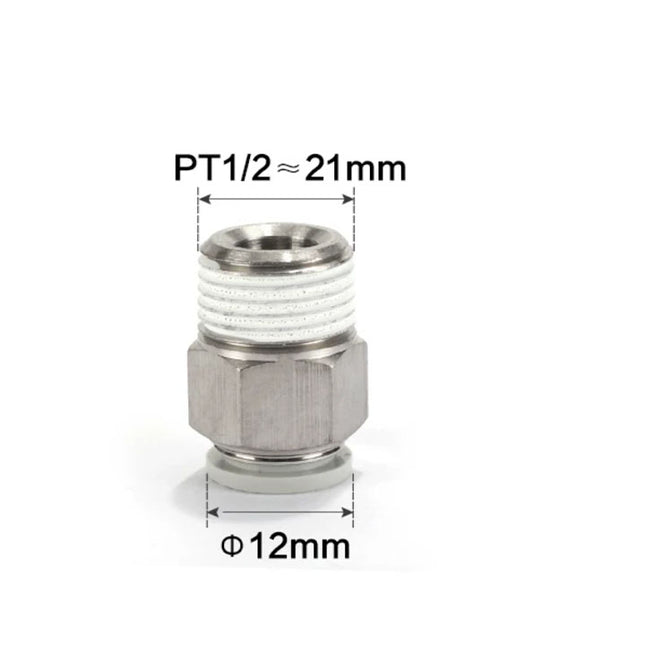

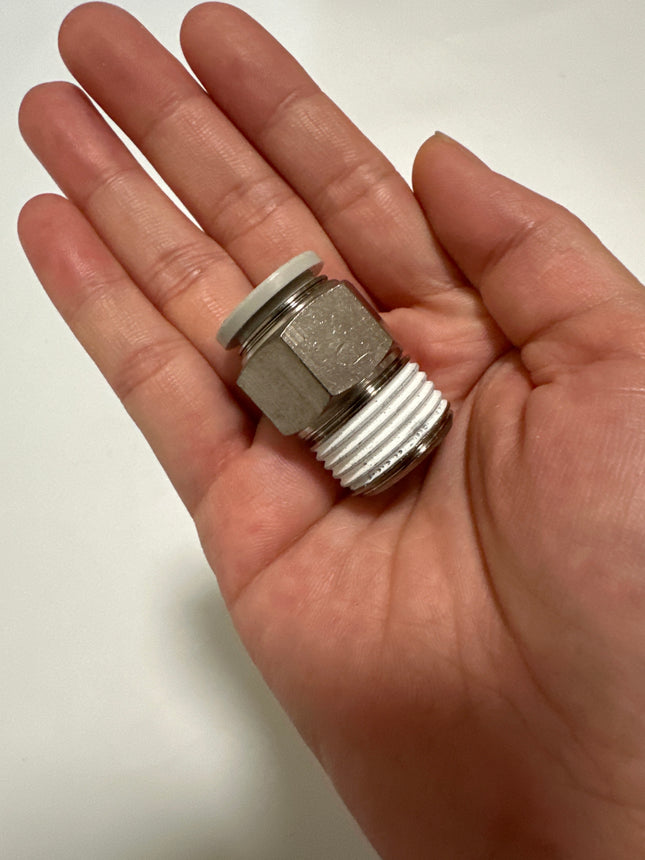

  Airtac PC series: male straight connector - PC1204

  Specifications: PC1204 is an Airtac male straight connector. Male straight connector; Tube outside diameter: 12 mm; Male connection thread: PT 1/2; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PC Male straight connector 12 Tube outside diameter: 12 mm 04 Male connection thread: PT 1/2 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 12 mm; Male connection thread: PT 1/2; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 12 mm R 1/2 L 14 mm C 32.5 mm K 23 mm H (across flats) 21 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 41.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PC1001, PC1002, PC1003, PC1004, PC1201, PC1202, PC1203, PC1204, PC401, PC402, PC4M5, PC601, PC602, PC603, PC604, PC6M5, PC801, PC802, PC803, PC804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 12 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/2 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 12 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/2 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options

•

  View options

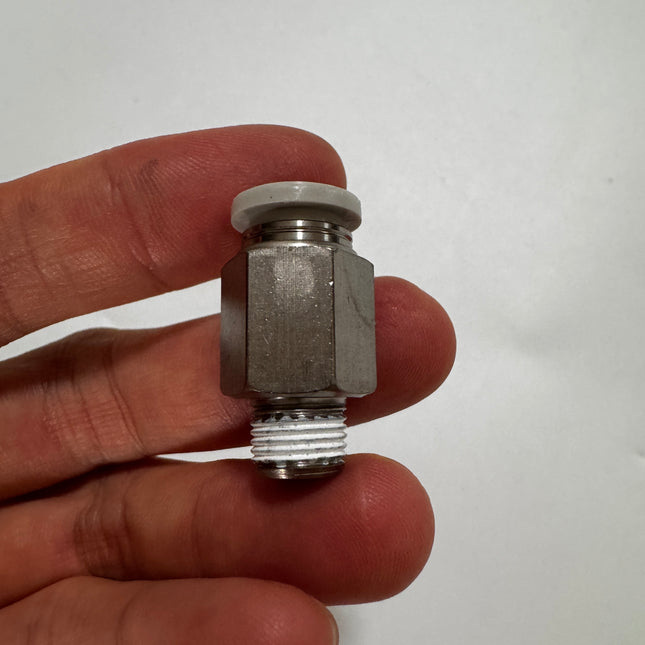

  Airtac PC series: male straight connector - PC801

  Specifications: PC801 is an Airtac male straight connector. Male straight connector; Tube outside diameter: 8 mm; Male connection thread: PT 1/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PC Male straight connector 8 Tube outside diameter: 8 mm 01 Male connection thread: PT 1/8 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Male connection thread: PT 1/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm R 1/8 L 7.5 mm C 28 mm K 18.5 mm H (across flats) 14 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 13.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PC1001, PC1002, PC1003, PC1004, PC1201, PC1202, PC1203, PC1204, PC401, PC402, PC4M5, PC601, PC602, PC603, PC604, PC6M5, PC801, PC802, PC803, PC804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 8 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 8 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

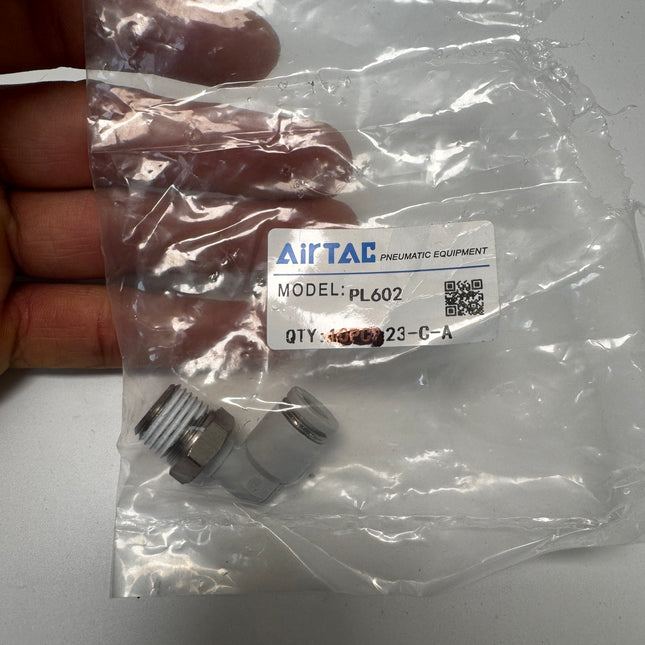

  Airtac PL series: male elbow - PL602

  Specifications: PL602 is an Airtac male elbow. Male elbow; Tube outside diameter: 6 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PL Male elbow 6 Tube outside diameter: 6 mm 02 Male connection thread: PT 1/4 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R 1/4 ØP 12.5 mm L 10 mm K 17 mm EA 20 mm EB 24.0 mm H (across flats) 14 mm Source: Linked ordinary threaded fittings PDF page 4 printed page 259. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 13.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PL1001, PL1002, PL1003, PL1004, PL1201, PL1202, PL1203, PL1204, PL401, PL402, PL4M5, PL601, PL602, PL603, PL604, PL6M5, PL801, PL802, PL803, PL804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/4 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/4 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

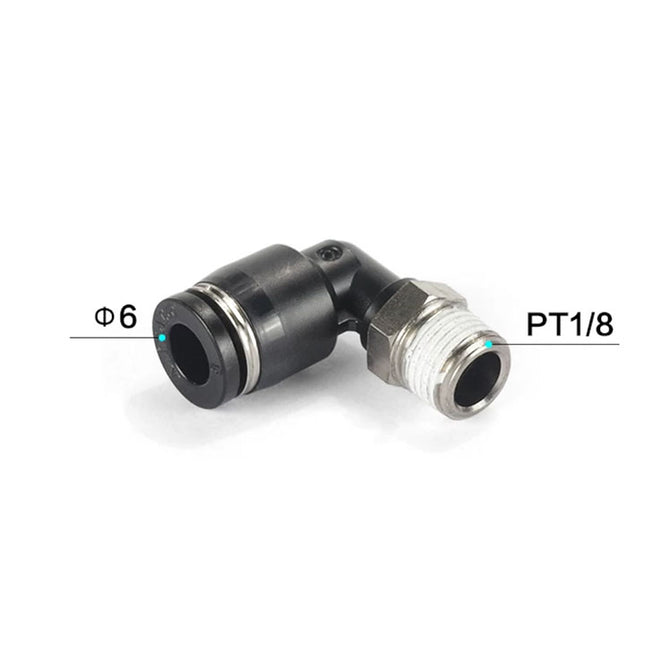

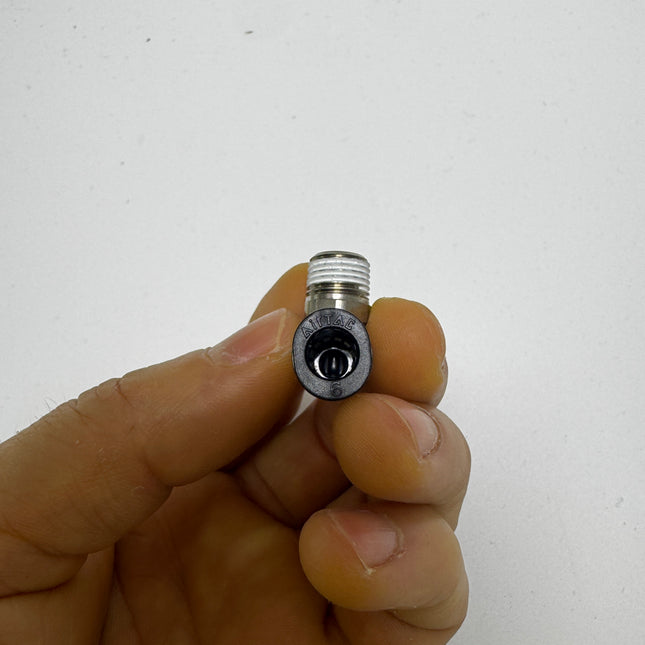

  Airtac PL series: male elbow - PL601D-M

  Specifications: PL601D-M is an Airtac mini male elbow. Male elbow; Tube outside diameter: 6 mm; Male connection thread: PT 1/8; Black release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PL Male elbow 6 Tube outside diameter: 6 mm 01 Male connection thread: PT 1/8 D Black release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. -M Mini type Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: PT 1/8; Black release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M3/M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R 1/8 ØP 10.5 mm L 7.5 mm K 13.5 mm EA 16.0 mm EB 16.5 mm H (across flats) 10 mm X 9.8 mm Y 11.7 mm Source: Linked ordinary threaded fittings PDF page 2 printed page 257. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 6.8 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components Standard PL construction reference within this PDF. The mini page provides its own outline and specifications, but no dedicated mini internal-material table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PL3.2M3-M, PL3.2M5-M, PL401-M, PL4M3-M, PL4M5-M, PL601-M, PL6M5-M. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. The -M suffix selects the mini fitting; use its own outline and receiving socket. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. The -M mini version has its own outline and installation clearances; do not use the ordinary-size outline for mounting. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. The mini page provides its own outline and specifications but no dedicated mini internal-material table; the ordinary construction reference does not establish a separate mini parts list. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

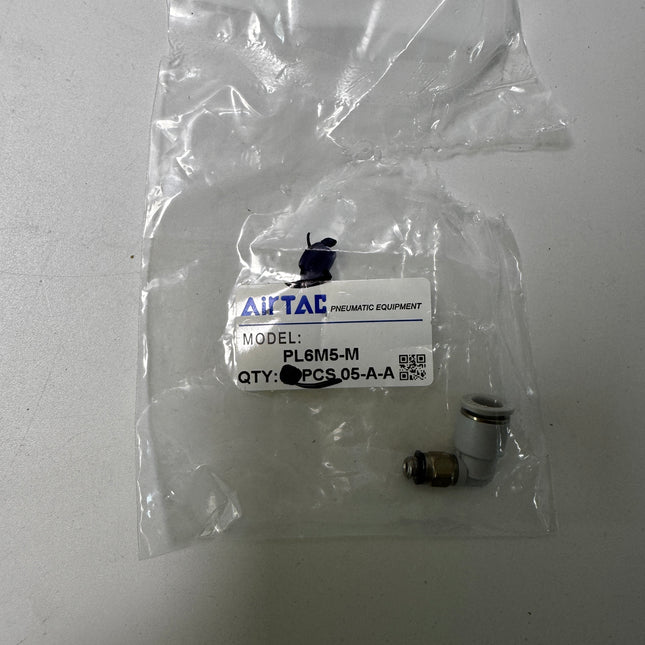

  Airtac PL series: male elbow - PL6M5-M

  Specifications: PL6M5-M is an Airtac mini male elbow. Male elbow; Tube outside diameter: 6 mm; Male connection thread: M5×0.8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PL Male elbow 6 Tube outside diameter: 6 mm M5 Male connection thread: M5×0.8 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. -M Mini type Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: M5×0.8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M3/M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R M5×0.8 ØP 10.5 mm L 3.5 mm K 13.5 mm EA 16.0 mm EB 15.5 mm H (across flats) 7 mm X 9.8 mm Y 11.7 mm Source: Linked ordinary threaded fittings PDF page 2 printed page 257. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 4.0 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components Standard PL construction reference within this PDF. The mini page provides its own outline and specifications, but no dedicated mini internal-material table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PL3.2M3-M, PL3.2M5-M, PL401-M, PL4M3-M, PL4M5-M, PL601-M, PL6M5-M. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male M5×0.8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. The -M suffix selects the mini fitting; use its own outline and receiving socket. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R M5×0.8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. This is M5×0.8; use the specified metric sealing gasket and confirm its seating. M3×0.5 and M5×0.8 are different metric connections; neither is an interchangeable substitute for #10-32 UNF. The -M mini version has its own outline and installation clearances; do not use the ordinary-size outline for mounting. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. The mini page provides its own outline and specifications but no dedicated mini internal-material table; the ordinary construction reference does not establish a separate mini parts list. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

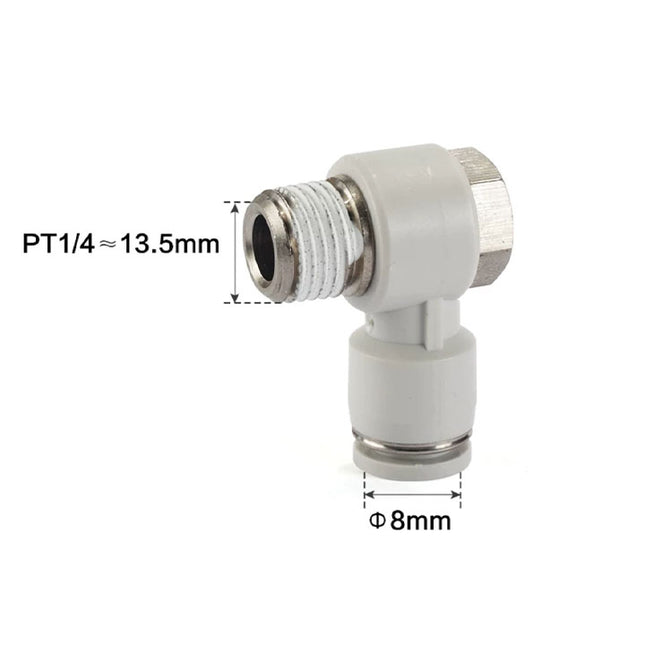

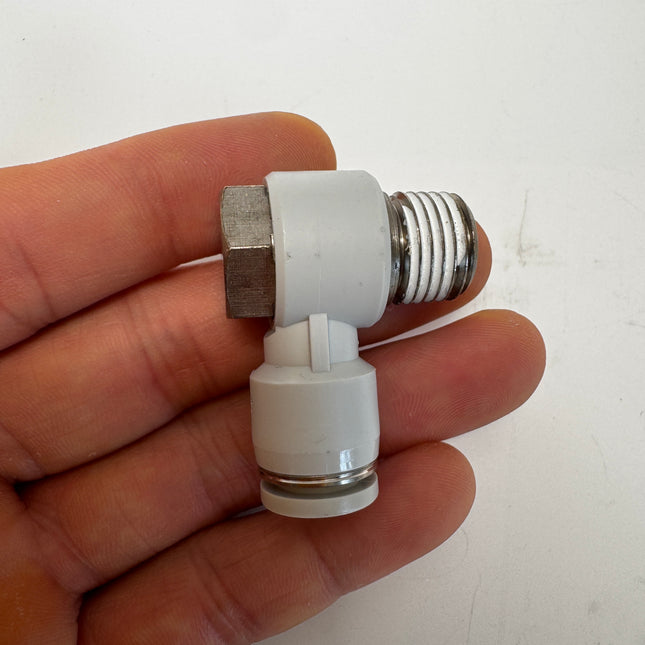

  Airtac PH series: universal male elbow - PH802

  Specifications: PH802 is an Airtac universal male elbow. Universal male elbow; Tube outside diameter: 8 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PH Universal male elbow 8 Tube outside diameter: 8 mm 02 Male connection thread: PT 1/4 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm R 1/4 ØP 15 mm L 10 mm C 28 mm K 18.5 mm E 28.5 mm H (across flats) 14 mm Source: Linked ordinary threaded fittings PDF page 5 printed page 260. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 26.4 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PH1002, PH1003, PH1004, PH1203, PH1204, PH401, PH4M5, PH601, PH602, PH603, PH6M5, PH801, PH802, PH803, PH804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 8 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/4 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 8 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/4 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options

•

  View options

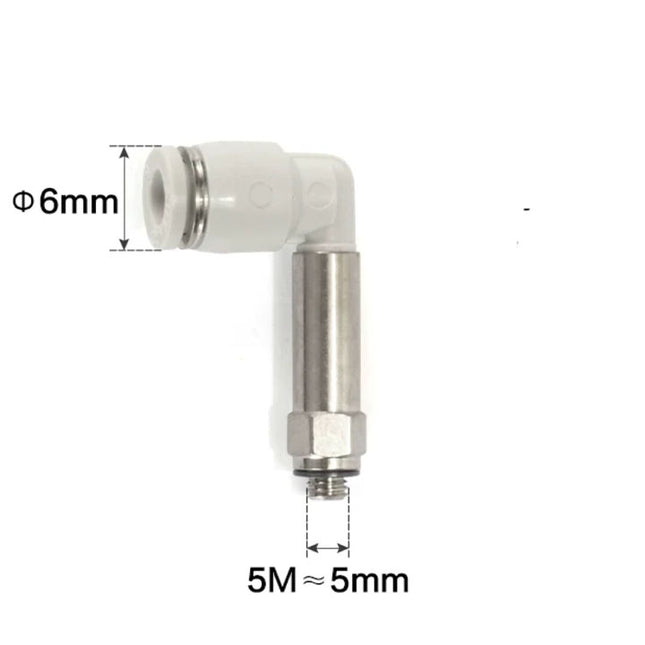

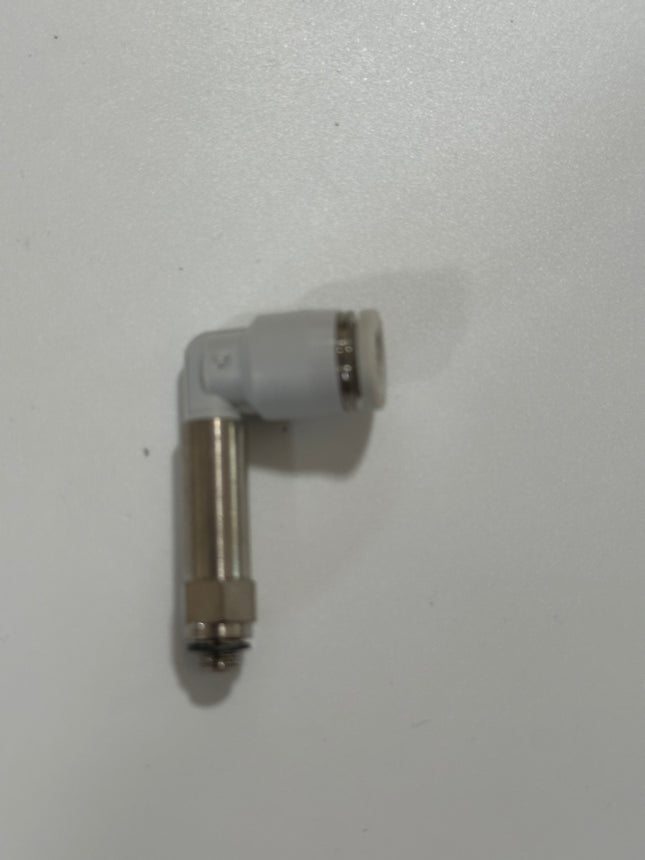

  Airtac PLL series: extended male elbow - PLL6M5

  Specifications: PLL6M5 is an Airtac extended male elbow. Extended male elbow; Tube outside diameter: 6 mm; Male connection thread: M5×0.8; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PLL Extended male elbow 6 Tube outside diameter: 6 mm M5 Male connection thread: M5×0.8 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: M5×0.8; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R M5×0.8 ØP 12.5 mm L 3.5 mm K 17 mm EA 20 mm EB 34.5 mm H (across flats) 8 mm Source: Linked ordinary threaded fittings PDF page 5 printed page 260. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 9.9 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PLL1001, PLL1002, PLL1003, PLL1004, PLL1202, PLL1203, PLL1204, PLL401, PLL402, PLL4M5, PLL601, PLL602, PLL603, PLL6M5, PLL801, PLL802, PLL803. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male M5×0.8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R M5×0.8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. This is M5×0.8; use the specified metric sealing gasket and confirm its seating. M3×0.5 and M5×0.8 are different metric connections; neither is an interchangeable substitute for #10-32 UNF. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

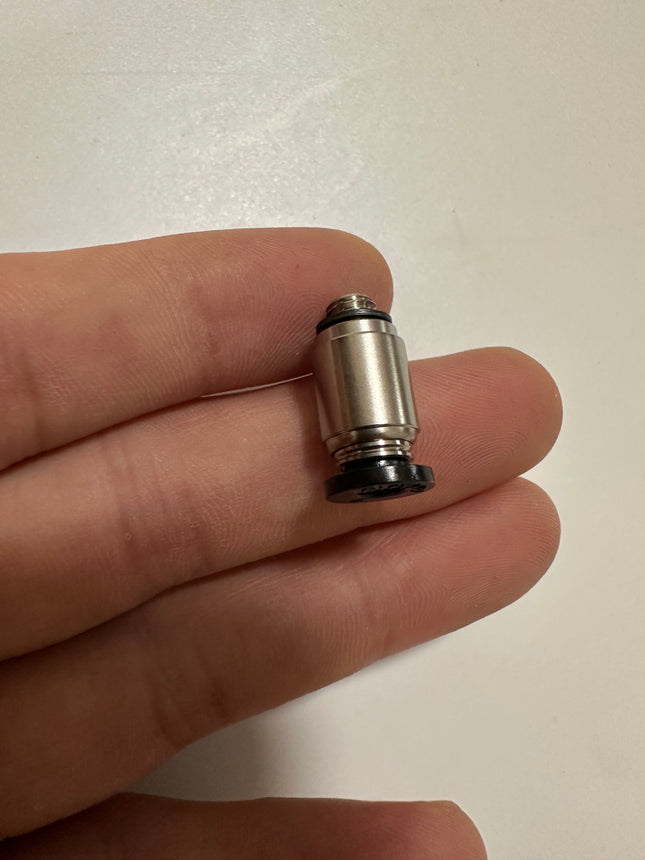

  Airtac POC series: hexagon-socket male connector - POC4M5D

  Specifications: POC4M5D is an Airtac hexagon-socket male straight connector. Hexagon-socket male straight connector; Tube outside diameter: 4 mm; Male connection thread: M5×0.8; Black release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning POC Hexagon-socket male straight connector 4 Tube outside diameter: 4 mm M5 Male connection thread: M5×0.8 D Black release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 4 mm; Male connection thread: M5×0.8; Black release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 4 mm R M5×0.8 ØP 9 mm L 3.5 mm C 18.5 mm K 14 mm H (across flats) 2.5 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 3.6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: POC1001, POC1002, POC1003, POC1004, POC1202, POC1203, POC1204, POC401, POC402, POC4M5, POC601, POC602, POC6M5, POC801, POC802, POC803. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 4 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male M5×0.8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 4 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R M5×0.8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. This is M5×0.8; use the specified metric sealing gasket and confirm its seating. M3×0.5 and M5×0.8 are different metric connections; neither is an interchangeable substitute for #10-32 UNF. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

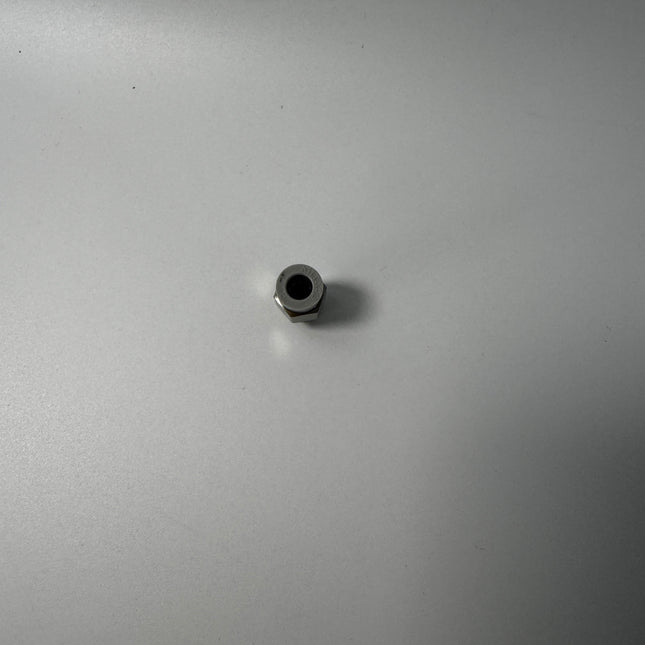

  Airtac PC series: male straight connector - PC601

  Specifications: PC601 is an Airtac male straight connector. Male straight connector; Tube outside diameter: 6 mm; Male connection thread: PT 1/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PC Male straight connector 6 Tube outside diameter: 6 mm 01 Male connection thread: PT 1/8 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: PT 1/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R 1/8 L 7.5 mm C 22.0 mm K 18.5 mm H (across flats) 12 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 7.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PC1001, PC1002, PC1003, PC1004, PC1201, PC1202, PC1203, PC1204, PC401, PC402, PC4M5, PC601, PC602, PC603, PC604, PC6M5, PC801, PC802, PC803, PC804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

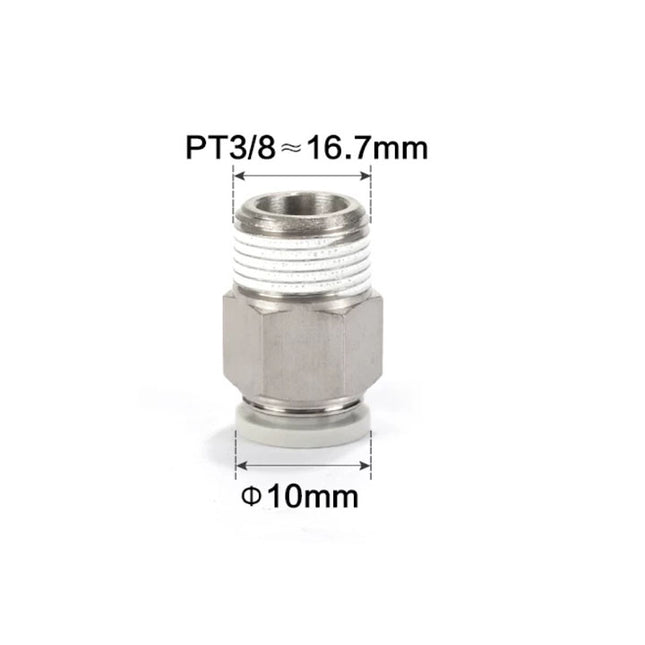

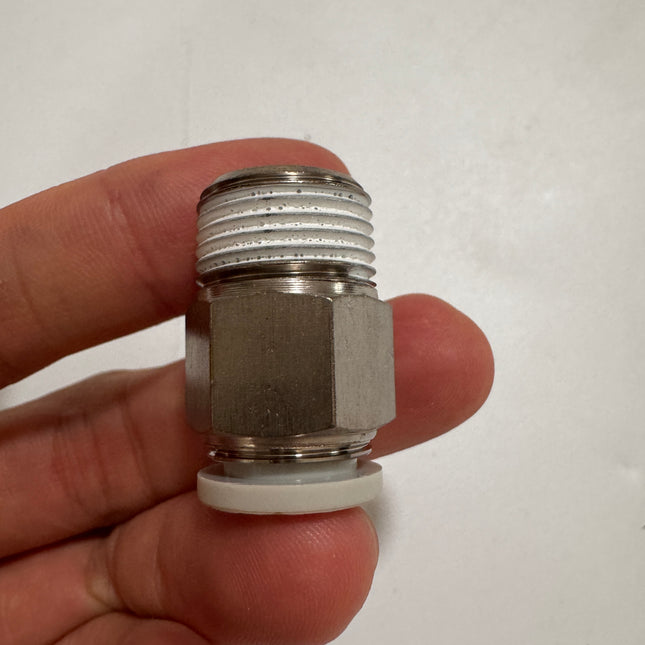

  Airtac PC series: male straight connector - PC1003

  Specifications: PC1003 is an Airtac male straight connector. Male straight connector; Tube outside diameter: 10 mm; Male connection thread: PT 3/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PC Male straight connector 10 Tube outside diameter: 10 mm 03 Male connection thread: PT 3/8 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 10 mm; Male connection thread: PT 3/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 10 mm R 3/8 L 11 mm C 28 mm K 21 mm H (across flats) 17 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 20.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PC1001, PC1002, PC1003, PC1004, PC1201, PC1202, PC1203, PC1204, PC401, PC402, PC4M5, PC601, PC602, PC603, PC604, PC6M5, PC801, PC802, PC803, PC804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 10 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT3/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 10 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT3/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.33

  View options

•

  View options

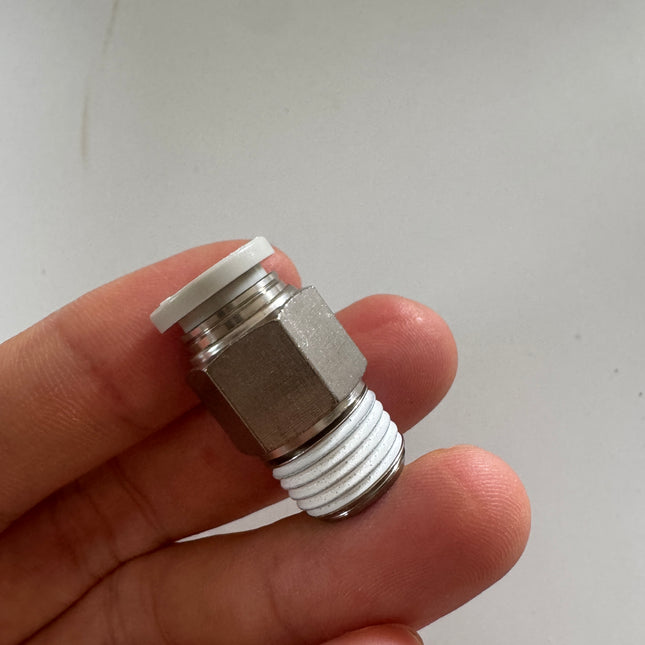

  Airtac PC series: male straight connector - PC802

  Specifications: PC802 is an Airtac male straight connector. Male straight connector; Tube outside diameter: 8 mm; Male connection thread: PT 1/4; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PC Male straight connector 8 Tube outside diameter: 8 mm 02 Male connection thread: PT 1/4 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Male connection thread: PT 1/4; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm R 1/4 L 10 mm C 27 mm K 18.5 mm H (across flats) 14 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 13 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PC1001, PC1002, PC1003, PC1004, PC1201, PC1202, PC1203, PC1204, PC401, PC402, PC4M5, PC601, PC602, PC603, PC604, PC6M5, PC801, PC802, PC803, PC804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 8 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/4 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 8 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/4 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.33

  View options

•

  View options

  Airtac PL series: male elbow - PL802

  Specifications: PL802 is an Airtac male elbow. Male elbow; Tube outside diameter: 8 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PL Male elbow 8 Tube outside diameter: 8 mm 02 Male connection thread: PT 1/4 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm R 1/4 ØP 15 mm L 10 mm K 18.5 mm EA 23 mm EB 25.0 mm H (across flats) 14 mm Source: Linked ordinary threaded fittings PDF page 4 printed page 259. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 13 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PL1001, PL1002, PL1003, PL1004, PL1201, PL1202, PL1203, PL1204, PL401, PL402, PL4M5, PL601, PL602, PL603, PL604, PL6M5, PL801, PL802, PL803, PL804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 8 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/4 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 8 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/4 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

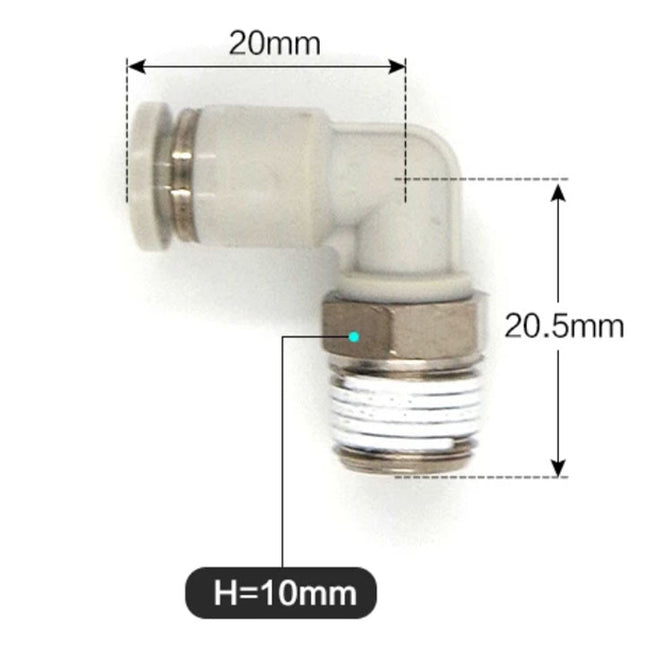

  Airtac PL series: male elbow - PL601

  Specifications: PL601 is an Airtac male elbow. Male elbow; Tube outside diameter: 6 mm; Male connection thread: PT 1/8; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PL Male elbow 6 Tube outside diameter: 6 mm 01 Male connection thread: PT 1/8 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: PT 1/8; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R 1/8 ØP 12.5 mm L 7.5 mm K 17 mm EA 20 mm EB 20.5 mm H (across flats) 10 mm Source: Linked ordinary threaded fittings PDF page 4 printed page 259. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PL1001, PL1002, PL1003, PL1004, PL1201, PL1202, PL1203, PL1204, PL401, PL402, PL4M5, PL601, PL602, PL603, PL604, PL6M5, PL801, PL802, PL803, PL804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

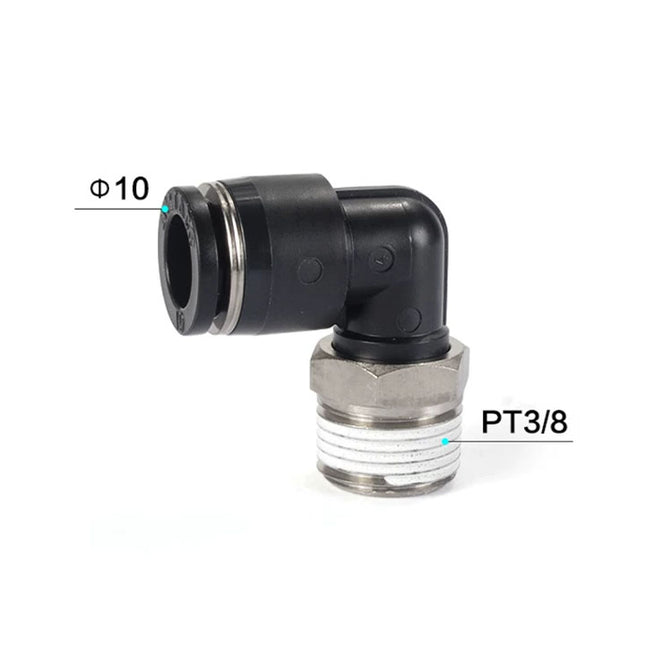

  Airtac PL series: male elbow - PL1003D

  Specifications: PL1003D is an Airtac male elbow. Male elbow; Tube outside diameter: 10 mm; Male connection thread: PT 3/8; Black release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PL Male elbow 10 Tube outside diameter: 10 mm 03 Male connection thread: PT 3/8 D Black release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 10 mm; Male connection thread: PT 3/8; Black release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 10 mm R 3/8 ØP 18 mm L 11 mm K 21 mm EA 25.5 mm EB 28.0 mm H (across flats) 17 mm Source: Linked ordinary threaded fittings PDF page 4 printed page 259. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 21 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PL1001, PL1002, PL1003, PL1004, PL1201, PL1202, PL1203, PL1204, PL401, PL402, PL4M5, PL601, PL602, PL603, PL604, PL6M5, PL801, PL802, PL803, PL804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 10 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT3/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 10 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT3/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.88

  View options

•

  View options

  Airtac PC series: male straight connector - PC1002D

  Specifications: PC1002D is an Airtac male straight connector. Male straight connector; Tube outside diameter: 10 mm; Male connection thread: PT 1/4; Black release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PC Male straight connector 10 Tube outside diameter: 10 mm 02 Male connection thread: PT 1/4 D Black release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 10 mm; Male connection thread: PT 1/4; Black release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 10 mm R 1/4 L 10 mm C 32.5 mm K 21 mm H (across flats) 17 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 24 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PC1001, PC1002, PC1003, PC1004, PC1201, PC1202, PC1203, PC1204, PC401, PC402, PC4M5, PC601, PC602, PC603, PC604, PC6M5, PC801, PC802, PC803, PC804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 10 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/4 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 10 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/4 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.33

  View options

•

  View options

  Airtac PEB series: male branch tee - PEB801

  Specifications: PEB801 is an Airtac male branch tee. Male branch tee; Tube outside diameter: 8 mm; Male connection thread: PT 1/8; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PEB Male branch tee 8 Tube outside diameter: 8 mm 01 Male connection thread: PT 1/8 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Male connection thread: PT 1/8; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm R 1/8 ØP 15 mm L 7.5 mm K 18.5 mm EA 23 mm EB 30.5 mm ØJ 4.3 mm JB 9.5 mm H (across flats) 14 mm Source: Linked ordinary threaded fittings PDF page 6 printed page 261. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 18.4 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEB1001, PEB1002, PEB1003, PEB1004, PEB1202, PEB1203, PEB1204, PEB401, PEB402, PEB4M5, PEB601, PEB602, PEB603, PEB6M5, PEB801, PEB802, PEB803, PEB804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 8 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. All 2 sockets in the T group receive 8 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.88

  View options

•

  View options

  Airtac PEB series: male branch tee - PEB802

  Specifications: PEB802 is an Airtac male branch tee. Male branch tee; Tube outside diameter: 8 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PEB Male branch tee 8 Tube outside diameter: 8 mm 02 Male connection thread: PT 1/4 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm R 1/4 ØP 15 mm L 10 mm K 18.5 mm EA 23 mm EB 33 mm ØJ 4.3 mm JB 9.5 mm H (across flats) 14 mm Source: Linked ordinary threaded fittings PDF page 6 printed page 261. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 21.3 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEB1001, PEB1002, PEB1003, PEB1004, PEB1202, PEB1203, PEB1204, PEB401, PEB402, PEB4M5, PEB601, PEB602, PEB603, PEB6M5, PEB801, PEB802, PEB803, PEB804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 8 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/4 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. All 2 sockets in the T group receive 8 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/4 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.88

  View options

•

  View options

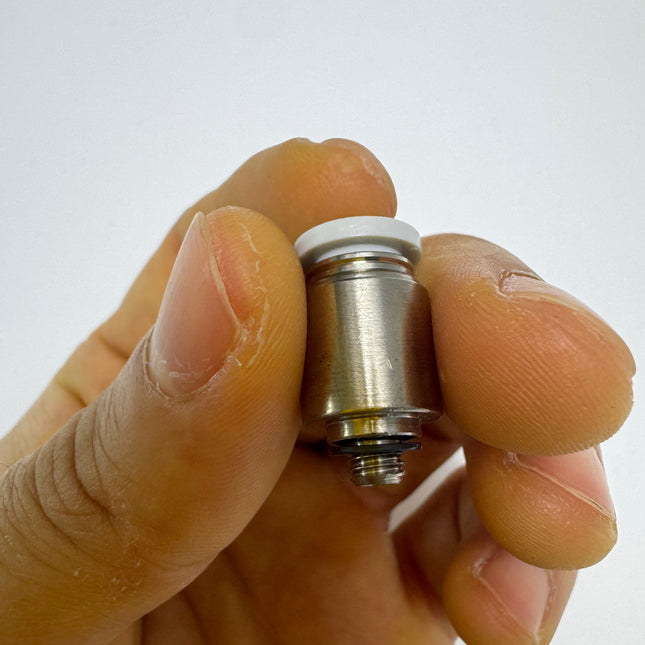

  Airtac POC series: hexagon-socket male connector - POC6M5

  Specifications: POC6M5 is an Airtac hexagon-socket male straight connector. Hexagon-socket male straight connector; Tube outside diameter: 6 mm; Male connection thread: M5×0.8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning POC Hexagon-socket male straight connector 6 Tube outside diameter: 6 mm M5 Male connection thread: M5×0.8 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: M5×0.8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R M5×0.8 ØP 12 mm L 3.5 mm C 21.5 mm K 16.5 mm H (across flats) 2 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 5.9 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: POC1001, POC1002, POC1003, POC1004, POC1202, POC1203, POC1204, POC401, POC402, POC4M5, POC601, POC602, POC6M5, POC801, POC802, POC803. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male M5×0.8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R M5×0.8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. This is M5×0.8; use the specified metric sealing gasket and confirm its seating. M3×0.5 and M5×0.8 are different metric connections; neither is an interchangeable substitute for #10-32 UNF. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

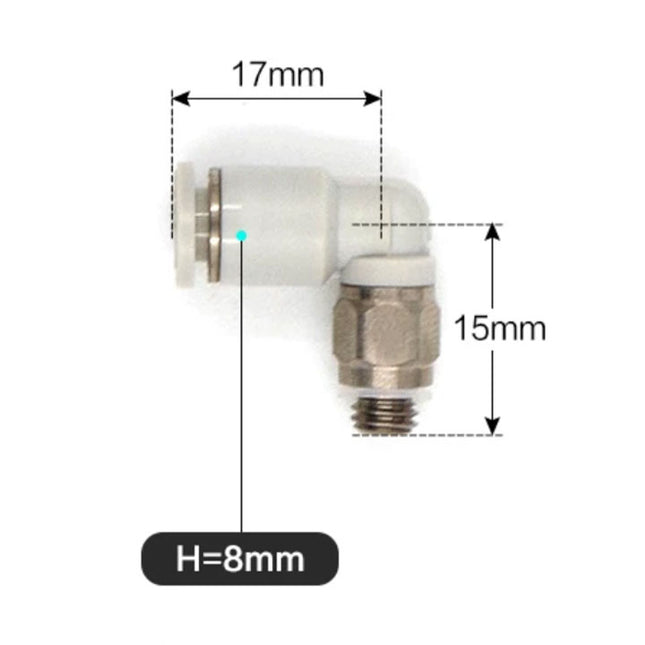

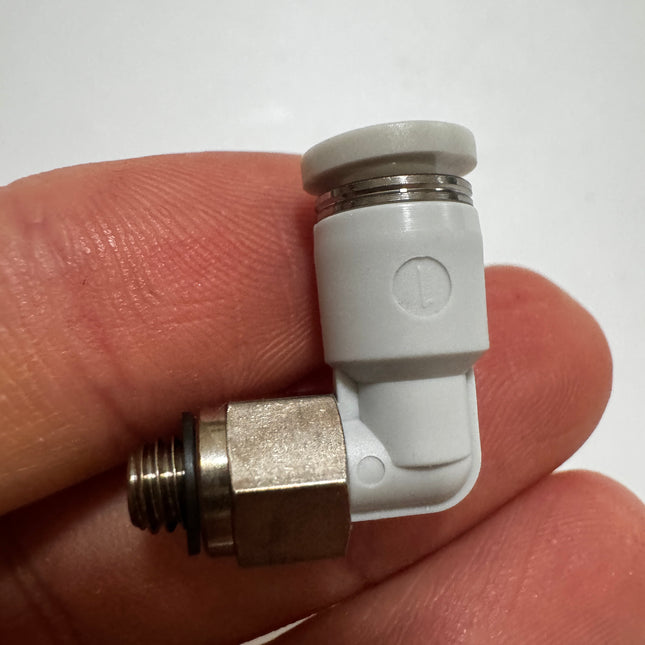

  Airtac PL series: male elbow - PL4M5-M

  Specifications: PL4M5-M is an Airtac mini male elbow. Male elbow; Tube outside diameter: 4 mm; Male connection thread: M5×0.8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PL Male elbow 4 Tube outside diameter: 4 mm M5 Male connection thread: M5×0.8 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. -M Mini type Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 4 mm; Male connection thread: M5×0.8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.; Mini type Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M3/M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 4 mm R M5×0.8 ØP 8.5 mm L 3.5 mm K 12.5 mm EA 15 mm EB 14.5 mm H (across flats) 7 mm X 7.8 mm Y 9.5 mm Source: Linked ordinary threaded fittings PDF page 2 printed page 257. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 3.3 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components Standard PL construction reference within this PDF. The mini page provides its own outline and specifications, but no dedicated mini internal-material table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PL3.2M3-M, PL3.2M5-M, PL401-M, PL4M3-M, PL4M5-M, PL601-M, PL6M5-M. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 4 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male M5×0.8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. The -M suffix selects the mini fitting; use its own outline and receiving socket. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 4 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R M5×0.8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. This is M5×0.8; use the specified metric sealing gasket and confirm its seating. M3×0.5 and M5×0.8 are different metric connections; neither is an interchangeable substitute for #10-32 UNF. The -M mini version has its own outline and installation clearances; do not use the ordinary-size outline for mounting. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. The mini page provides its own outline and specifications but no dedicated mini internal-material table; the ordinary construction reference does not establish a separate mini parts list. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

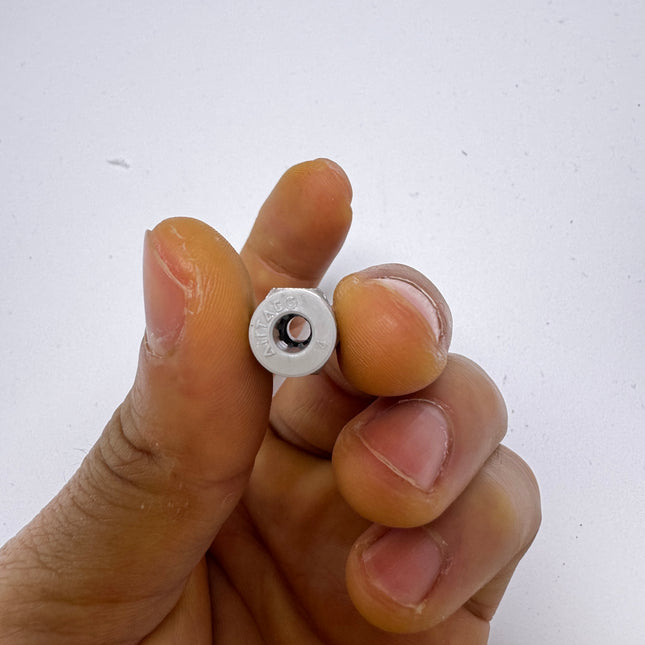

  Airtac PC series: male straight connector - PC401

  Specifications: PC401 is an Airtac male straight connector. Male straight connector; Tube outside diameter: 4 mm; Male connection thread: PT 1/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PC Male straight connector 4 Tube outside diameter: 4 mm 01 Male connection thread: PT 1/8 (blank color code) Gray release button (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 4 mm; Male connection thread: PT 1/8; Gray release button; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The catalog describes a compact form that saves installation space. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 4 mm R 1/8 L 7.5 mm C 19.5 mm K 14 mm H (across flats) 10 mm Source: Linked ordinary threaded fittings PDF page 1 printed page 256. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 7 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PC construction reference from the ordinary edition. POC has a separate socket-hexagon outline but no separate parts table. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PC1001, PC1002, PC1003, PC1004, PC1201, PC1202, PC1203, PC1204, PC401, PC402, PC4M5, PC601, PC602, PC603, PC604, PC6M5, PC801, PC802, PC803, PC804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 1 push-in socket for 4 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/8 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. The T group has one receiving socket for 4 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/8 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PC construction reference identifies a brass body, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

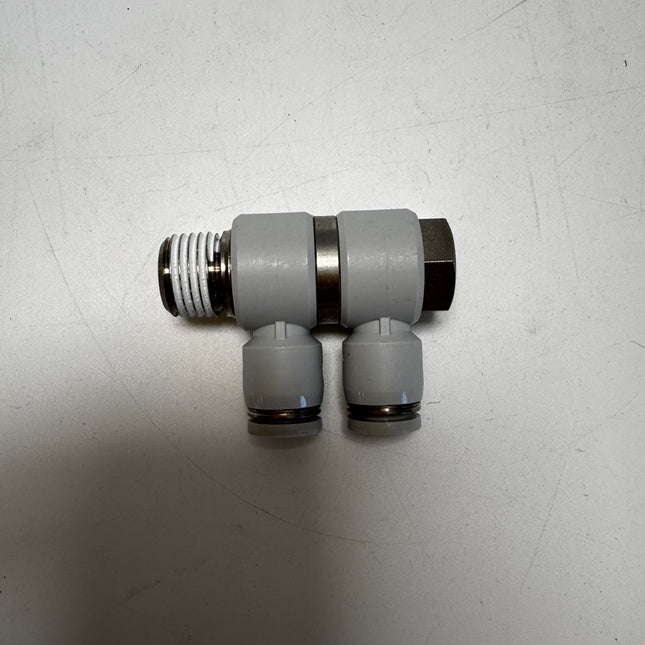

  Airtac PHW series: double universal male elbow - PHW602

  Specifications: PHW602 is an Airtac double universal male elbow. Double universal male elbow; Tube outside diameter: 6 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above.. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PHW Double universal male elbow 6 Tube outside diameter: 6 mm 02 Male connection thread: PT 1/4 (blank color code) Gray release button and body (blank thread code) PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Male connection thread: PT 1/4; Gray release button and body; PT pipe-thread specification; metric M3/M5 connections retain the pitch shown above. Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. The threaded portion is coated with sealant. M5 metric connections use a sealing gasket to prevent leakage at the threaded joint. The catalog describes the nickel-plated metal portion as resistant to corrosion and contamination. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm R 1/4 ØP 12.5 mm L 10 mm C 43.5 mm K 16.5 mm EA 25.0 mm EB 17.5 mm DC 15.5 mm H (across flats) 14 mm Source: Linked ordinary threaded fittings PDF page 5 printed page 260. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 40.2 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PL construction reference from the ordinary edition. Individual alternative shapes have their own dimensions; no separate parts list is published for each shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body PBT 7 — O-ring NBR 8 — Stud Brass Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PHW1002, PHW1003, PHW1004, PHW1203, PHW1204, PHW401, PHW601, PHW602, PHW603, PHW801, PHW802, PHW803, PHW804. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 6 mm OD tube. These labels identify receiving socket groups, not flow direction or coil quantity. Match each physical socket separately; the listed tube codes are alternative complete coils. R is the male PT1/4 connection to separately matched equipment; it is not an additional tube socket or a route assigned to these tubes. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify receiving socket groups, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional threaded adapters, host valves or internal repair parts. All 2 sockets in the T group receive 6 mm OD tube. Follow the actual fitting shape and socket positions; a threaded connection is not an additional push-in tube socket. The connection geometry does not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. The male R PT1/4 end needs a separately verified matching female host or circuit connection, correct sealing and suitable mechanical support. It is not a tube socket and the tube codes do not select or certify a particular host product. Keep pneumatic threads distinct from mounting holes and other dimensional callouts. Match the stated PT thread standard and nominal size exactly; G and NPT are not interchangeable substitutes. The catalog describes sealant on the threaded portion; verify the mating connection and sealing requirements before assembly. Use the proper tool surfaces and avoid transferring tightening loads through the plastic components or connected tube; no numerical tightening torque is established here. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D release-button and body colour is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. These are the ordinary-edition fittings or their specified -M mini versions, not the -S stainless edition. The PL construction reference identifies a PBT body and brass stud, with POM, aluminium alloy, NBR and the other listed components retained. A series construction reference is not a separate complete parts list for every alternative shape. A stainless spring component does not make the whole fitting stainless or copper-free. Verify the actual connected materials and environment; dimensional fit does not establish chemical compatibility. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Material labels do not guarantee suitability in every chemical environment. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $6.99

  View options
