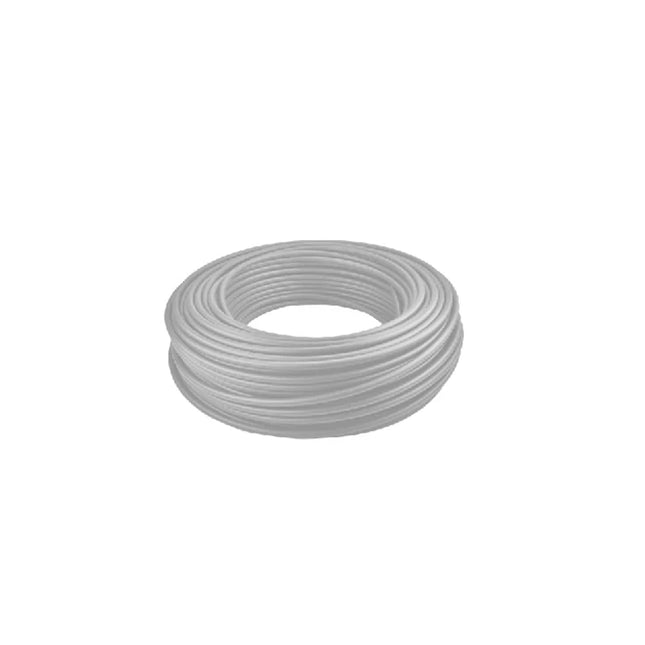

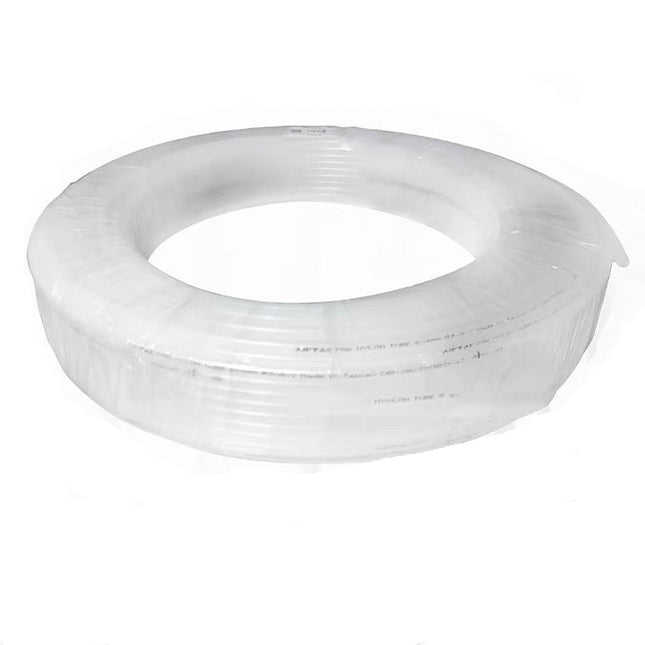

FEP Series Teflon Tube
High-Temperature & Chemical Resistant Fluoropolymer Tubing
Product Features
- Premium Material: Made of high-quality FEP (Fluorinated Ethylene Propylene), offering excellent overall performance for demanding industrial applications.
- High Stability: Features outstanding dimensional stability and exceptionally low permeability, ensuring precise fluid control and preventing leakage.
- Extreme Weather Resistance: Engineered with strong weather resistance, capable of maintaining integrity across an extremely wide temperature range from -80°C up to +200°C.
- Chemical Resistance: Demonstrates excellent chemical inertness, making it highly suitable for transporting harsh chemical agents, solvents, and corrosive fluids.
Technical Specifications
1. Dimensional Specifications (mm)
| Common Size (O.D. x I.D.) | 4x2 | 4x2.5 | 6x4 | 8x5.5 | 8x6 | 10x7.5 | 10x8 | 12x9 | 12x10 |
|---|---|---|---|---|---|---|---|---|---|
| Standard O.D. | 4 | 4 | 6 | 8 | 8 | 10 | 10 | 12 | 12 |
| O.D. Tolerance | ±0.1 | ±0.1 | ±0.1 | ±0.12 | ±0.15 | ||||
| Standard Thickness | 0.75 | 0.75 | 1.0 | 1.25 | 1.0 | 1.25 | 1.0 | 1.5 | 1.0 |
| Thickness Tolerance | ±0.07 | ±0.07 | ±0.10 | ±0.12 | ±0.10 | ±0.12 | ±0.10 | ±0.12 | ±0.10 |
2. Operating Parameters
| Material | Fluororesin (FEP or F46) | ||||||||
| Applicable Fluid | Compressed air, Vacuum, Water, Inert gas, Chemicals | ||||||||
| Temp. Range | -80°C ~ +200°C | ||||||||
| Min Bending Radius (mm) @ 20°C | 15 | 20 | 35 | 50 | 60 | 95 | 100 | 100 | 130 |
3. Pressure vs. Temperature Relationship
| Temperature | 20°C | 50°C | 100°C | 150°C | 200°C |
|---|---|---|---|---|---|
| Pressure Ratio | 100% | 50% | 35% | 30% | 10% |
| Max Working Pressure (Reference) | 17bar / 15bar / 10bar 8bar / 7bar |
9bar / 8bar 5bar / 4bar |
6bar / 5bar / 4bar 3bar / 2bar |
5bar / 3bar 2bar |
2bar / 1bar |
Warning: Burst Pressure is approximately 3 times the Max Working Pressure. Pressure resistance decreases significantly as environmental and fluid temperatures increase.
Product Ordering Code
Example: X-FEP 040 025 100M CR
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | X-FEP: FEP Teflon Tube |
| 2 | O.D. Code (Outer Dia.) |
040: Φ4mm | 060: Φ6mm | 080: Φ8mm 100: Φ10mm | 120: Φ12mm |
| 3 | I.D. Code (Inner Dia.) |
025: Φ2.5mm | 040: Φ4.0mm | 055: Φ5.5mm 060: Φ6.0mm | 080: Φ8.0mm | 090: Φ9.0mm |
| 4 | Length Code |
50M: 50 meters/Roll 100M: 100 meters/Roll |
| 5 | Color Code | CR: Clear / Transparent |
