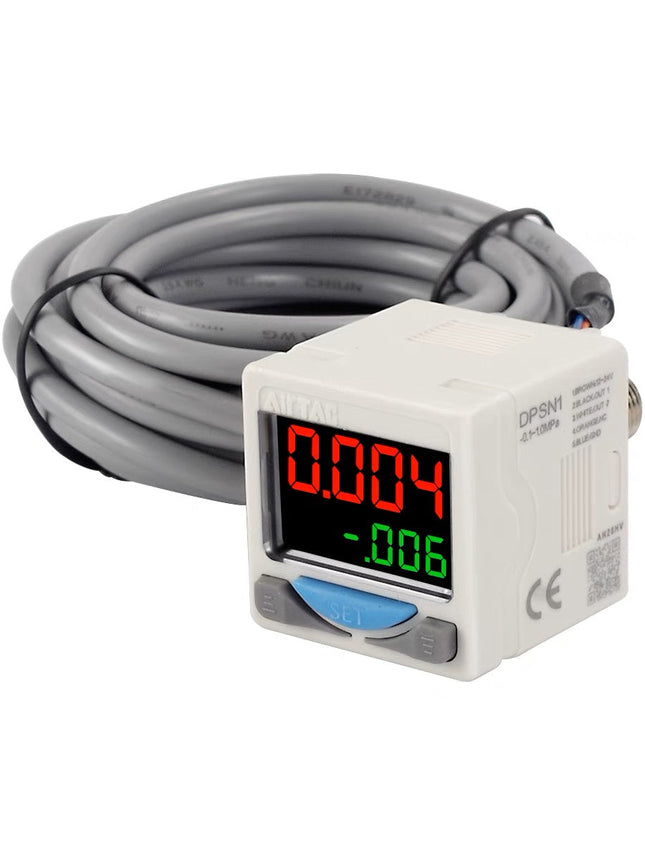

Specifications: DPSN1B-01M08 is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 100 kPa measuring range, prewired/grommet connection, 300 mm lead with M8 plug, and a PT 1/8 male pressure port with an internal M5 female thread.
Product Catalog
Download Airtac Product Catalog (PDF)
Download Legacy Airtac Product Catalog (PDF)
Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data.
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Model Code Explained
Code
Meaning for This Product
DPS
Digital pressure switch
N1
Two NPN outputs
B
prewired/grommet connection
01
−100 to 100 kPa
M08
300 mm lead with M8 plug
Blank thread code
Male PT 1/8; female M5
Product Features
Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting.
Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection.
Selectable pressure units, display refresh time and output response delay support different machine-control requirements.
The setting-lock and zero-adjustment functions are available from the front buttons.
The NPN version supports the catalog’s master/slave parameter-copy function.
Technical Specifications
Parameter
Details
Working medium
Non-corrosive gas
Measurement range
−100 to 100 kPa
Withstand pressure
200 kPa
Supply
12–24 VDC ±10%; supply ripple less than 10% peak-to-peak
Output configuration
Two NPN switching outputs
Maximum applied output voltage
30 V
Maximum output current
100 mA
Residual output voltage
Less than 1.5 V
Measurement accuracy
±2% full scale ±1 digit at 25 ±3 °C
Repeatability
±0.2% full scale
Temperature characteristic
±3% full scale, referenced to 25 °C across 0–50 °C
LCD display
Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight
Display update choices
100, 250, 500 or 1000 ms
Response-delay choices
2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms
Adjustable hysteresis
0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa
Pressure units
kPa, kgf/cm², bar, psi, mmHg, inHg
Operating temperature
0–50 °C
Storage temperature
−20 to 65 °C
Relative humidity
35–80% RH, without condensation
Vibration resistance — 2025 catalog
10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power
Impact resistance
Maximum 100 m/s²; X, Y and Z directions, 3 times each
Electrical entry
prewired/grommet connection
Cable option
300 mm lead with M8 plug
Pressure connection
Male PT 1/8; internal female M5
Protection rating
IP63, specified for the prewired/grommet type
Electrical Connections
Parameter
Details
Brown wire / positive supply
Connect to DC supply positive within the rated supply range.
Blue wire / negative supply
Connect to DC supply negative.
Black wire
Switching output 1.
White wire
Switching output 2.
Load connection
For NPN output, connect the load between positive supply and the output; the output sinks current.
Protection and restart
An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog.
This model has a 300 mm lead with an M8 plug. Its mating M8 socket cable is ordered separately: F-ECM08D020 (2 m), F-ECM08D030 (3 m), F-ECM08D050 (5 m) or F-ECM08D100 (10 m).
Display, Buttons and Menus
Parameter
Details
A / B / C
Up button / SET button / down button
D / E
Measured-pressure display / setting display
F / G
Output 1 indication / output 2 indication
H / J
Power-and-signal connection / pressure inlet
Basic menu
Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior.
Advanced menu
Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode.
Backlight selection
Red with output and green without output; green with output and red without output; always red; or always green.
Advanced display settings
Choose the lower-row setting value, blank display or unit; select display update time and hysteresis.
Advanced functions
Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset.
Zero adjustment
Press the up and down buttons together.
Setting lock
Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked.
Switching Modes
Parameter
Details
EASY mode
A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint.
HYS mode
Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold.
WCMP window-comparator mode
The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries.
NO / NC selection
Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted.
NPN Parameter Copy
Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone.
Mounting Accessories — Ordered Separately
Parameter
Details
F-DPSEB
Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions.
F-DPSLB
Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor.
Assembly sequence
Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing.
Installation and Operating Notes
Do not drop the sensor or subject it to impact.
Do not apply more than 60 N tension to the cable.
Tightening torque at the pressure connection must not exceed 7 N·m.
Do not use corrosive or flammable gases or liquids.
Keep pressure within the specified range.
Turn the power off before wiring.
Avoid oil and solvent splashes.
Separate signal wiring from high-voltage cables and conduits.
After an output fault or overload, correct the cause before restarting.
Where transient pressure produces an unwanted response, select an appropriate response delay.
Dimensions and Mounting
Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately.
Parameter
Details
Sensor face
30 × 30 mm
Body depth
28.6 mm
Overall depth including pressure connection
47.6 mm
Pressure-connection local length
7 mm
Mounting threads
2 × M3
Mounting-hole spacing callout
20 mm
Rear-view local offset
12 mm
Pressure thread
Male PT 1/8; female M5
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Estimated Weight
Approximate engineering estimate: 58 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 0.3 m, and 9 g for one M8 connector. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. The 9 g connector allowance is taken from a separately published M8 connector reference. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.
Optional Piping Accessories
O = the rear sensing boss’s external male PT1/8; use an exact matching female connection. I = the same boss’s internal female M5; use an exact matching male connection. O and I are alternative ways to connect one measured-pressure source: select one, not both. They are not flow-through inlet/outlet or pilot ports. The separate M3 mounting holes are not pneumatic connections. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.
Code-prefix uses (match the longest listed family prefix): BD male–female; BKC/GBKC compression fitting; BPC/GBPC metal straight; BPCF metal female straight connector; BPMF metal female bulkhead connector; BPOC metal straight; BU double female straight coupling; GPC/PC straight; GPEB/PEB branch tee; GPED/PED run tee; GPH/PH banjo elbow; GPHF/PHF female branch banjo; GPL/PL elbow; GPLL/PLL extended elbow; GPYB/PYB Y; PCF female straight connector; PLF female elbow; PMF female bulkhead connector; POC round straight; UE PU tube; US PU tube.
Use
Size / complete codes
O
male PT1/4 ↔ female PT1/8: BD0102,BD0102-Smale PT3/8 ↔ female PT1/8: BD0103,BD0103-Smale PT1/2 ↔ female PT1/8: BD0104,BD0104-SPT1/8 female / 4 OD: BPCF401,BPMF401,PCF401,PCF401D,PLF401,PLF401D,PMF401,PMF401DPT1/8 female / 6 OD: BPCF601,BPMF601,PCF601,PCF601D,PLF601,PLF601D,PMF601,PMF601DPT1/8 female / 8 OD: BPCF801,BPMF801,PCF801,PCF801D,PLF801,PLF801D,PMF801,PMF801DPT1/8 female / PT1/8 female: BU0101,BU0101-SPT1/8 female / 10 OD: PCF1001,PCF1001D,PLF1001,PLF1001D,PMF1001,PMF1001D4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-S8 × 5: UE95A080050100MBU,US98A080050100MBU10 × 6.5: UE95A100065100MBU,US98A100065100MBU
I
4 × 2.5: BKC0425-M5,BKC0425-M5-S,GBKC0425-M54: BPC4M5,BPOC4M5,GBPC4M5,GPC4M5-M,GPC4M5D-M,GPEB4M5,GPEB4M5D,GPED4M5,GPED4M5D,GPH4M5,GPH4M5D,GPL4M5,GPL4M5-M,GPL4M5D,GPL4M5D-M,GPLL4M5,GPLL4M5D,GPYB4M5,GPYB4M5D,PC4M5,PC4M5-M,PC4M5-S,PC4M5D,PC4M5D-M,PC4M5D-S,PEB4M5,PEB4M5-S,PEB4M5D,PEB4M5D-S,PED4M5,PED4M5-S,PED4M5D,PED4M5D-S,PH4M5,PH4M5-S,PH4M5D,PH4M5D-S,PL4M5,PL4M5-M,PL4M5-S,PL4M5D,PL4M5D-M,PL4M5D-S,PLL4M5,PLL4M5-S,PLL4M5D,PLL4M5D-S,POC4M5,POC4M5-S,POC4M5D,POC4M5D-S,PYB4M5,PYB4M5-S,PYB4M5D,PYB4M5D-S6: BPC6M5,BPOC6M5,GBPC6M5,GPC6M5,GPC6M5-M,GPC6M5D,GPC6M5D-M,GPEB6M5,GPEB6M5D,GPED6M5,GPED6M5D,GPH6M5,GPH6M5D,GPL6M5,GPL6M5-M,GPL6M5D,GPL6M5D-M,GPLL6M5,GPLL6M5D,GPYB6M5,GPYB6M5D,PC6M5,PC6M5-M,PC6M5-S,PC6M5D,PC6M5D-M,PC6M5D-S,PEB6M5,PEB6M5-S,PEB6M5D,PEB6M5D-S,PED6M5,PED6M5-S,PED6M5D,PED6M5D-S,PH6M5,PH6M5-S,PH6M5D,PH6M5D-S,PL6M5,PL6M5-M,PL6M5-S,PL6M5D,PL6M5D-M,PL6M5D-S,PLL6M5,PLL6M5-S,PLL6M5D,PLL6M5D-S,POC6M5,POC6M5-S,POC6M5D,POC6M5D-S,PYB6M5,PYB6M5-S,PYB6M5D,PYB6M5D-S3.2: GPC3.2M5-M,GPC3.2M5D-M,GPL3.2M5-M,GPL3.2M5D-M,PC3.2M5-M,PC3.2M5D-M,PL3.2M5-M,PL3.2M5D-M4; male RA M5 × 0.8 / female RB M5 × 0.8: GPHF4M5,GPHF4M5D,PHF4M5,PHF4M5-S,PHF4M5D,PHF4M5D-S6; male RA M5 × 0.8 / female RB M5 × 0.8: GPHF6M5,GPHF6M5D,PHF6M5,PHF6M5-S,PHF6M5D,PHF6M5D-S3.2 × 2: UE95A032020100MBU,US98A032020100MBU
I,O
4 × 2.5: UE95A040025100MBU,US98A040025100MBU6 × 4: UE95A060040100MBU,US98A060040100MBU
These passive connections and tubes are optional and ordered separately for a clean compressed-air pressure-sensing line. Select either O or I at the single rear sensing boss. Do not connect separate pressure sources to O and I, use the sensor as a through-flow device, or assign either connection as a pilot or exhaust port. Keep every branch of a selected fitting on the same measured-pressure source.
The positive-pressure limit for this DPS range is 0.1 MPa; operate the sensor and complete connection path within 0–50°C and every stricter fitting or tube limit. Its 0.2 MPa withstand pressure is not a working rating. These accessory selections cover positive-pressure air only. The sensor’s negative-pressure measurement range does not establish vacuum suitability of the assembled fittings, seals and tubing; verify the entire path before vacuum service. Do not use liquids or corrosive or flammable gases. Other non-corrosive gases require confirmed sensor and complete-path material and application compatibility and are outside these air selections.
Match exact thread standard, size and opposite gender. Use the specified thread seal or face gasket and check engagement, sealing, clearance, tool access and support without obstructing the sensing passage. Follow the sensor’s original installation instructions, including the 7 N·m pressure-connection ceiling, and any lower fitting-specific torque; 7 N·m is not a tightening target for every fitting. Depressurize before disconnecting.
Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use the specified soft nylon/PU tube and check full insertion, seating and bends. Support tubing and fittings so their loads do not twist the sensor. Put the compression cap over the tube, seat the tube in the body and tighten the cap as specified; loosen it before removal and use a wrench on the body’s hex flats.
For the listed metric male fittings, D identifies black catalog-specified plastic parts instead of the blank grey option. -M denotes the miniature version; -S identifies the specified stainless-steel 304 parts only. Use the exact complete code and its stated geometry; these suffixes do not apply to every family.
PCF/PLF/PMF/BPCF/BPMF have female pneumatic threads for the external male O connection; their tube sockets are separate connections. On PMF/BPMF bulkhead fittings, panel-mounting threads and retaining nuts are not pneumatic ports. Check panel thickness, washer/nut seating and support. For PCF/PMF, D specifies a black release button (blank: grey). For PLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings.
PHF/GPHF fittings have male RA, female RB and a separate tube socket. For role I, the fitting’s male RA mates with the sensor’s internal female thread; for role O, the fitting’s female RB mates with the sensor’s external male thread. Use only the role and exact end size listed for that code. Connect the remaining threaded end to its own matching opposite-gender part and seal, keeping it on the same measured-pressure source. A fitting’s RB is not a tube socket.
Match both adapter ends independently by size, gender and thread standard. BD first size is female RB, which mates with O; the second is male RA, requiring a separate matching female part. BU are female-to-female couplings; after connecting one end to O, the other needs a separate matching male part. These parts do not convert PT to G, NPT or M5, and do not authorize plugging the active sensing connection.
Standard plastic push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC/BPCF/BPMF/GBPC: ≤0.9 MPa. BKC/GBKC/BD/BU: ≤1 MPa. The listed metal push-in, compression and threaded-adapter groups have a 0–150°C component range. These are component limits, not an extension of the DPS range; use the lower pressure and narrower temperature range of the sensor, every fitting and tube.
US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all sensor/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size.
Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.
