DPS Series Digital Pressure Switch

•

  View options

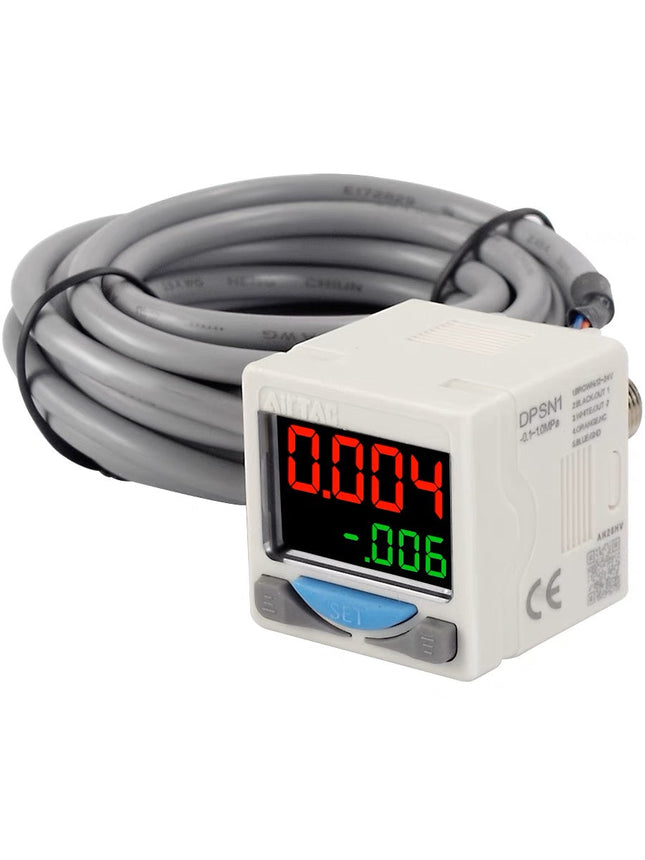

  Airtac DPS series: digital pressure switch - DPSN1B-10020

  Specifications: DPSN1B-10020 is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 1000 kPa measuring range, prewired/grommet connection, 2 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs B prewired/grommet connection 10 −100 to 1000 kPa 020 2 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 2 m Pressure connection Male PT 1/8; internal female M5 Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $58.64

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSN1-10020

  Specifications: DPSN1-10020 is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 2 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 020 2 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 2 m Pressure connection Male PT 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $53.43

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSN1B-01020T

  Specifications: DPSN1B-01020T is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 100 kPa measuring range, prewired/grommet connection, 2 m, and a NPT 1/8 male pressure port with an internal 10-32 UNF female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs B prewired/grommet connection 01 −100 to 100 kPa 020 2 m T Male NPT 1/8; female 10-32 UNF Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 100 kPa Withstand pressure 200 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa Pressure units kPa, kgf/cm², bar, psi, mmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 2 m Pressure connection Male NPT 1/8; internal female 10-32 UNF Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male NPT 1/8; female 10-32 UNF For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $58.64

  View options

•

  View options

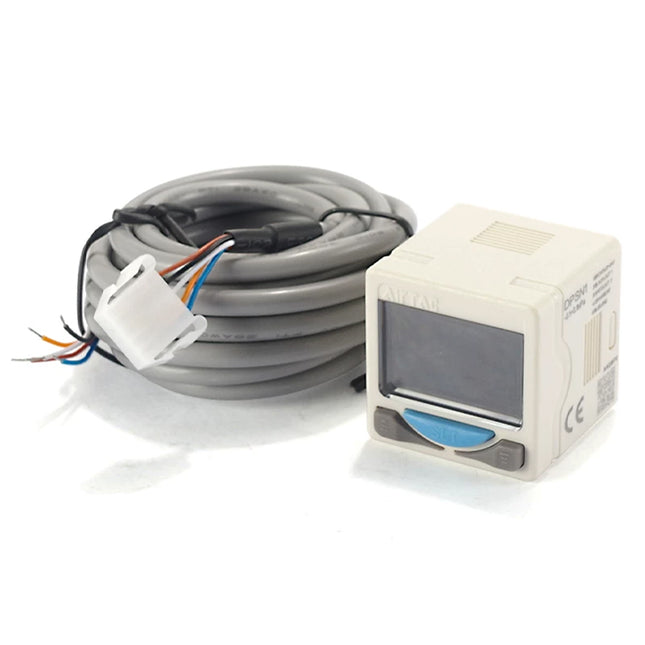

  Airtac DPS series: digital pressure switch - DPSP1-10020

  Specifications: DPSP1-10020 is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 2 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 020 2 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 2 m Pressure connection Male PT 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $53.43

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1-10050

  Specifications: DPSP1-10050 is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 5 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 050 5 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 5 m Pressure connection Male PT 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 148 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 5 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $56.86

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1-01020

  Specifications: DPSP1-01020 is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 100 kPa measuring range, terminal plug-in connection, 2 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs Blank electrical-entry code terminal plug-in connection 01 −100 to 100 kPa 020 2 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 100 kPa Withstand pressure 200 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa Pressure units kPa, kgf/cm², bar, psi, mmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 2 m Pressure connection Male PT 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $53.43

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1-10020G

  Specifications: DPSP1-10020G is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 2 m, and a G 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 020 2 m G Male G 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 2 m Pressure connection Male G 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male G 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $53.43

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSN1-10050

  Specifications: DPSN1-10050 is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 5 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 050 5 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 5 m Pressure connection Male PT 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 148 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 5 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $56.86

  View options

•

  View options

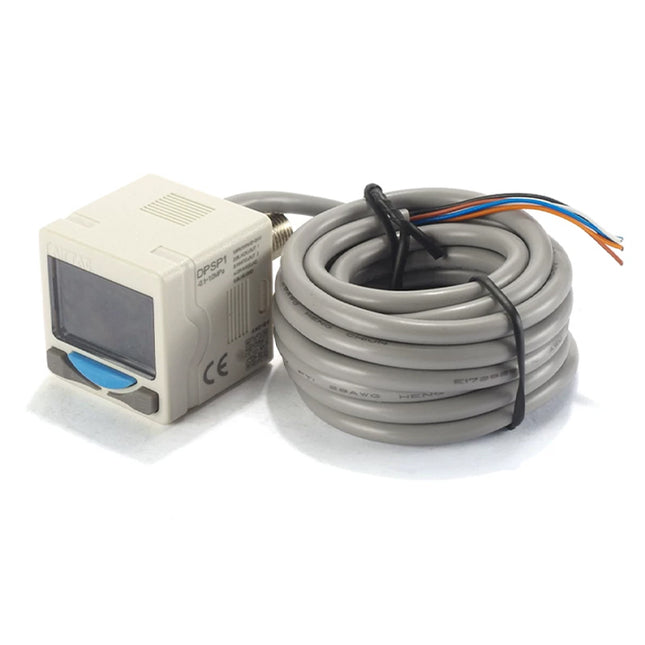

  Airtac DPS series: digital pressure switch - DPSP1B-10030T

  Specifications: DPSP1B-10030T is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, prewired/grommet connection, 3 m, and a NPT 1/8 male pressure port with an internal 10-32 UNF female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs B prewired/grommet connection 10 −100 to 1000 kPa 030 3 m T Male NPT 1/8; female 10-32 UNF Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 3 m Pressure connection Male NPT 1/8; internal female 10-32 UNF Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male NPT 1/8; female 10-32 UNF For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 106 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 3 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $59.87

  View options

•

  View options

  Airtac F-ECM series: pressure switch connection cable - F-ECM08D100

  Specifications: F-ECM08D100 is an AirTAC four-wire connection cable with an M8 socket and a 10 m cable. It is the separately ordered mating cable for a DPS B-type pressure switch ordered with the M08 lead-and-plug option. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product F Accessory EC Connection wire M08 M8 socket D Four-wire connection 100 10 m cable length Application and Ordering Scope The DPS catalog instructs customers to order the M8 socket cable separately when the pressure switch uses the M08 option. The sensor’s M08 option comprises a 300 mm lead with an M8 plug; this product supplies the matching socket cable. It is not a pressure switch, pressure fitting or mounting bracket. Parameter Details Compatible DPS connection option B: prewired/grommet type, followed by M08 in the cable code Compatible output families DPSN1B and DPSP1B, when specifically ordered with M08 Compatible pressure ranges 01: −100 to 100 kPa; 10: −100 to 1000 kPa, as sensor selection codes Sensor thread variants Blank PT, G, and T/NPT sensor pressure ports do not change this M08 electrical mating option Example complete sensor codes DPSN1B-01M08, DPSP1B-10M08G; use the exact required sensor output, range and pressure-port thread Other sensor cable options 020/030/050 sensor lead options are not described as M08 sockets. The terminal and bottom-connector versions must not be assumed to use this accessory. Current cable length 10 m Package scope Connection cable only. Pressure switch and panel or bracket accessories are separate products. Cable Selection and Use The accessory ordering table lists 020 (2 m), 030 (3 m), 050 (5 m) and 100 (10 m). Choose the length required for the installation. Match the cable to the switch’s M8 plug, turn the power off before connecting, and follow the DPS connection diagram for the selected NPN or PNP switch. The source does not publish a separate current rating, conductor cross-section, enclosure rating or cable-body dimensions for this accessory; the sensor ratings are not presented as cable ratings. Dimensions and Mounting Drawing dimensions are in millimeters. Lettered or local callouts retain the catalog drawing references; use the drawing for their exact datums. Parameter Details Specified cable length 10 m Connector identity M8 socket Wire count 4 Other cable dimensions No separate dimensional drawing is supplied for the F-ECM08D cable in this catalog. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 219 g, excluding packaging. The calculation uses 0 g for the absent sensor body, an effective four-core lead allowance of 21 g/m for 10 m, and 9 g for one M8 connector. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. The 9 g connector allowance is taken from a separately published M8 connector reference. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $19.32

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1B-10020

  Specifications: DPSP1B-10020 is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, prewired/grommet connection, 2 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs B prewired/grommet connection 10 −100 to 1000 kPa 020 2 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 2 m Pressure connection Male PT 1/8; internal female M5 Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $58.64

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1-10050G

  Specifications: DPSP1-10050G is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 5 m, and a G 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 050 5 m G Male G 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 5 m Pressure connection Male G 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male G 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 148 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 5 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $56.86

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1-10050T

  Specifications: DPSP1-10050T is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 5 m, and a NPT 1/8 male pressure port with an internal 10-32 UNF female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 050 5 m T Male NPT 1/8; female 10-32 UNF Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 5 m Pressure connection Male NPT 1/8; internal female 10-32 UNF Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male NPT 1/8; female 10-32 UNF For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 148 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 5 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $56.86

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1-10030

  Specifications: DPSP1-10030 is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 3 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 030 3 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 3 m Pressure connection Male PT 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 106 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 3 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $54.53

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1-01050G

  Specifications: DPSP1-01050G is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 100 kPa measuring range, terminal plug-in connection, 5 m, and a G 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs Blank electrical-entry code terminal plug-in connection 01 −100 to 100 kPa 050 5 m G Male G 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 100 kPa Withstand pressure 200 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa Pressure units kPa, kgf/cm², bar, psi, mmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 5 m Pressure connection Male G 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male G 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 148 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 5 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $56.86

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSN1B-10030

  Specifications: DPSN1B-10030 is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 1000 kPa measuring range, prewired/grommet connection, 3 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs B prewired/grommet connection 10 −100 to 1000 kPa 030 3 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 3 m Pressure connection Male PT 1/8; internal female M5 Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 106 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 3 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $59.87

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSN1B-10020T

  Specifications: DPSN1B-10020T is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 1000 kPa measuring range, prewired/grommet connection, 2 m, and a NPT 1/8 male pressure port with an internal 10-32 UNF female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs B prewired/grommet connection 10 −100 to 1000 kPa 020 2 m T Male NPT 1/8; female 10-32 UNF Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 2 m Pressure connection Male NPT 1/8; internal female 10-32 UNF Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male NPT 1/8; female 10-32 UNF For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $58.64

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSN1B-01020

  Specifications: DPSN1B-01020 is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 100 kPa measuring range, prewired/grommet connection, 2 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs B prewired/grommet connection 01 −100 to 100 kPa 020 2 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 100 kPa Withstand pressure 200 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa Pressure units kPa, kgf/cm², bar, psi, mmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 2 m Pressure connection Male PT 1/8; internal female M5 Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $58.64

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSN1-10020T

  Specifications: DPSN1-10020T is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 1000 kPa measuring range, terminal plug-in connection, 2 m, and a NPT 1/8 male pressure port with an internal 10-32 UNF female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs Blank electrical-entry code terminal plug-in connection 10 −100 to 1000 kPa 020 2 m T Male NPT 1/8; female 10-32 UNF Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 2 m Pressure connection Male NPT 1/8; internal female 10-32 UNF Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male NPT 1/8; female 10-32 UNF For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $53.43

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSN1-01020

  Specifications: DPSN1-01020 is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 100 kPa measuring range, terminal plug-in connection, 2 m, and a PT 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs Blank electrical-entry code terminal plug-in connection 01 −100 to 100 kPa 020 2 m Blank thread code Male PT 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 100 kPa Withstand pressure 200 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa Pressure units kPa, kgf/cm², bar, psi, mmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 2 m Pressure connection Male PT 1/8; internal female M5 Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male PT 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $53.43

  View options

•

  View options

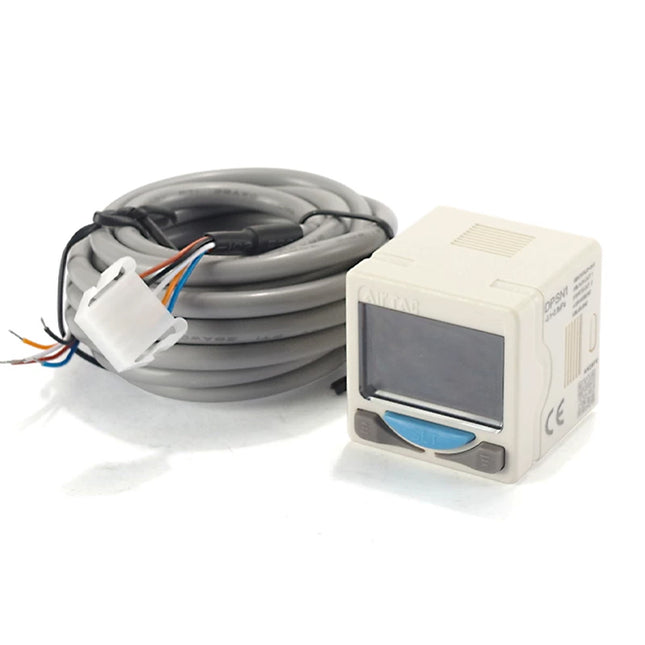

  Airtac DPS series: digital pressure switch - DPSN1-01020T

  Specifications: DPSN1-01020T is an AirTAC DPS digital pressure switch with two NPN outputs, a −100 to 100 kPa measuring range, terminal plug-in connection, 2 m, and a NPT 1/8 male pressure port with an internal 10-32 UNF female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch N1 Two NPN outputs Blank electrical-entry code terminal plug-in connection 01 −100 to 100 kPa 020 2 m T Male NPT 1/8; female 10-32 UNF Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The NPN version supports the catalog’s master/slave parameter-copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 100 kPa Withstand pressure 200 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two NPN switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa Pressure units kPa, kgf/cm², bar, psi, mmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry terminal plug-in connection Cable option 2 m Pressure connection Male NPT 1/8; internal female 10-32 UNF Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version. Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For NPN output, connect the load between positive supply and the output; the output sinks current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. NPN Parameter Copy Only the NPN type supports the copy function. With power off, connect the master and slave as shown in the catalog’s dedicated copy diagram, including the master pin 2 to slave pin 3 connection. Select CP-M for the master and CP-S for the slave, then carry out the copy sequence. Check the completion display; if copying fails, repeat the sequence. Power off before disconnecting the copy wiring and restarting normal operation. Use the connection and pin labels in the diagrams; the ordinary operating circuit and temporary copy circuit serve different purposes. The published copy diagram and normal operating circuit use different negative-wire color labels. Confirm the temporary copy wiring for the supplied unit with AirTAC before making that connection; do not infer it from the wire color alone. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male NPT 1/8; female 10-32 UNF For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $53.43

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1B-10M08G

  Specifications: DPSP1B-10M08G is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, prewired/grommet connection, 300 mm lead with M8 plug, and a G 1/8 male pressure port with an internal M5 female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs B prewired/grommet connection 10 −100 to 1000 kPa M08 300 mm lead with M8 plug G Male G 1/8; female M5 Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 300 mm lead with M8 plug Pressure connection Male G 1/8; internal female M5 Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. This model has a 300 mm lead with an M8 plug. Its mating M8 socket cable is ordered separately: F-ECM08D020 (2 m), F-ECM08D030 (3 m), F-ECM08D050 (5 m) or F-ECM08D100 (10 m). Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male G 1/8; female M5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 58 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 0.3 m, and 9 g for one M8 connector. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. The 9 g connector allowance is taken from a separately published M8 connector reference. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $70.42

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1B-10050T

  Specifications: DPSP1B-10050T is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, prewired/grommet connection, 5 m, and a NPT 1/8 male pressure port with an internal 10-32 UNF female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs B prewired/grommet connection 10 −100 to 1000 kPa 050 5 m T Male NPT 1/8; female 10-32 UNF Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 5 m Pressure connection Male NPT 1/8; internal female 10-32 UNF Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male NPT 1/8; female 10-32 UNF For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 148 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 5 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $62.75

  View options

•

  View options

  Airtac DPS series: digital pressure switch - DPSP1B-10020T

  Specifications: DPSP1B-10020T is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 1000 kPa measuring range, prewired/grommet connection, 2 m, and a NPT 1/8 male pressure port with an internal 10-32 UNF female thread. Product Catalog Download Airtac Product Catalog (PDF) Download Legacy Airtac Product Catalog (PDF) Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product DPS Digital pressure switch P1 Two PNP outputs B prewired/grommet connection 10 −100 to 1000 kPa 020 2 m T Male NPT 1/8; female 10-32 UNF Product Features Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting. Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection. Selectable pressure units, display refresh time and output response delay support different machine-control requirements. The setting-lock and zero-adjustment functions are available from the front buttons. The PNP version does not support the copy function. Technical Specifications Parameter Details Working medium Non-corrosive gas Measurement range −100 to 1000 kPa Withstand pressure 1500 kPa Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak Output configuration Two PNP switching outputs Maximum applied output voltage 30 V Maximum output current 100 mA Residual output voltage Less than 1.5 V Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C Repeatability ±0.2% full scale Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight Display update choices 100, 250, 500 or 1000 ms Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms Adjustable hysteresis 1, 2, 3, 4, 5, 6, 7 or 8 kPa Pressure units MPa, kPa, kgf/cm², bar, psi, cmHg, inHg Operating temperature 0–50 °C Storage temperature −20 to 65 °C Relative humidity 35–80% RH, without condensation Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each Electrical entry prewired/grommet connection Cable option 2 m Pressure connection Male NPT 1/8; internal female 10-32 UNF Protection rating IP63, specified for the prewired/grommet type Electrical Connections Parameter Details Brown wire / positive supply Connect to DC supply positive within the rated supply range. Blue wire / negative supply Connect to DC supply negative. Black wire Switching output 1. White wire Switching output 2. Load connection For PNP output, connect the load between the output and negative supply; the output sources current. Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog. Display, Buttons and Menus Parameter Details A / B / C Up button / SET button / down button D / E Measured-pressure display / setting display F / G Output 1 indication / output 2 indication H / J Power-and-signal connection / pressure inlet Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior. Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode. Backlight selection Red with output and green without output; green with output and red without output; always red; or always green. Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis. Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset. Zero adjustment Press the up and down buttons together. Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked. Switching Modes Parameter Details EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint. HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold. WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries. NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted. Copy Function Restriction The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring. Mounting Accessories — Ordered Separately Parameter Details F-DPSEB Panel-mount adapter and front protective cover for terminal and prewired/grommet versions; panel-frame dimension 31 mm, tolerance +0/−0.5 mm, in both directions. F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor. Assembly sequence Assemble the front cover first, then the rear cover, as shown in the panel adapter drawing. Installation and Operating Notes Do not drop the sensor or subject it to impact. Do not apply more than 60 N tension to the cable. Tightening torque at the pressure connection must not exceed 7 N·m. Do not use corrosive or flammable gases or liquids. Keep pressure within the specified range. Turn the power off before wiring. Avoid oil and solvent splashes. Separate signal wiring from high-voltage cables and conduits. After an output fault or overload, correct the cause before restarting. Where transient pressure produces an unwanted response, select an appropriate response delay. Dimensions and Mounting Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately. Parameter Details Sensor face 30 × 30 mm Body depth 28.6 mm Overall depth including pressure connection 47.6 mm Pressure-connection local length 7 mm Mounting threads 2 × M3 Mounting-hole spacing callout 20 mm Rear-view local offset 12 mm Pressure thread Male NPT 1/8; female 10-32 UNF For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight Approximate engineering estimate: 85 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 2 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

  Read more less

  $58.64

  View options
