BSED – Airtac

Bore Size (mm)	32	40	50	63	80	100	125
Action	Double Acting
Fluid	Air (Filtered 40μm or better)
Mounting (BSE)	Basic, FA, FB, CA, CB, CR, LB, TC
Mounting (BSED)	Basic, FA, LB, TC
Operating Pressure	0.15~0.7MPa (22~100psi) (1.5~7.0bar)
Proof Pressure	1.5MPa (215psi) (15bar)
Temperature	-20~70°C
Speed Range	30~800 mm/s	30~500 mm/s
Cushion Type	Adjustable Cushion
Cushion Stroke	27mm	30mm	36mm	40mm
Cylinder Port	PT1/8	PT1/4	PT3/8	PT1/2
Unlock Port	G1/8
Unlocking Pressure	0.3~0.7MPa (45~100psi) (3~7bar)
Static Holding Force (N)	600	900	1400	2200	3600	5500	8600

Bore Size (mm)	Standard Stroke (mm)	Max Stroke
32	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500	700
40	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800	800
50	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	1000
63	1000
80	1000
100	1000
125	1000

No.	Item	Code	Description
1	Model	B	Locking Cylinder
2	Spec Code	SE	Standard Double Acting
SED	Double Shaft Double Acting
3	Bore Size	32~125	Cylinder Diameter (mm)
4	Stroke	-	Refer to Stroke Table
5	Magnet	Blank	No Magnet
S	With Magnet
6	Mounting	Blank	Standard
LB, FA, FB, CA, CB, CR, TC	Mounting accessories (See catalog)
7	Thread Type	Blank	PT Thread
G	G Thread

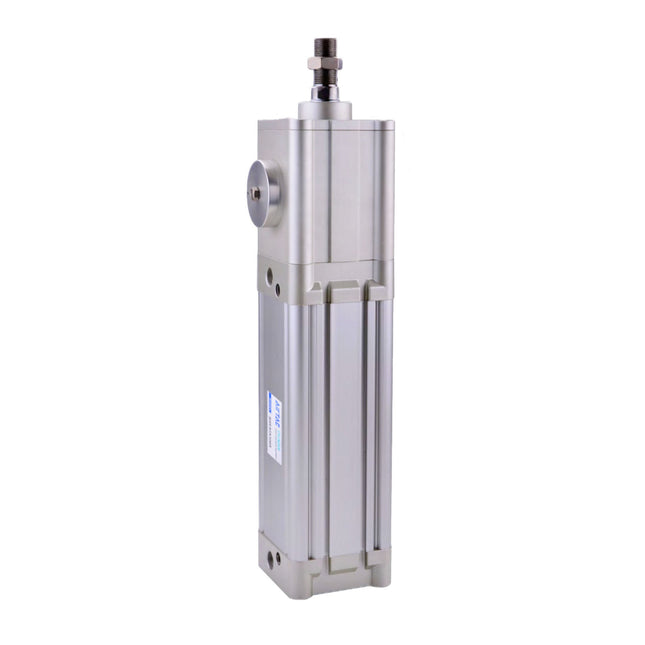

Airtac BSED:enclasp cylinder,adjustable stroke type - BSED125X783STC

Hold the cylinder tight Specifications: double shaft compound type Bore: 125mm Stroke: 783mm Magnet: with magnet Fixed type: TC type Tooth type: PT tooth Specifications 1. Model: BSED125X783STC 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC 3. Use pressure range: 0.15~0.7MPa(22~100psi)(1.5~7.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle bore cylinder section: PT1/2, Holding device: G1/8 6. Unlocking pressure: 0.3~0.7MPa(45~100psi)(3~7bar), Static holding force (N): 8600 7. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. piston rod: S45C hard chrome-plated grinding rod/2. Dust ring: plastic/3. Dustproof seat: aluminum alloy/4. Bimetallic bearings: mild steel + sintered bronze/5. Spring: spring steel/6. End cover: aluminum alloy/7. Unlock head: wear-resistant material/8. Unlock piston: aluminum alloy/9. Piston O: NBR/10. Spring set screw: mild steel/11. Sleeve: Aluminum alloy/12. Chuck: Aluminum bronze/13. Fixed seat: aluminum alloy/14.SE series standard cylinder Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125TC Middle Trunnion Bracket ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1. It belongs to the derivative series of standard cylinder locking device. 2. It can be locked and stopped at any intermediate position of the stroke. 3. Adopt a reasonable locking mechanism, the locking state has nothing to do with the direction of movement of the piston.
