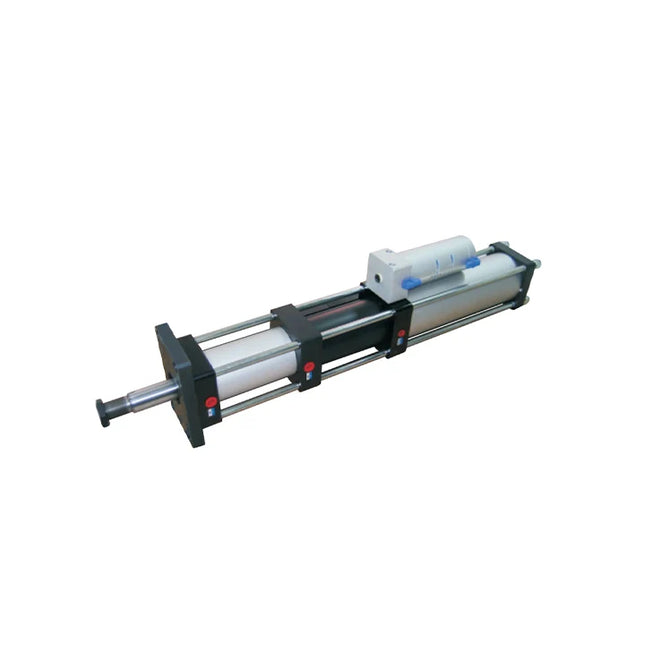

APTF Series Air-Hydro Booster Cylinder (Fast Type)
General Specifications
| Item | Data |
|---|---|
| Oil Cylinder Bore (mm) | 63, 80 |
| Operating Pressure | 0.2 ~ 0.7 MPa (Filtered Dry Air) |
| Hydraulic Fluid | ISO VG32 |
| Temperature | -5 ~ 60 °C |
| Oil Cylinder Proof Pressure | 30 MPa |
| Air Cylinder Proof Pressure | 1.5 MPa |
| Stroke Tolerance | +1.0 / 0 |
| Max. Frequency | 10 times/min |
Theoretical Booster Force Output
| Output Code | Force (Ton) | Applicable Oil Cylinder Bore (mm) |
|---|---|---|
| 1T | 1 Ton | 63 |
| 3T | 3 Ton | 80 |
| 5T | 5 Ton | 80 |
Ordering Code
APTF - 80 x 100 - 20 - 5T - F
| No. | Item | Options / Description |
|---|---|---|
| ① | Model | APTF: Fast Speed Type |
| ② | Oil Cylinder Bore |
1T: 63mm 3T: 80mm 5T: 80mm |
| ③ | Total Stroke |
50: 50mm 100: 100mm 150: 150mm 200: 200mm |
| ④ | Booster Stroke |
5: 5mm 10: 10mm 15: 15mm 20: 20mm |
| ⑤ | Theoretical Output |
1T: 1 Ton 3T: 3 Ton 5T: 5 Ton |
| ⑥ | Mounting Type |
F: Split Type (Vertical installation of reservoir) S: Horizontal Installation |
