APTC Series Air-Hydro Booster Cylinder

Direct Pressure Type | High Force Output | Pneumatic-Hydraulic

Product Features
General Specs
Force Output Data
Ordering Code

Product Features

Best of Both Worlds: Intelligently combines the rapid operating speed of a pneumatic cylinder with the high force output of a hydraulic cylinder, providing immense power without the need for a separate hydraulic power unit.
Direct Pressure Technology: Uses standard shop air to directly pressurize the internal hydraulic fluid, converting low air pressure into high hydraulic pressure instantly.
High Force Output: Capable of delivering theoretical outputs ranging from 1 Ton up to 13 Tons, making it perfect for heavy-duty applications like pressing, punching, riveting, coining, and clamping.
Clean & Efficient: Operates entirely on standard filtered compressed air. Completely enclosed internal hydraulic circuit prevents oil leaks and maintains a clean working environment.
Flexible Mounting: Compact structural design available in both split-type and horizontal installation configurations to suit various machine setups.

General Specifications

Oil Cylinder Bore (mm)	50, 63, 80, 100
Operating Pressure Range	0.2 ~ 0.7 MPa (Filtered Dry Air)
Hydraulic Fluid	ISO VG32 (Anti-wear Hydraulic Oil)
Ambient & Fluid Temp. (°C)	-5 ~ 60 °C (No freezing)
Oil Cylinder Proof Pressure	30 MPa
Air Cylinder Proof Pressure	1.5 MPa
Stroke Tolerance	+1.0 / 0 mm
Maximum Operating Frequency	10 times/min

Theoretical Booster Force Output

Note: The actual output force may vary slightly due to internal friction and operating air pressure. Ensure to factor in a safety margin when sizing the cylinder.

Output Code	Theoretical Force (Ton)	Applicable Oil Cylinder Bore (mm)
1T	1 Ton	50
3T	3 Ton	63
5T	5 Ton	63
8T	8 Ton	80
13T	13 Ton	100

Product Ordering Code

Model Example: APTC - 50 - 20 - 5T - F

No.	Item	Options & Description
1	Model Series	APTC: Air-Hydro Booster Cylinder (Direct Pressure Type)
2	Oil Cylinder Bore (mm)	50 (Matches 1T output) 63 (Matches 3T or 5T output) 80 (Matches 8T output) 100 (Matches 13T output)
3	Booster Stroke (mm)	5: 5mm 10: 10mm 15: 15mm 20: 20mm
4	Theoretical Output	1T: 1 Ton \| 3T: 3 Ton \| 5T: 5 Ton 8T: 8 Ton \| 13T: 13 Ton
5	Mounting Type	F: Split Type (Separate air and oil cylinders connected via tubing) S: Horizontal Installation (Integrated)

View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-13T-20-13T-S

Specifications: APTC-13T-20-13T-S — compact direct-pressure air-oil booster listing with 100 mm selected hydraulic bore, 20 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 13T 100 mm hydraulic bore under the catalog’s bore-code mapping 20 20 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 100 mm Selected boosted stroke 20 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details A 250 mm B 395 mm Table D / overall axial reference 803 mm; the accompanying drawing marks the long dimension C Flange width 145 mm Fixing horizontal pitch 110 mm Fixing holes 4 × Ø21 mm Rod diameter Ø45 mm Rod-end thread M39 × 2P Gauge port PT1/4 Rod-end projection 55 mm Air port size 1/2 in Flange height 225 mm Flange vertical fixing pitch 190 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Theoretical Output Parameter Details At 4 kgf/cm² 7800 kgf-equivalent (catalog headed kg) At 5 kgf/cm² 9800 kgf-equivalent (catalog headed kg) At 6 kgf/cm² 11800 kgf-equivalent (catalog headed kg) At 7 kgf/cm² 13800 kgf-equivalent (catalog headed kg) The dimension table illustrates the standard cylinder configuration. For horizontal installation, the reservoir is connected vertically to the hydraulic cylinder as stated in the ordering footnote. The standard drawing is a dimensional reference, not a complete final layout for an independently positioned reservoir. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 13675 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 803 × 145 × 145 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework.

Read more less

$2,402.57

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-8T-20-13T-S

Specifications: APTC-8T-20-13T-S — compact direct-pressure air-oil booster listing with 80 mm selected hydraulic bore, 20 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 8T 80 mm hydraulic bore under the catalog’s bore-code mapping 20 20 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 80 mm Selected boosted stroke 20 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 80 mm hydraulic bore through 8T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 14022 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 815 × 118 × 180 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$2,162.41

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-5T-20-13T-S

Specifications: APTC-5T-20-13T-S — compact direct-pressure air-oil booster listing with 63 mm selected hydraulic bore, 20 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 5T 63 mm hydraulic bore under the catalog’s bore-code mapping 20 20 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 63 mm Selected boosted stroke 20 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 63 mm hydraulic bore through 5T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 6147 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 605 × 112 × 112 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,946.36

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-3T-20-13T-S

Specifications: APTC-3T-20-13T-S — compact direct-pressure air-oil booster listing with 63 mm selected hydraulic bore, 20 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 3T 63 mm hydraulic bore under the catalog’s bore-code mapping 20 20 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 63 mm Selected boosted stroke 20 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 63 mm hydraulic bore through 3T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 4420 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 435 × 112 × 112 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,946.36

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-1T-20-13T-S

Specifications: APTC-1T-20-13T-S — compact direct-pressure air-oil booster listing with 50 mm selected hydraulic bore, 20 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 1T 50 mm hydraulic bore under the catalog’s bore-code mapping 20 20 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 50 mm Selected boosted stroke 20 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 50 mm hydraulic bore through 1T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 2511 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 310 × 100 × 100 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,397.95

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-13T-15-13T-S

Specifications: APTC-13T-15-13T-S — compact direct-pressure air-oil booster listing with 100 mm selected hydraulic bore, 15 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 13T 100 mm hydraulic bore under the catalog’s bore-code mapping 15 15 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 100 mm Selected boosted stroke 15 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details A 180 mm B 320 mm Table D / overall axial reference 658 mm; the accompanying drawing marks the long dimension C Flange width 145 mm Fixing horizontal pitch 110 mm Fixing holes 4 × Ø21 mm Rod diameter Ø45 mm Rod-end thread M39 × 2P Gauge port PT1/4 Rod-end projection 55 mm Air port size 1/2 in Flange height 225 mm Flange vertical fixing pitch 190 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Theoretical Output Parameter Details At 4 kgf/cm² 7800 kgf-equivalent (catalog headed kg) At 5 kgf/cm² 9800 kgf-equivalent (catalog headed kg) At 6 kgf/cm² 11800 kgf-equivalent (catalog headed kg) At 7 kgf/cm² 13800 kgf-equivalent (catalog headed kg) The dimension table illustrates the standard cylinder configuration. For horizontal installation, the reservoir is connected vertically to the hydraulic cylinder as stated in the ordering footnote. The standard drawing is a dimensional reference, not a complete final layout for an independently positioned reservoir. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 11206 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 658 × 145 × 145 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework.

Read more less

$2,402.57

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-8T-15-13T-S

Specifications: APTC-8T-15-13T-S — compact direct-pressure air-oil booster listing with 80 mm selected hydraulic bore, 15 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 8T 80 mm hydraulic bore under the catalog’s bore-code mapping 15 15 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 80 mm Selected boosted stroke 15 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 80 mm hydraulic bore through 8T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 11097 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 645 × 118 × 180 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$2,162.41

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-5T-15-13T-S

Specifications: APTC-5T-15-13T-S — compact direct-pressure air-oil booster listing with 63 mm selected hydraulic bore, 15 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 5T 63 mm hydraulic bore under the catalog’s bore-code mapping 15 15 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 63 mm Selected boosted stroke 15 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 63 mm hydraulic bore through 5T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 5080 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 500 × 112 × 112 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,536.46

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-3T-15-13T-S

Specifications: APTC-3T-15-13T-S — compact direct-pressure air-oil booster listing with 63 mm selected hydraulic bore, 15 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 3T 63 mm hydraulic bore under the catalog’s bore-code mapping 15 15 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 63 mm Selected boosted stroke 15 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 63 mm hydraulic bore through 3T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 3963 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 390 × 112 × 112 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,536.46

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-1T-15-13T-S

Specifications: APTC-1T-15-13T-S — compact direct-pressure air-oil booster listing with 50 mm selected hydraulic bore, 15 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 1T 50 mm hydraulic bore under the catalog’s bore-code mapping 15 15 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 50 mm Selected boosted stroke 15 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 50 mm hydraulic bore through 1T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 2268 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 280 × 100 × 100 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,397.95

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-13T-10-13T-S

Specifications: APTC-13T-10-13T-S — compact direct-pressure air-oil booster listing with 100 mm selected hydraulic bore, 10 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 13T 100 mm hydraulic bore under the catalog’s bore-code mapping 10 10 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 100 mm Selected boosted stroke 10 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details A 125 mm B 245 mm Table D / overall axial reference 528 mm; the accompanying drawing marks the long dimension C Flange width 145 mm Fixing horizontal pitch 110 mm Fixing holes 4 × Ø21 mm Rod diameter Ø45 mm Rod-end thread M39 × 2P Gauge port PT1/4 Rod-end projection 55 mm Air port size 1/2 in Flange height 225 mm Flange vertical fixing pitch 190 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Theoretical Output Parameter Details At 4 kgf/cm² 7800 kgf-equivalent (catalog headed kg) At 5 kgf/cm² 9800 kgf-equivalent (catalog headed kg) At 6 kgf/cm² 11800 kgf-equivalent (catalog headed kg) At 7 kgf/cm² 13800 kgf-equivalent (catalog headed kg) The dimension table illustrates the standard cylinder configuration. For horizontal installation, the reservoir is connected vertically to the hydraulic cylinder as stated in the ordering footnote. The standard drawing is a dimensional reference, not a complete final layout for an independently positioned reservoir. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 8992 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 528 × 145 × 145 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework.

Read more less

$2,402.57

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-8T-10-13T-S

Specifications: APTC-8T-10-13T-S — compact direct-pressure air-oil booster listing with 80 mm selected hydraulic bore, 10 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 8T 80 mm hydraulic bore under the catalog’s bore-code mapping 10 10 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 80 mm Selected boosted stroke 10 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 80 mm hydraulic bore through 8T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 8344 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 485 × 118 × 180 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$2,162.41

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-5T-10-13T-S

Specifications: APTC-5T-10-13T-S — compact direct-pressure air-oil booster listing with 63 mm selected hydraulic bore, 10 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 5T 63 mm hydraulic bore under the catalog’s bore-code mapping 10 10 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 63 mm Selected boosted stroke 10 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 63 mm hydraulic bore through 5T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 3963 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 390 × 112 × 112 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,536.46

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-3T-10-13T-S

Specifications: APTC-3T-10-13T-S — compact direct-pressure air-oil booster listing with 63 mm selected hydraulic bore, 10 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 3T 63 mm hydraulic bore under the catalog’s bore-code mapping 10 10 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 63 mm Selected boosted stroke 10 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 63 mm hydraulic bore through 3T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 2947 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 290 × 112 × 112 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,536.46

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-1T-10-13T-S

Specifications: APTC-1T-10-13T-S — compact direct-pressure air-oil booster listing with 50 mm selected hydraulic bore, 10 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 1T 50 mm hydraulic bore under the catalog’s bore-code mapping 10 10 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 50 mm Selected boosted stroke 10 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 50 mm hydraulic bore through 1T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 1984 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 245 × 100 × 100 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,397.95

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-13T-5-13T-S

Specifications: APTC-13T-5-13T-S — compact direct-pressure air-oil booster listing with 100 mm selected hydraulic bore, 5 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 13T 100 mm hydraulic bore under the catalog’s bore-code mapping 5 5 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 100 mm Selected boosted stroke 5 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details A 70 mm B 170 mm Table D / overall axial reference 398 mm; the accompanying drawing marks the long dimension C Flange width 145 mm Fixing horizontal pitch 110 mm Fixing holes 4 × Ø21 mm Rod diameter Ø45 mm Rod-end thread M39 × 2P Gauge port PT1/4 Rod-end projection 55 mm Air port size 1/2 in Flange height 225 mm Flange vertical fixing pitch 190 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Theoretical Output Parameter Details At 4 kgf/cm² 7800 kgf-equivalent (catalog headed kg) At 5 kgf/cm² 9800 kgf-equivalent (catalog headed kg) At 6 kgf/cm² 11800 kgf-equivalent (catalog headed kg) At 7 kgf/cm² 13800 kgf-equivalent (catalog headed kg) The dimension table illustrates the standard cylinder configuration. For horizontal installation, the reservoir is connected vertically to the hydraulic cylinder as stated in the ordering footnote. The standard drawing is a dimensional reference, not a complete final layout for an independently positioned reservoir. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 6778 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 398 × 145 × 145 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework.

Read more less

$2,402.57

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-8T-5-13T-S

Specifications: APTC-8T-5-13T-S — compact direct-pressure air-oil booster listing with 80 mm selected hydraulic bore, 5 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 8T 80 mm hydraulic bore under the catalog’s bore-code mapping 5 5 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 80 mm Selected boosted stroke 5 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 80 mm hydraulic bore through 8T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 6194 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 360 × 118 × 180 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$2,162.41

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-5T-5-13T-S

Specifications: APTC-5T-5-13T-S — compact direct-pressure air-oil booster listing with 63 mm selected hydraulic bore, 5 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 5T 63 mm hydraulic bore under the catalog’s bore-code mapping 5 5 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 63 mm Selected boosted stroke 5 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 63 mm hydraulic bore through 5T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 2693 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 265 × 112 × 112 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,536.46

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-3T-5-13T-S

Specifications: APTC-3T-5-13T-S — compact direct-pressure air-oil booster listing with 63 mm selected hydraulic bore, 5 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 3T 63 mm hydraulic bore under the catalog’s bore-code mapping 5 5 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 63 mm Selected boosted stroke 5 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 63 mm hydraulic bore through 3T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 2489 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 245 × 112 × 112 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,536.46

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-1T-5-13T-S

Specifications: APTC-1T-5-13T-S — compact direct-pressure air-oil booster listing with 50 mm selected hydraulic bore, 5 mm boosted stroke and 13 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 1T 50 mm hydraulic bore under the catalog’s bore-code mapping 5 5 mm boosted stroke 13T 13 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 50 mm Selected boosted stroke 5 mm Selected output class 13 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 50 mm hydraulic bore through 1T, but its 13T output class is cataloged with a 100 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 1742 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 215 × 100 × 100 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$1,397.95

View options
View options

Airtac APTC series: compact direct-pressure air-oil booster - APTC-13T-20-8T-S

Specifications: APTC-13T-20-8T-S — compact direct-pressure air-oil booster listing with 100 mm selected hydraulic bore, 20 mm boosted stroke and 8 tonne output-class selection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning APTC Direct-pressure compact air-oil booster 13T 100 mm hydraulic bore under the catalog’s bore-code mapping 20 20 mm boosted stroke 8T 8 tonne theoretical output class S Horizontal arrangement Technical Specifications Parameter Details Selected hydraulic bore 100 mm Selected boosted stroke 20 mm Selected output class 8 tonne Air pressure, series range 0.2–0.7 MPa, filtered dry air Oil grade ISO VG32 Working temperature, series range −5 to +60°C Hydraulic proof pressure, series 30 MPa Pneumatic proof pressure, series 1.5 MPa Stroke tolerance +1.0 / 0 mm Working frequency, series 10 cycles/min Dimensions and Installation Parameter Details Installation dimensions Not assigned: the listed bore-selection and output-selection codes map to different hydraulic bores in the supplied catalog. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. This listing selects 100 mm hydraulic bore through 13T, but its 8T output class is cataloged with a 80 mm bore. The source does not define this crossed combination. The original model is retained; the series operating ranges above do not validate this combination. Confirm a matching complete order code before ordering. No dimensions or theoretical output from a different bore have been assigned to it. The selected F or S arrangement determines reservoir placement. The supplied APTC drawing is not a dimensioned remote-piping layout; confirm the final reservoir orientation and mounting before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 21220 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 803 × 145 × 225 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework. This mass estimate uses a supported same-bore reference only and does not validate the crossed ordering combination.

Read more less

$2,402.57

View options
View options

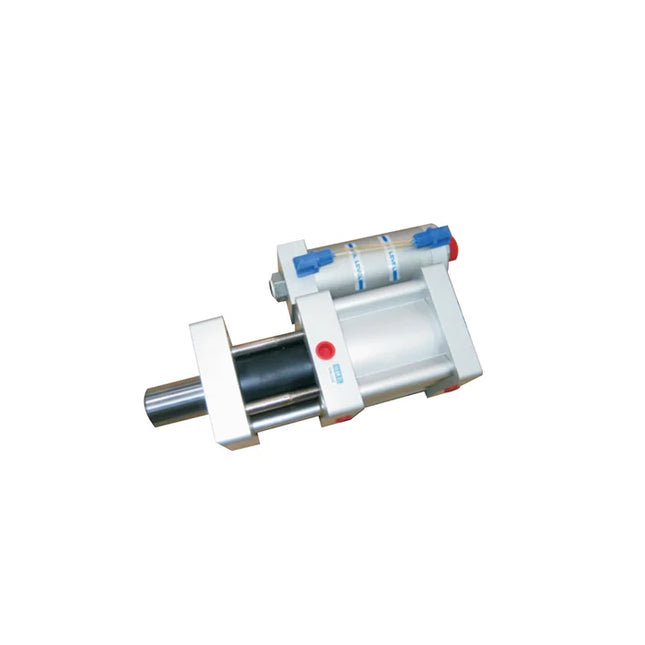

Airtac APTC series: compact direct-pressure air-oil booster - APTC-8T-20-8T-S
