AFR,BFR(52)

728 products

Show previous products

  • Airtac BFR: Air Filter Regulator - BFR20003G

    Airtac BFR: Air Filter Regulator - BFR20003G

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR40001W

    Airtac BFR: Air Filter Regulator - BFR40001W

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR40002T

    Airtac BFR: Air Filter Regulator - BFR40002T

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR40002WT

    Airtac BFR: Air Filter Regulator - BFR40002WT

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR40003G

    Airtac BFR: Air Filter Regulator - BFR40003G

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR40003WG

    Airtac BFR: Air Filter Regulator - BFR40003WG

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR40004

    Airtac BFR: Air Filter Regulator - BFR40004

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR40004W

    Airtac BFR: Air Filter Regulator - BFR40004W

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000A1W

    Airtac BFR: Air Filter Regulator - BFR4000A1W

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR4000A2T

    Airtac BFR: Air Filter Regulator - BFR4000A2T

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR4000A2WT

    Airtac BFR: Air Filter Regulator - BFR4000A2WT

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR4000A3WG

    Airtac BFR: Air Filter Regulator - BFR4000A3WG

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR4000M1W

    Airtac BFR: Air Filter Regulator - BFR4000M1W

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000M2T

    Airtac BFR: Air Filter Regulator - BFR4000M2T

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000M2WT

    Airtac BFR: Air Filter Regulator - BFR4000M2WT

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000M3G

    Airtac BFR: Air Filter Regulator - BFR4000M3G

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000M3WG

    Airtac BFR: Air Filter Regulator - BFR4000M3WG

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000M4

    Airtac BFR: Air Filter Regulator - BFR4000M4

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000M4W

    Airtac BFR: Air Filter Regulator - BFR4000M4W

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR2000A1W

    Airtac BFR: Air Filter Regulator - BFR2000A1W

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR2000A3G

    Airtac BFR: Air Filter Regulator - BFR2000A3G

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR2000M3G

    Airtac BFR: Air Filter Regulator - BFR2000M3G

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR2000M3WG

    Airtac BFR: Air Filter Regulator - BFR2000M3WG

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 5μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR2000M4W

    Airtac BFR: Air Filter Regulator - BFR2000M4W

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

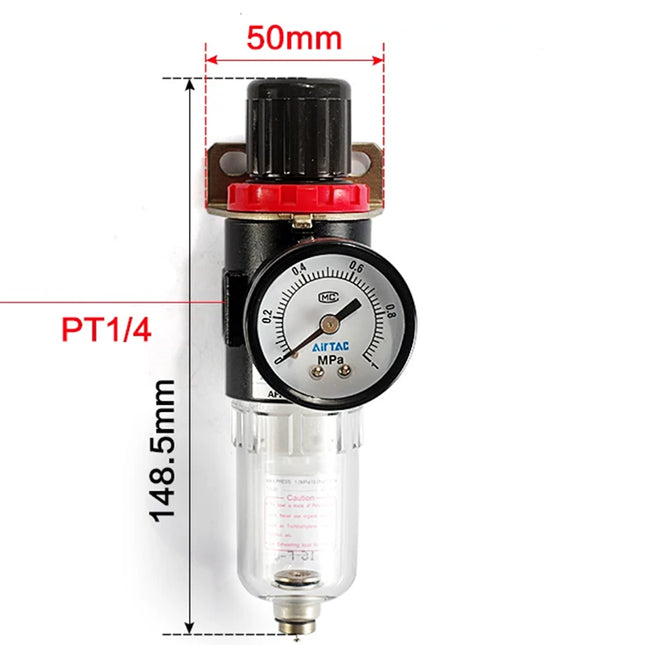

  • Airtac AFR: Air Filter Regulator - AFR20001

    Airtac AFR: Air Filter Regulator - AFR20001

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR20003G

    Airtac AFR: Air Filter Regulator - AFR20003G

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac AFR: Air Filter Regulator - AFR2000M1W

    Airtac AFR: Air Filter Regulator - AFR2000M1W

    Series: A series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac BFR: Air Filter Regulator - BFR20002WT

    Airtac BFR: Air Filter Regulator - BFR20002WT

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR30001W

    Airtac BFR: Air Filter Regulator - BFR30001W

    Series: B series pressure regulating filter,Nozzle caliber: 3/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR3000M3G

    Airtac BFR: Air Filter Regulator - BFR3000M3G

    Series: B series pressure regulating filter,Nozzle caliber: 3/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR20004

    Airtac BFR: Air Filter Regulator - BFR20004

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000A3G

    Airtac BFR: Air Filter Regulator - BFR4000A3G

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: bar,Filtration accuracy: 40μm level,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR4000M1

    Airtac BFR: Air Filter Regulator - BFR4000M1

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR2000A4W

    Airtac BFR: Air Filter Regulator - BFR2000A4W

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR2000M2T

    Airtac BFR: Air Filter Regulator - BFR2000M2T

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR3000M1

    Airtac BFR: Air Filter Regulator - BFR3000M1

    Series: B series pressure regulating filter,Nozzle caliber: 3/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR3000M4

    Airtac BFR: Air Filter Regulator - BFR3000M4

    Series: B series pressure regulating filter,Nozzle caliber: 3/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR4000A4

    Airtac BFR: Air Filter Regulator - BFR4000A4

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR4000A4W

    Airtac BFR: Air Filter Regulator - BFR4000A4W

    Series: B series pressure regulating filter,Nozzle caliber: 1/2",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

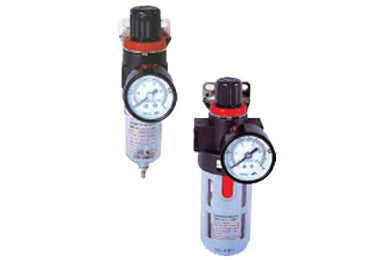

  • Airtac BFR: Air Filter Regulator - BFR2000A2WT

    Airtac BFR: Air Filter Regulator - BFR2000A2WT

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR2000A4

    Airtac BFR: Air Filter Regulator - BFR2000A4

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: kgf/cm² & psi,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR2000M1W

    Airtac BFR: Air Filter Regulator - BFR2000M1W

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 5μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR2000M2WT

    Airtac BFR: Air Filter Regulator - BFR2000M2WT

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac AFR: Air Filter Regulator - AFR1500M2T

    Airtac AFR: Air Filter Regulator - AFR1500M2T

    Series: A series pressure regulating filter,Nozzle caliber: 1/8",Drainage mode: manual drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $21.80

  • Airtac BFR: Air Filter Regulator - BFR30002T

    Airtac BFR: Air Filter Regulator - BFR30002T

    Series: B series pressure regulating filter,Nozzle caliber: 3/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $31.70

  • Airtac BFR: Air Filter Regulator - BFR3000A2T

    Airtac BFR: Air Filter Regulator - BFR3000A2T

    Series: B series pressure regulating filter,Nozzle caliber: 3/8",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 40μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR2000A1

    Airtac BFR: Air Filter Regulator - BFR2000A1

    Series: B series pressure regulating filter,Nozzle caliber: 1/4",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: MPa,Filtration accuracy: 40μm level,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

  • Airtac BFR: Air Filter Regulator - BFR3000A2WT

    Airtac BFR: Air Filter Regulator - BFR3000A2WT

    Series: B series pressure regulating filter,Nozzle caliber: 3/8",Drainage mode: automatic drainage type,Type: Standard type (0.9MPa),Bracket: attached bracket,Pressure gauge: schedule,Scale unit: psi,Filtration accuracy: 5μm level,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. The structure is delicate and compact which is convenient for installation and application.2. The pressed in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interference.3. The pressure loss is low and the efficiency of water separating is high.4. In addition to standard type lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

    Read more

    $41.50

You have seen 720 out of 728 products

Show more products

Filter Regulator Product Information

Filter Regulator

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  1. Compact structure, easy to install and use.
  2. Self-locking pressure adjustment mechanism prevents pressure changes due to external interference.
  3. Low pressure loss, high water separation efficiency.
  4. In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).

Specifications

Model AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Working Medium Air
Port Size [Note 1] PT1/8 PT1/4 PT1/4 PT3/8 PT1/2
Filter Precision 40μm or 5μm
Pressure Regulation Range Automatic & Semi-automatic Drain: 0.15–0.9MPa (20–130Psi) / Manual Drain: 0.05–0.9MPa (7–130Psi)
Max Operating Pressure 1.0MPa (145Psi)
Proof Pressure 1.5MPa (215Psi)
Operating Temperature Range -5–70°C (No freezing)
Water Bowl Capacity 15CC 60CC
Note 1: G and NPT thread types are available.

Product Ordering Code

Position Description Options & Values
1 Series Code
  • AFR: A Series Filter Regulator
  • BFR: B Series Filter Regulator
2 Port Size
  • 1500: 1/8"
  • 2000: 1/4"
  • 3000: 3/8"
  • 4000: 1/2"
3 Drain Type
  • Blank: Semi-automatic Drain
  • M: Manual Drain
  • A: Automatic Drain
4 Model Type Code
  • Blank: Standard Type (0.9MPa)
  • L: Low Pressure Type (0.4MPa)
5 Bracket Code
  • Blank: With Bracket
  • J: Without Bracket
6 Pressure Gauge Code
  • Blank: With Pressure Gauge
  • N: Without Pressure Gauge
7 Pressure Unit
  • 1: MPa
  • 2: psi
  • 3: bar
  • 4: kgf/cm² & psi
8 Filter Precision
  • Blank: 40μm
  • W: 5μm
9 Thread Code [Note 1]
  • Blank: PT thread
  • G: G thread
  • T: NPT thread
Note 1: For special requirements, please contact our company's business department for confirmation.
