AFR,BFR

Model	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
Working Medium	Air
Port Size [Note 1]	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2
Filter Precision	40μm or 5μm
Pressure Regulation Range	Automatic & Semi-automatic Drain: 0.15–0.9MPa (20–130Psi) / Manual Drain: 0.05–0.9MPa (7–130Psi)
Max Operating Pressure	1.0MPa (145Psi)
Proof Pressure	1.5MPa (215Psi)
Operating Temperature Range	-5–70°C (No freezing)
Water Bowl Capacity	15CC	60CC

Position	Description	Options & Values
1	Series Code	AFR: A Series Filter Regulator BFR: B Series Filter Regulator
2	Port Size	1500: 1/8" 2000: 1/4" 3000: 3/8" 4000: 1/2"
3	Drain Type	Blank: Semi-automatic Drain M: Manual Drain A: Automatic Drain
4	Model Type Code	Blank: Standard Type (0.9MPa) L: Low Pressure Type (0.4MPa)
5	Bracket Code	Blank: With Bracket J: Without Bracket
6	Pressure Gauge Code	Blank: With Pressure Gauge N: Without Pressure Gauge
7	Pressure Unit	1: MPa 2: psi 3: bar 4: kgf/cm² & psi
8	Filter Precision	Blank: 40μm W: 5μm
9	Thread Code [Note 1]	Blank: PT thread G: G thread T: NPT thread

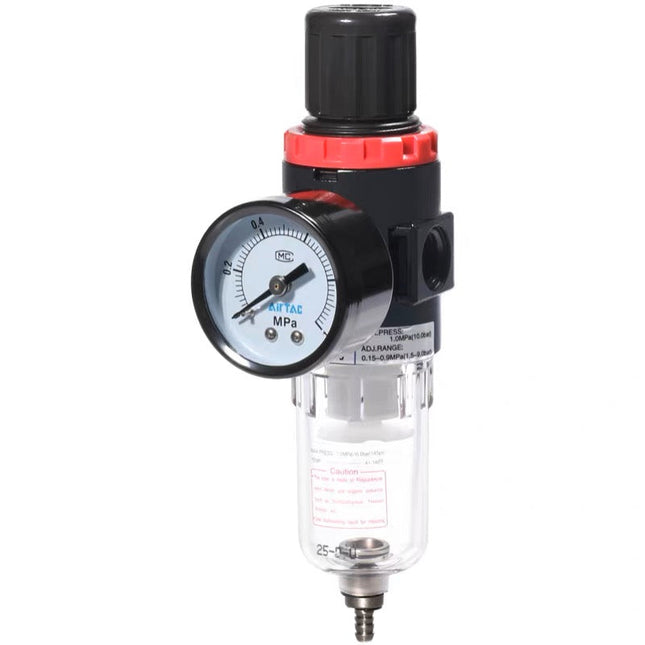

Airtac AFR: Air Filter Regulator - AFR2000MLJ4

Series: A series pressure regulating filter Nozzle caliber: 1/4" Drainage mode: manual drainage type Type: low pressure type (0.4MPa) Bracket: without bracket Pressure gauge: schedule Scale unit: kgf/cm² & psi Filtration accuracy: 40μm level Tooth type: PT tooth Specifications 1. Model: AFR2000MLJ4 2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Water filter cup capacity: 15CC, with G teeth and NPT teeth available for nozzle type Internal structure: 1. Button: POM/2. Main pressure regulator: POM/3. Main pressure regulating nut: fast cutting steel/4. Main pressure regulator: POM/5. Pressure regulating spring: SWC/6. Retaining ring cap: POM/7. Body: aluminum alloy/8. Main pressure diaphragm: SUS304 encapsulated/9. Pressure regulating column: aluminum alloy + NBR/10. Pressure regulating plug head: aluminum alloy coated/11. Diverter: POM/12. Umbrella type fixing seat: POM/13. Water cup: PC/14. Differential pressure drain bolt: POM/15. Spring: Stainless steel/16. Differential pressure drainage seat: POM/17. Drainer: POM/18. Differential pressure drainage seat: NBR/19. Filter element: HDPE/20. Return spring: stainless steel/21. Water cup o order: NBR/22. Pressure regulating column O order: NBR/23. Shield switch: POM/24. Sealing sleeve: POM/25. Shield: PA66/26. Buckle: Spring steel Filter cartridge :AFR-40 With white 40μm filter element AFR-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of the set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. In addition to the standard type and low pressure type optional (maximum adjustable pressure 0.4MPa).
