F.R.L. Unit Product Information

Filter Regulator Combination

Product Features
Specifications
Product Ordering Code

Product Features

Compact structure, easy installation and use.
Self-locking pressure adjustment mechanism prevents pressure changes due to external interference.
Low pressure loss, high water separation efficiency.
Transparent observation cover allows for direct monitoring of oil drip levels.
In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).

Specifications

Model	AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Working Medium	Air
Port Size [Note 1]	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2
Filter Precision	40μm or 5μm
Pressure Regulation Range	Automatic & Semi-automatic Drain: 0.15–0.9MPa (20–130Psi) / Manual Drain: 0.05–0.9MPa (7–130Psi)
Max Operating Pressure	1.0MPa (145Psi)
Proof Pressure	1.5MPa (215Psi)
Operating Temperature Range	-5–70°C (No freezing)
Water Bowl Capacity	15CC		60CC
Oil Bowl Capacity	25CC		90CC
Recommended Lubricating Oil	ISO VG-32 or equivalent oil
Component Structure	Regulator: AFR1500	Regulator: AFR2000	Regulator: BFR2000	Regulator: BFR3000	Regulator: BFR4000
Component Structure	Filter: AL1500	Filter: AL2000	Filter: BL2000	Filter: BL3000	Filter: BL4000

Note 1: G and NPT thread types are available.

Product Ordering Code

Position	Description	Options & Values
1	Series Code	AFC: A Series 2-Unit Combo BFC: B Series 2-Unit Combo
2	Port Size	1500: 1/8" 2000: 1/4" 3000: 3/8" 4000: 1/2"
3	Drain Type [Note 1]	Blank: Semi-automatic Drain M: Manual Drain A: Automatic Drain
4	Model Type Code	Blank: Standard Type (0.9MPa) L: Low Pressure Type (0.4MPa)
5	Pressure Gauge Code	Blank: With Pressure Gauge N: Without Pressure Gauge
6	Pressure Unit	1: MPa 2: Psi 3: bar 4: Kgf/cm² & psi
7	Filter Precision	Blank: 40μm W: 5μm
8	Thread Code	Blank: PT thread G: G thread T: NPT thread

Note 1: Certain special drain types may have different related requirements. Please consult our company's business department for details.

Show previous products

View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500ML1W

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: low pressure type (0.4MPa) Pressure gauge: schedule Scale unit: MPa Filtration accuracy: 5μm level Tooth type: PT tooth Specifications 1. Model: AFC1500ML1W 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500ML1

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: low pressure type (0.4MPa) Pressure gauge: schedule Scale unit: MPa Filtration accuracy: 40μm level Tooth type: PT tooth Specifications 1. Model: AFC1500ML1 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500M4W

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: kgf/cm² & psi Filtration accuracy: 5μm level Tooth type: PT tooth Specifications 1. Model: AFC1500M4W 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500M4

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: kgf/cm² & psi Filtration accuracy: 40μm level Tooth type: PT tooth Specifications 1. Model: AFC1500M4 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500M3WG

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: bar Filtration accuracy: 5μm level Tooth type: G tooth Specifications 1. Model: AFC1500M3WG 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500M3G

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: bar Filtration accuracy: 40μm level Tooth type: G tooth Specifications 1. Model: AFC1500M3G 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500M2WT

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: psi Filtration accuracy: 5μm level Tooth type: NPT tooth Specifications 1. Model: AFC1500M2WT 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500M2T

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: psi Filtration accuracy: 40μm level Tooth type: NPT tooth Specifications 1. Model: AFC1500M2T 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500M1W

Series: A series of two pieces Nozzle caliber: 1/8" Drainage mode: manual drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: MPa Filtration accuracy: 5μm level Tooth type: PT tooth Specifications 1. Model: AFC1500M1W 2. Working medium: air, nozzle diameter: PT1/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi) 3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen) 4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil 5. Components: pressure regulating filter: AFR1500, oil feeder: AL1500, nozzle type with G teeth and NPT teeth optional Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element Click to download Airtac product catalog Product Features 1. compact structure, easy to install and use. 2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference. 3. Low pressure loss, high water efficiency. 4. The amount of oil dripping can be directly observed through the transparent inspection cover. 5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).

Read more less

$47.39

View options
View options

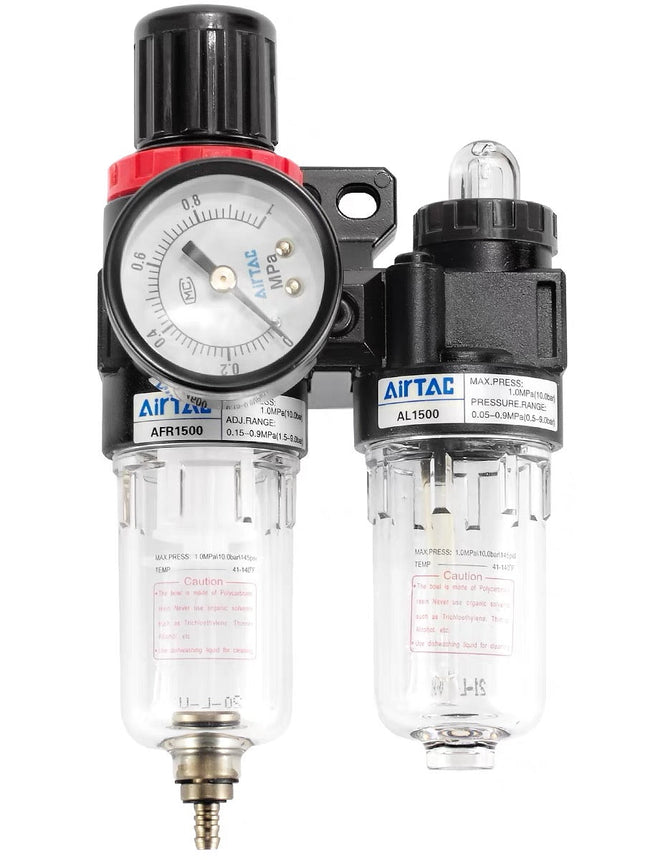

Airtac AFC: series F.R.L Pneumatic Air Filter - AFC1500M1
