ACF Series Compact Cylinder

ACF Series Compact Cylinder

  • Product Features
  • Specifications
  • Stroke
  • Ordering Code

Product Features

  • 1. Executing ISO21287 standard, with versatile mounting dimensions.
  • 2. The cylinder body connects with the front and rear covers using C-type snap rings, with riveted piston/rod structure, ensuring reliability.
  • 3. The cylinder inner diameter is precision processed and hard anodized for wear resistance and durability.
  • 4. The piston seal adopts a heterogeneous two-way seal structure, compact size with oil storage function.
  • 5. Compact structure saves 50% installation space compared to ISO15552 standard cylinders.
  • 6. The cylinder body has sensor grooves on three sides for convenient sensor installation.
  • 7. Built-in anti-collision pads (bumpers) absorb residual energy from high-speed operation.
  • 8. A variety of mounting accessories are available.

Specifications

Bore Size (mm) 12 16 20 25 32 40 50 63
Acting Type Double Acting
Single Acting Push / Single Acting Pull
Fluid Air (filtered to 40μm or better)
Operating Pressure Double Acting: 0.15~1.0MPa (22~145psi)
Single Acting: 0.2~1.0MPa (28~145psi)
Proof Pressure 1.5MPa (215psi)
Temperature -20 ~ 70 °C
Speed Range Double Acting: 30~500 mm/s | Single Acting: 50~500 mm/s
Stroke Tolerance Stroke ≤ 100: +1.00 | Stroke > 100: +1.50
Cushion Type Bumper (Anti-collision pad)
Port Size [Note 1] M5 × 0.8 G1/8
[Note 1] PT thread and G thread are available.

Stroke Table

Type Bore (mm) Standard Stroke (mm) Max. Stroke
Standard
(Double Acting)		 12 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 50
16 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75 75
20 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100 100
25 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150 150
32, 40 5... 100, 110, 120, 125, 150, 160, 175, 200 200
50, 63 5... 200, 225, 250 250
Single Acting 12 5, 10 10
16 ~ 63 5, 10, 15, 20, 25 25
Guide Rod Type
(TACF)		 12 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 50
16 5... 50, 55, 60, 70, 75 75
20, 25 5... 75, 80, 90, 100 100
32, 40 5... 100 100
50, 63 5... 100 100
Note: Non-standard strokes are available upon request. Strokes within allowable range but exceeding max stroke are treated as non-standard.

Ordering Code Guide

ACF 20 x 30 S B - □
No. Item Applicable Model Description
1 Model All ACF: Compact Cylinder (Double Acting)
ASF: Single Acting (Push) [Note 1]
ATF: Single Acting (Pull)
TACF: Double Acting with Guide Rod
TACFD: Double Shaft with Guide Rod
ACFD: Double Shaft Double Acting
ACFJ: Double Shaft Adj. Stroke
2 Bore Size All Models 12, 16, 20, 25, 32, 40, 50, 63
3 Stroke All Refer to Stroke Table
4 Adj. Stroke ACFJ Only Standard: No Code
ACFJ: 10, 20, 30, 40, 50, 75, 100
5 Magnet All Blank: No Magnet
S: With Magnet
6 Rod Thread ACF, ASF, ATF, ACFD, ACFJ
TACF, TACFD 		Blank: Internal Thread (Female)
B: External Thread (Male)
No Code (Not Applicable)
7 Mounting [Note 2] ACF, ASF, ATF
TACF, TACFD
ACFD
ACFJ 		Blank: None | FA/FB: Front/Rear Flange
CA/CB: Single/Double Clevis
CR: Single Ear (use w/ CB) | LB: Axial Foot
SDB: Rear Hinge | FTC: Front Trunnion
Blank: None | FB: Rear Flange
CA: Single Clevis | CB: Double Clevis
CR: Single Ear | FTC: Trunnion
Blank: None | FB: Rear Flange
Blank: None | FA: Front Flange
FTC: Trunnion | LB: Axial Foot
8 Thread Type [Note 3] All Blank: PT Thread
G: G Thread
[Note 1] Single Acting Push: Piston rod extends when air is supplied; retracts by spring force.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] CR used with CB; SDB used with CA; FTC used with TCM2.
[Note 3] When port size is M5, this code is blank.

Show previous products

  • Airtac ACF series: double action cylinder - ACF63X25BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X25BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 25mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X25BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $106.68

    View options

  • Airtac ACF series: double action cylinder - ACF63X90SCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X90SCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 90mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X90SCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $148.07

    View options

  • Airtac ACF series: double action cylinder - ACF63X40BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X40BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 40mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X40BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $115.18

    View options

  • Airtac ACF series: double action cylinder - ACF63X90BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X90BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 90mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X90BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $144.75

    View options

  • Airtac ACF series: double action cylinder - ACF63X50BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X50BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Travel: 50mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X50BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $122.20

    View options

  • Airtac ACF series: double action cylinder - ACF63X15BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X15BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 15mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X15BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $100.47

    View options

  • Airtac ACF series: double action cylinder - ACF63X200SCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X200SCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 200mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X200SCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $205.82

    View options

  • Airtac ACF series: double action cylinder - ACF63X80BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X80BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 80mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X80BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $139.75

    View options

  • Airtac ACF series: double action cylinder - ACF63X110BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X110BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 110mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X110BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $154.44

    View options

  • Airtac ACF series: double action cylinder - ACF63X225SCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X225SCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 225mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X225SCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $218.51

    View options

  • Airtac ACF series: double action cylinder - ACF63X30BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X30BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Travel: 30mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X30BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $110.19

    View options

  • Airtac ACF series: double action cylinder - ACF63X20BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X20BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 20mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X20BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $103.98

    View options

  • Airtac ACF series: double action cylinder - ACF63X160SCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X160SCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 160mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X160SCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $185.30

    View options

  • Airtac ACF series: double action cylinder - ACF63X55BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X55BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 55mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X55BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $125.71

    View options

  • Airtac ACF series: double action cylinder - ACF63X35BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X35BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 35mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X35BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $112.48

    View options

  • Airtac ACF series: double action cylinder - ACF63X10BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X10BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Travel: 10mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X10BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $98.17

    View options

  • Airtac ACF series: double action cylinder - ACF63X55SCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X55SCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 55mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X55SCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $127.82

    View options

  • Airtac ACF series: double action cylinder - ACF63X45BCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X45BCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 45mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X45BCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $118.42

    View options

  • Airtac ACF series: double action cylinder - ACF63X25SCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X25SCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 25mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X25SCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $109.86

    View options

  • Airtac ACF series: double action cylinder - ACF63X150SCAG

    View options

    Airtac ACF series: double action cylinder - ACF63X150SCAG



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 150mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: G tooth Specifications 1. Model: ACF63X150SCAG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth. Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other) Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, the installation size of versatility. 2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable. 3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable. 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space. 6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor. 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation. 8. A variety of installation accessories for choice.

    Read more



    $180.04

    View options

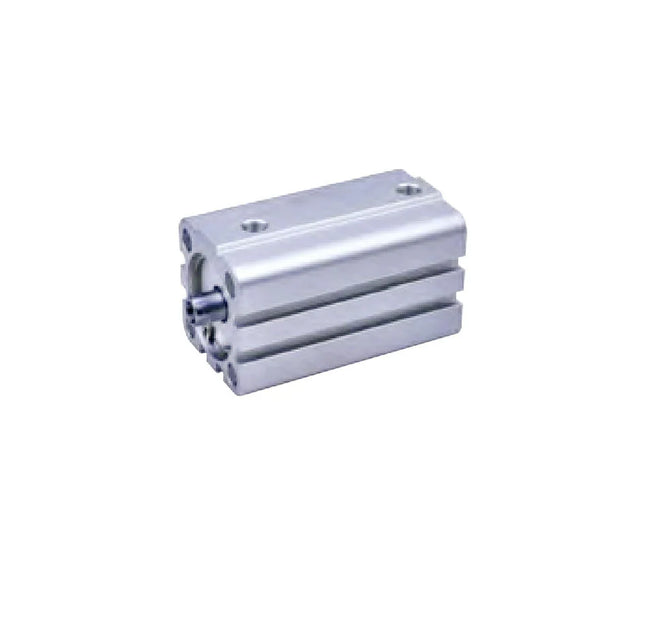

  • Airtac ACF series: double action cylinder - ACF63X250SCAG
