ACE Series Compact Cylinder

ACE Series Compact Cylinder

  • Product Features
  • Specifications
  • Stroke
  • Ordering Code

Product Features

  • 1. Executing ISO21287 standard, with versatile mounting dimensions.
  • 2. The cylinder body connects with the front and rear covers using threads, providing good strength and easy maintenance.
  • 3. The cylinder inner diameter is precision processed and then hard anodized, ensuring wear resistance and durability.
  • 4. The piston seal adopts a heterogeneous two-way seal structure, which is compact in size and has an oil storage function.
  • 5. Compact structure effectively saves installation space; compared to ISO15552 standard cylinders of the same bore, it saves 50% of the space.
  • 6. The cylinder body has sensor grooves on three sides, making sensor installation convenient.
  • 7. Built-in anti-collision pads (bumpers) effectively absorb residual energy generated by high-speed operation and machine reversal.
  • 8. A variety of mounting accessories are available for selection.

Specifications

Bore Size (mm) 12 16 20 25 32 40 50 63 80 100 125
Acting Type Double Acting
Single Acting Push / Single Acting Pull
Fluid Air (filtered to 40μm or better)
Operating Pressure Double Acting: 0.15~1.0MPa (22~145psi)
Single Acting: 0.2~1.0MPa (28~145psi)
Proof Pressure 1.5MPa (215psi)
Temperature -20 ~ 70 °C
Speed Range Double Acting: 30~500 mm/s | Single Acting: 50~500 mm/s
Stroke Tolerance Stroke ≤ 100: +1.00 | Stroke > 100: +1.50
Cushion Type Bumper (Anti-collision pad)
Port Size [Note 1] M5 × 0.8 G1/8 G1/4
[Note 1] PT thread and G thread are available.

Stroke Table

Type Bore (mm) Standard Stroke (mm) Max. Stroke
ACE
(Standard)		 12 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 50
16 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75 75
20 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100 100
25 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150 150
32, 40 5... 100, 110, 120, 125, 150, 160, 175, 200 200
50, 63 5... 200, 225, 250 250
80, 100, 125 5... 250, 275, 300 300
ASE / ATE
(Single Acting)		 12 5, 10 10
16 ~ 100 5, 10, 15, 20, 25 25
TACE
(Guide Rod)		 12 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 50
16 5... 50, 55, 60, 70, 75 75
20, 25 5... 75, 80, 90, 100 100
32, 40 5... 100 100
50, 63 5... 100 100
80, 100 5... 100 100
Note: Non-standard strokes are available upon request. For strokes > Max Stroke, it is treated as non-standard.

Ordering Code Guide

ACE 20 x 30 S B - □
No. Item Applicable Model Description
1 Model All ACE: Compact Cylinder (Double Acting)
ASE: Single Acting (Push) [Note 1]
ATE: Single Acting (Pull)
TACE: Double Acting with Guide Rod
TACED: Double Shaft with Guide Rod
ACED: Double Shaft Double Acting
ACEJ: Double Shaft Adj. Stroke
2 Bore Size ACE (Standard)
ASE/ATE (Single Acting)
TACE/TACED (Guide Rod)
ACED/ACEJ (Double Shaft) 		12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125
12, 16, 20, 25, 32, 40, 50, 63, 80, 100
12, 16, 20, 25, 32, 40, 50, 63, 80, 100
12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125
3 Stroke All Refer to Stroke Table
4 Adj. Stroke ACEJ Only Standard: No Code
ACEJ: 10, 20, 30, 40, 50, 75, 100
5 Magnet All Blank: No Magnet
S: With Magnet
6 Rod Thread ACE, ASE, ATE, ACED, ACEJ
TACE, TACED 		Blank: Internal Thread (Female)
B: External Thread (Male)
No Code
7 Mounting [Note 2] ACE, ASE, ATE
TACE, TACED
ACED
ACEJ 		Blank: None | FA/FB: Front/Rear Flange
CA/CB: Single/Double Clevis
CR: Single Ear (use w/ CB) | LB: Axial Foot
SDB: Rear Hinge (use w/ CA) | FTC: Trunnion
Blank: None | FB: Rear Flange
CA: Single Clevis | CB: Double Clevis
CR: Single Ear | FTC: Trunnion
Blank: None | FB: Rear Flange
Blank: None | FA: Front Flange
FTC: Trunnion | LB: Axial Foot
8 Thread Type [Note 3] All Blank: PT Thread
G: G Thread
[Note 1] Single Acting Push: Piston rod extends when air is supplied; retracts by spring force.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] CR must be used with CB; SDB must be used with CA; FTC must be used with TCM2.
[Note 3] When port size is M5, this code is blank.

Show previous products

  • Airtac ACE series: double action cylinder - ACE63X40SBFAT

    View options

    Airtac ACE series: double action cylinder - ACE63X40SBFAT



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 40mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: front flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE63X40SBFAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE63-R1 NBR material P-ACE63-R2 Fluorine rubber material ， Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $119.07

    View options

  • Airtac ACE series: double action cylinder - ACE125X300SBFBT

    View options

    Airtac ACE series: double action cylinder - ACE125X300SBFBT



    Specifications: Compact cylinder (compound type) Bore: 125mm Stroke: 300mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: rear flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE125X300SBFBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE125-R1 NBR material P-ACE125-R2 Fluorine rubber material ， Installation accessories :F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SI125FTC Front cover trunnion bracket F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $578.02

    View options

  • Airtac ACE series: double action cylinder - ACE125X225BCBT

    View options

    Airtac ACE series: double action cylinder - ACE125X225BCBT



    Specifications: Compact cylinder (compound type) Bore: 125mm Stroke: 225mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: binaural fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE125X225BCBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE125-R1 NBR material P-ACE125-R2 Fluorine rubber material ， Installation accessories :F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SI125FTC Front cover trunnion bracket F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $590.84

    View options

  • Airtac ACE series: double action cylinder - ACE63X55SBFAT

    View options

    Airtac ACE series: double action cylinder - ACE63X55SBFAT



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 55mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: front flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE63X55SBFAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE63-R1 NBR material P-ACE63-R2 Fluorine rubber material ， Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $125.58

    View options

  • Airtac ACE series: double action cylinder - ACE50X125CAT

    View options

    Airtac ACE series: double action cylinder - ACE50X125CAT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 50mm Stroke: 125mm Magnet: no magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE50X125CAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE50-R1 NBR material P-ACE50-R2 Fluorine rubber material ， Installation accessories :F-ACE50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SI50FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $129.65

    View options

  • Airtac ACE series: double action cylinder - ACE32X50BFAT

    View options

    Airtac ACE series: double action cylinder - ACE32X50BFAT



    Specifications: Compact cylinder (compound type) Bore: 32mm Travel: 50mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: front flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE32X50BFAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE32-R1 NBR material P-ACE32-R2 Fluorine rubber material ， Installation accessories :F-ACE32LB Axial mounting F-SI32FA Flange connecting plate F-SE32CA Single-ear fixing seat F-SE32CB Binaural mount F-SI32CR Single-ear connection seat F-SI32FTC Front cover trunnion bracket F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $65.83

    View options

  • Airtac ACE series: double action cylinder - ACE125X5CAT

    View options

    Airtac ACE series: double action cylinder - ACE125X5CAT



    Specifications: Compact cylinder (compound type) Bore: 125mm Stroke: 5mm Magnet: no magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE125X5CAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE125-R1 NBR material P-ACE125-R2 Fluorine rubber material ， Installation accessories :F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SI125FTC Front cover trunnion bracket F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $313.23

    View options

  • Airtac ACE series: double action cylinder - ACE32X30BCRT

    View options

    Airtac ACE series: double action cylinder - ACE32X30BCRT



    Specifications: Compact cylinder (compound type) Bore: 32mm Travel: 30mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: single ear connection seat Tooth type: NPT tooth Specifications 1. Model: ACE32X30BCRT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE32-R1 NBR material P-ACE32-R2 Fluorine rubber material ， Installation accessories :F-ACE32LB Axial mounting F-SI32FA Flange connecting plate F-SE32CA Single-ear fixing seat F-SE32CB Binaural mount F-SI32CR Single-ear connection seat F-SI32FTC Front cover trunnion bracket F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $66.77

    View options

  • Airtac ACE series: double action cylinder - ACE125X35FAT

    View options

    Airtac ACE series: double action cylinder - ACE125X35FAT



    Specifications: Compact cylinder (compound type) Bore: 125mm Stroke: 35mm Magnet: no magnet Tooth type of piston rod: inner tooth type Fixed type: front flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE125X35FAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE125-R1 NBR material P-ACE125-R2 Fluorine rubber material ， Installation accessories :F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SI125FTC Front cover trunnion bracket F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $337.66

    View options

  • Airtac ACE series: double action cylinder - ACE40X100SFBT

    View options

    Airtac ACE series: double action cylinder - ACE40X100SFBT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 40mm Stroke: 100mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: rear flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE40X100SFBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE40-R1 NBR material P-ACE40-R2 Fluorine rubber material ， Installation accessories :F-ACE40LB Axial mounting F-SI40FA Flange connecting plate F-SE40CA Single-ear fixing seat F-SE40CB Binaural mount F-SI40CR Single-ear connection seat F-SI40FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $91.40

    View options

  • Airtac ACE series: double action cylinder - ACE32X55SLBT

    View options

    Airtac ACE series: double action cylinder - ACE32X55SLBT



    Specifications: Compact cylinder (compound type) Bore: 32mm Stroke: 55mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: axial fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE32X55SLBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE32-R1 NBR material P-ACE32-R2 Fluorine rubber material ， Installation accessories :F-ACE32LB Axial mounting F-SI32FA Flange connecting plate F-SE32CA Single-ear fixing seat F-SE32CB Binaural mount F-SI32CR Single-ear connection seat F-SI32FTC Front cover trunnion bracket F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $71.06

    View options

  • Airtac ACE series: double action cylinder - ACE50X10FAT

    View options

    Airtac ACE series: double action cylinder - ACE50X10FAT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 50mm Travel: 10mm Magnet: no magnet Tooth type of piston rod: inner tooth type Fixed type: front flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE50X10FAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE50-R1 NBR material P-ACE50-R2 Fluorine rubber material ， Installation accessories :F-ACE50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SI50FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $75.36

    View options

  • Airtac ACE: Compact Air Cylinder. Double Acting - ACE100X80SBT

    View options

    Airtac ACE: Compact Air Cylinder. Double Acting - ACE100X80SBT



    Specifications: Compact cylinder (compound type) Bore: 100mm Stroke: 80mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: no installation accessories Tooth type: NPT tooth Specifications 1. Model: ACE100X80SBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE100-R1 NBR material P-ACE100-R2 Fluorine rubber material ， Installation accessories :F-ACE100LB Axial mounting F-SI100FA Flange connecting plate F-SE100CA Single-ear fixing seat F-SE100CB Binaural mount F-SI100CR Single-ear connection seat F-SI100FTC Front cover trunnion bracket F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $256.91

    View options

  • Airtac ACE series: double action cylinder - ACE50X35FTCT

    View options

    Airtac ACE series: double action cylinder - ACE50X35FTCT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 50mm Stroke: 35mm Magnet: no magnet Tooth type of piston rod: inner tooth type Fixed type: front cover trunnion bracket Tooth type: NPT tooth Specifications 1. Model: ACE50X35FTCT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE50-R1 NBR material P-ACE50-R2 Fluorine rubber material ， Installation accessories :F-ACE50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SI50FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $105.87

    View options

  • Airtac ACE series: double action cylinder - ACE32X100SLBT

    View options

    Airtac ACE series: double action cylinder - ACE32X100SLBT



    Specifications: Compact cylinder (compound type) Bore: 32mm Stroke: 100mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: axial fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE32X100SLBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE32-R1 NBR material P-ACE32-R2 Fluorine rubber material ， Installation accessories :F-ACE32LB Axial mounting F-SI32FA Flange connecting plate F-SE32CA Single-ear fixing seat F-SE32CB Binaural mount F-SI32CR Single-ear connection seat F-SI32FTC Front cover trunnion bracket F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $83.54

    View options

  • Airtac ACE series: double action cylinder - ACE50X40SBFAT

    View options

    Airtac ACE series: double action cylinder - ACE50X40SBFAT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 50mm Stroke: 40mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: front flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE50X40SBFAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE50-R1 NBR material P-ACE50-R2 Fluorine rubber material ， Installation accessories :F-ACE50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SI50FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $92.04

    View options

  • Airtac ACE series: double action cylinder - ACE50X15BCBT

    View options

    Airtac ACE series: double action cylinder - ACE50X15BCBT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 50mm Stroke: 15mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: binaural fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE50X15BCBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE50-R1 NBR material P-ACE50-R2 Fluorine rubber material ， Installation accessories :F-ACE50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SI50FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $82.97

    View options

  • Airtac ACE series: double action cylinder - ACE63X225BCBT

    View options

    Airtac ACE series: double action cylinder - ACE63X225BCBT



    Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 225mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: binaural fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE63X225BCBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE63-R1 NBR material P-ACE63-R2 Fluorine rubber material ， Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $296.27

    View options

  • Airtac ACE: Compact Air Cylinder. Double Acting - ACE63X50BT

    View options

    Airtac ACE: Compact Air Cylinder. Double Acting - ACE63X50BT



    Specifications: Compact cylinder (compound type) Bore: 63mm Travel: 50mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: no installation accessories Tooth type: NPT tooth Specifications 1. Model: ACE63X50BT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE63-R1 NBR material P-ACE63-R2 Fluorine rubber material ， Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $111.38

    View options

  • Airtac ACE series: double action cylinder - ACE50X75SBFAT

    View options

    Airtac ACE series: double action cylinder - ACE50X75SBFAT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 50mm Stroke: 75mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: front flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE50X75SBFAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE50-R1 NBR material P-ACE50-R2 Fluorine rubber material ， Installation accessories :F-ACE50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SI50FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $106.00

    View options

  • Airtac ACE series: double action cylinder - ACE50X175BCBT

    View options

    Airtac ACE series: double action cylinder - ACE50X175BCBT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 50mm Stroke: 175mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: binaural fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE50X175BCBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE50-R1 NBR material P-ACE50-R2 Fluorine rubber material ， Installation accessories :F-ACE50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SI50FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $226.99

    View options

  • Airtac ACE series: double action cylinder - ACE50X100CAT

    View options

    Airtac ACE series: double action cylinder - ACE50X100CAT



    Specifications: Compact cylinder (compound type) Cylinder diameter: 50mm Stroke: 100mm Magnet: no magnet Tooth type of piston rod: inner tooth type Fixed type: single ear fixed seat Tooth type: NPT tooth Specifications 1. Model: ACE50X100CAT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE50-R1 NBR material P-ACE50-R2 Fluorine rubber material ， Installation accessories :F-ACE50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SI50FTC Front cover trunnion bracket F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $119.77

    View options

  • Airtac ACE series: double action cylinder - ACE125X300BFBT

    View options

    Airtac ACE series: double action cylinder - ACE125X300BFBT



    Specifications: Compact cylinder (compound type) Bore: 125mm Stroke: 300mm Magnet: no magnet Tooth type of piston rod: external tooth type Fixed type: rear flange connecting plate Tooth type: NPT tooth Specifications 1. Model: ACE125X300BFBT 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/4 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE125-R1 NBR material P-ACE125-R2 Fluorine rubber material ， Installation accessories :F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SI125FTC Front cover trunnion bracket F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

    Read more



    $536.57

    View options

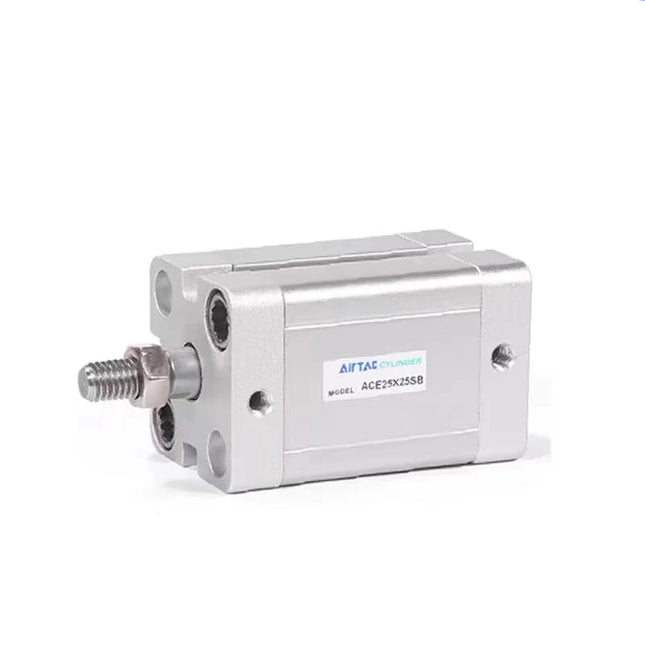

  • Airtac ACE series: double action cylinder - ACE50X10FBT
